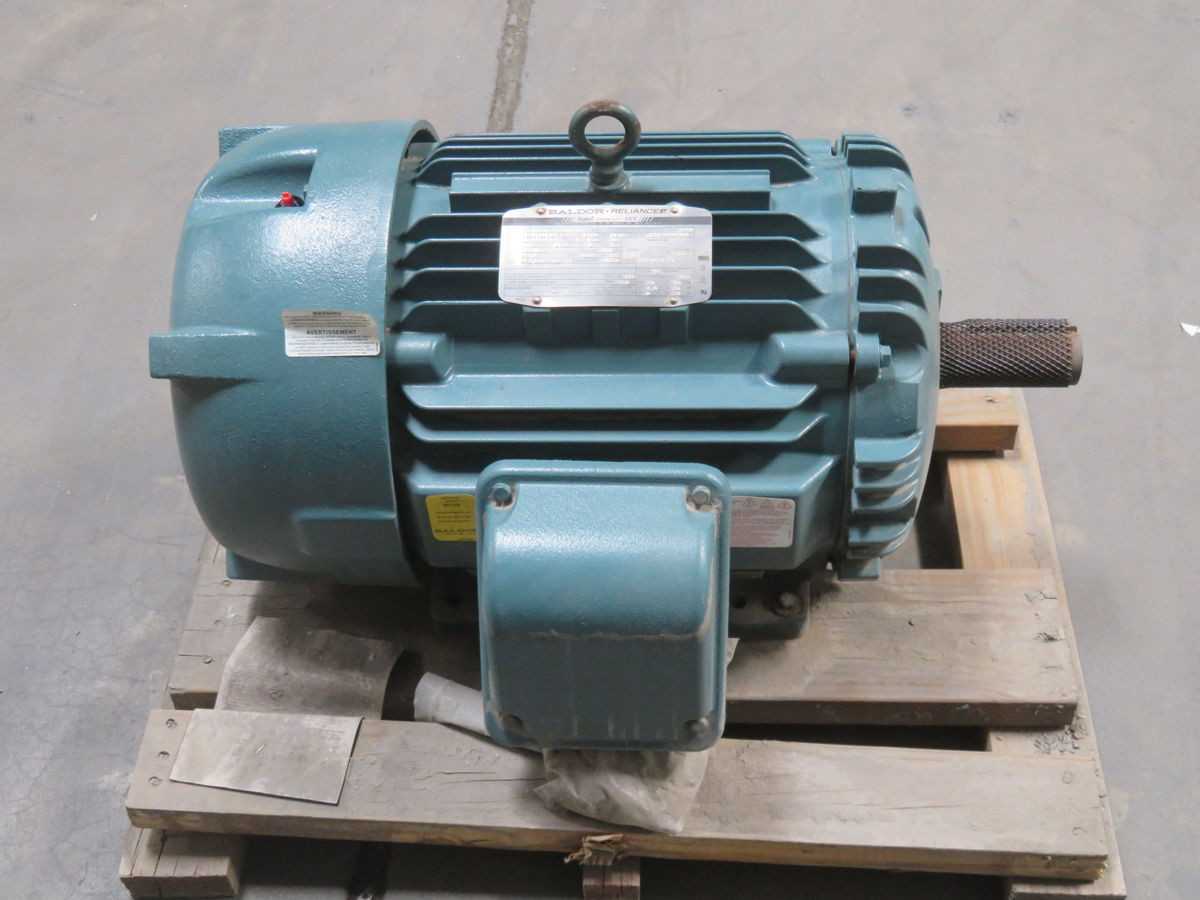

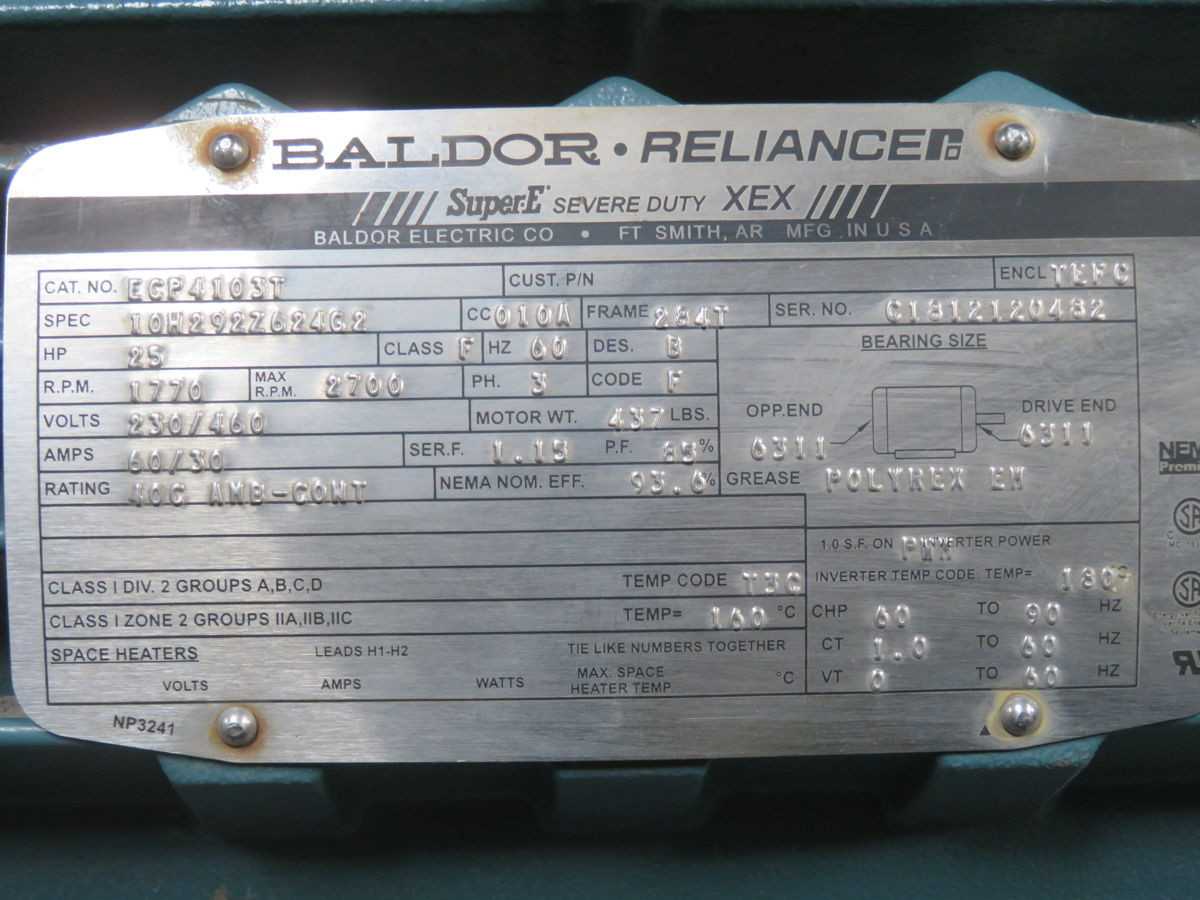

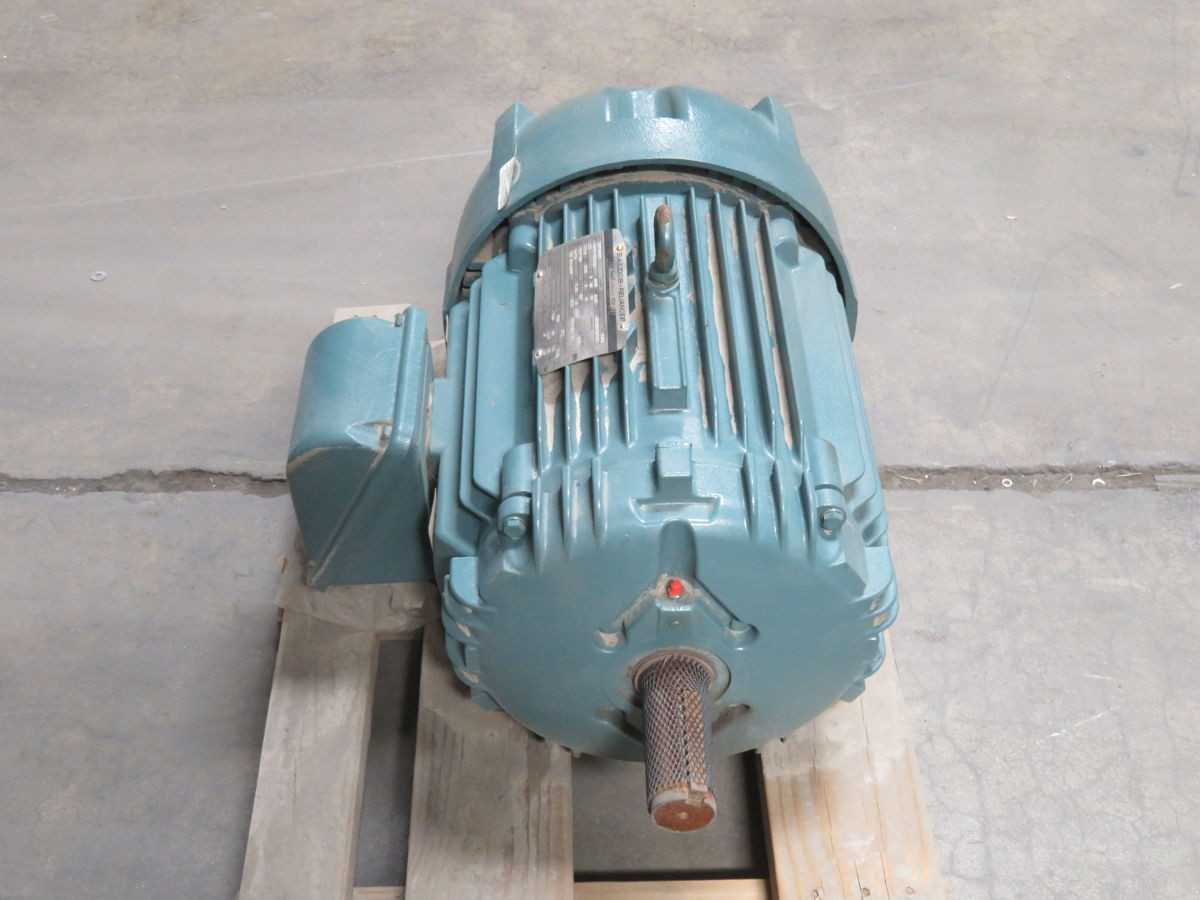

BALDOR ECP4103T AC MOTOR, 25 HP, 1775 RPM, 230/460V, 60 HZ, TEFC ENCL, NEMA DESIGN B

THE BALDOR ECP4103T IS A THREE-PHASE, 25 HP AC ELECTRIC MOTOR ENGINEERED FOR SEVERE-DUTY INDUSTRIAL APPLICATIONS. OPERATING ON A 284T FRAME, IT DELIVERS A FULL-LOAD SPEED OF 1775 RPM AT 60 HZ. THIS SUPER E NEMA PREMIUM EFFICIENT MOTOR FEATURES A TOTALLY ENCLOSED FAN-COOLED (TEFC) ENCLOSURE, PROVIDING ROBUST PROTECTION AGAINST DUST, MOISTURE, AND CONTAMINANTS IN HARSH ENVIRONMENTS. STANDARD VOLTAGE CONFIGURATION IS 230/460V. IT INCORPORATES CLASS F INSULATION AND IS RATED FOR A 1.15 SERVICE FACTOR, WITH A MAXIMUM AMBIENT TEMPERATURE OF 40°C. THE MOTOR IS CONSTRUCTED TO NEMA DESIGN B SPECIFICATIONS.
