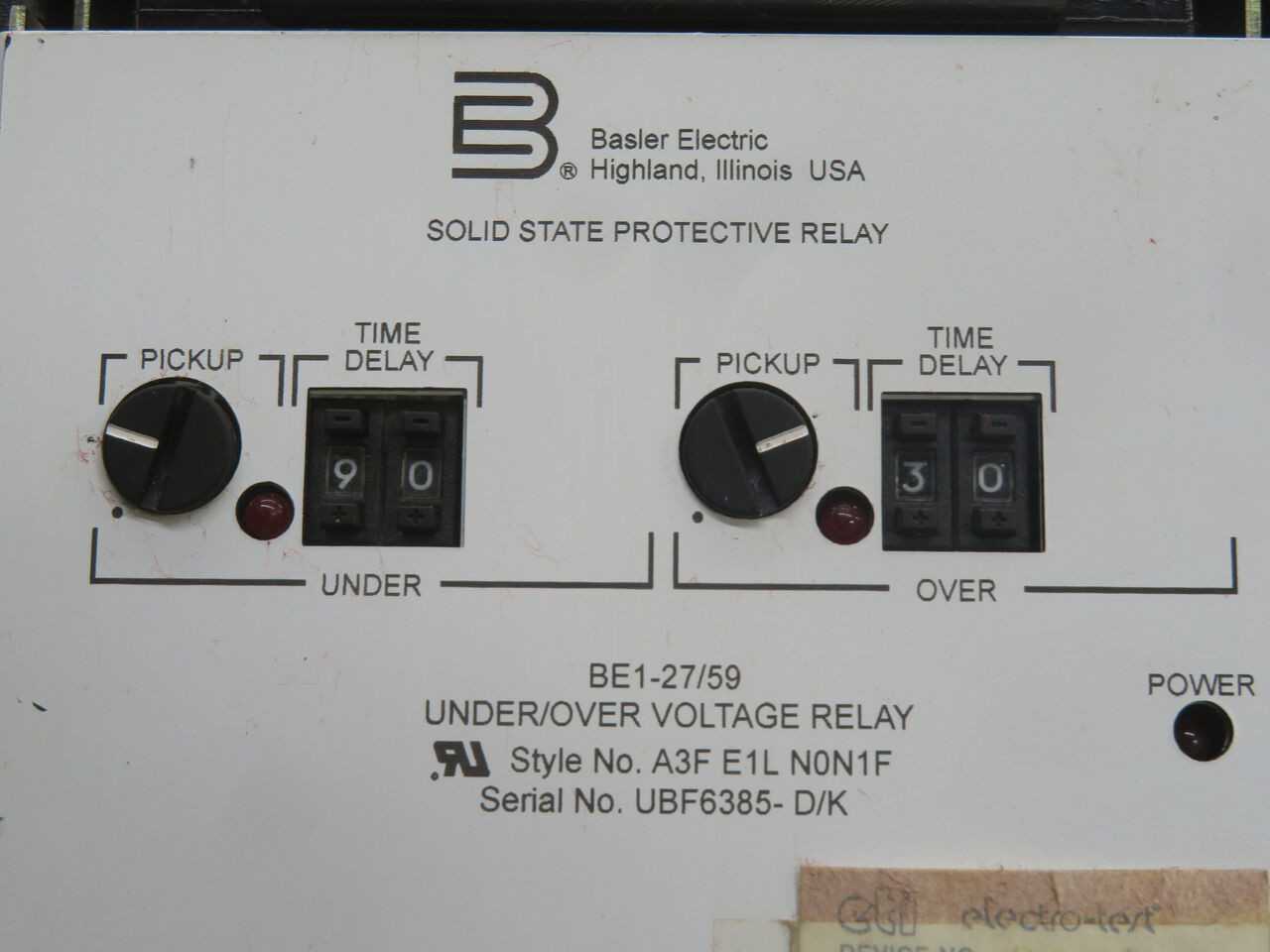

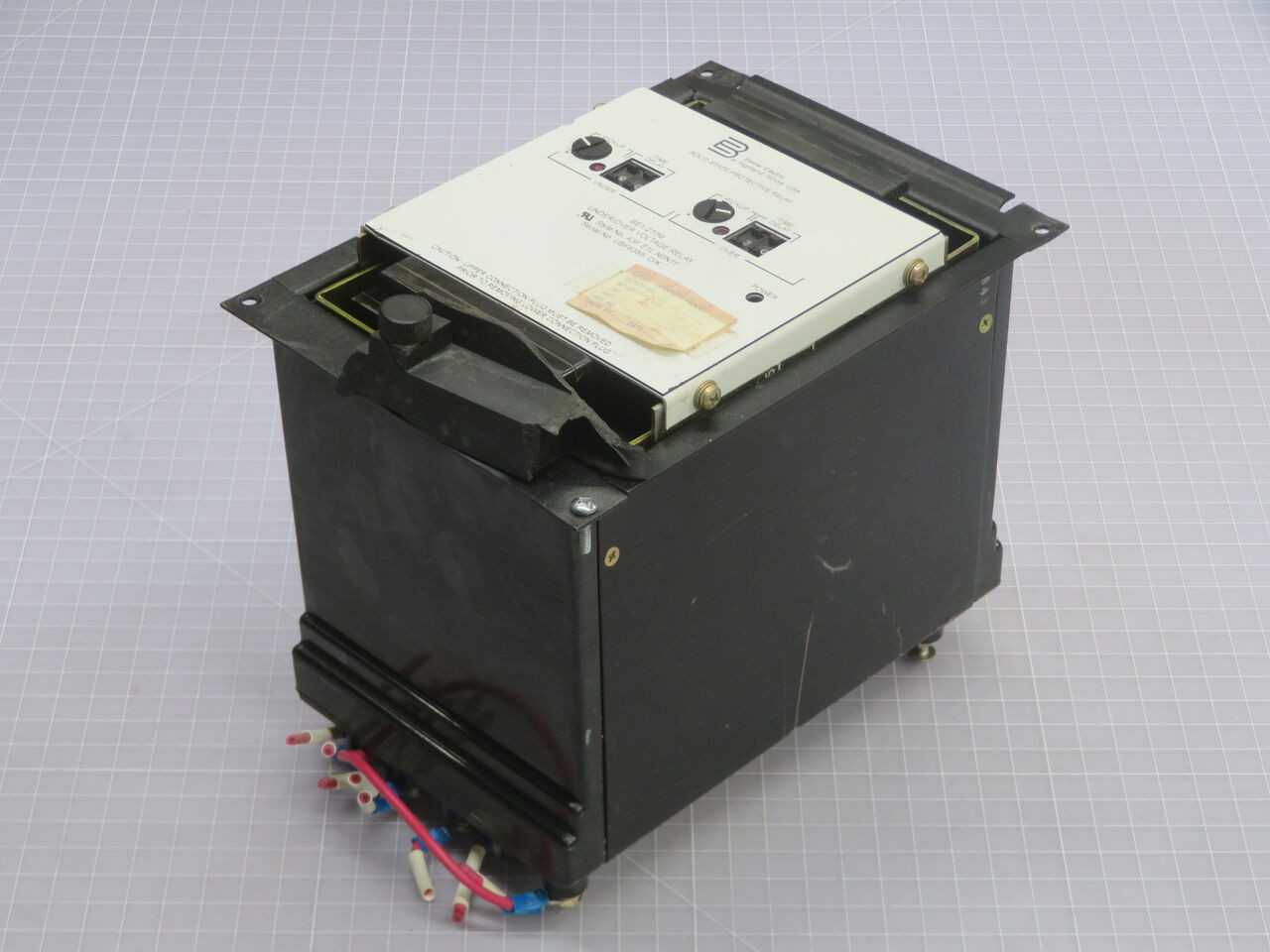

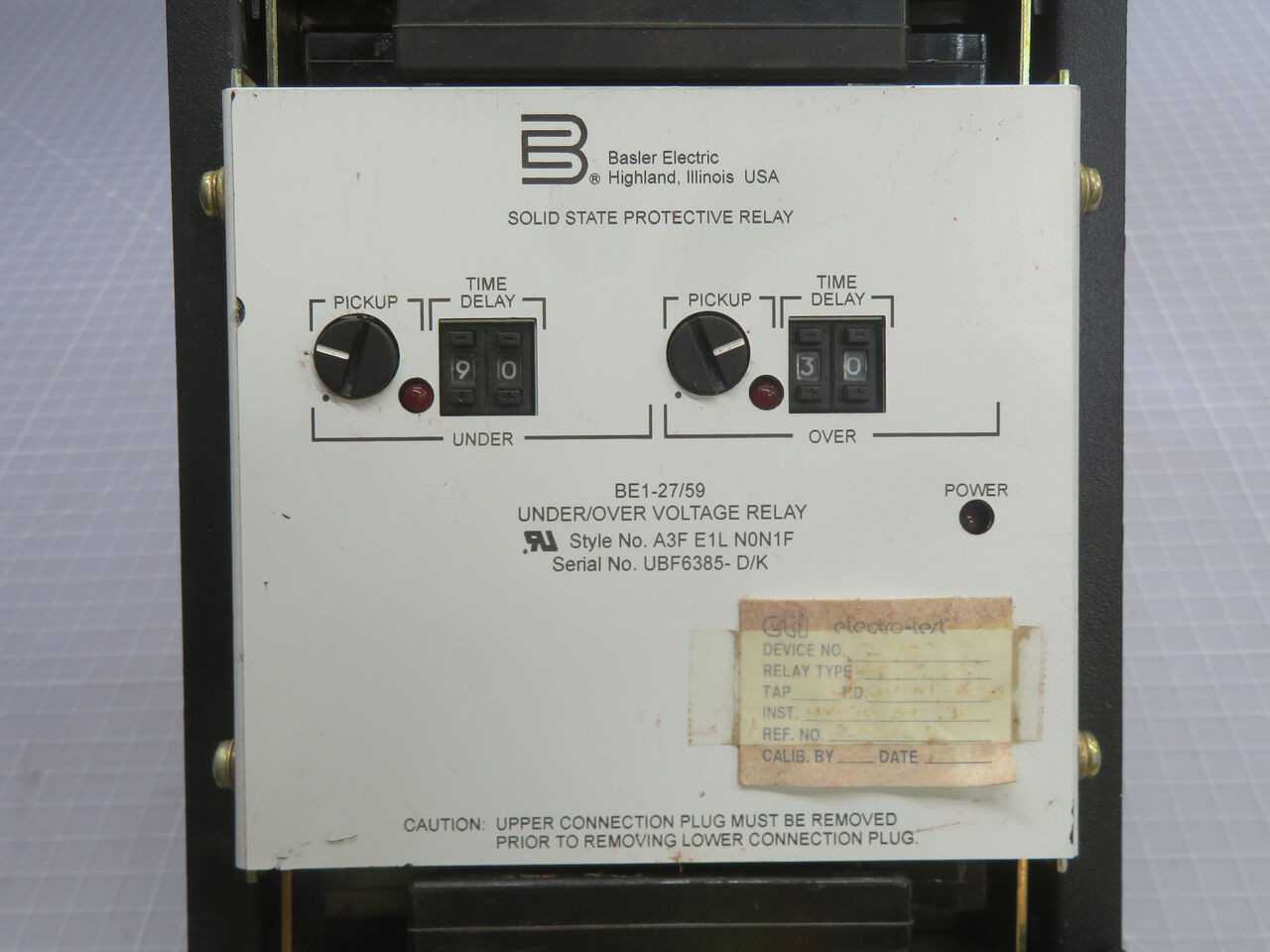

BASLER, BE1-27/59 A3F E1L NON1F, UV/OV RELAY, 24VDC AUX, 65-150 VAC INPUT

THE BASLER ELECTRIC BE1-27/59 A3F E1L NON1F IS A SINGLE-PHASE UNDERVOLTAGE AND OVERVOLTAGE PROTECTION RELAY. IT OPERATES ON A 24VDC AUXILIARY POWER SUPPLY. THE DEVICE IS DESIGNED FOR SEMI-FLUSH MOUNTING APPLICATIONS. IT MONITORS A SINGLE-PHASE AC VOLTAGE INPUT WITHIN A RANGE OF 65-150 VAC. THE RELAY FEATURES OUTPUTS CONFIGURED FOR PUSH-TO-ENERGIZE OPERATION. ITS MODEL DESIGNATION INCORPORATES ANSI DEVICE FUNCTIONS 27 (UNDERVOLTAGE) AND 59 (OVERVOLTAGE), WITH THE A3F CODE SPECIFYING THE 65-150 VAC INPUT RANGE. THE E1L AND NON1F CODES DEFINE SPECIFIC OUTPUT CHARACTERISTICS, INCLUDING THE PUSH-TO-ENERGIZE FUNCTIONALITY, AND STANDARD OPERATIONAL FEATURES.
