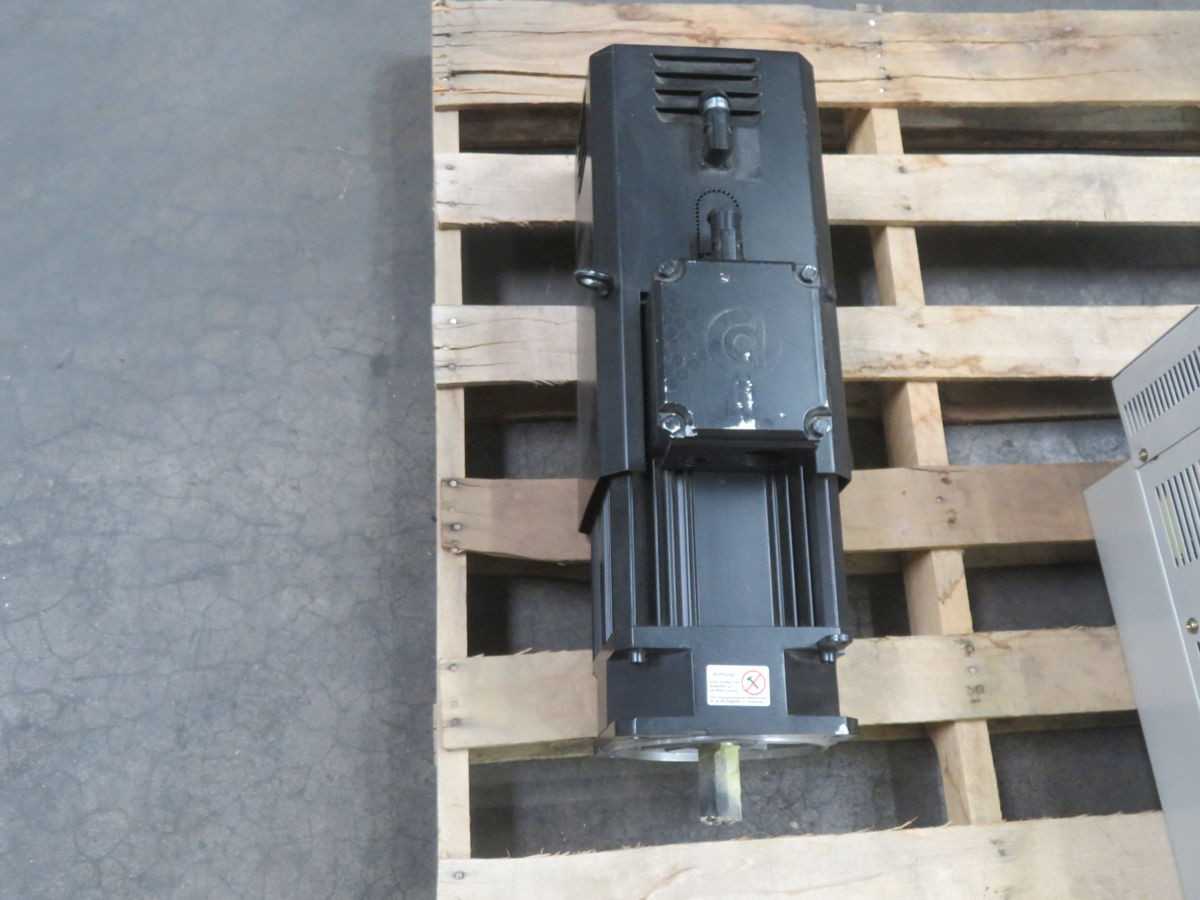

BAUMULLER 100-M 816603499, 3000 RPM SPEED, 11 NM TORQUE, 3.45 KW POWER, 300 V VOLTAGE, 10.4 A CURRENT

THE BAUMULLER DSO 100-M 816603499 IS A THREE-PHASE AC PERMANENT-MAGNET SYNCHRONOUS SERVO MOTOR. IT FEATURES A 100 FRAME SIZE AND A MEDIUM (M) MOTOR STACK LENGTH. ENGINEERED FOR HIGH-PRECISION APPLICATIONS REQUIRING RAPID ACCELERATION AND DECELERATION CYCLES, IT OFFERS HIGH TORQUE-TO-INERTIA RATIOS. THIS MOTOR IS SPECIFIED WITH A NOMINAL SPEED OF 3000 RPM, A CONTINUOUS TORQUE OF 11 NM, AND A CONTINUOUS POWER OUTPUT OF 3.45 KW. IT OPERATES AT A NOMINAL VOLTAGE OF 300 V AND DRAWS A CONTINUOUS CURRENT OF 10.4 A.
