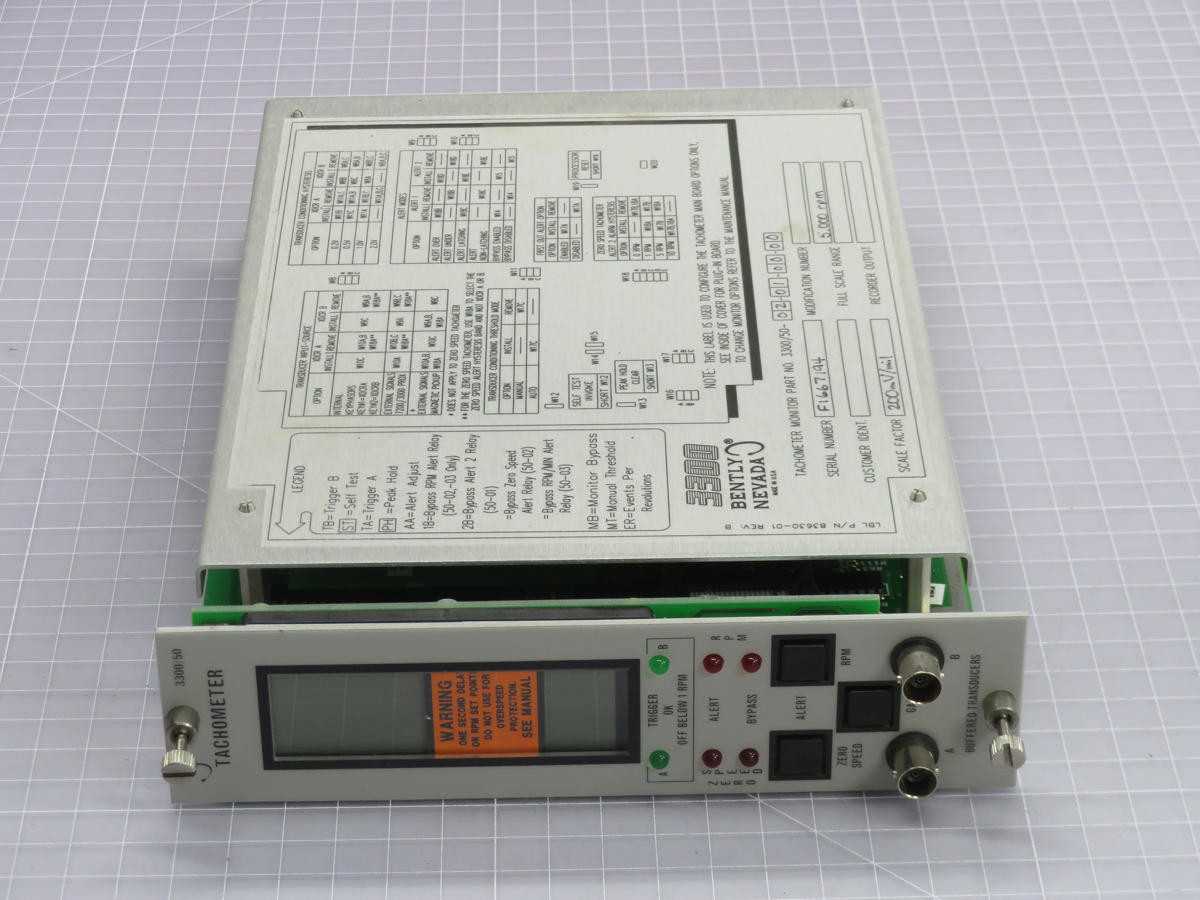

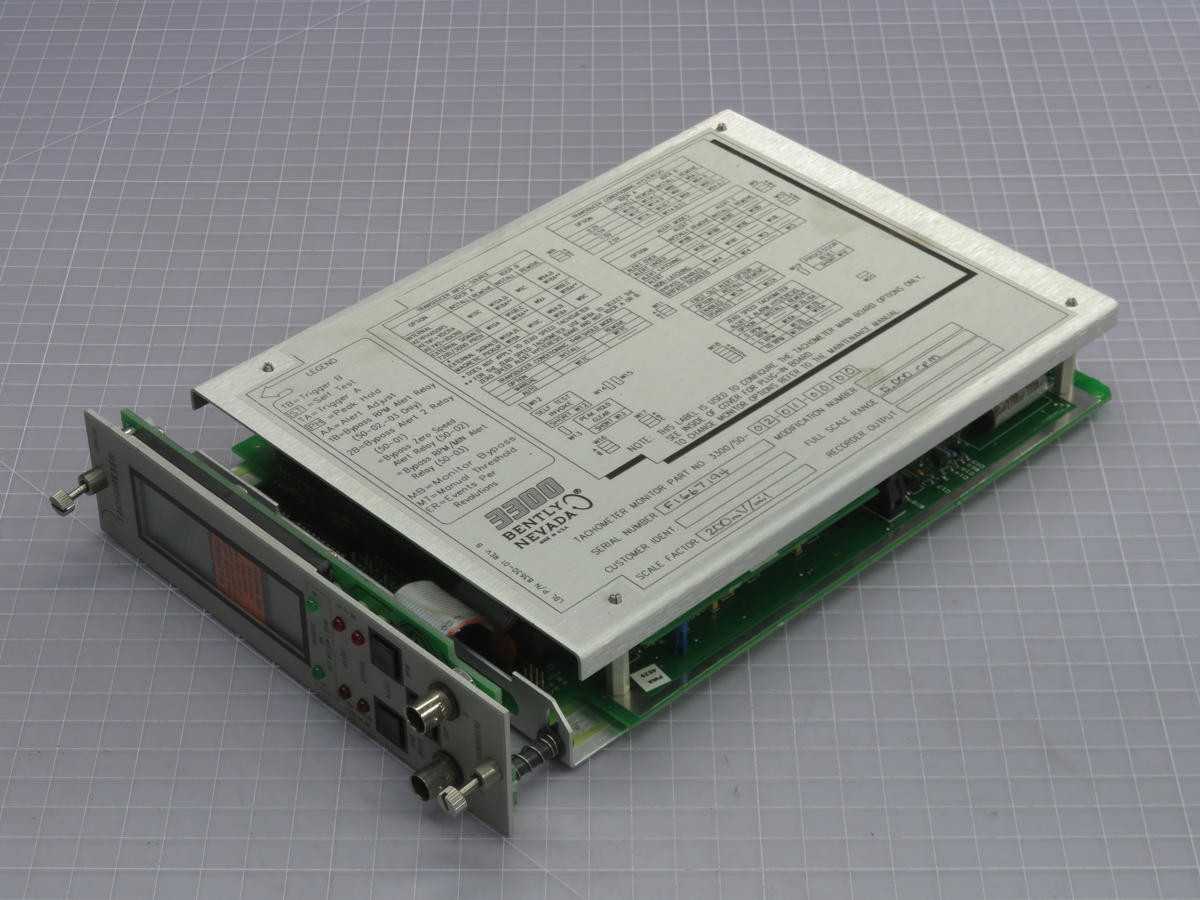

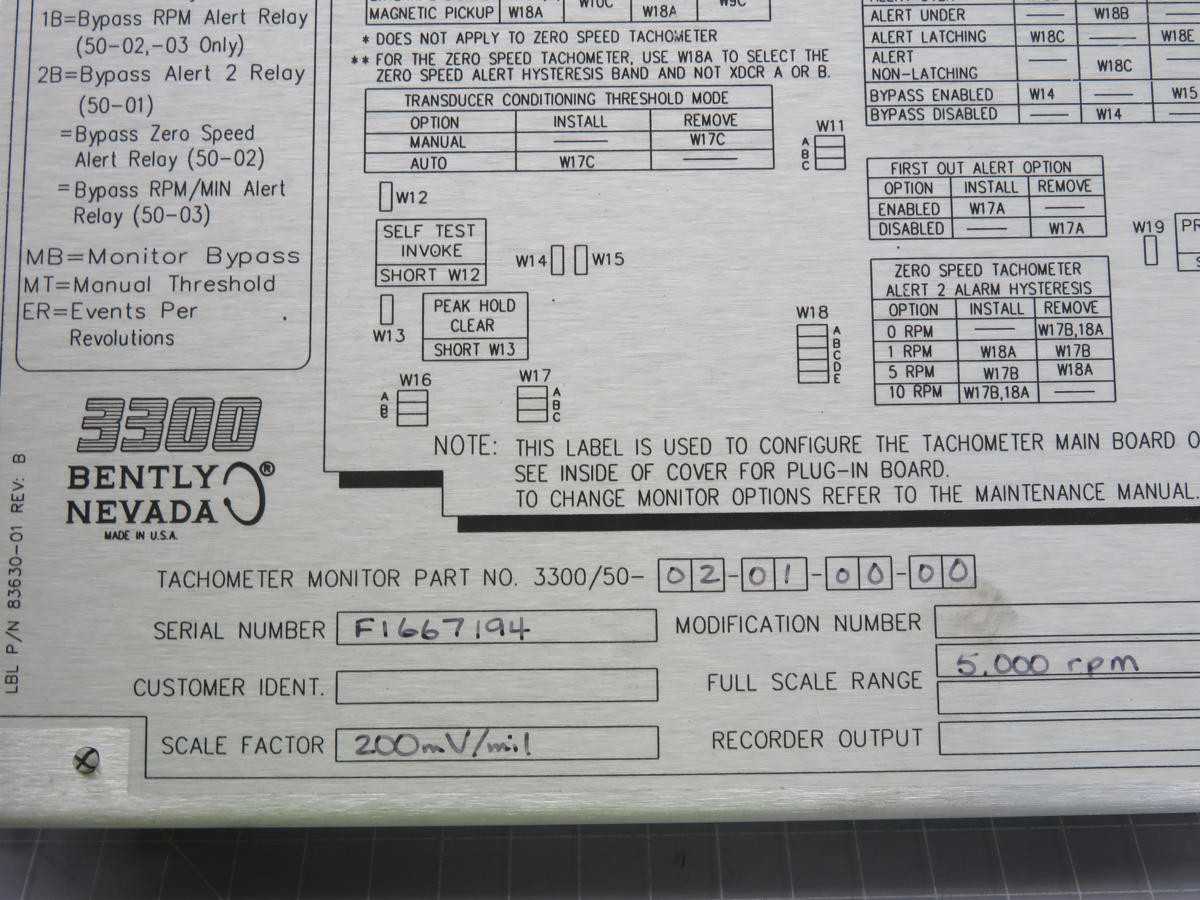

Bently Nevada 3300/50-02-01-00-00 Tachometer, 230 Vac Power, 99,999 Rpm Range

THE BENTLY NEVADA 3300/50-02-01-00-00 IS A TACHOMETER MONITOR DESIGNED FOR CONTINUOUS MACHINERY SPEED MEASUREMENT AND PROTECTION. THIS UNIT OPERATES ON A 230 VAC POWER INPUT AND IS CONFIGURED TO ACCEPT SIGNALS FROM PROXIMITY TRANSDUCERS OR MAGNETIC PICKUPS. IT PROVIDES CONTINUOUS MONITORING OF ROTATIONAL SPEED, ZERO SPEED DETECTION, AND REVERSE ROTATION. THE MONITOR FEATURES A 4-DIGIT LED DISPLAY FOR LOCAL SPEED INDICATION AND INCLUDES A 4-20 MA RECORDER OUTPUT FOR INTEGRATION WITH CONTROL SYSTEMS. ADDITIONALLY, IT INCORPORATES THREE CONFIGURABLE ALARM RELAYS FOR WARNING, DANGER, AND REVERSE ROTATION/ZERO SPEED SETPOINTS. THE TYPICAL MEASUREMENT RANGE EXTENDS FROM 0 TO 99,999 REVOLUTIONS PER MINUTE (RPM) WITH AN ACCURACY OF APPROXIMATELY +/- 0.05% OF FULL SCALE. THIS SPECIFIC MODEL IS INTENDED FOR NON-HAZARDOUS AREA INSTALLATIONS.
