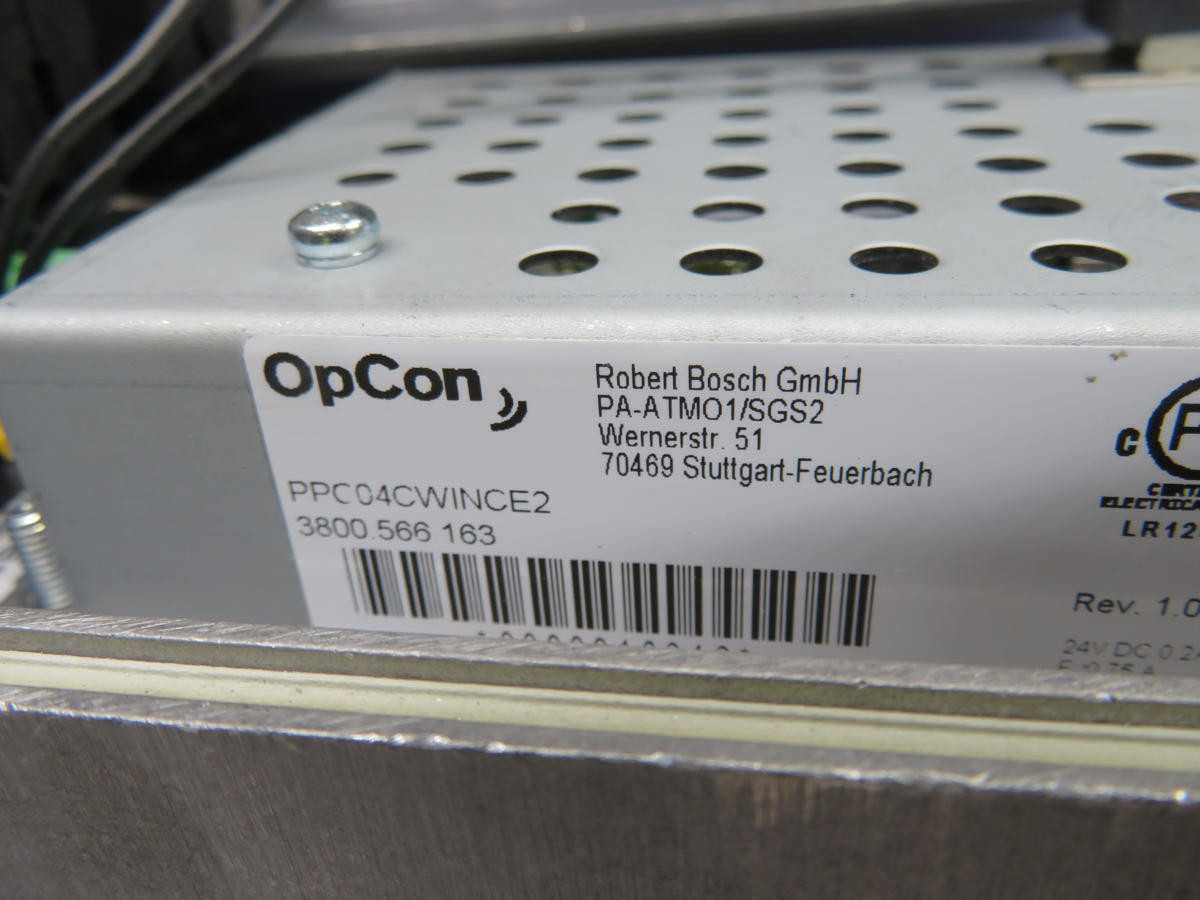

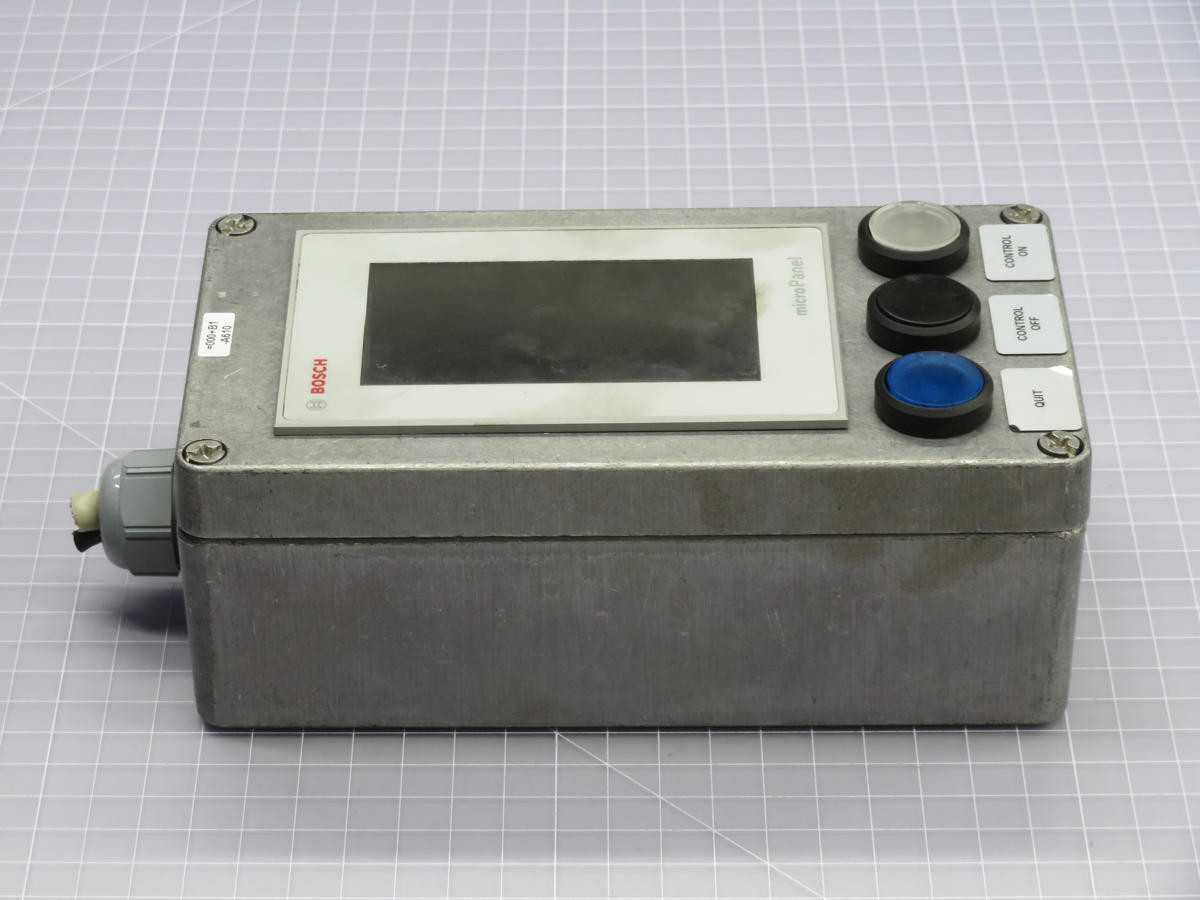

BOSCH PPC04CWINCE2 CONTROL PANELS INTERFACES, 24VDC POWER, 5.7 INCH DISPLAY, TOUCH INPUT

THE BOSCH PPC04CWINCE2 IS A MICRO PANEL HUMAN-MACHINE INTERFACE (HMI) DESIGNED FOR CONTROL PANEL APPLICATIONS. IT OPERATES ON A 24VDC POWER SUPPLY WITH A NOMINAL CURRENT CONSUMPTION OF 0.2A. THIS HMI FEATURES A 5.7-INCH STN MONOCHROME LCD, PROVIDING A RESOLUTION OF 320X240 PIXELS (QVGA) WITH CCFL BACKLIGHT. USER INTERACTION IS FACILITATED THROUGH A RESISTIVE TOUCHSCREEN. THE PANEL RUNS ON THE WINDOWS CE 2.0 OPERATING SYSTEM AND IS EQUIPPED WITH A 32-BIT RISC PROCESSOR. MEMORY SPECIFICATIONS INCLUDE 8MB OF SDRAM AND 4MB OF FLASH ROM. COMMUNICATION CAPABILITIES ARE PROVIDED VIA INTEGRATED RS-232 AND RS-485 SERIAL PORTS.
