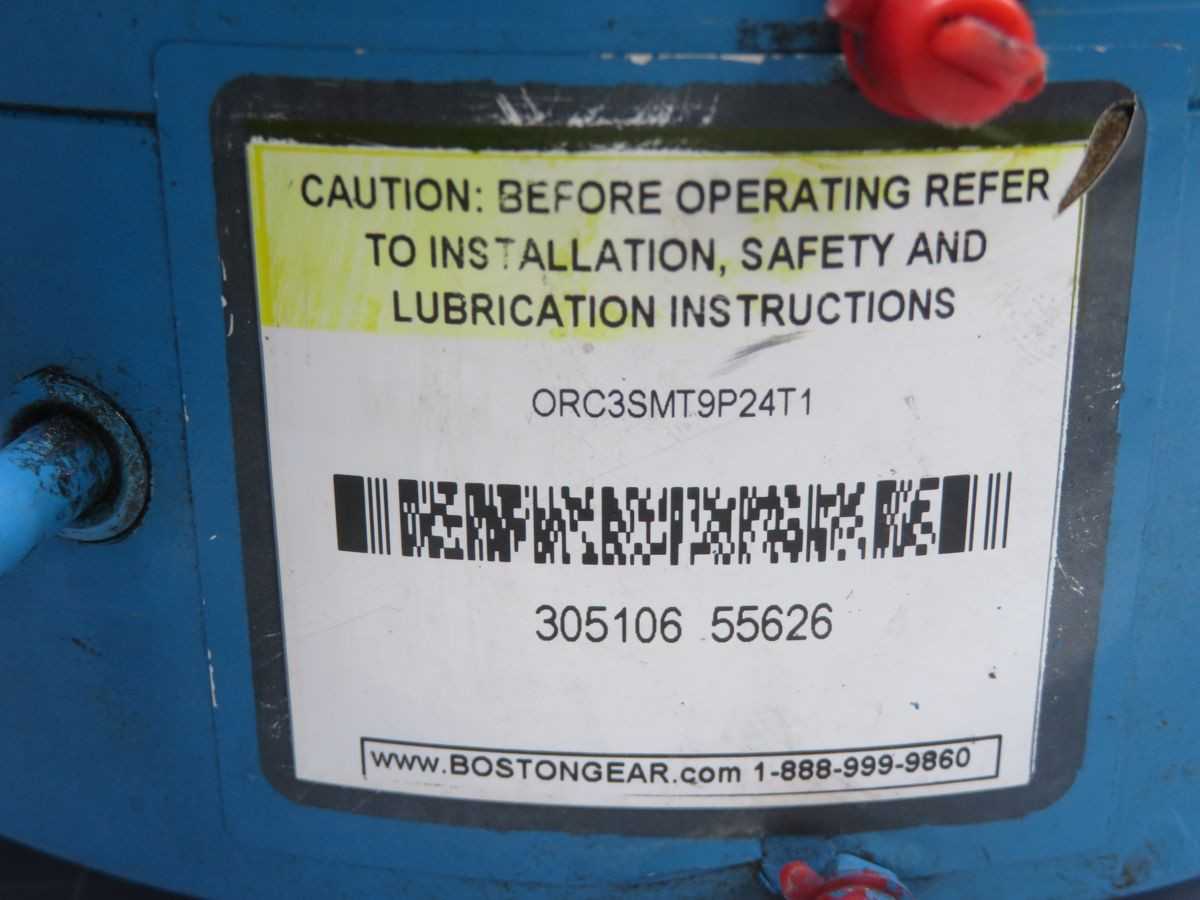

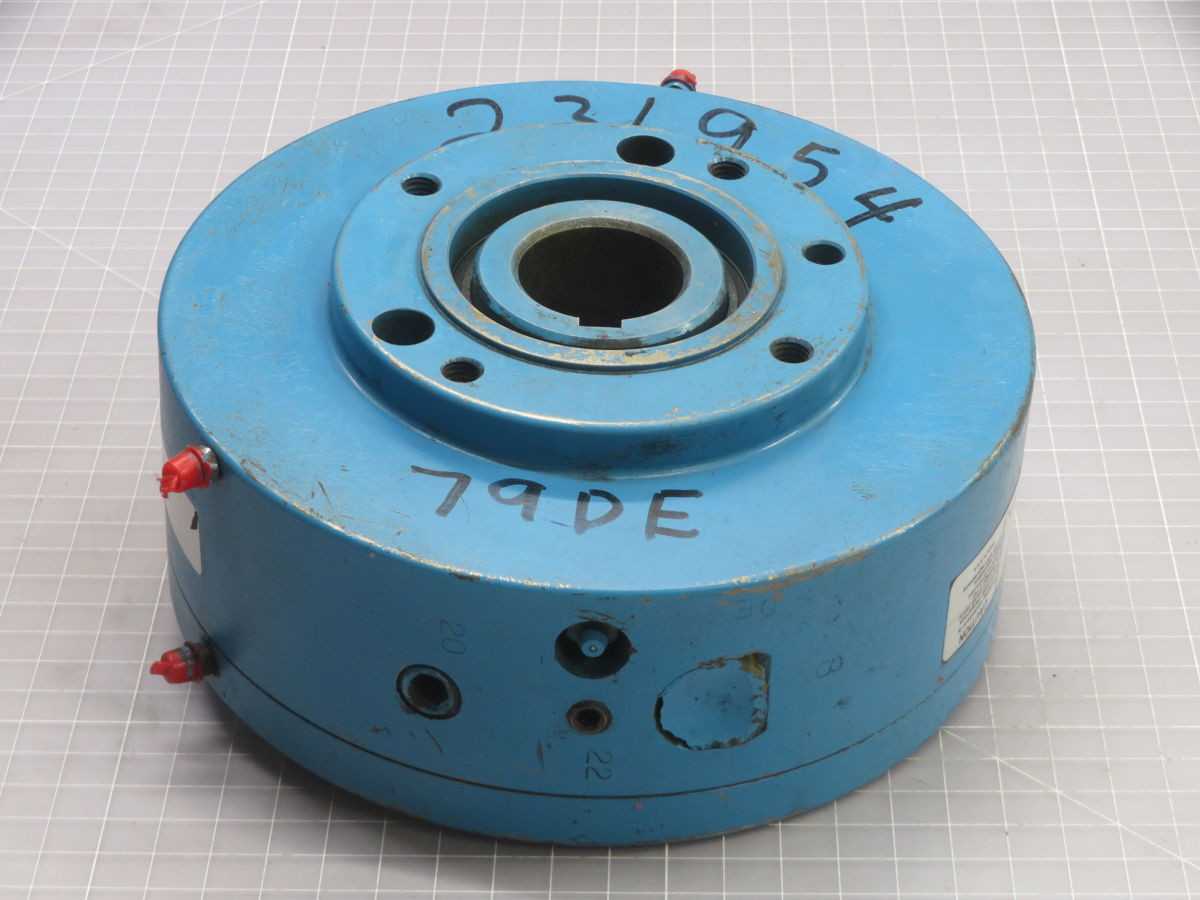

BOSTON GEAR ORC3SMT9P24T1 CLUTCHES, 90 NM TORQUE, 24 MM BORE, 14T SPROCKET, #40 CHAIN

THE BOSTON GEAR ORC3SMT9P24T1 IS A MECHANICAL OVERLOAD RELEASE CLUTCH FROM THE ORC3 SERIES, FEATURING A POSITIVE DRIVE, ROLLER-DETENT DESIGN. IT IS CONFIGURED FOR A FIXED TORQUE SETTING OF 90 NEWTON-METERS (66 FOOT-POUNDS, 790 INCH-POUNDS) TO PROTECT MACHINERY FROM EXCESSIVE LOAD. THE UNIT INCORPORATES A SHAFT-MOUNT HUB WITH A 24 MM PILOT BORE FOR INPUT SHAFT INTEGRATION. FOLLOWING AN OVERLOAD EVENT, THE CLUTCH REQUIRES MANUAL RE-ENGAGEMENT. OUTPUT POWER IS TRANSMITTED VIA AN INTEGRAL 14-TOOTH SPROCKET, DESIGNED FOR USE WITH A #40 CHAIN.
