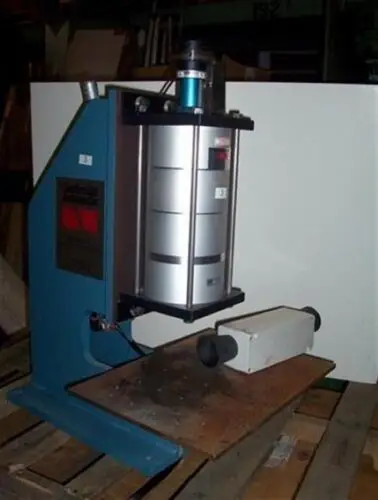

BP10000 Automatic Bench Press Air Operated Cambridge

BP10000 Automatic Bench Press Air Operated Cambridge Serial # 71756. Standard Equipment and Controls: Multi-stage air cylinder supplying 10,000 lbs of pressure at 100 PSI. Pneumatic controls system 8" Throat Depth (measured from center of shaft to back of throat) Two-Hand Safety Switch: Norgren D0040C (you must use both hands to activate it, so the operator wont get hands caught in the press when it goes down) Hex-shaped Anti-rotational shaft 13" x 18" Fixture Plate Welded Steel Plate Frame Adjustable force up to 10,000 pounds Air-operated, low-impact action Ideal for press-fit or compliant connectors Mechanical stop for precision insertions BP10000 Bench Presses are cost-effective, air-operated machines designed to insert a wide variety of hand-fed parts and connectors. The anti-rotation air cylinder is sized to accommodate the latest high-pressure, low-impact electronic components. Consistent settings are achieved without risk of product damage. APPLICATION BP10000 machines accommodate up to 16" x 16" flat materials with the 8" throat depth. Standard insertion stroke is 2". The weldment design gives users the flexibility to specify stroke unique applications with an easily adjustable knob on the top of the unit. You would use Hardened tool steel dies designed and manufactured for pressing, roll-forming, staking, flaring or punching. THIS DOES NOT COME WITH ANY TOOLING. We have tested this unit and it is in excellent condition.
