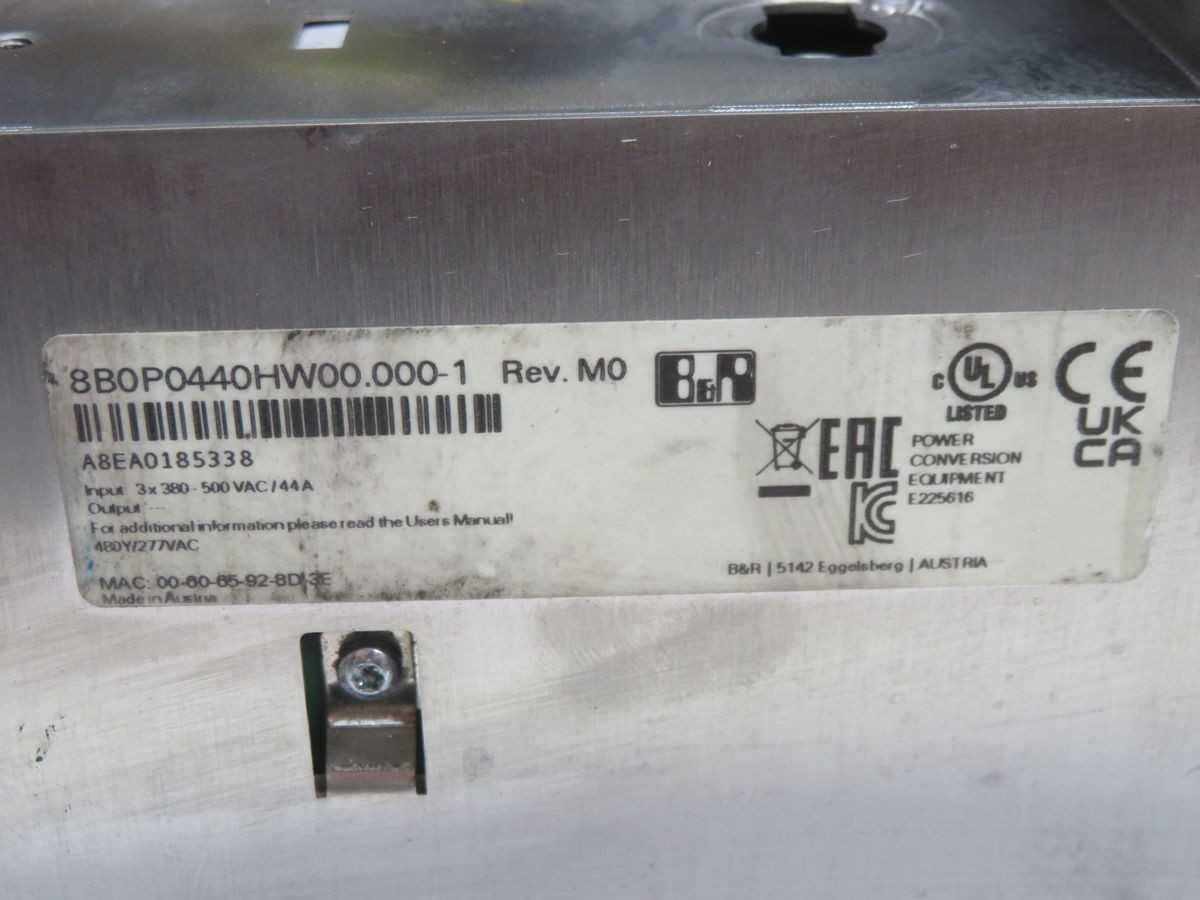

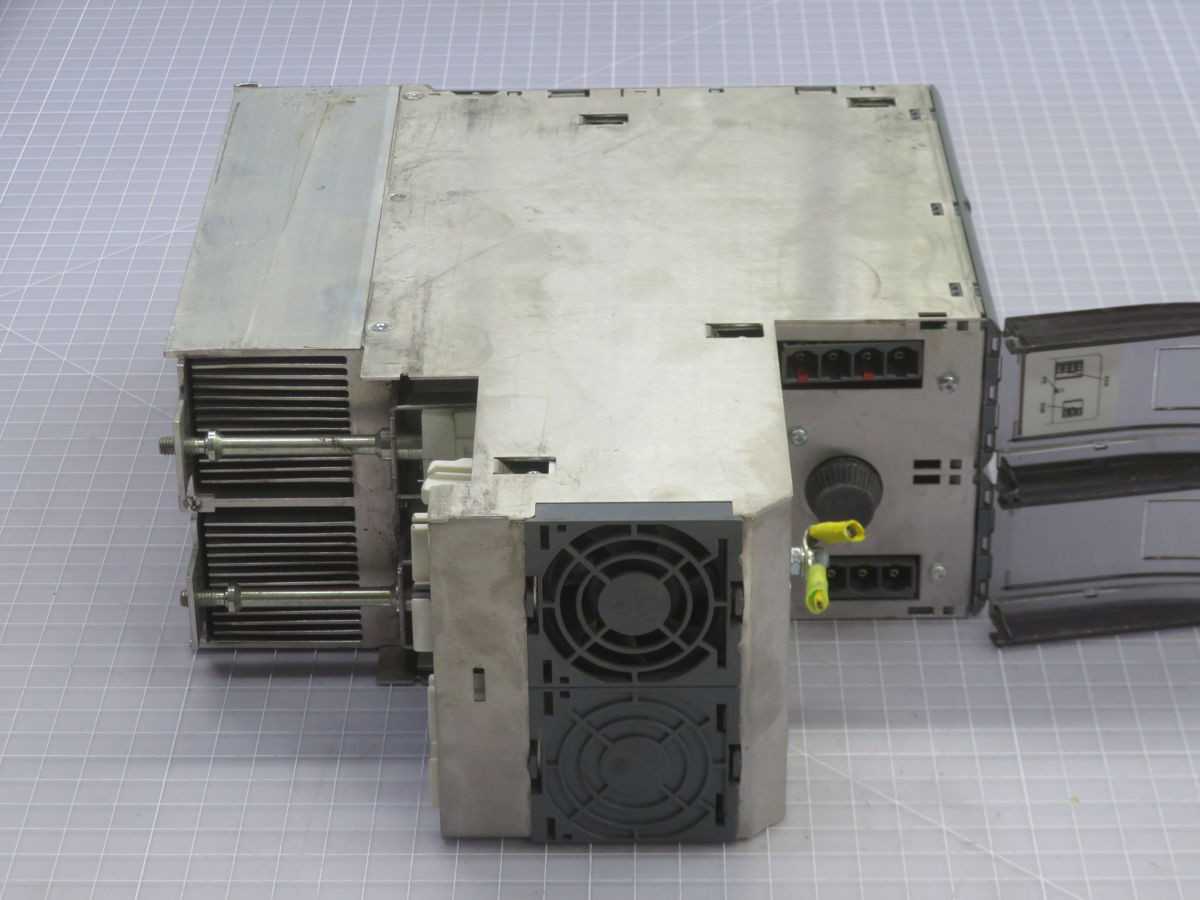

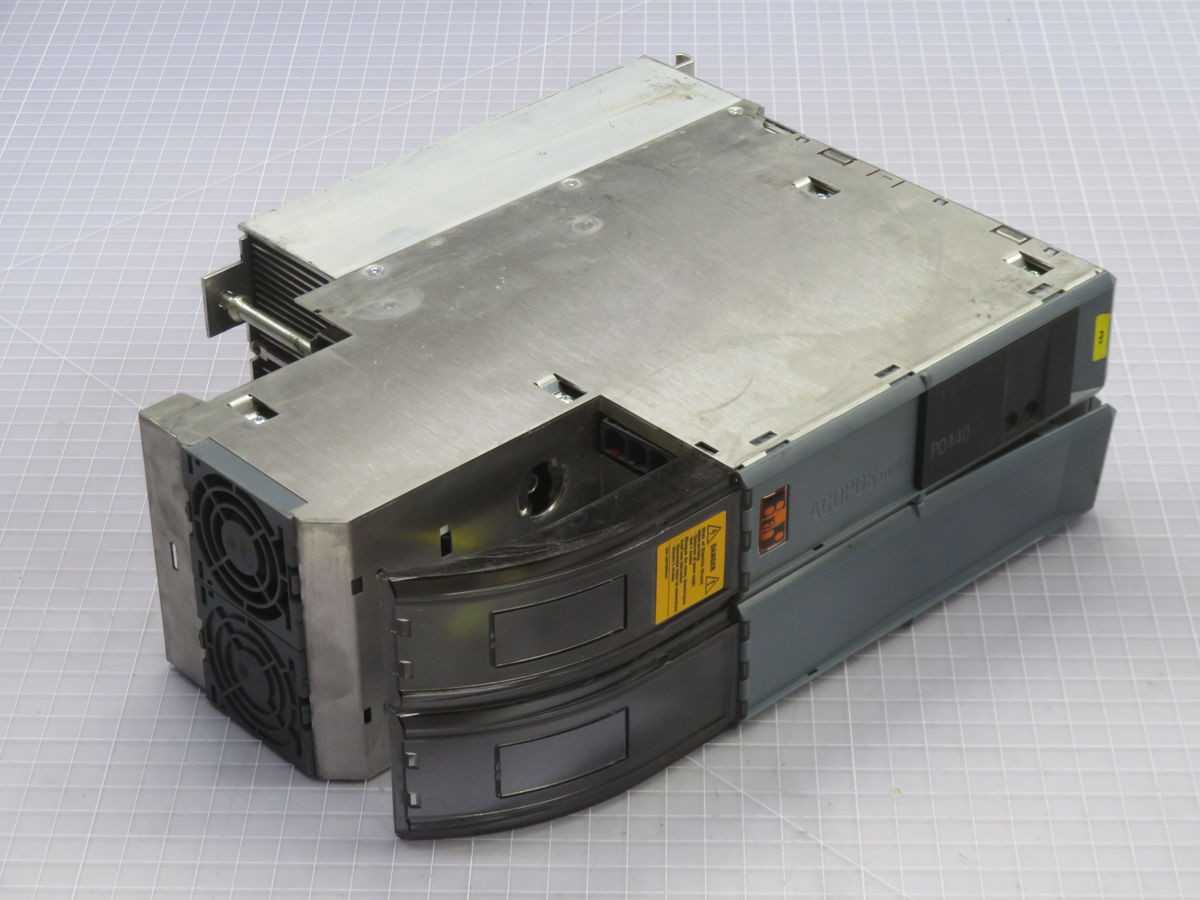

B&R, 8B0P0440HW00.000-1, SERVO DRIVES, 3X380-500 VAC INPUT, 44 A CONT OUTPUT, 0-2000 HZ FREQ

THE B&R AUTOMATION 8B0P0440HW00.000-1 IS A WALL-MOUNTING SERVO DRIVE. IT ACCEPTS A MAIN INPUT VOLTAGE OF 3X380 TO 3X500 VAC AT 50/60 HZ, WITH A POWER RATING OF 300 W. THE DRIVE DELIVERS A CONTINUOUS OUTPUT CURRENT OF 44 A AND A PEAK OUTPUT CURRENT OF 88 A. IT SUPPORTS AN OUTPUT FREQUENCY RANGE OF 0 TO 2000 HZ. KEY FEATURES INCLUDE AN INTEGRATED POWERLINK COMMUNICATION INTERFACE AND SAFE TORQUE OFF (STO) FUNCTIONALITY, COMPLIANT WITH EN 61800-5-2. THE UNIT OPERATES WITH AN EFFICIENCY TYPICALLY EXCEEDING 97% AND EMPLOYS ACTIVE FAN COOLING. ITS ENCLOSURE PROVIDES IP20 PROTECTION. THIS MODEL IS ENGINEERED FOR THE PRECISE CONTROL OF SYNCHRONOUS AND ASYNCHRONOUS MOTORS.
