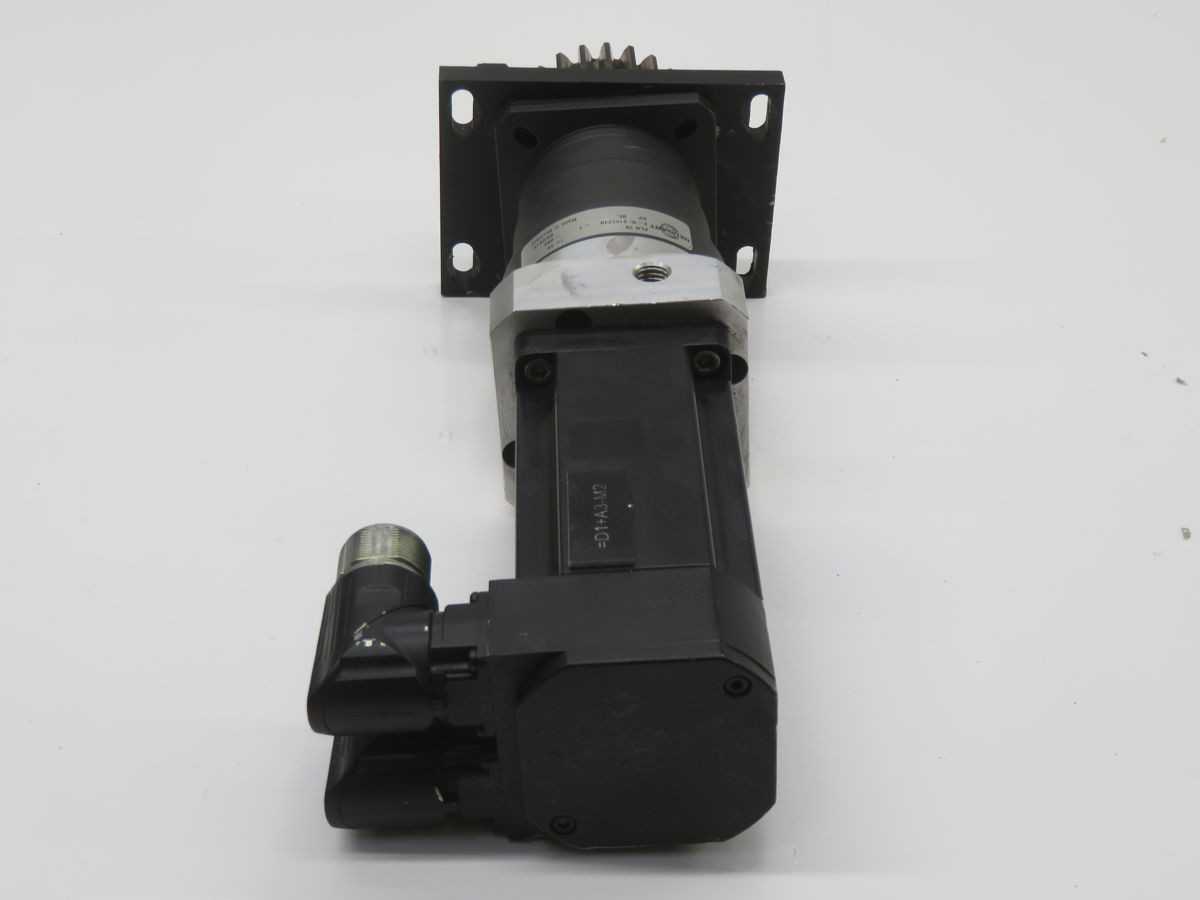

B&R 8LSA25.R0060D000-0 SERVO MOTORS, 6000 RPM, 2.3 NM RATED TORQUE, 2.8 KG, IP64

THE B&R 8LSA25.R0060D000-0 IS A SYNCHRONOUS, THREE-PHASE, SELF-COOLING SERVO MOTOR FROM THE 8LS SERIES, FEATURING A SIZE 2 FRAME. IT INCORPORATES AN INTEGRATED RESOLVER FOR PRECISE FEEDBACK AND IS DESIGNED FOR A MAXIMUM OPERATING SPEED OF 6000 RPM. THIS MOTOR PROVIDES A RATED STALL TORQUE OF 2.3 NM AND A PEAK STALL TORQUE OF 7.6 NM, WITH A ROTOR MOMENT OF INERTIA OF 0.65 KGCM². WEIGHING 2.8 KG, IT FEATURES A SMOOTH SHAFT WITHOUT A KEYWAY AND IS NOT EQUIPPED WITH AN INTEGRATED HOLDING BRAKE. THE MOTOR OFFERS AN IP64 PROTECTION RATING AND UTILIZES AN ANGLED SWIVEL CONNECTOR FOR ELECTRICAL INTERFACING.
