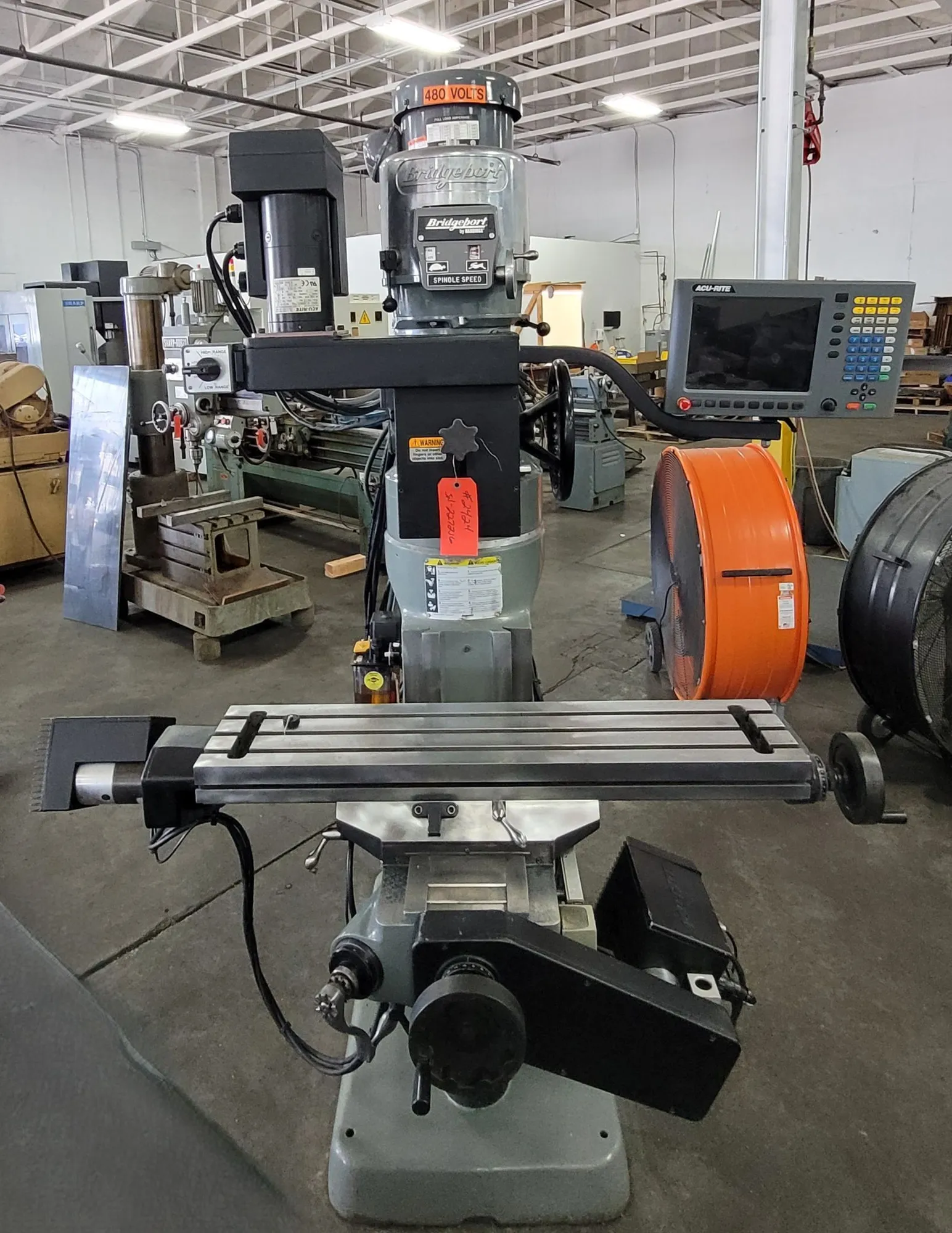

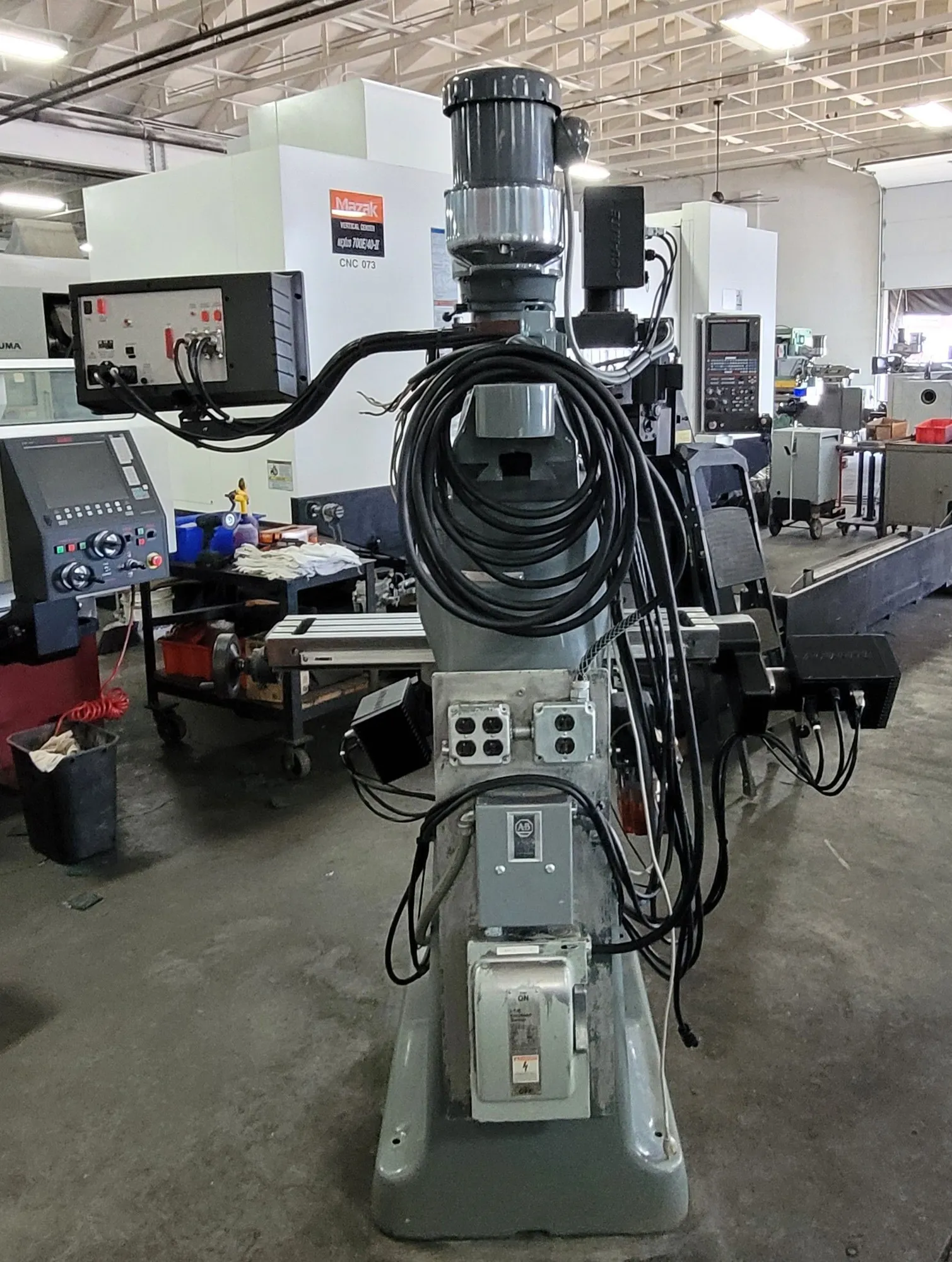

BRIDGEPORT 3 AXIS CNC KNEE MILL W/ ACURITE MILLPWR G2, 2 HP, 4200 RPM, 9X48 TABLE

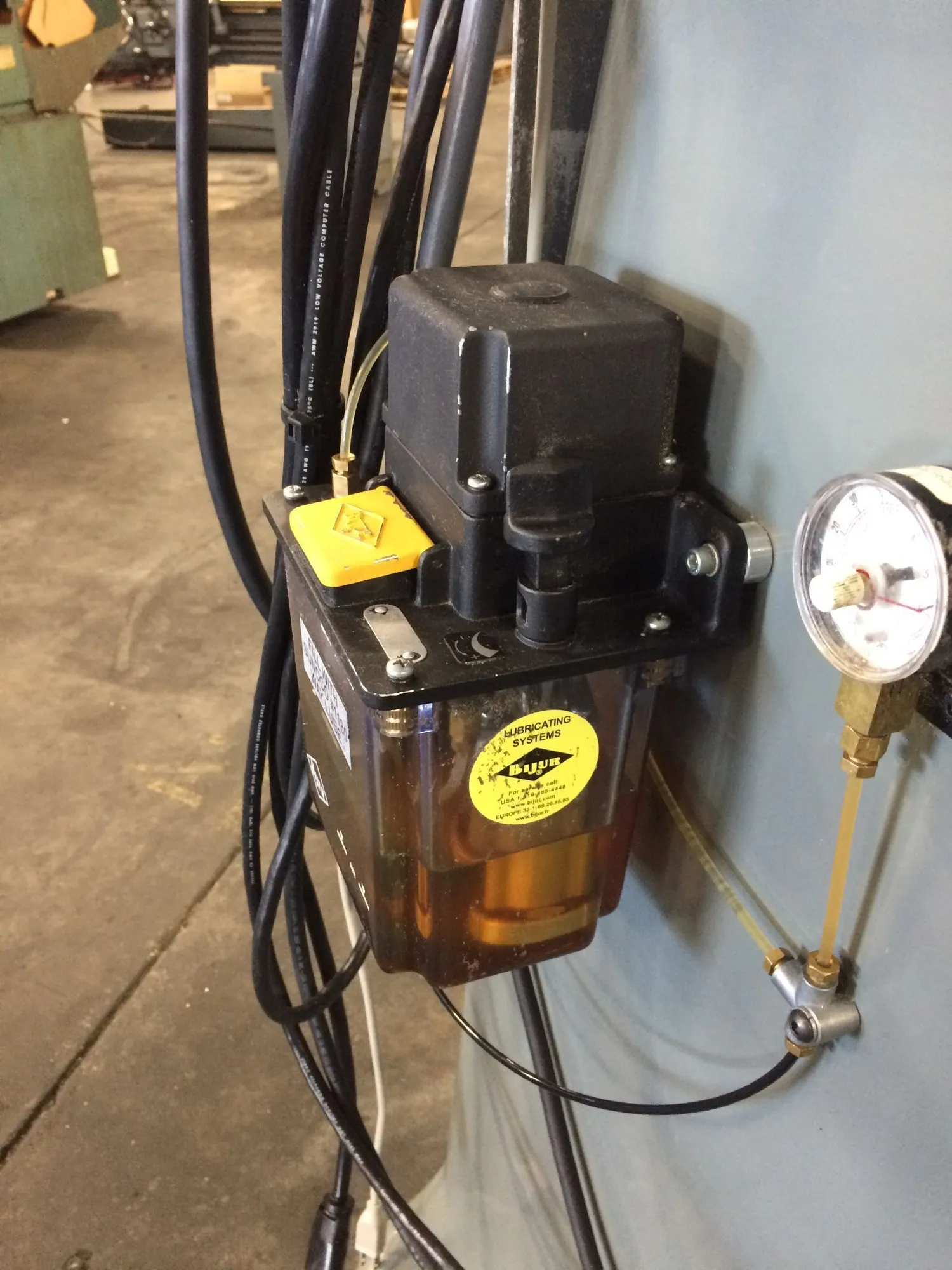

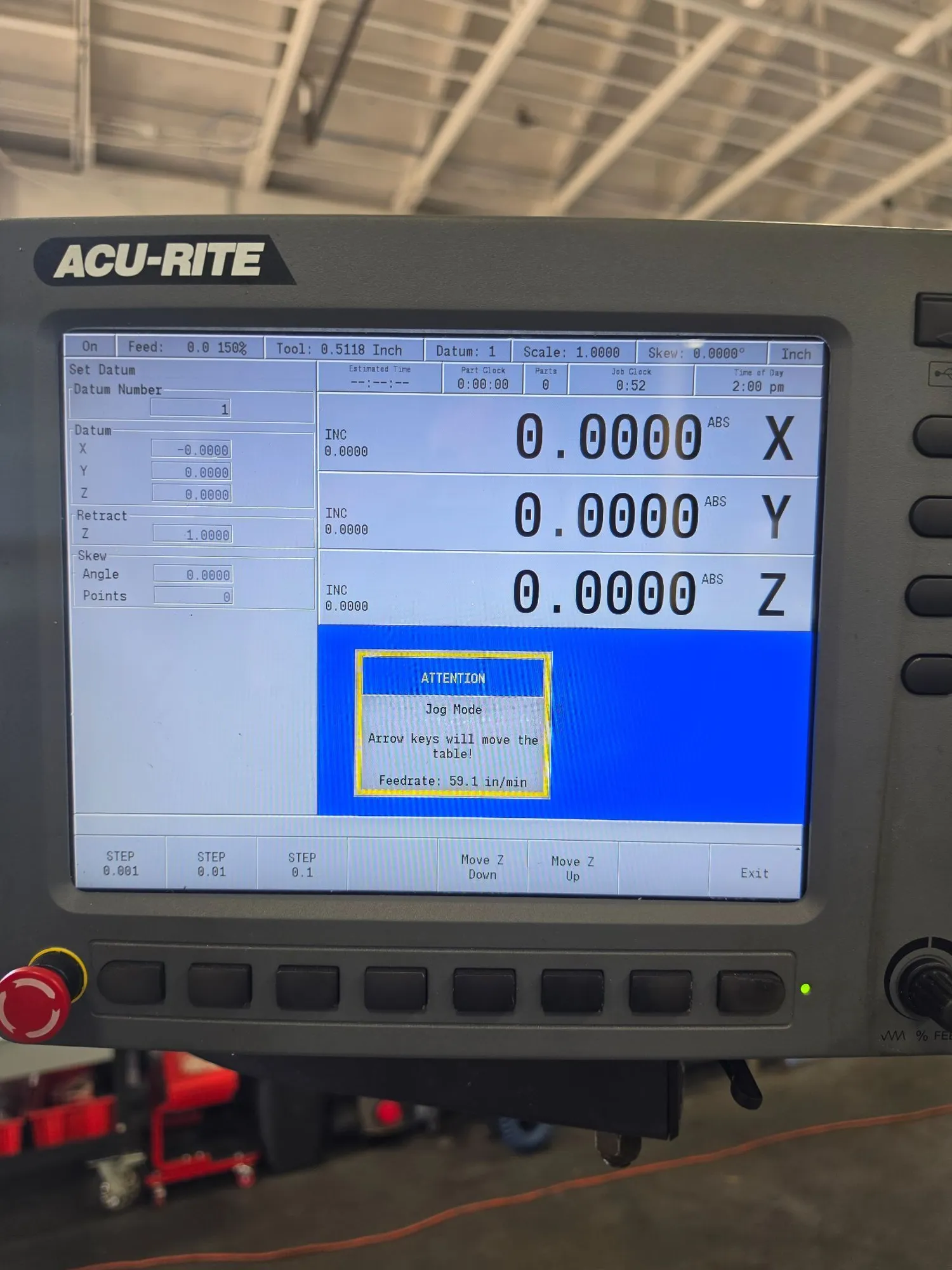

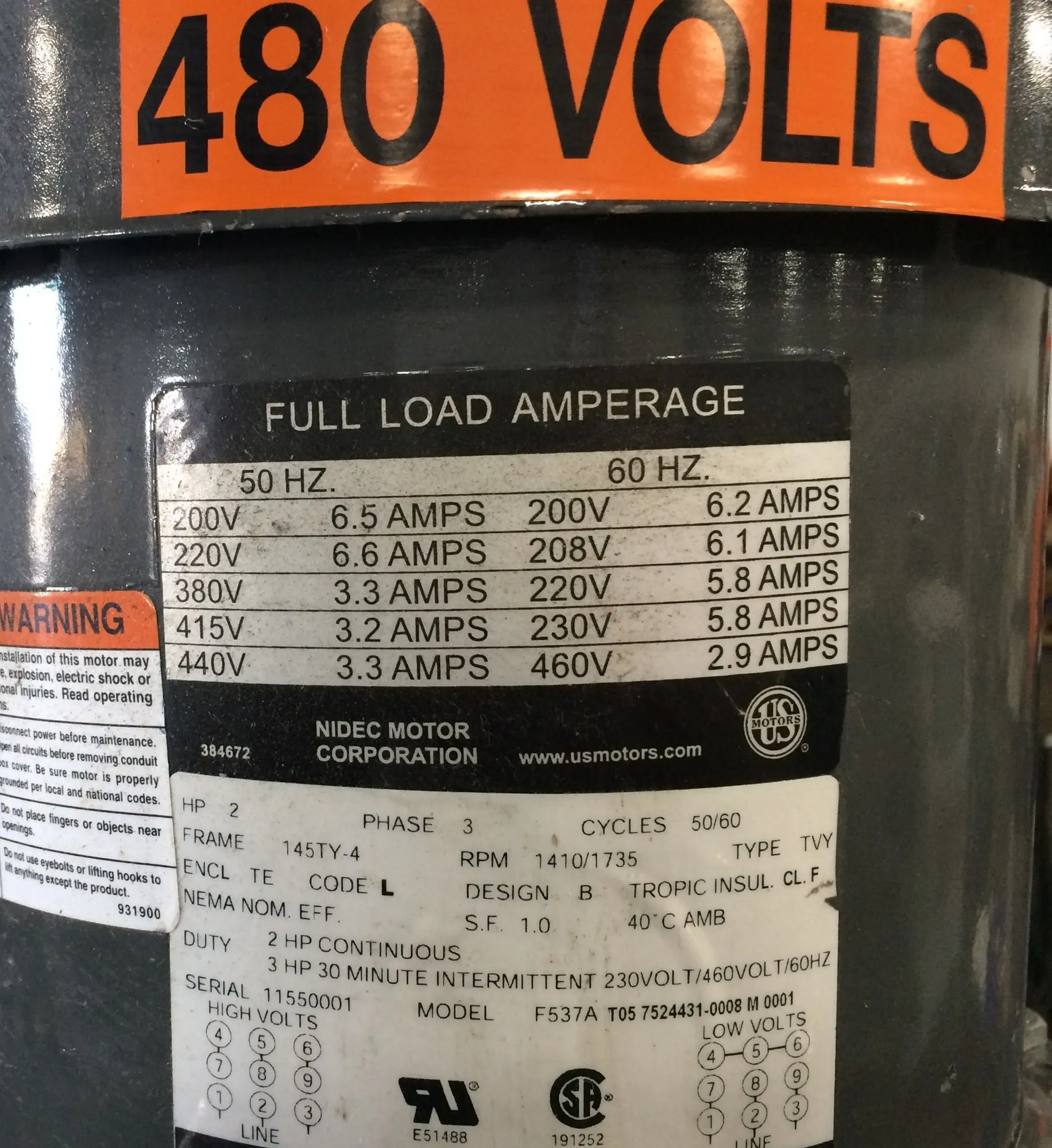

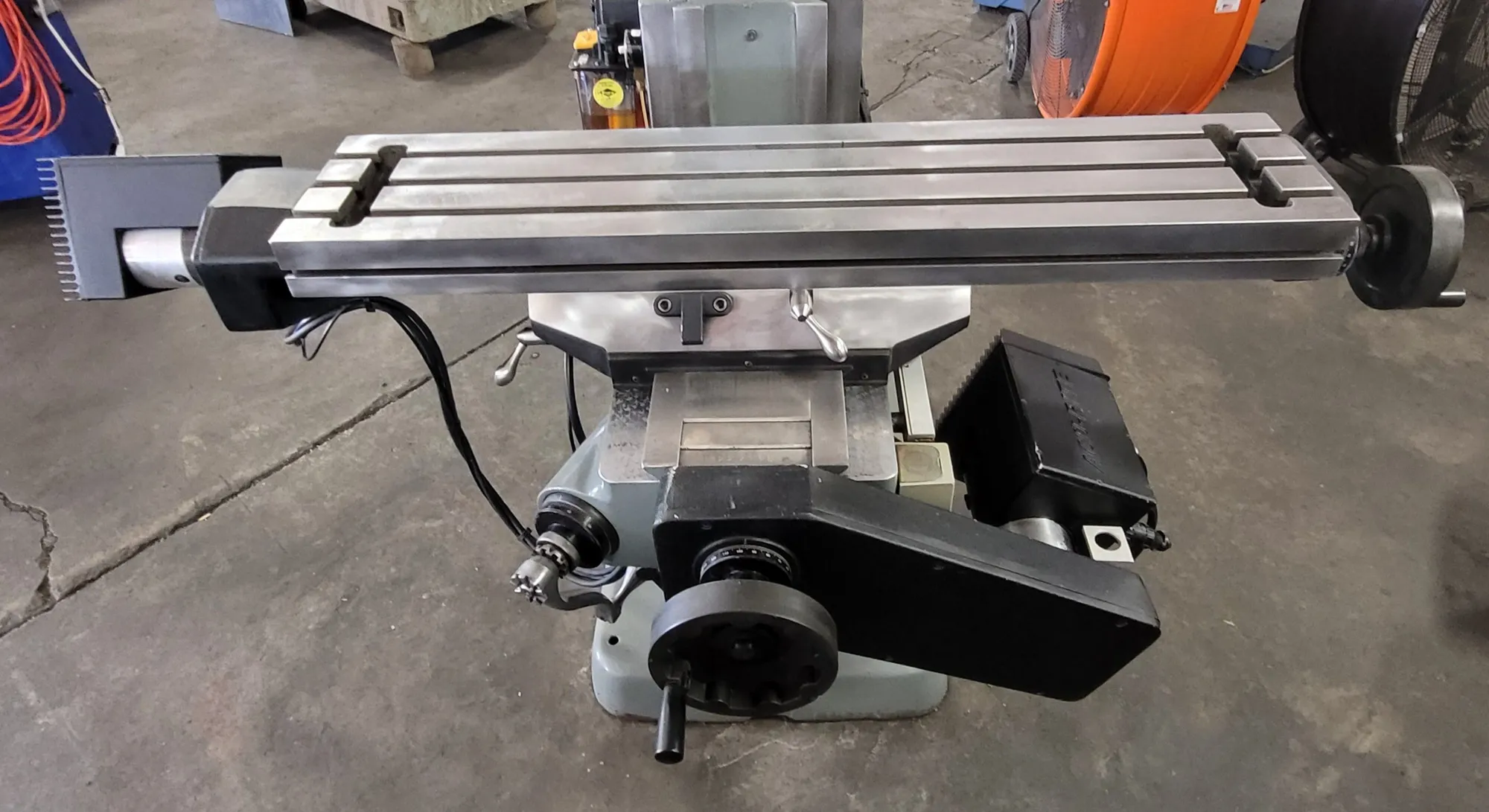

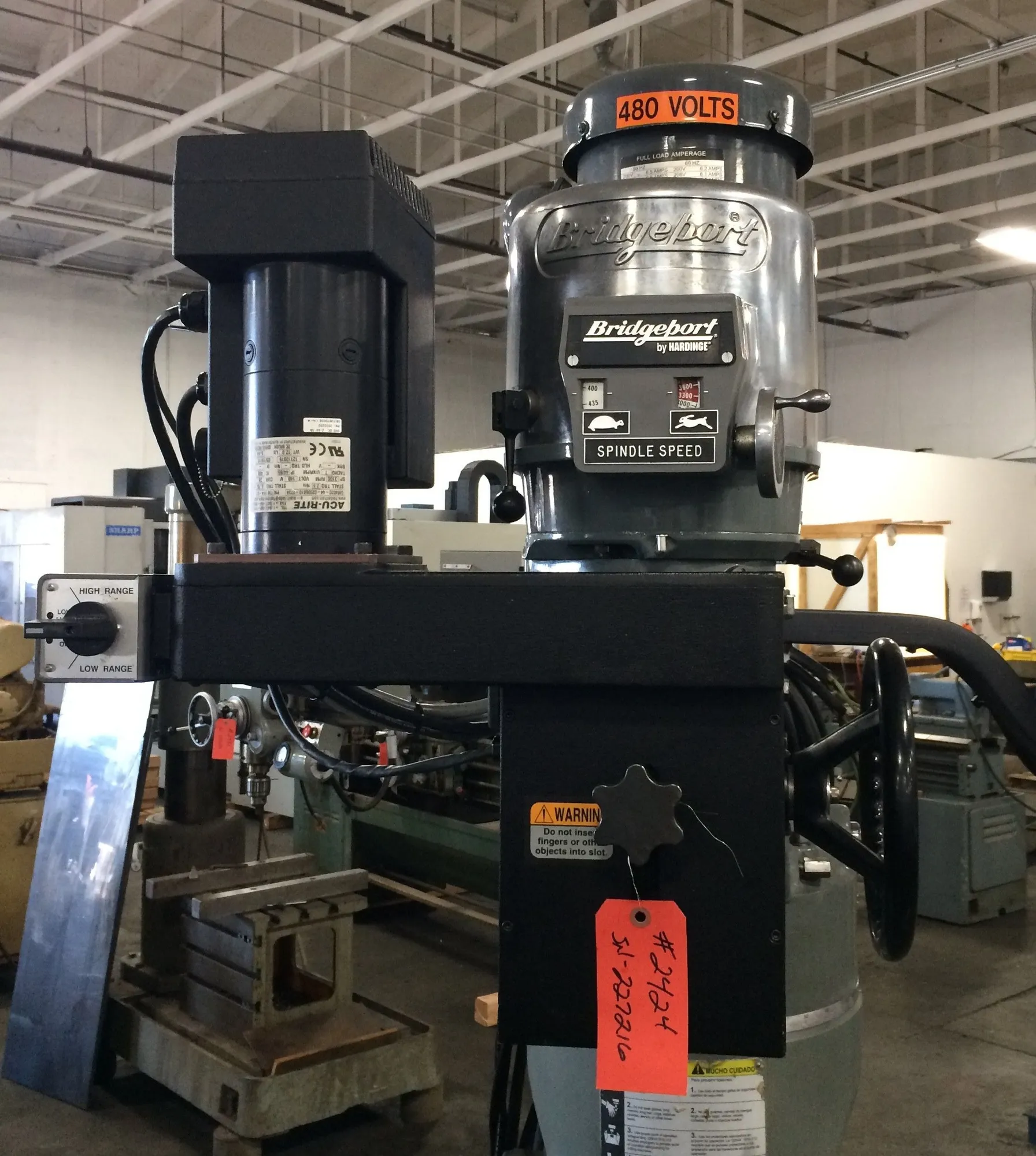

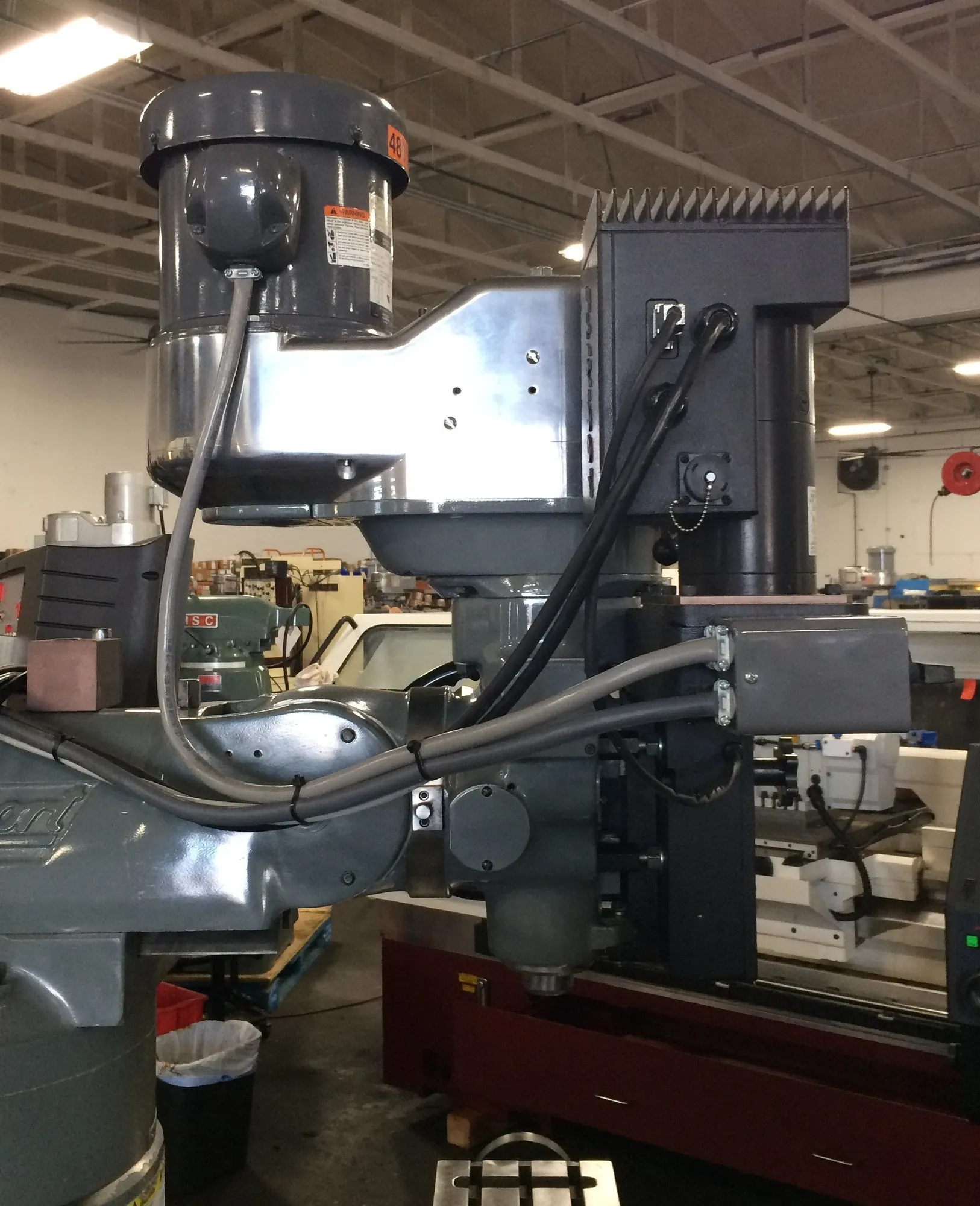

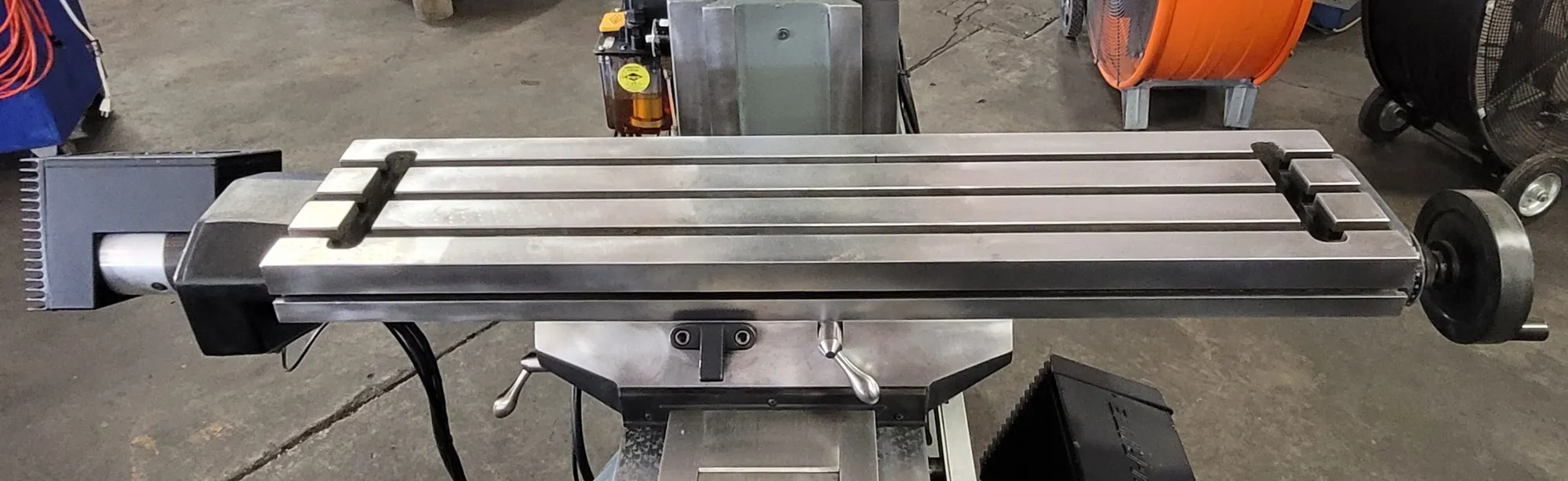

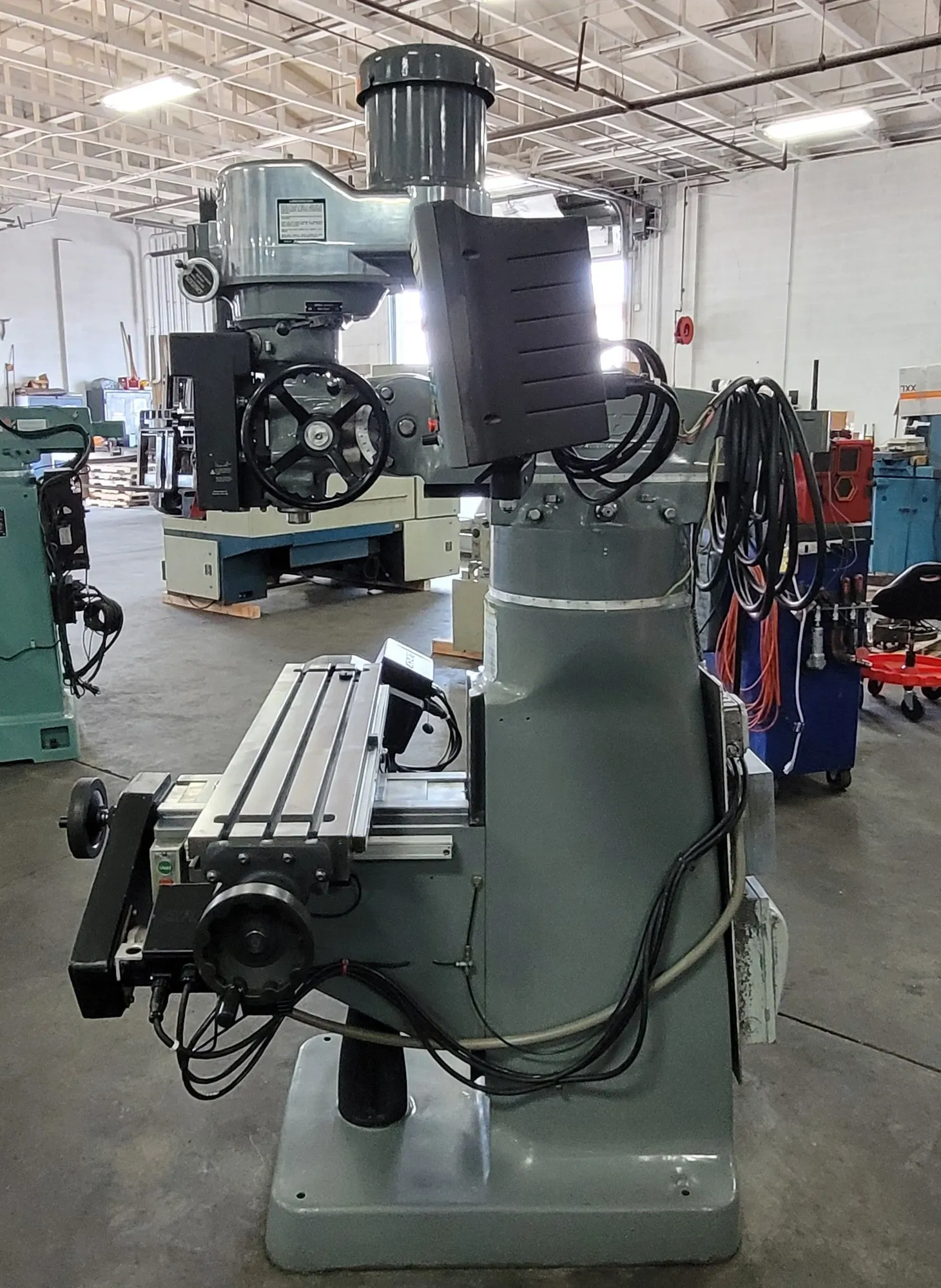

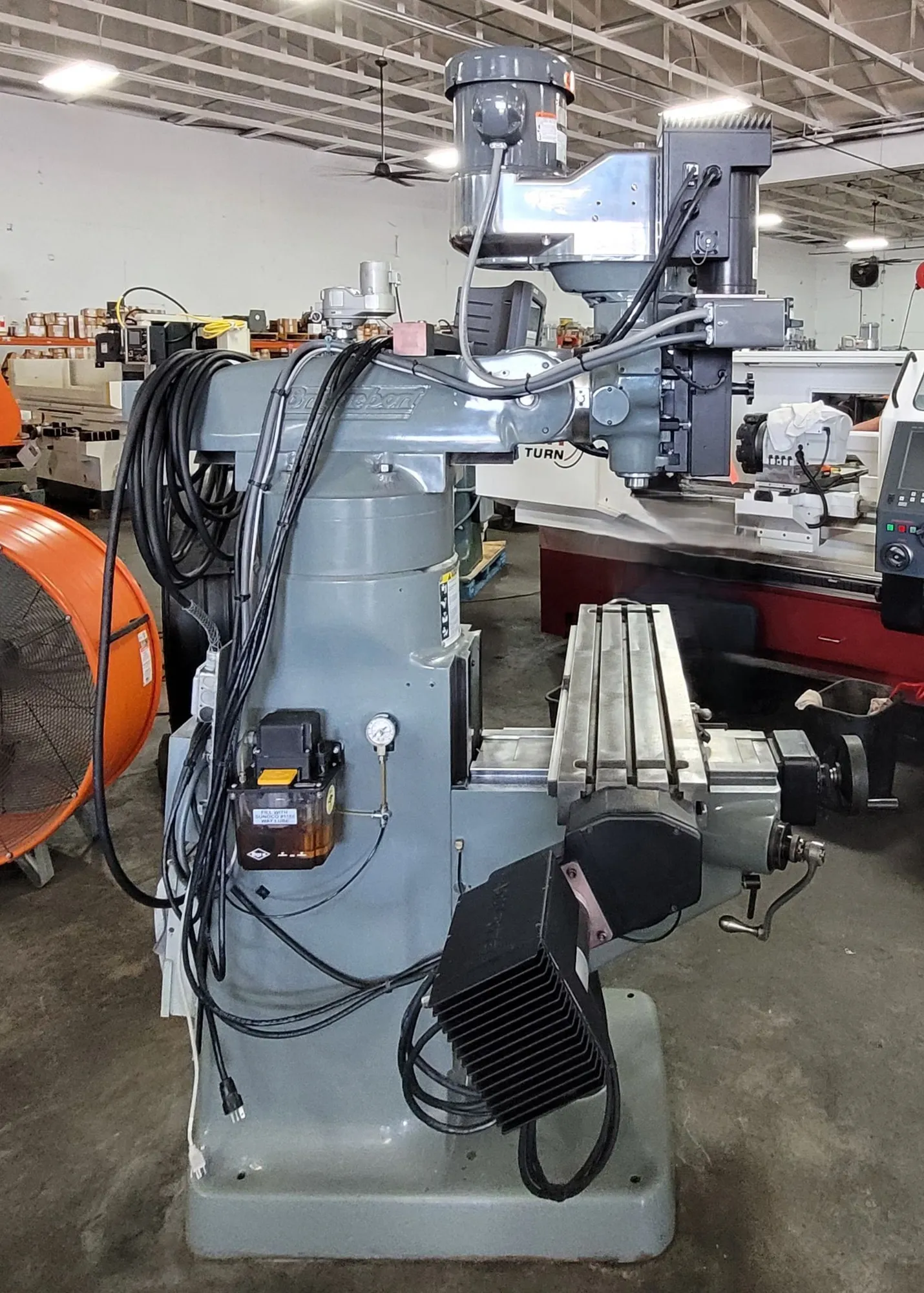

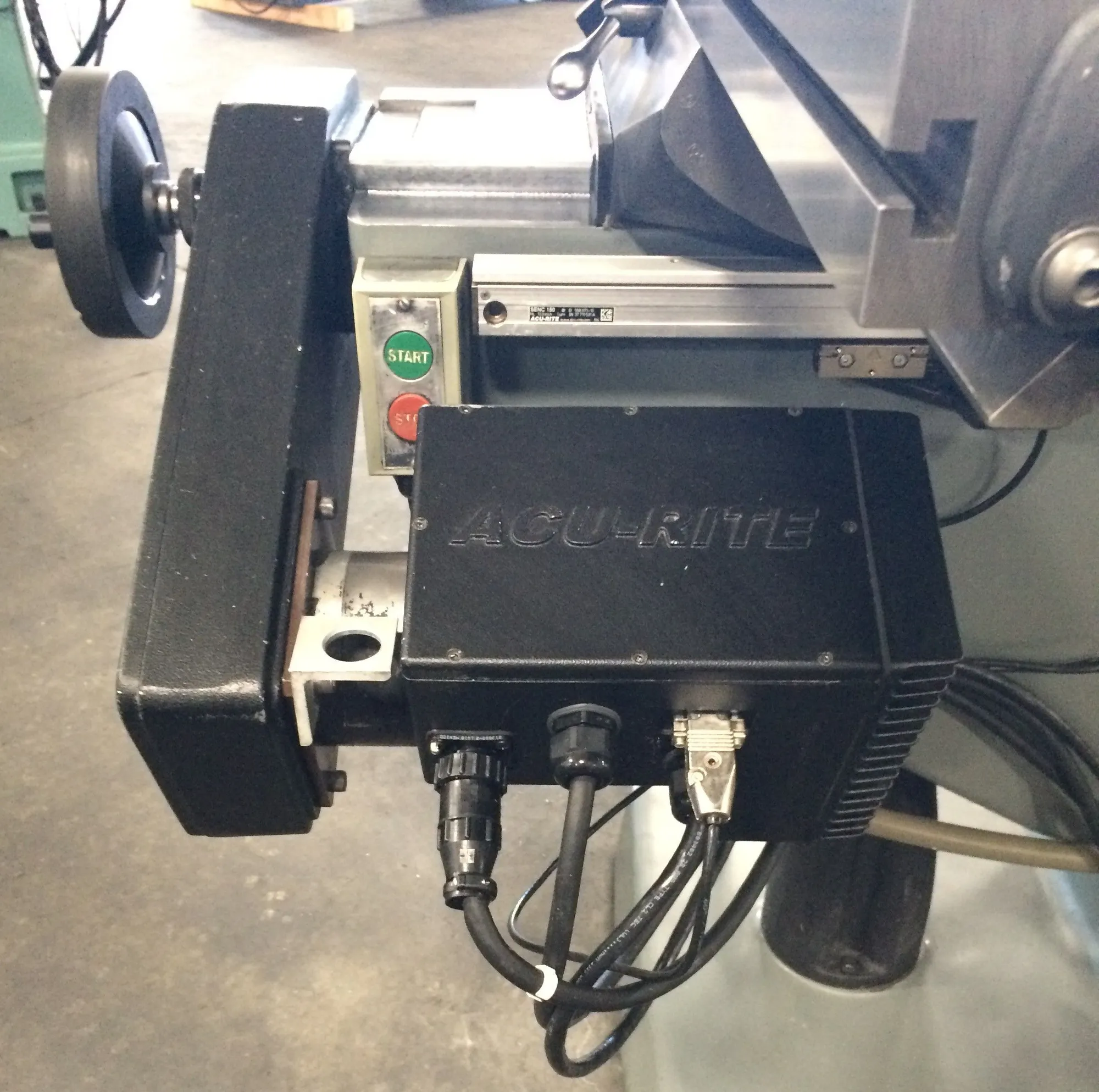

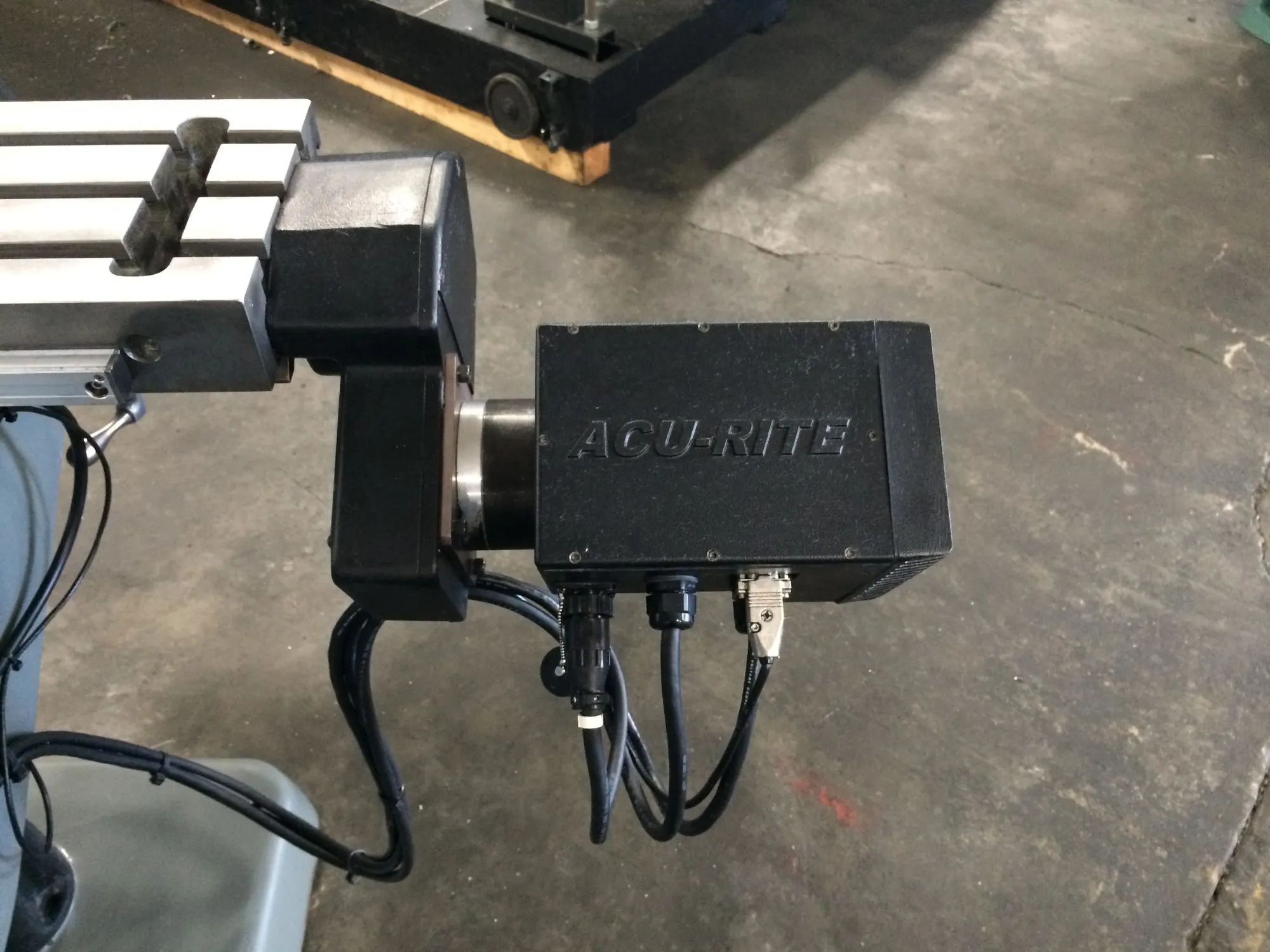

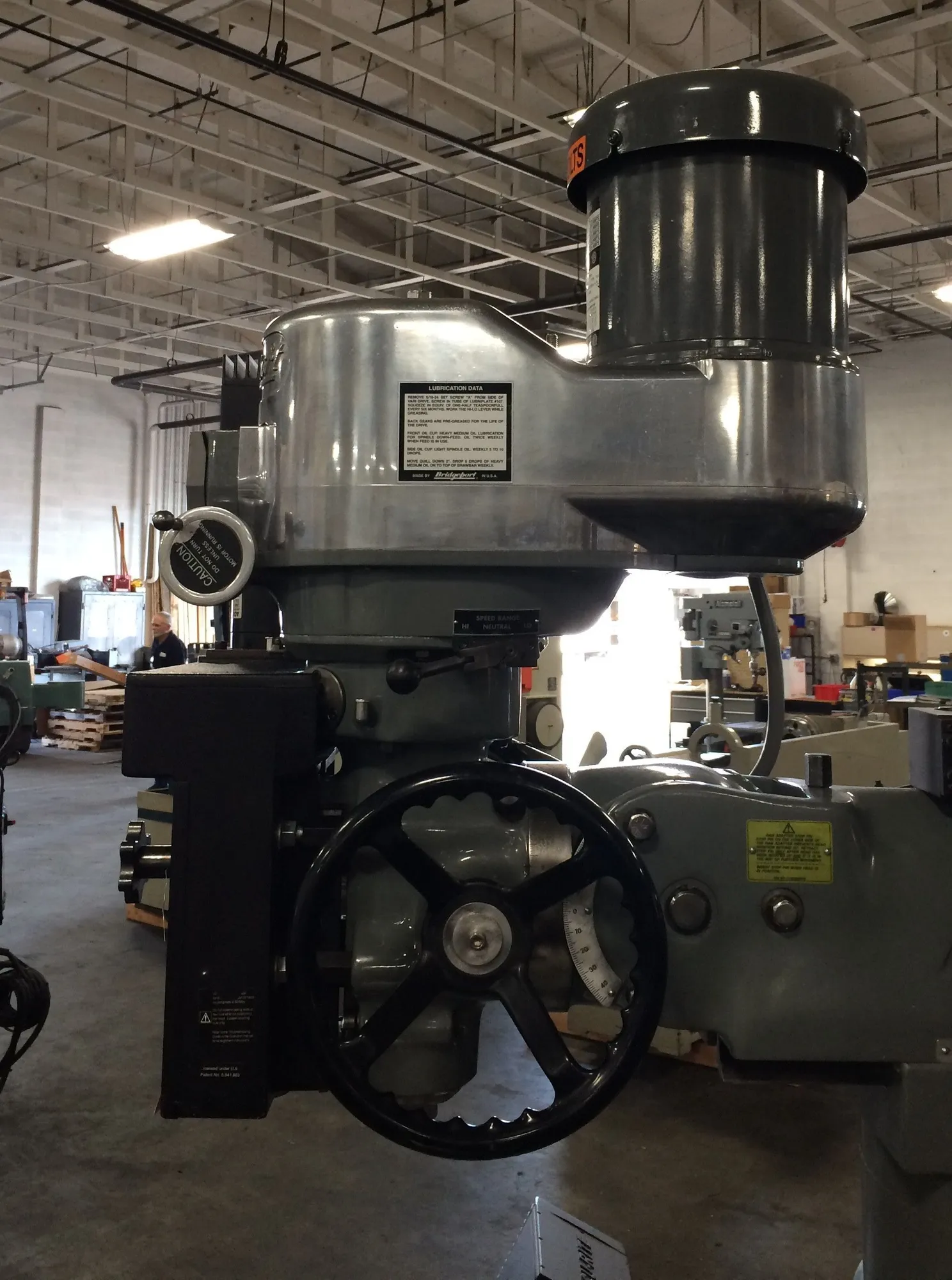

THE BRIDGEPORT MODEL 2J 3-AXIS CNC VERTICAL MILLING MACHINE IS EQUIPPED WITH AN ACU-RITE MILLPWR G2 3-AXIS CNC CONTROL AND INTEGRATED 3-AXIS DIGITAL READOUT (DRO), PROVIDING CONVERSATIONAL PROGRAMMING, G-CODE COMPATIBILITY, DXF FILE CONVERSION, AND SEAMLESS TRANSITION BETWEEN MANUAL AND CNC OPERATION. THE CONTROL FEATURES A 12.1-INCH HIGH-RESOLUTION COLOR LCD, 1.4 GHZ CELERON® M PROCESSOR, 2 GB INTERNAL MEMORY, USB AND ETHERNET CONNECTIVITY, CLOSED-LOOP FEEDBACK USING ACU-RITE PRECISION GLASS SCALES, POSITION-TRAC™ WORKPIECE ZERO RECOVERY, 3D CONTOURING, POCKET AND HOLE PATTERN CYCLES, ENGRAVING, ISLAND AND BOSS CREATION, 3D PART-REVIEW GRAPHICS, FULL DIGITAL READOUT FUNCTIONALITY, AND IP54/IP40 ENVIRONMENTAL PROTECTION. THE MACHINE FEATURES A 9-INCH × 48-INCH TABLE WITH A 3-INCH RISER, 35 INCHES OF X-AXIS TRAVEL, 12 INCHES OF Y-AXIS TRAVEL, 5 INCHES OF POWER/MANUAL QUILL Z-AXIS TRAVEL, AND 16 INCHES OF KNEE TRAVEL. IT IS EQUIPPED WITH AN R8 SPINDLE TAPER, A 2 HP VARIABLE-SPEED SPINDLE DRIVE, AND A SPINDLE SPEED RANGE OF 60 TO 4,200 RPM. ADDITIONAL FEATURES INCLUDE CHROME WAYS, A BIJUR LUBRICATION SYSTEM, AND A KURT 6-INCH MACHINIST VISE. THE MACHINE OPERATES ON 230/460V, 3-PHASE POWER AND IS CURRENTLY WIRED FOR 480V. THE MAIN UNIT MEASURES APPROXIMATELY 65 INCHES LONG BY 60 INCHES WIDE BY 84 INCHES HIGH, WEIGHS APPROXIMATELY 2,500 LBS.
