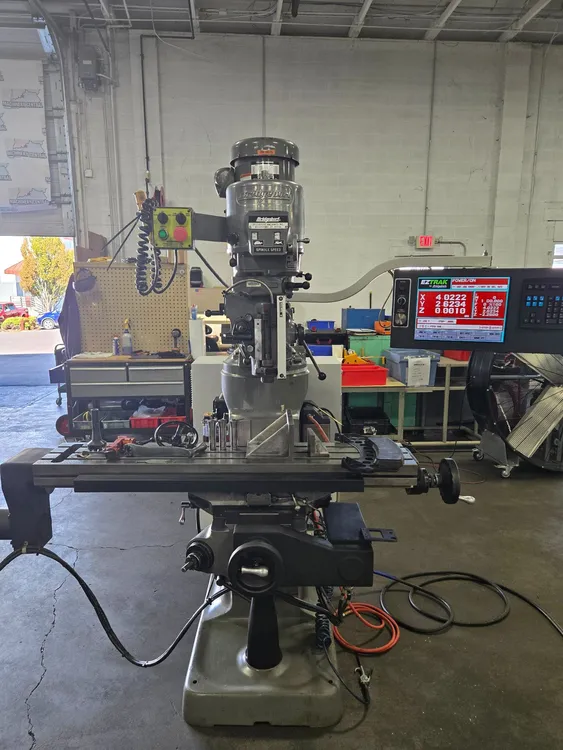

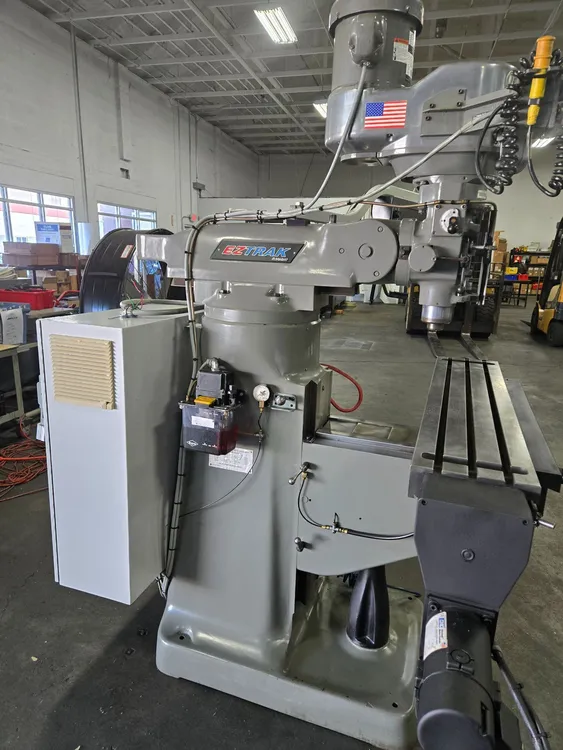

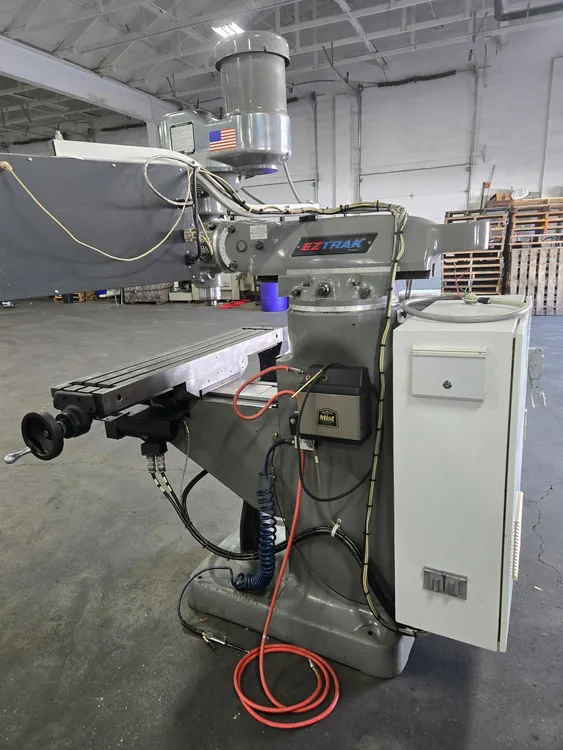

BRIDGEPORT EZ TRAK DX CNC VERTICAL MILL 9"X48" 2 HP R8 33.5X 12Y 60-4200 RPM 230V

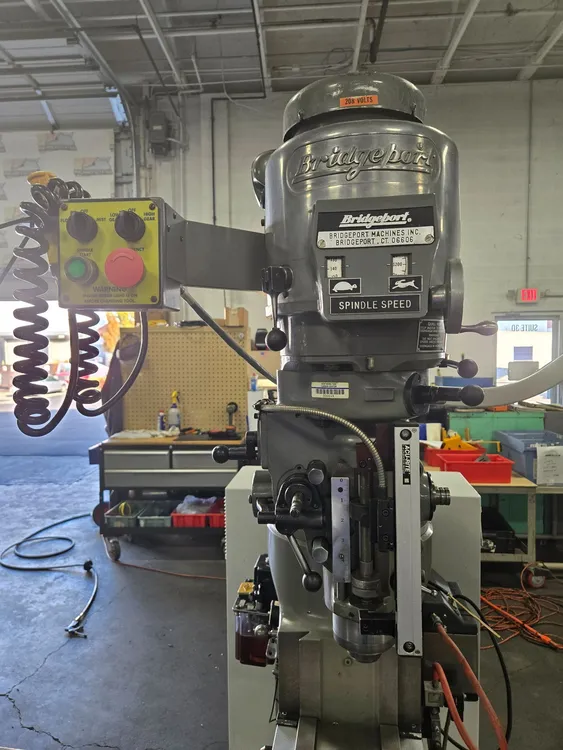

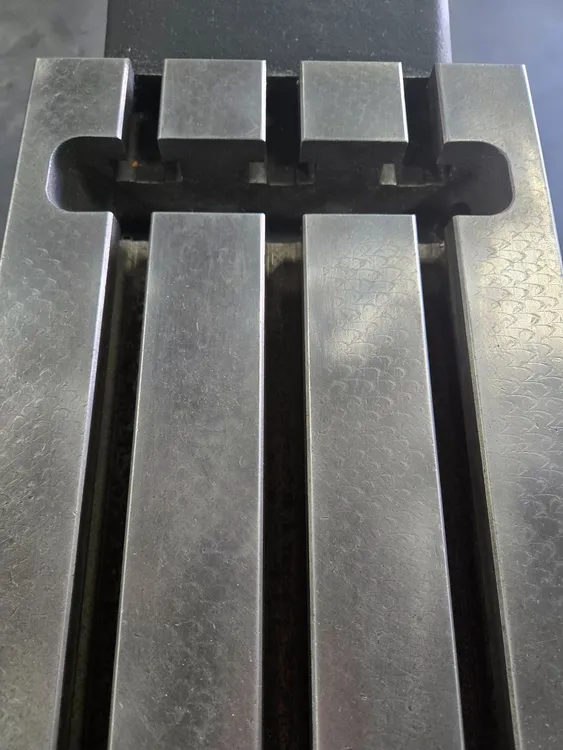

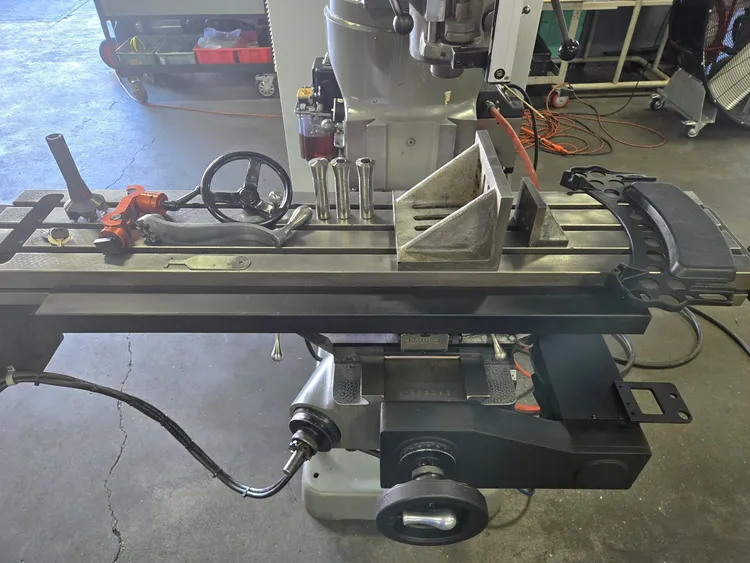

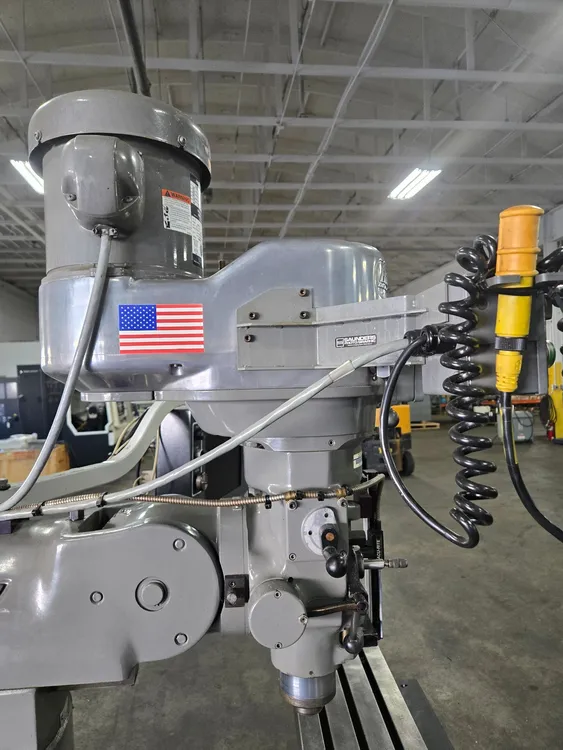

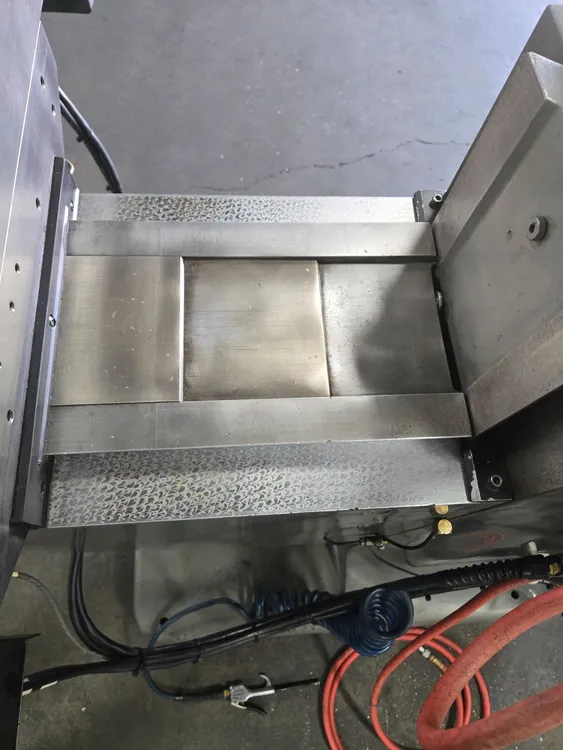

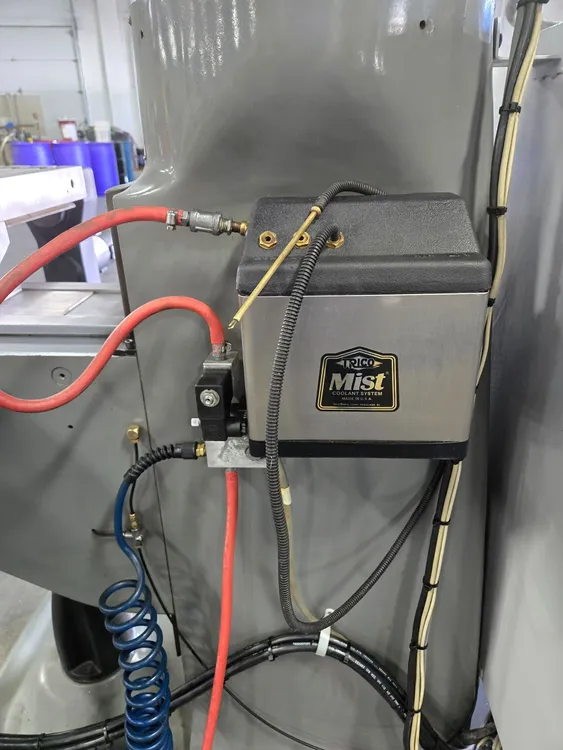

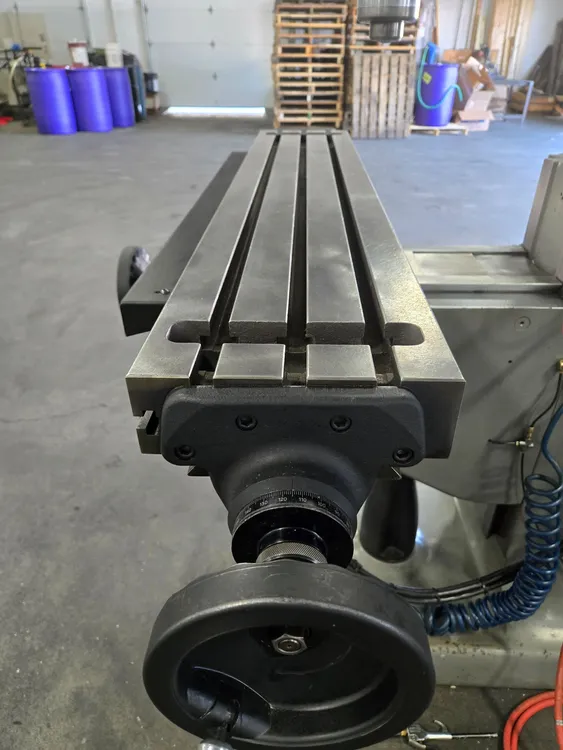

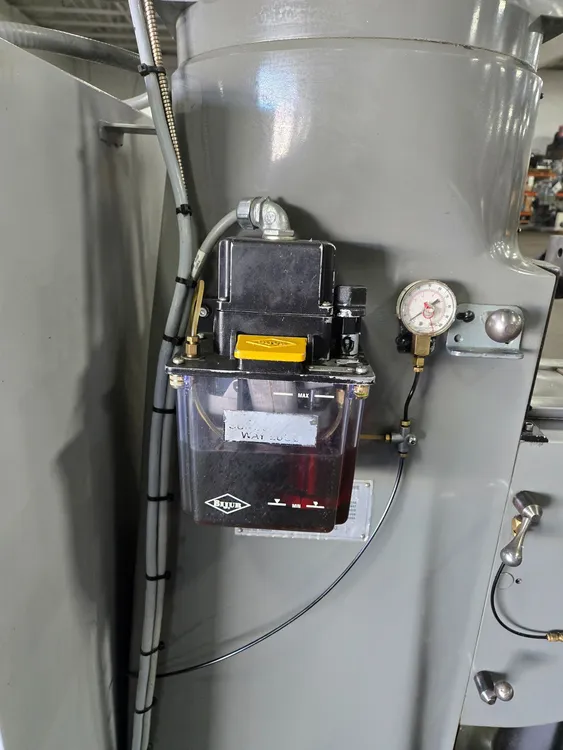

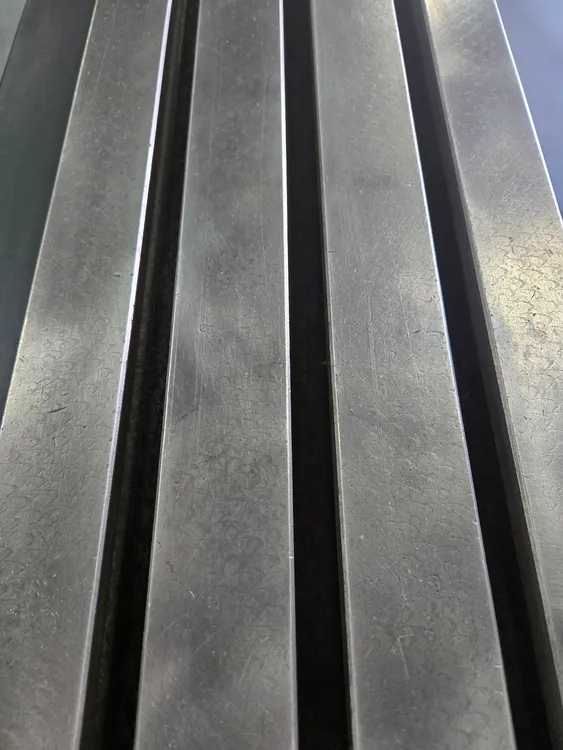

THE BRIDGEPORT SERIES 1 EZ TRAK DX IS A CNC VERTICAL MILL EQUIPPED WITH A 9" X 48" TABLE AND A 2 HP VARIABLE SPEED HEAD FEATURING AN R8 TAPER SPINDLE. KEY MACHINE TRAVELS INCLUDE A 33.5" LONGITUDINAL (X) TRAVEL, 12" CROSS (Y) TRAVEL, 14" VERTICAL KNEE TRAVEL, 12" RAM TRAVEL, AND 5" QUILL TRAVEL. THE SPINDLE OFFERS INFINITELY VARIABLE SPEEDS FROM 60 TO 4200 RPM, WITH QUILL FEED RATES OF 0.0015", 0.003", AND 0.006". THE X AND Y AXES HAVE A POSITIONING SPEED OF 100 INCHES PER MINUTE AND A FEED RATE RANGE OF 0.1 TO 100 INCHES PER MINUTE. THE THROAT DISTANCE RANGES FROM 6-3/4" TO 18-3/4", AND THE TABLE TO SPINDLE NOSE DISTANCE IS 2-1/2" TO 18-1/4". THE MACHINE IS POWERED BY A 2 HP MOTOR AND IS CURRENTLY WIRED FOR 230V 3 PHASE, 60 CYCLES, WITH FULL LOAD AMPS OF 6.2. IT FEATURES CHROME WAYS, A TRICO MIST COOLANT SYSTEM, A BUJIR AUTO LUBE SYSTEM, ANGLE BLOCKS, AND R8 COLLETS. APPROXIMATE DIMENSIONS ARE 70" X 77" X 87" HIGH, WITH AN APPROXIMATE WEIGHT OF 3,000 LBS.
