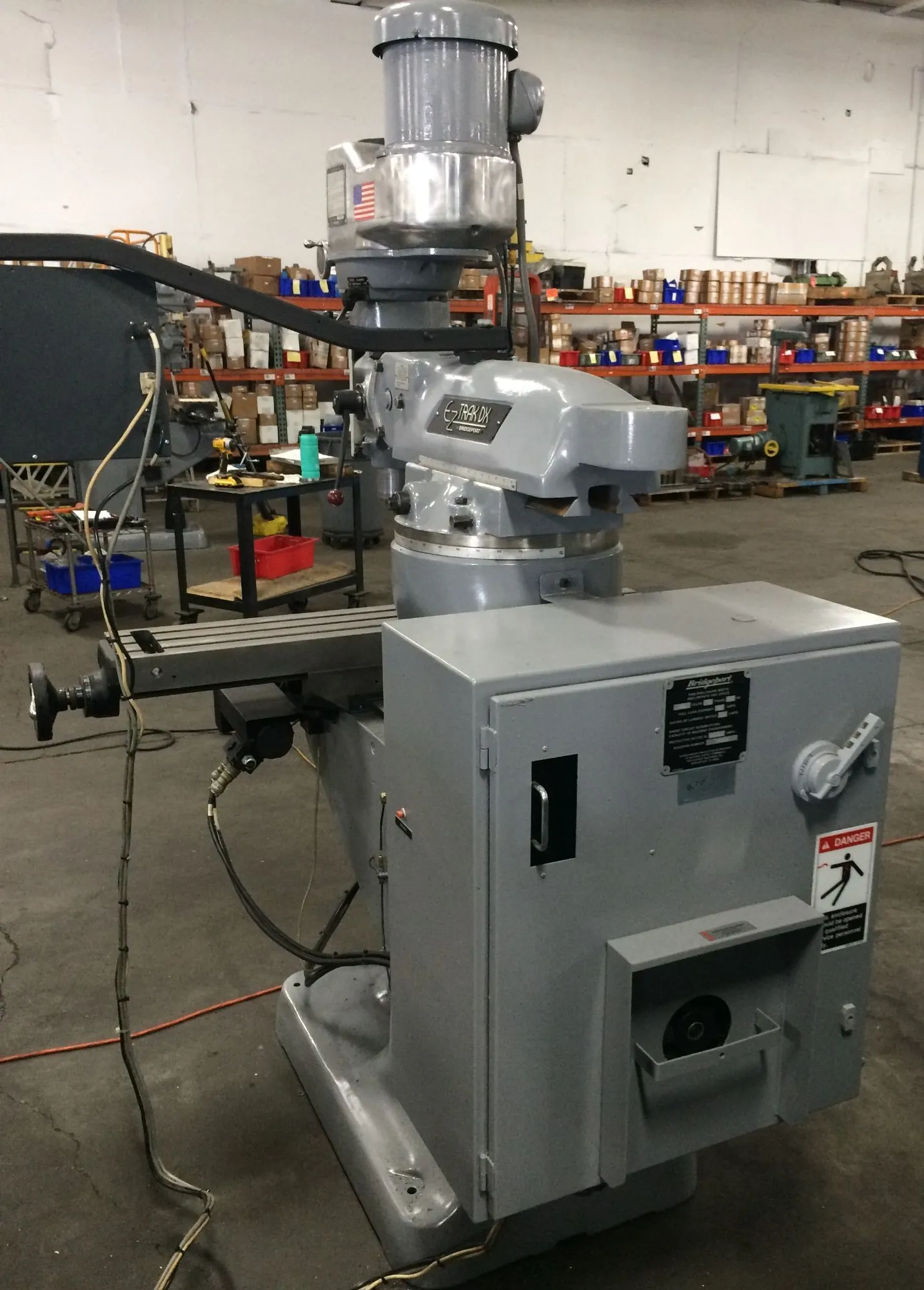

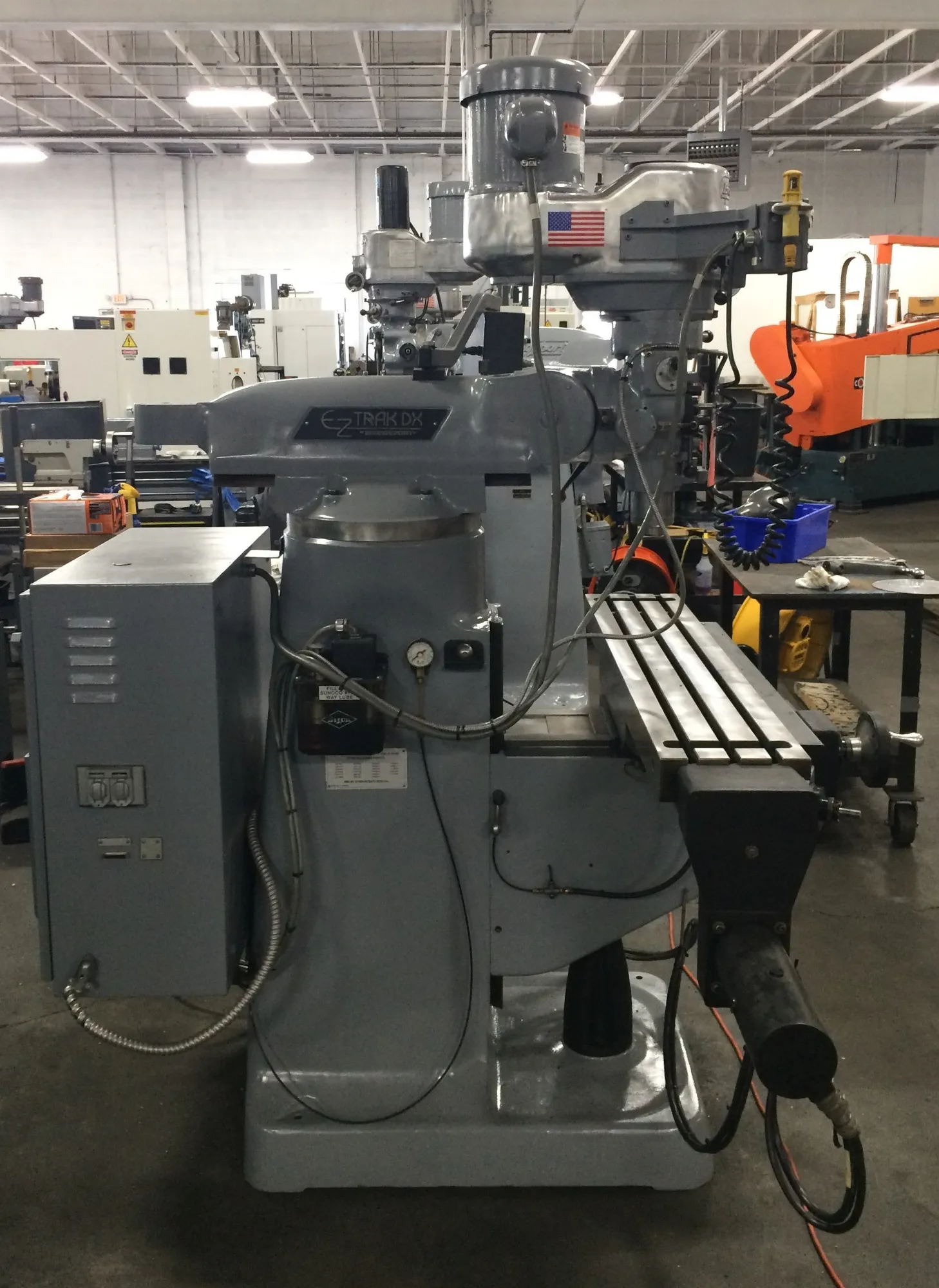

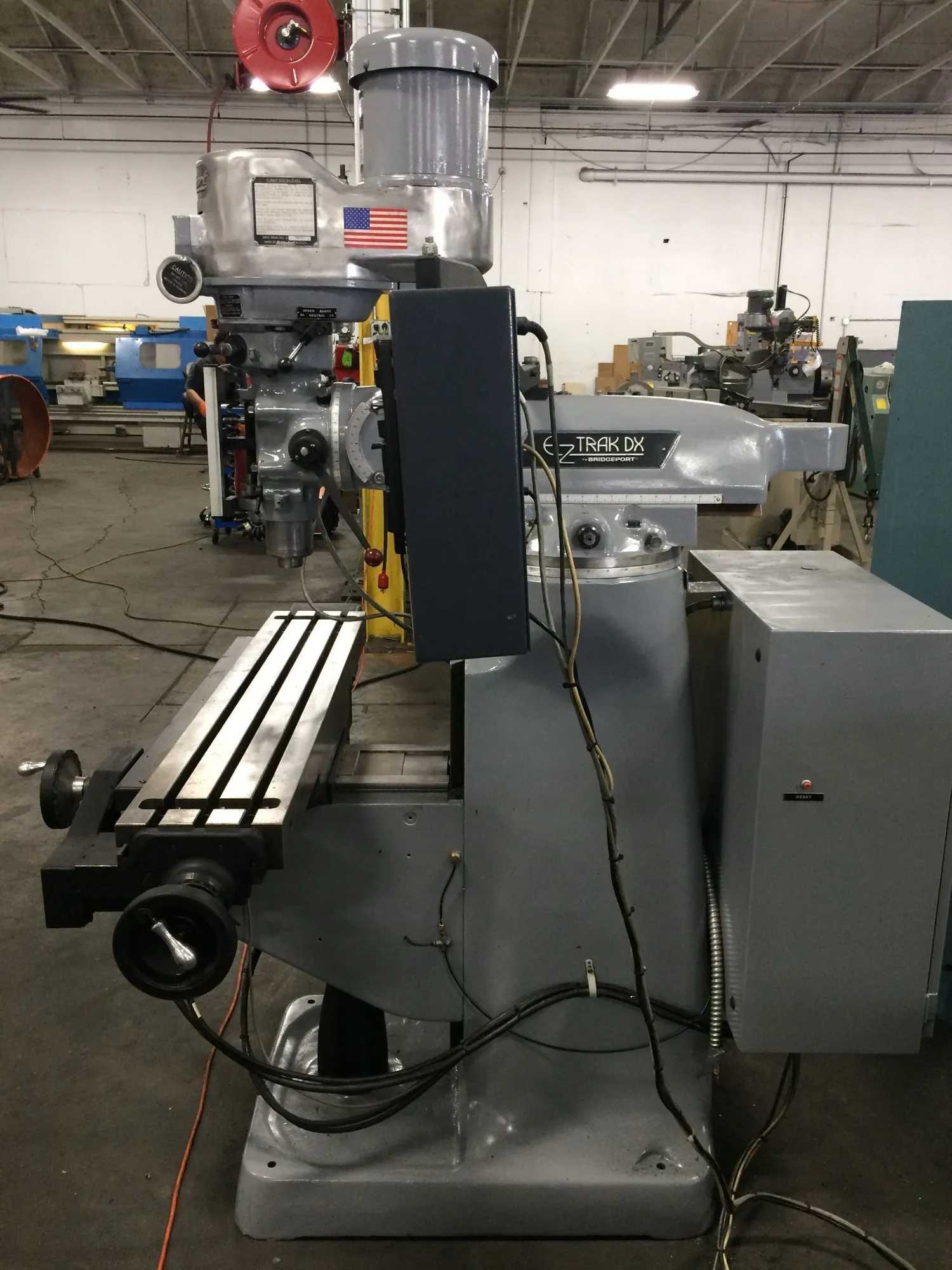

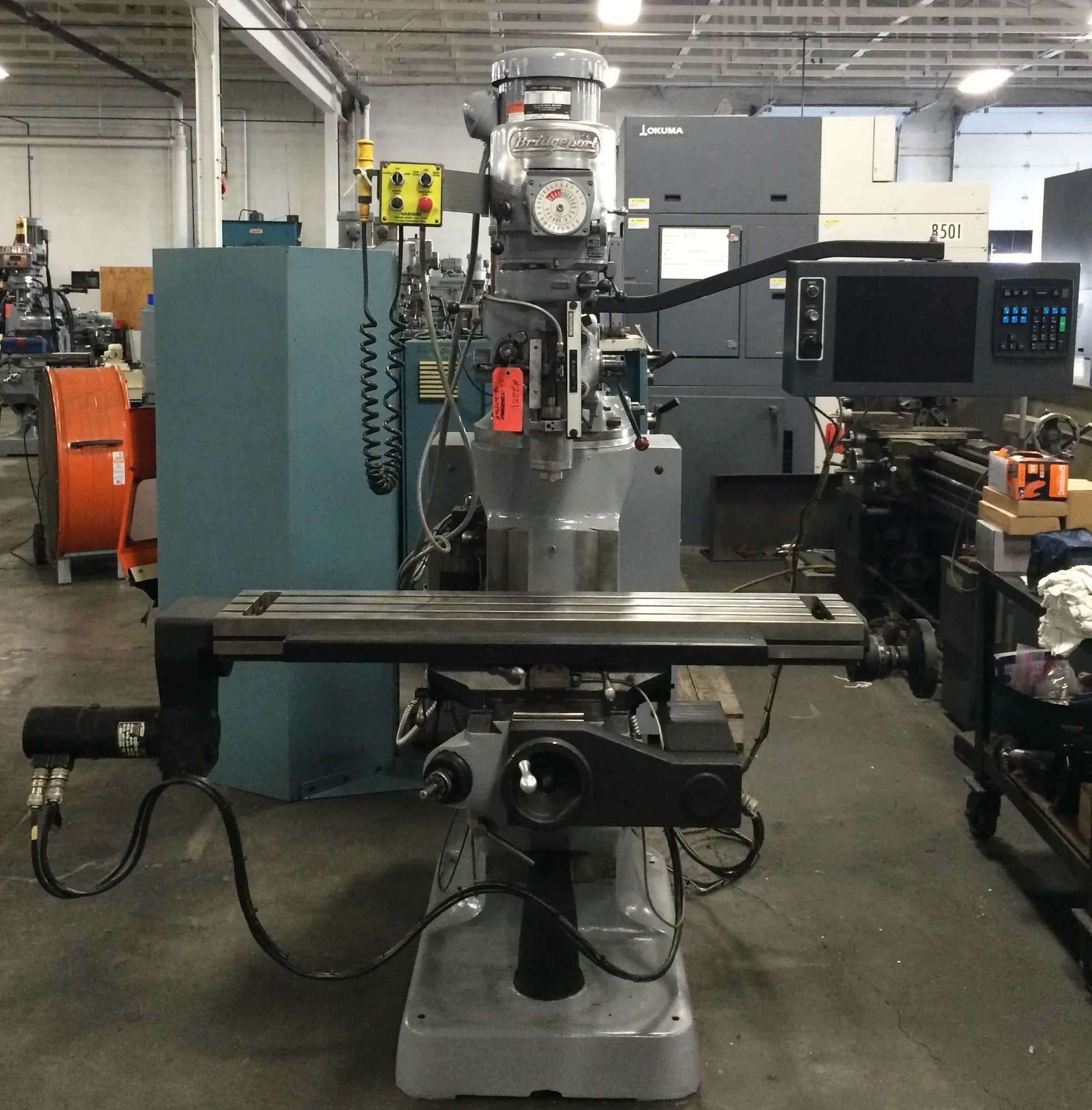

BRIDGEPORT EZ TRAK DX VERTICAL MILL, 9" X 48" TABLE, 2 HP, 60-4200 RPM, R8, 230V

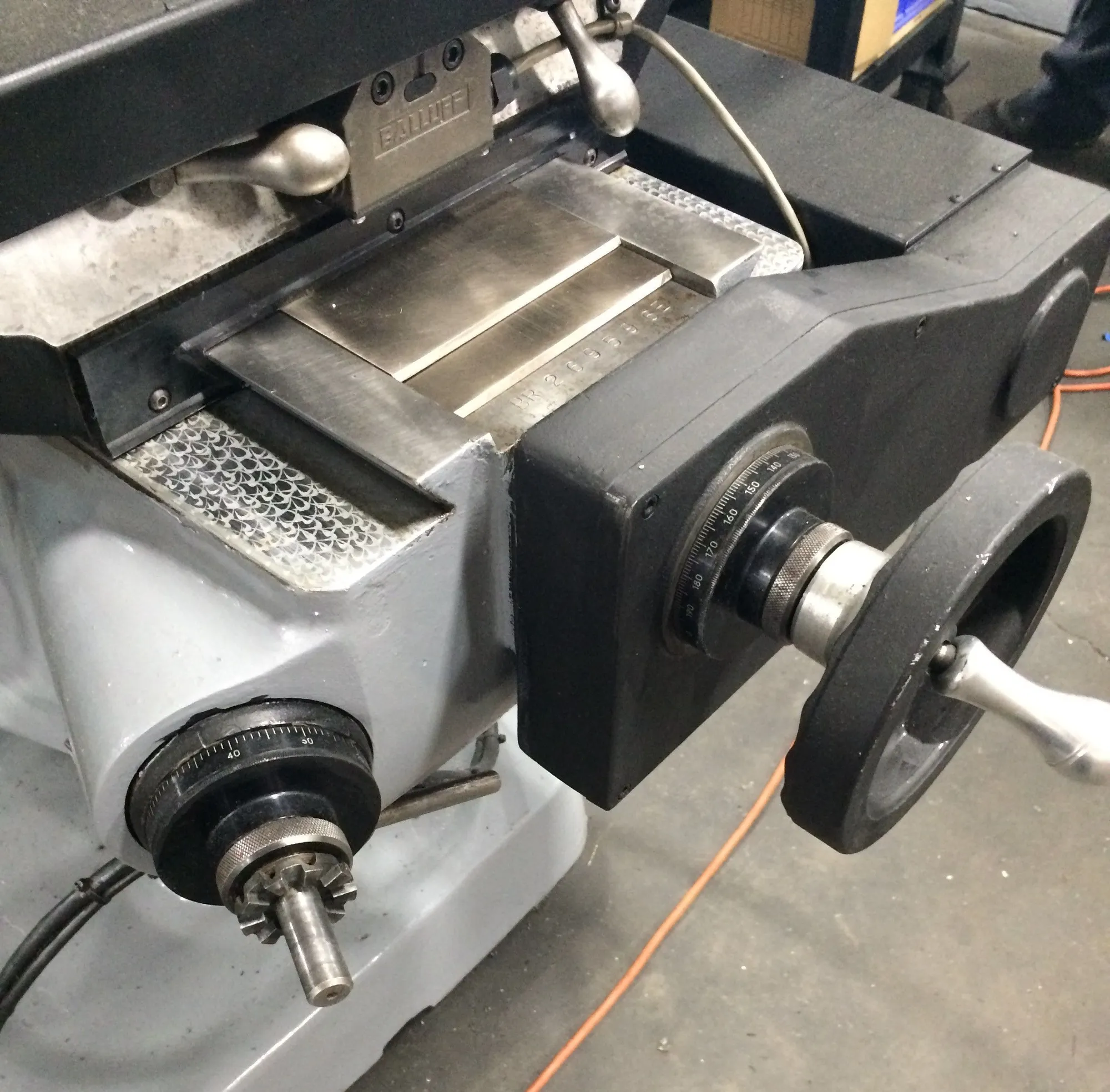

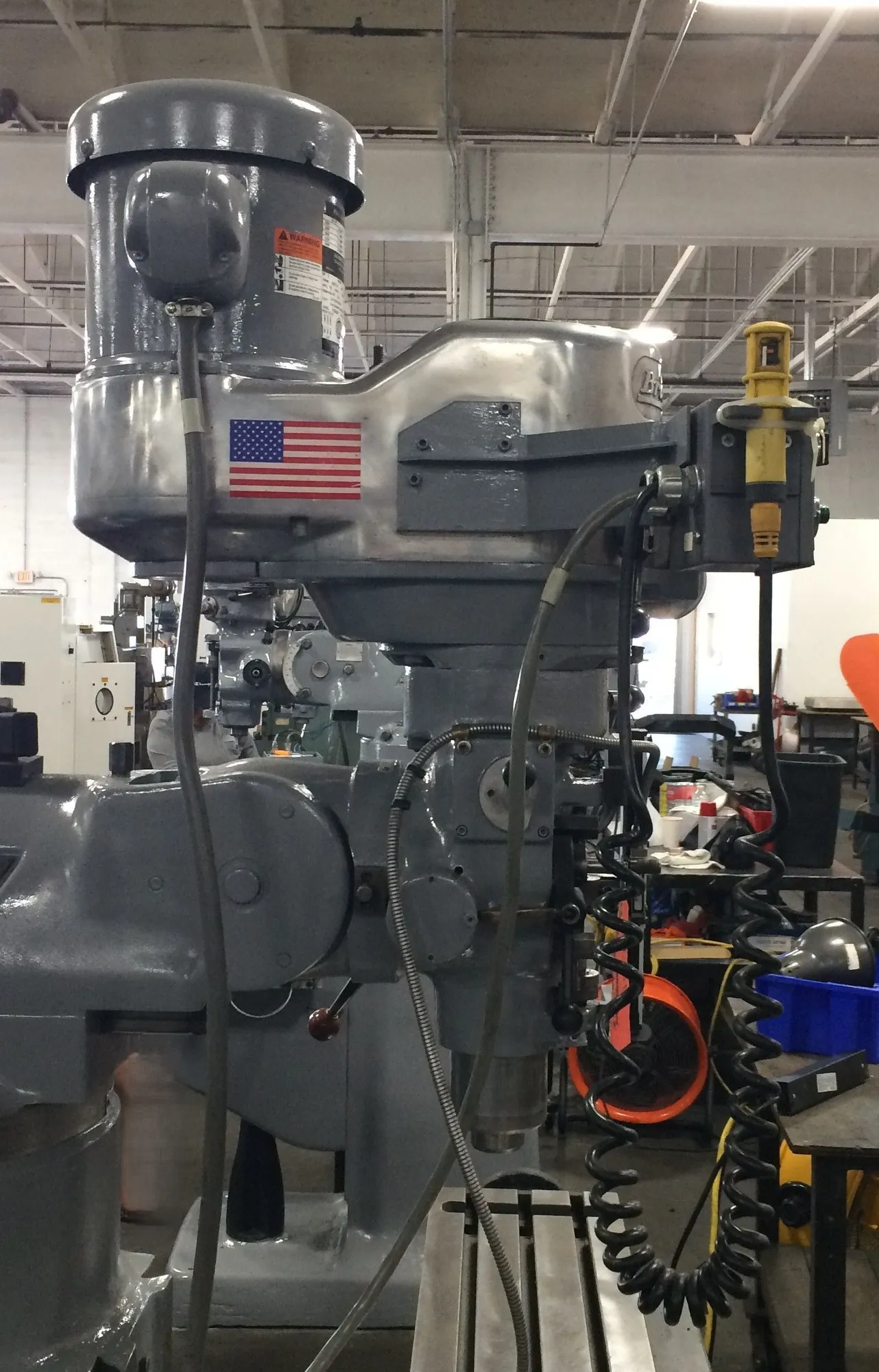

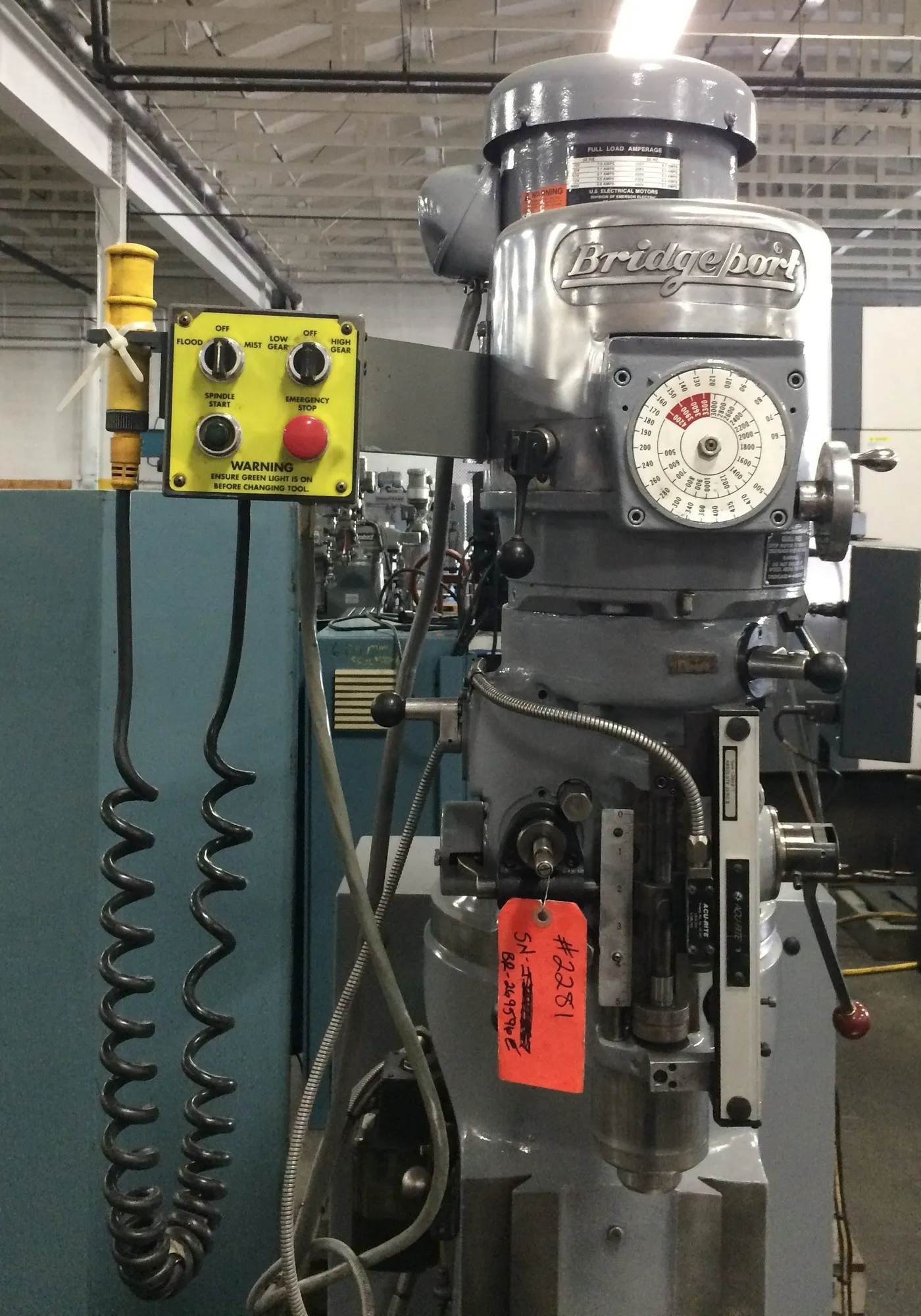

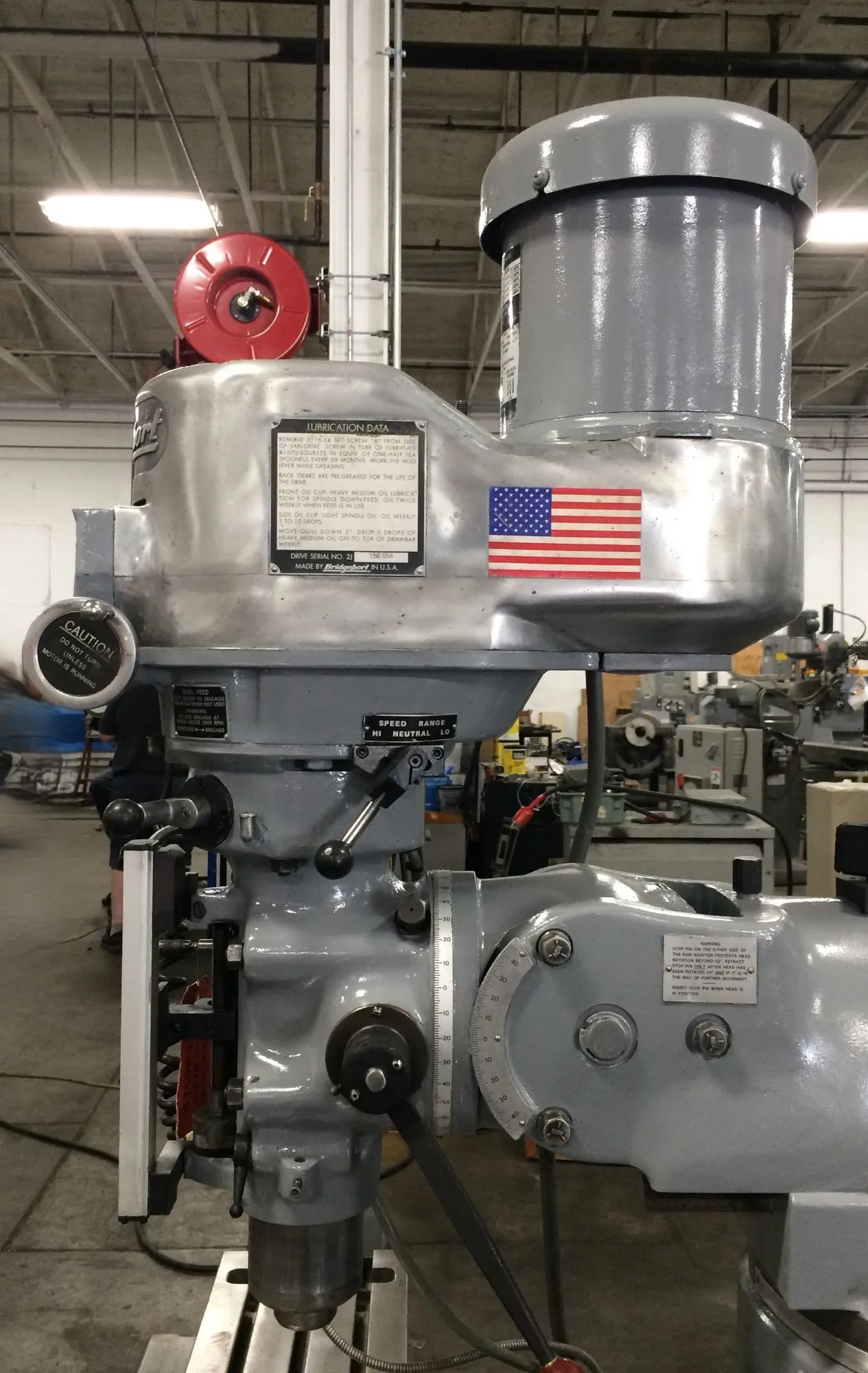

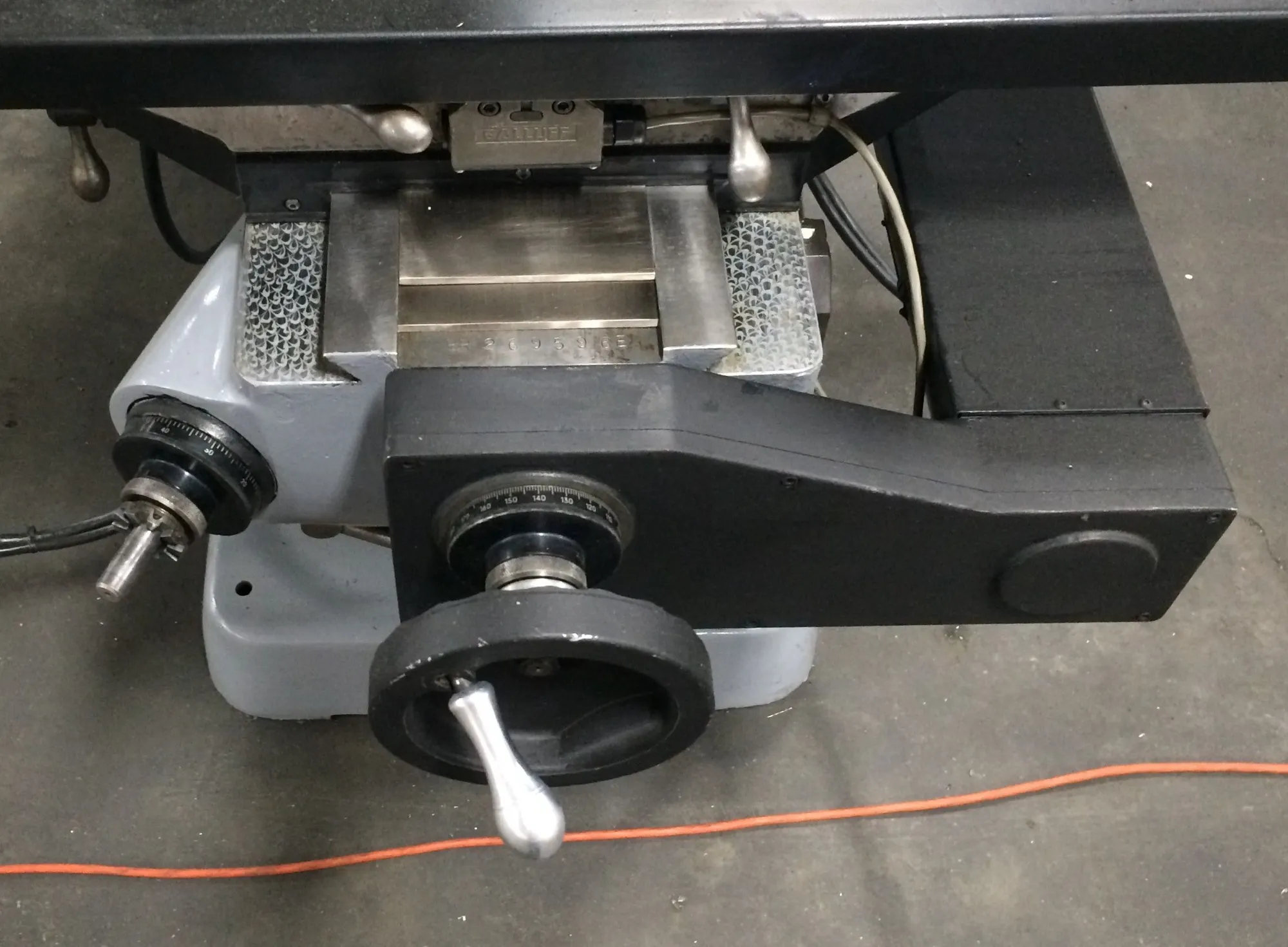

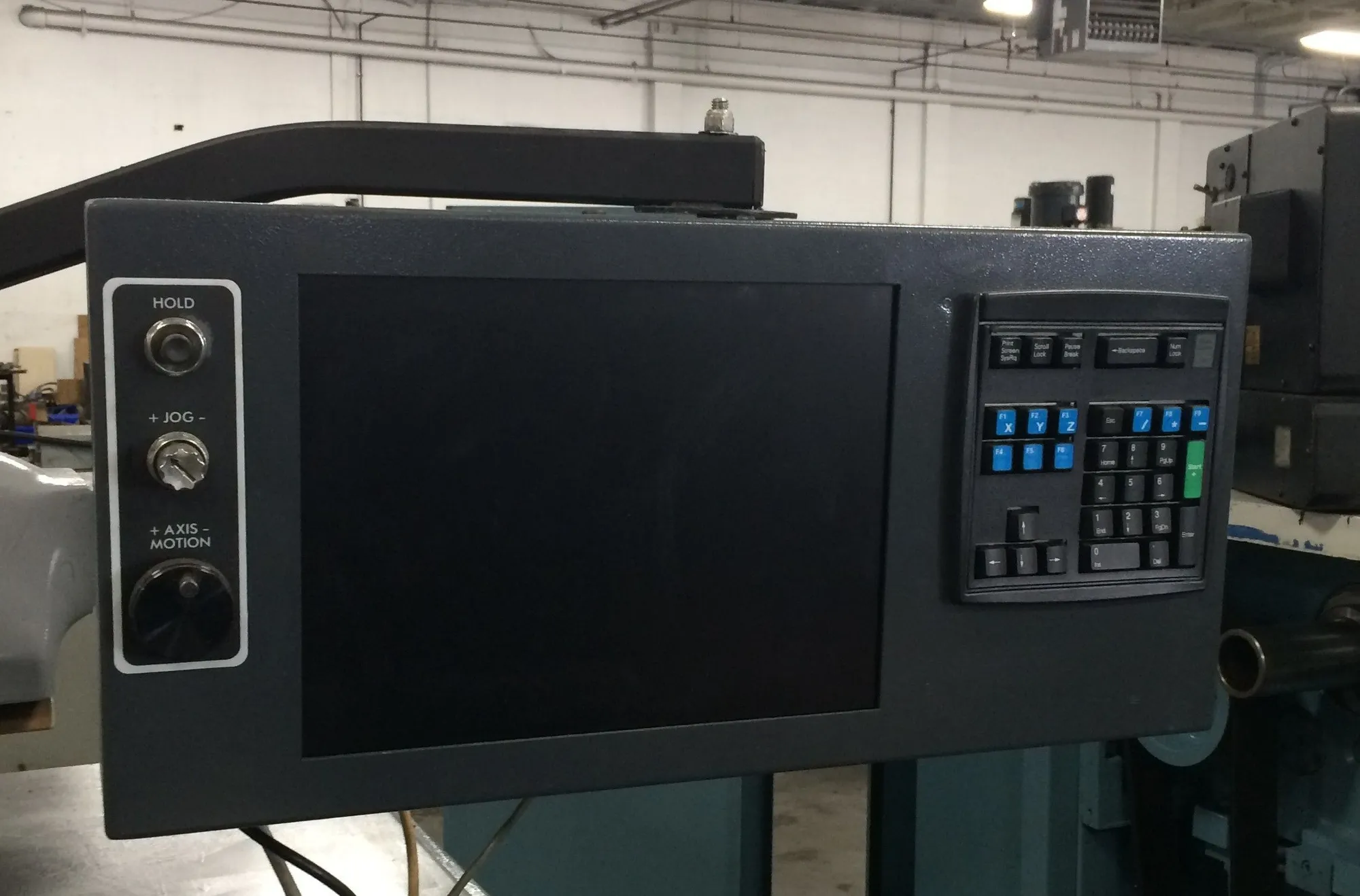

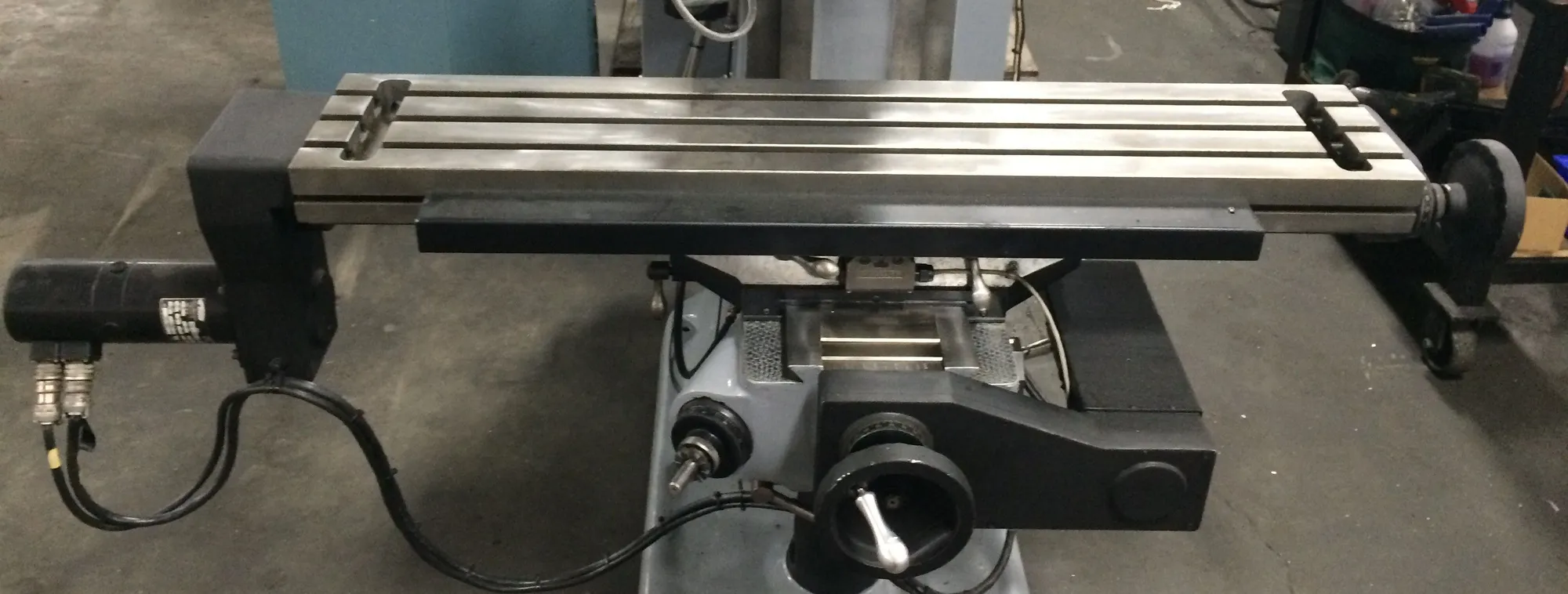

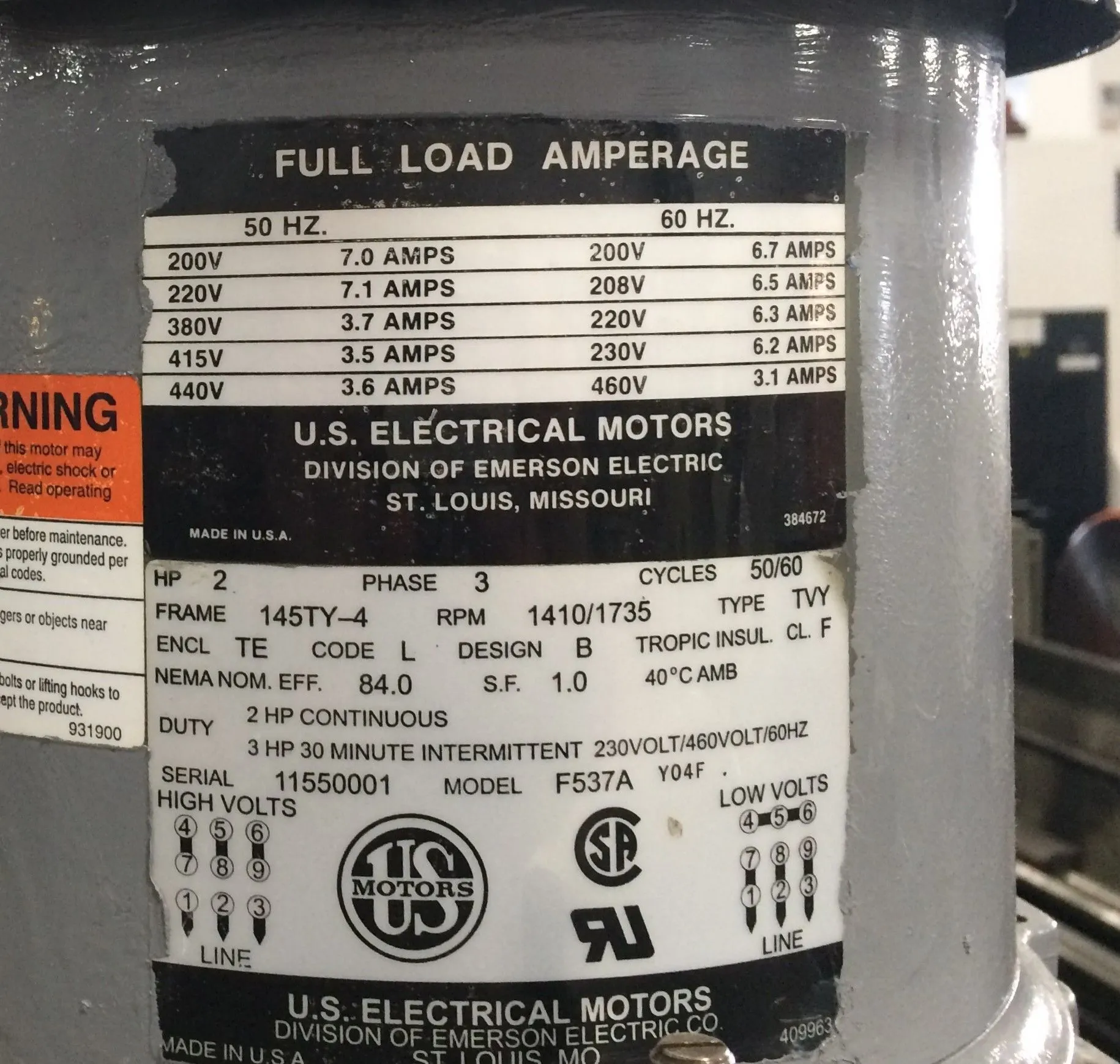

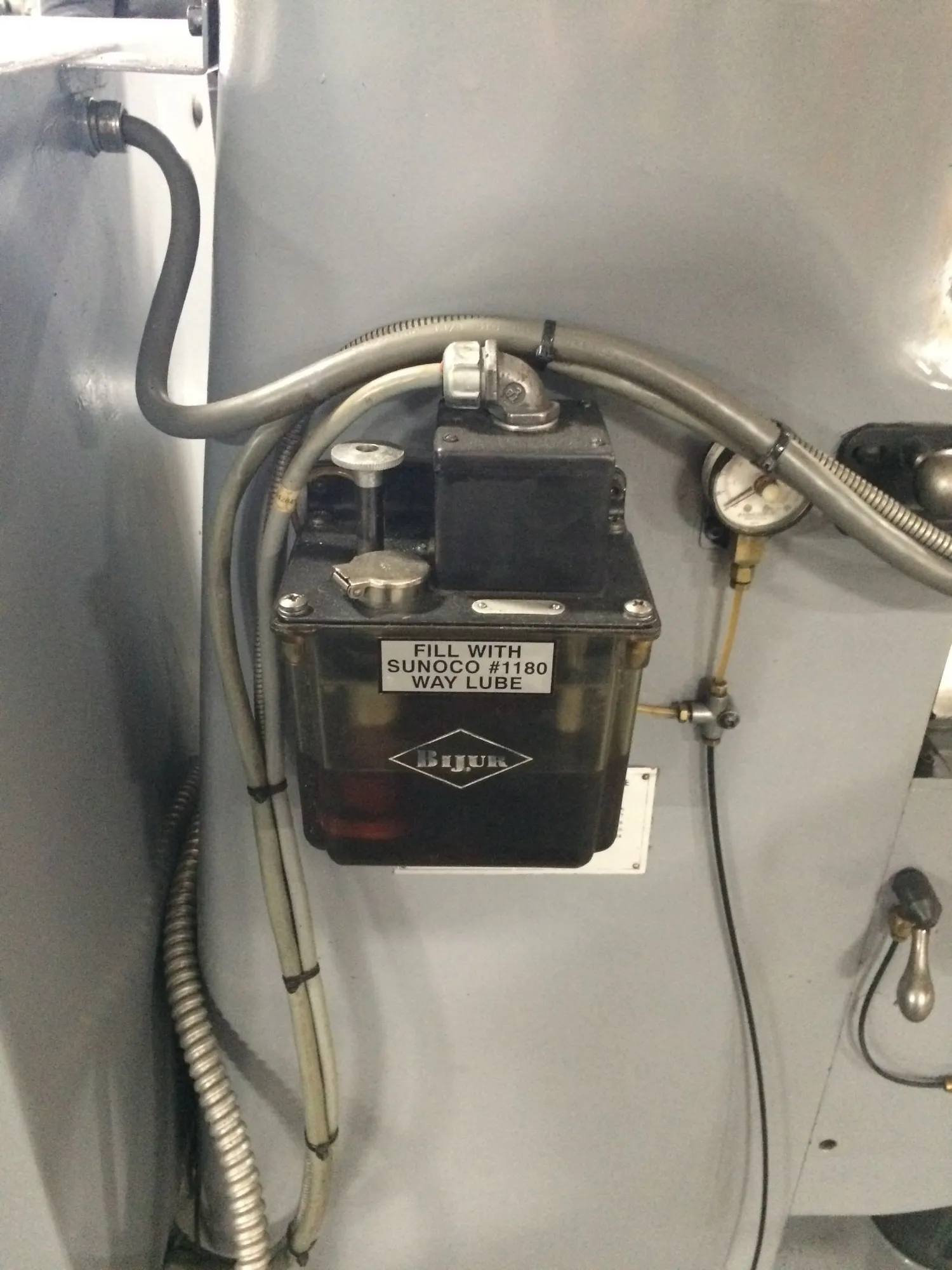

THE BRIDGEPORT SERIES 1 EZ TRAK DX VERTICAL MILL FEATURES A 2 HP VARIABLE SPEED HEAD WITH AN R8 TAPER SPINDLE AND CHROME WAYS. TECHNICAL SPECIFICATIONS INCLUDE A 9 INCH BY 48 INCH TABLE WITH A LONGITUDINAL TRAVEL OF 33.5 INCHES, CROSS TRAVEL OF 12 INCHES, AND VERTICAL KNEE TRAVEL OF 14 INCHES. THE QUILL PROVIDES 5 INCHES OF TRAVEL WITH FEED RATES OF 0.0015, 0.003, AND 0.006 INCHES. SPINDLE SPEEDS ARE INFINITELY VARIABLE FROM 60 TO 4200 RPM. THE UNIT INCLUDES A RAM TRAVEL OF 12 INCHES, A POSITIONING SPEED AND FEED RATE RANGE OF 0.1 TO 100 INCHES PER MINUTE FOR THE X-Y AXIS, AND A THROAT DISTANCE OF 6-3/4 INCHES TO 18-3/4 INCHES. THE DISTANCE FROM THE TABLE TO THE SPINDLE NOSE RANGES FROM 2-1/2 INCHES TO 18-1/4 INCHES. ELECTRICAL REQUIREMENTS ARE 230/460V, 3 PHASE, 60 CYCLES, WITH A FULL LOAD AMPERAGE OF 6.2/3.1. THE MACHINE IS CURRENTLY WIRED FOR 230V. INTEGRATED COMPONENTS INCLUDE A TRICO MIST COOLANT SYSTEM, BIJUR AUTO LUBE SYSTEM, AND A DIGITAL CONSOLE WITH AN LED SCREEN, KEYPAD, AND USB DRIVE. PHYSICAL DIMENSIONS ARE APPROXIMATELY 70 INCHES BY 77 INCHES BY 87 INCHES HIGH, WITH AN APPROXIMATE WEIGHT OF 3,000 LBS.
