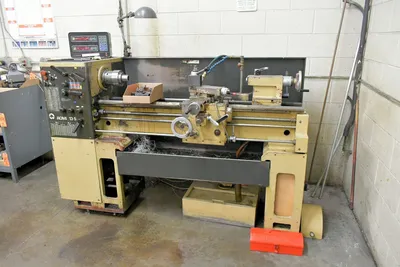

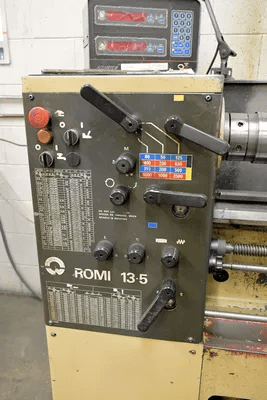

BRIDGEPORT ROMI 13" X 40" LATHE 13-5 (5 HP, 50-2500 RPM)

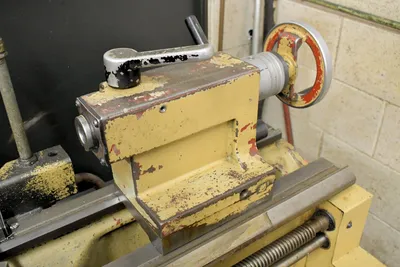

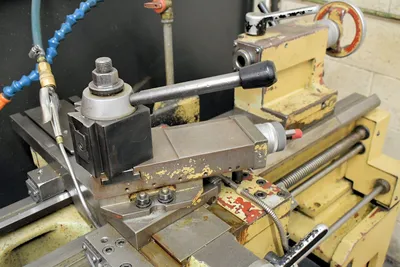

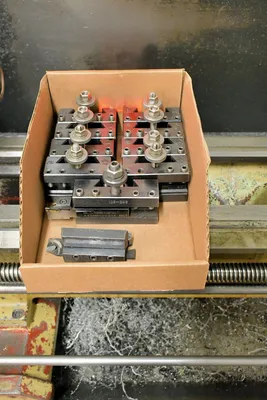

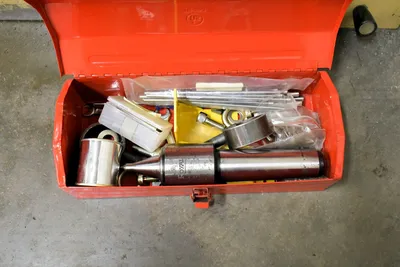

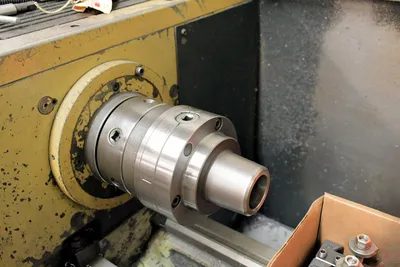

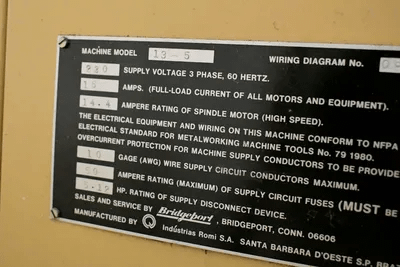

THIS BRIDGEPORT ROMI 13-5 LATHE FEATURES A 13-INCH SWING OVER WAYS AND A 7.5-INCH SWING OVER THE CROSS SLIDE, WITH A 40-INCH DISTANCE BETWEEN CENTERS. IT IS POWERED BY A 5 HP SPINDLE MOTOR, OFFERING 12 SPINDLE SPEEDS RANGING FROM 50 TO 2500 RPM. THE LATHE HAS A 1-3/8 INCH SPINDLE BORE AND IS CAPABLE OF THREADING WITH AN INCH RANGE OF 4–72 TPI AND A METRIC RANGE OF 0.2–7 MM. THE TAILSTOCK FEATURES A MORSE TAPER #3 AND 4.75 INCHES OF QUILL TRAVEL. ELECTRICAL REQUIREMENTS ARE 230V 3 PHASE. APPROXIMATE DIMENSIONS ARE 76 INCHES LR X 30 INCHES FB X 51 INCHES H, WITH AN APPROXIMATE WEIGHT OF 2000 LBS. THE MACHINE IS EQUIPPED WITH INCH/METRIC THREADING, A COLLET CHUCK, AN ALORIS TOOL POST WITH HOLDER, A JACOBS CHUCK, A THREADING DIAL, A MICROMETER CARRIAGE STOP, AND A COOLANT PUMP & TANK, CHIP PAN BASE.
