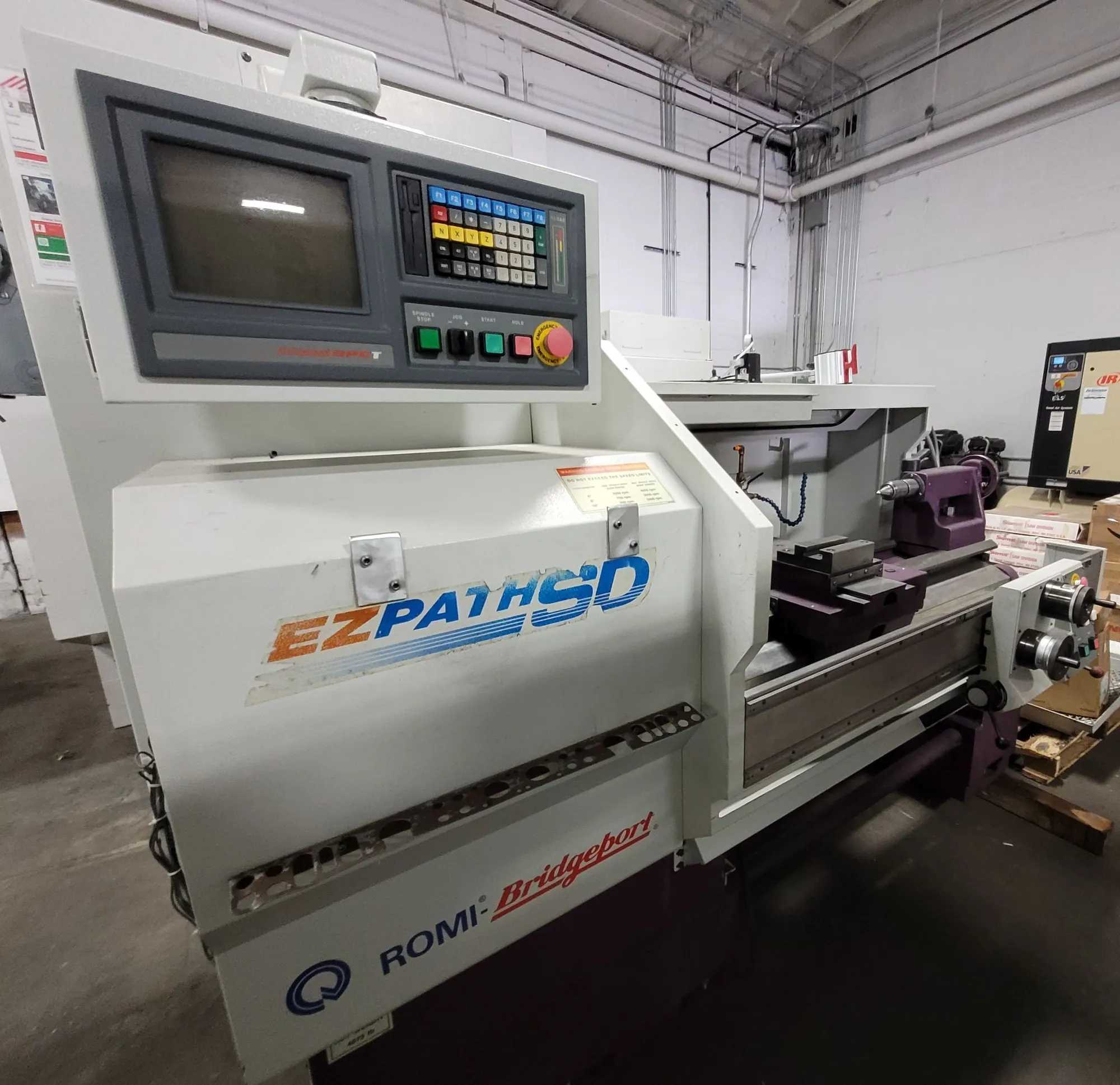

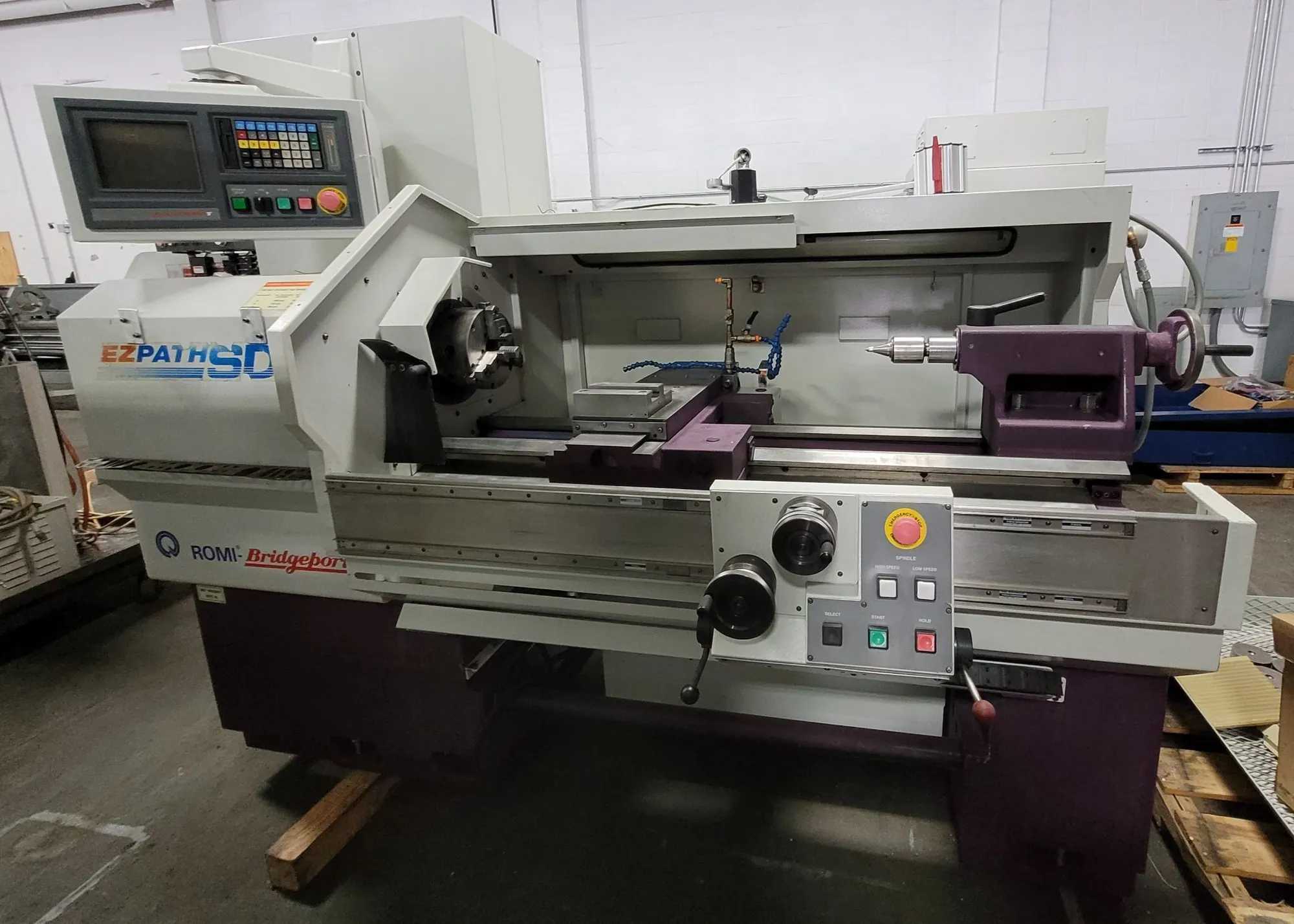

BRIDGEPORT ROMI EZ PATH SD CNC LATHE, 18" SWING, 40" CENTERS, 7.5 HP, 4000 RPM, BPCT CONTROL

THE BRIDGEPORT ROMI EZ PATH SD IS A CNC LATHE FEATURING AN 18 INCH MAX SWING OVER WAYS, AN 8 INCH MAX SWING OVER CROSS SLIDE, AND A 40 INCH DISTANCE BETWEEN CENTERS. IT IS EQUIPPED WITH A BRIDGEPORT BPCT CNC CONTROL, DUAL ELECTRONIC HANDWHEEL CONTROLS, TEACH MODE, AND INCH/METRIC THREADING CAPABILITIES. THE SPINDLE IS POWERED BY A 7-1/2 HP MOTOR, OFFERING A SPEED RANGE OF 25 TO 4000 RPM, AN A2-5 SPINDLE NOSE, AND A 2.08 INCH SPINDLE BORE. THIS UNIT INCLUDES AN 8 INCH 3-JAW CHUCK, A 2 INCH BAR CAPACITY, AND A MANUAL TAILSTOCK WITH A #4 MT QUILL TAPER AND 4.7 INCH QUILL TRAVEL. AXIS MOVEMENTS INCLUDE A CROSS TRAVEL (X-AXIS) OF 8.6 INCHES AT A RAPID TRAVERSE RATE OF 295 IPM AND A LONGITUDINAL TRAVEL (Z-AXIS) OF 40 INCHES AT 394 IPM. ADDITIONAL FEATURES CONSIST OF A GEARED HEADSTOCK, A CENTRAL AUTOMATIC LUBRICATION SYSTEM, AND A COOLANT SYSTEM WITH A CHIP PAN. THE MACHINE'S PHYSICAL DIMENSIONS ARE APPROXIMATELY 100 INCHES BY 54 INCHES WITH A HEIGHT OF 84 INCHES AND AN APPROXIMATE WEIGHT OF 4,900 LBS.
