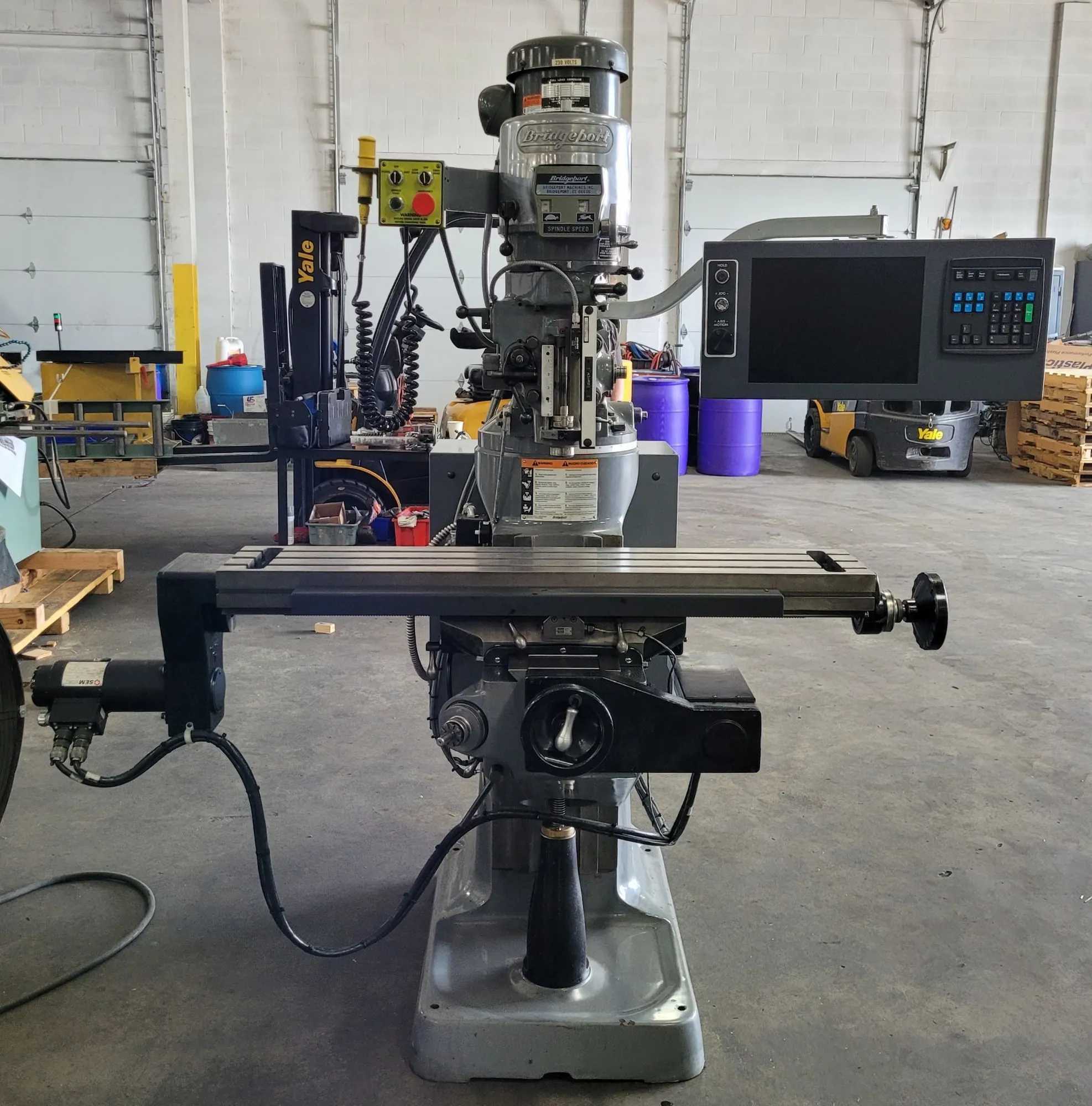

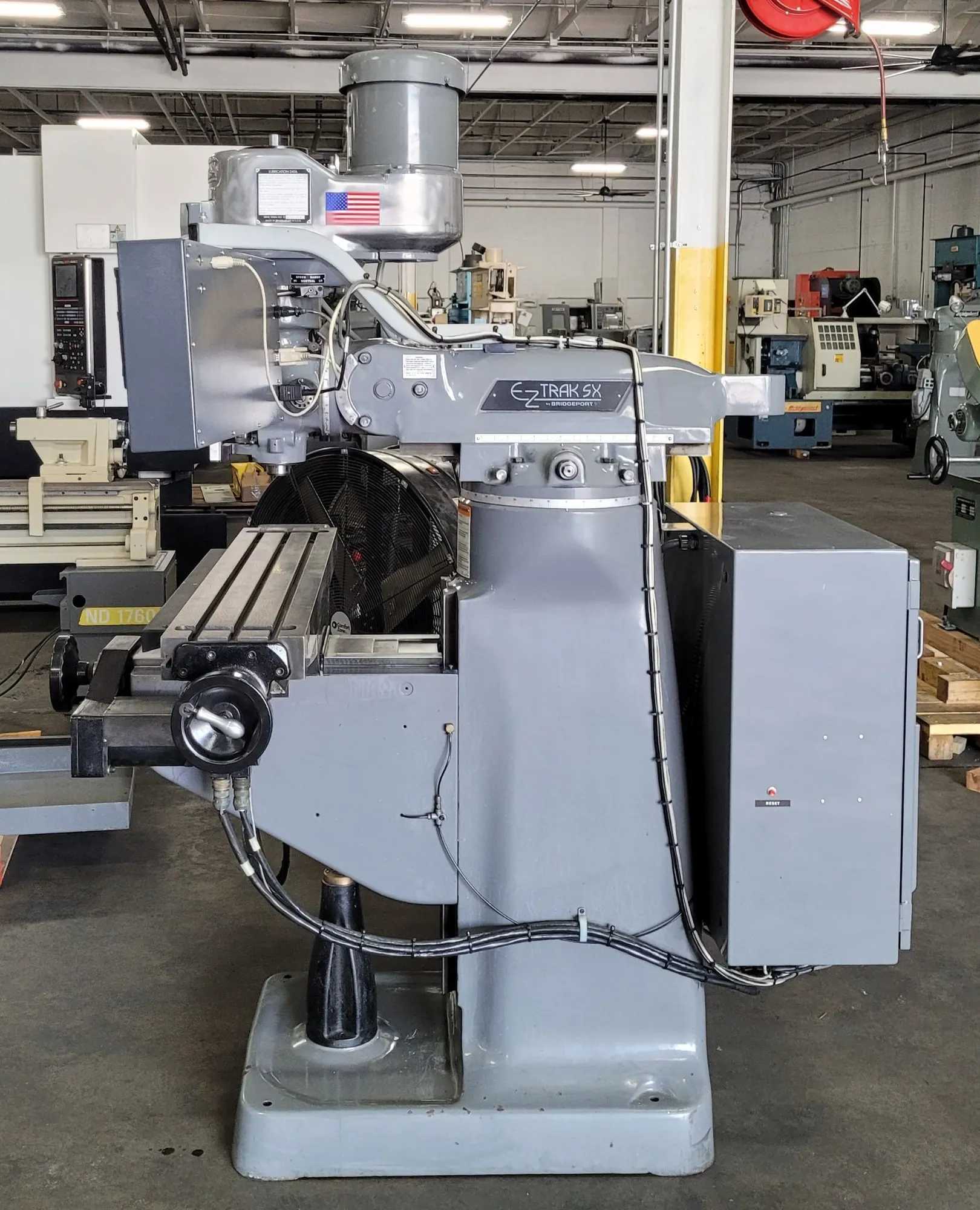

BRIDGEPORT SERIES 1 EZ TRAK SX VERTICAL MILL, 2 HP, 9" X 48" TABLE, R8 TAPER, 60-4200 RPM

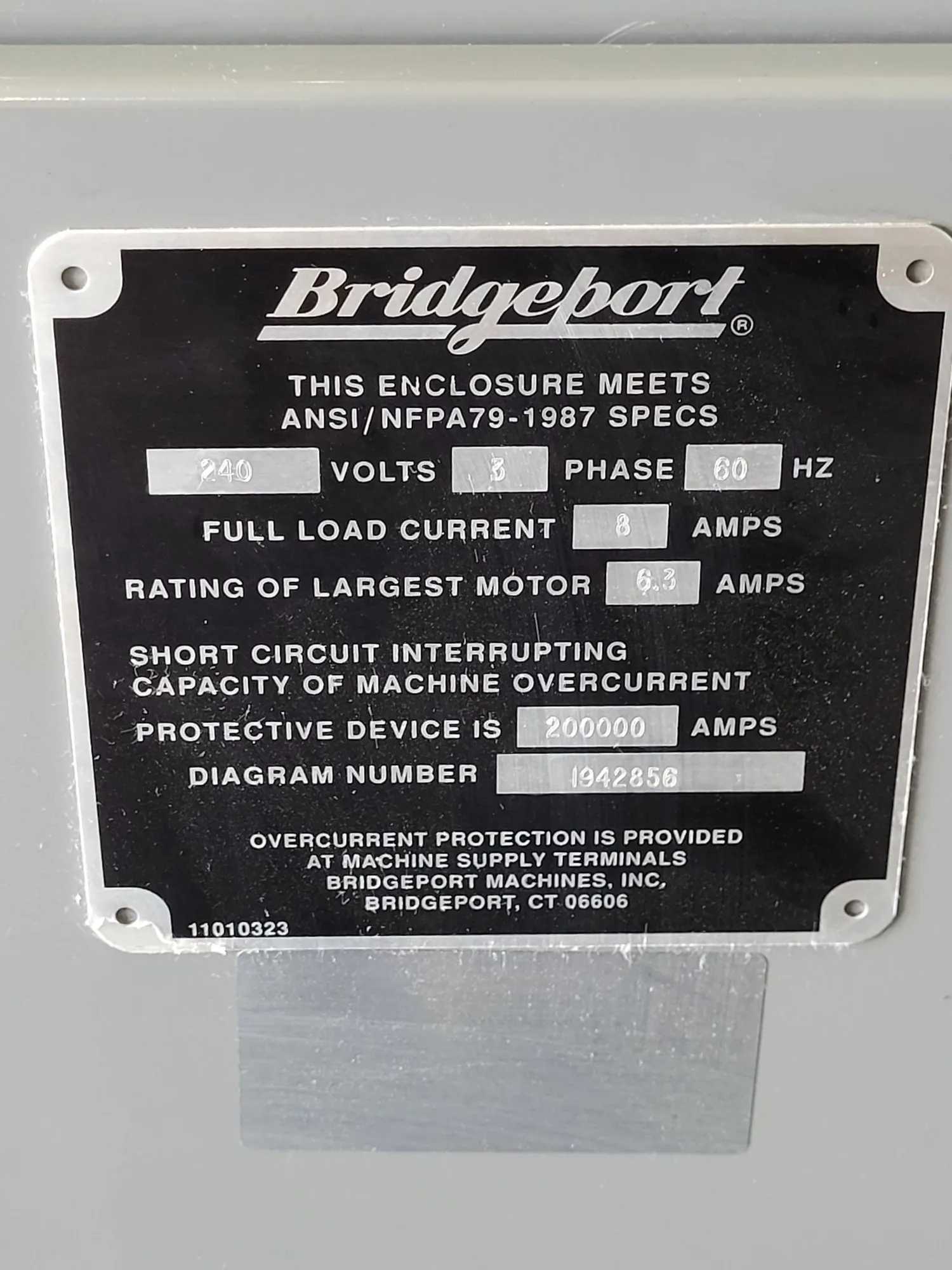

THE BRIDGEPORT SERIES 1 EZ TRAK SX IS A VERTICAL MILL FEATURING A 2 HP VARIABLE SPEED HEAD AND AN R8 TAPER SPINDLE. THE MACHINE IS EQUIPPED WITH CHROME WAYS AND A TABLE MEASURING 9 INCHES BY 48 INCHES. TECHNICAL SPECIFICATIONS INCLUDE A LONGITUDINAL TRAVEL OF 33.5 INCHES, CROSS TRAVEL OF 12 INCHES, VERTICAL KNEE TRAVEL OF 14 INCHES, AND QUILL TRAVEL OF 5 INCHES. THE SPINDLE OPERATES AT INFINITELY VARIABLE SPEEDS RANGING FROM 60 TO 4200 RPM, WITH QUILL FEEDS OF 0.0015, 0.003, AND 0.006 INCHES. THE RAM TRAVEL IS 12 INCHES. POSITIONING AND FEED RATES FOR THE X-Y AXIS ARE RATED UP TO 100 INCHES PER MINUTE. THE THROAT DISTANCE RANGES FROM 6-3/4 TO 18-3/4 INCHES, WHILE THE DISTANCE FROM THE TABLE TO THE SPINDLE NOSE IS BETWEEN 2-1/2 AND 18-1/4 INCHES. ELECTRICAL REQUIREMENTS ARE 230/460 VOLTS, 3 PHASE, 60 CYCLES, WITH A FULL LOAD AMPERAGE OF 6.2/3.1. THE MOTOR OPERATES AT 1735 RPM. THE UNIT INCLUDES A BUJIR AUTO LUBE SYSTEM AND HAS APPROXIMATE PHYSICAL DIMENSIONS OF 70 INCHES BY 77 INCHES BY 87 INCHES, WITH A WEIGHT OF APPROXIMATELY 3,000 LBS. HARDWARE COMPONENTS CONSIST OF A CONSOLE, LED SCREEN, KEYPAD, AND USB DRIVE.
