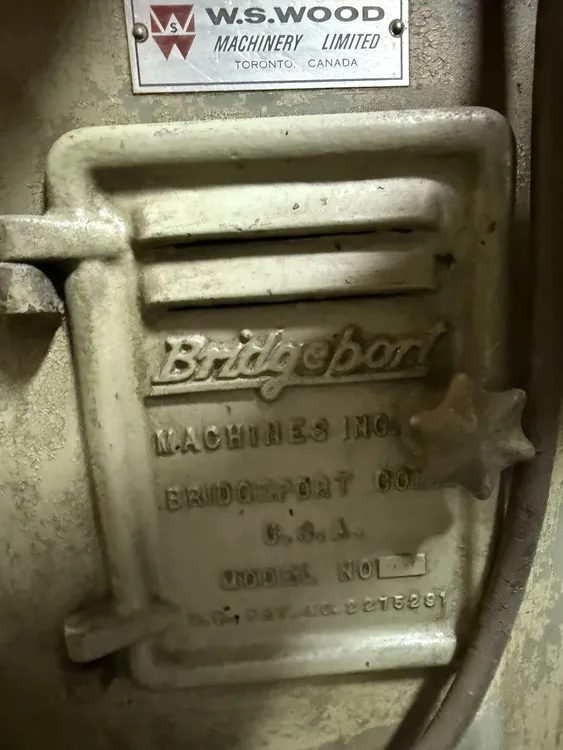

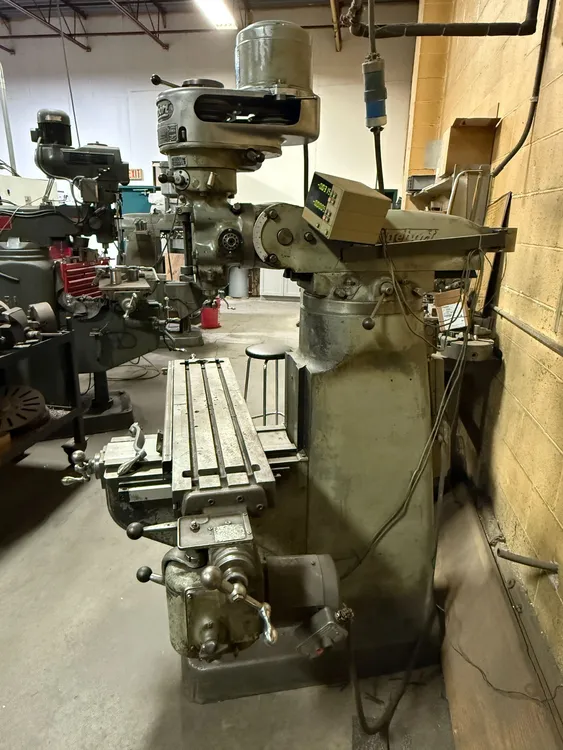

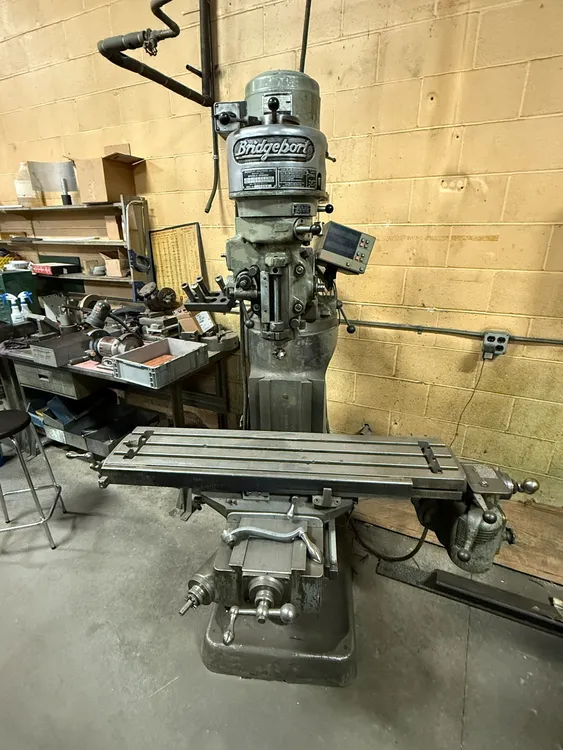

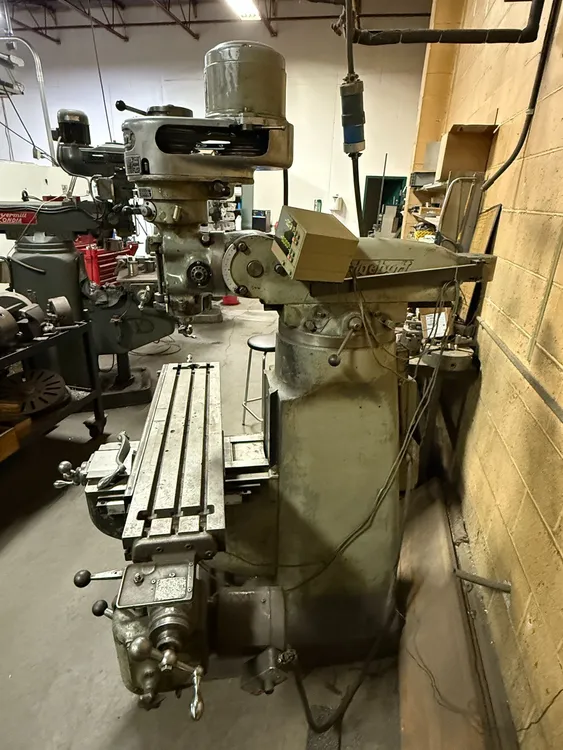

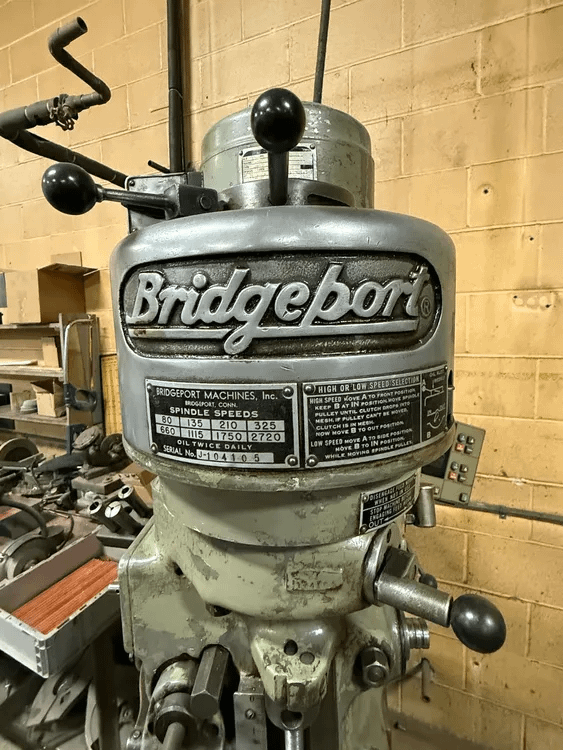

BRIDGEPORT SERIES 1 KNEE MILLS STANDARD KNEE MILL WITH POWER FEED

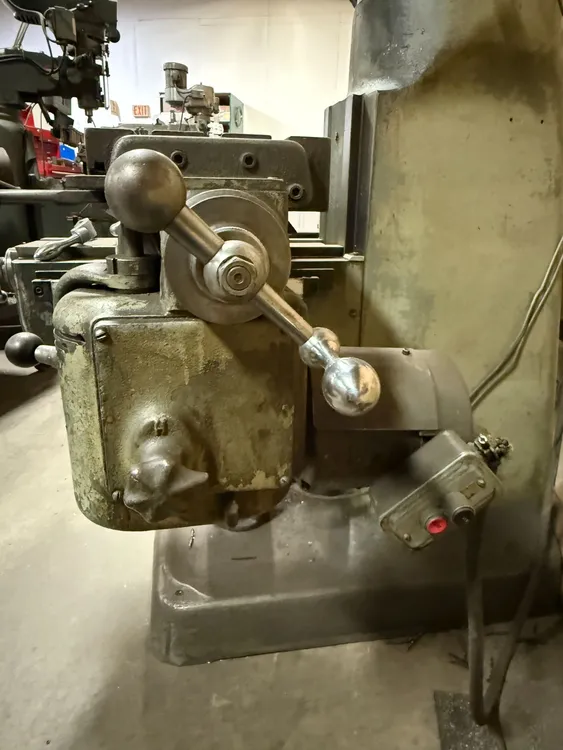

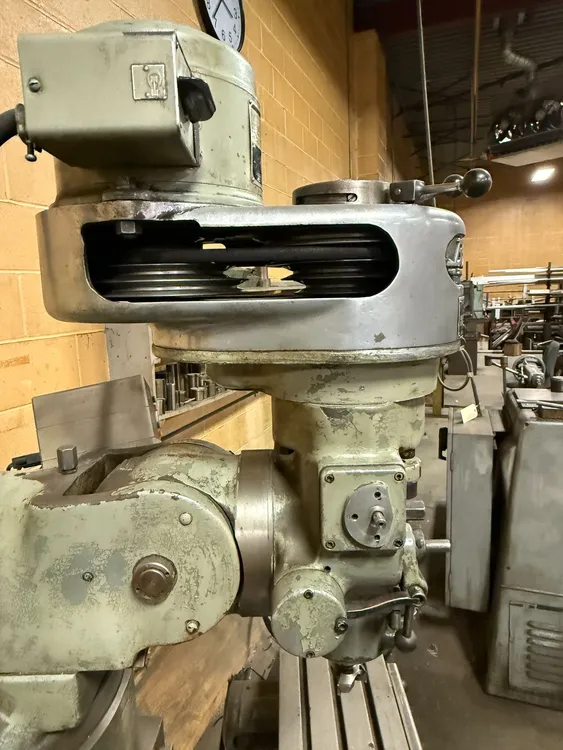

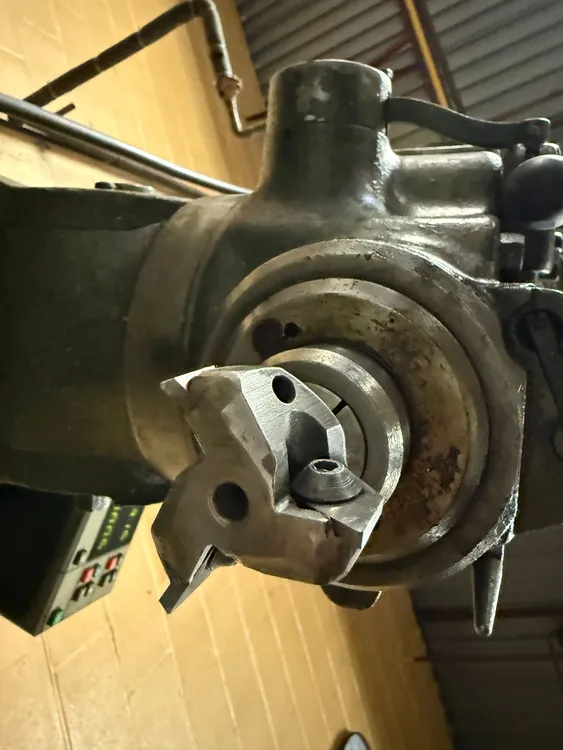

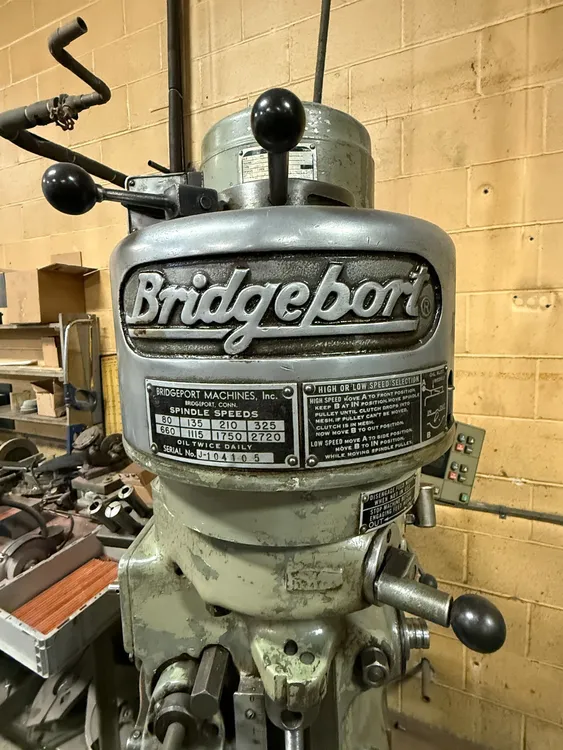

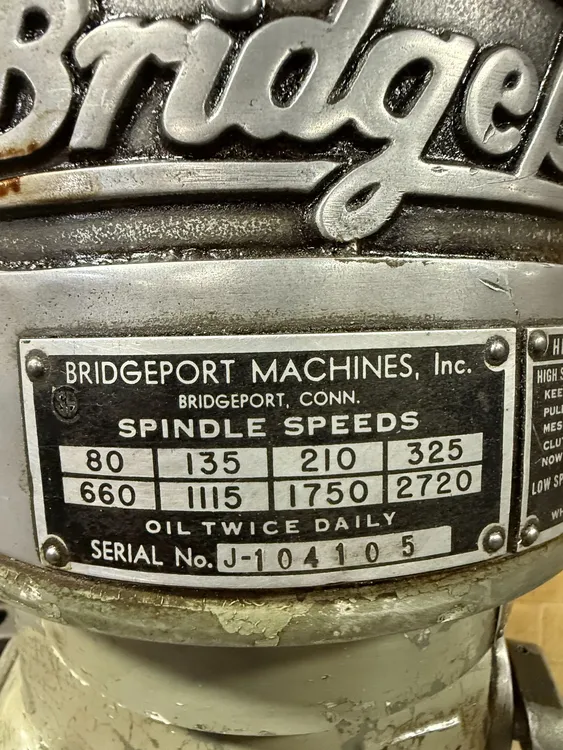

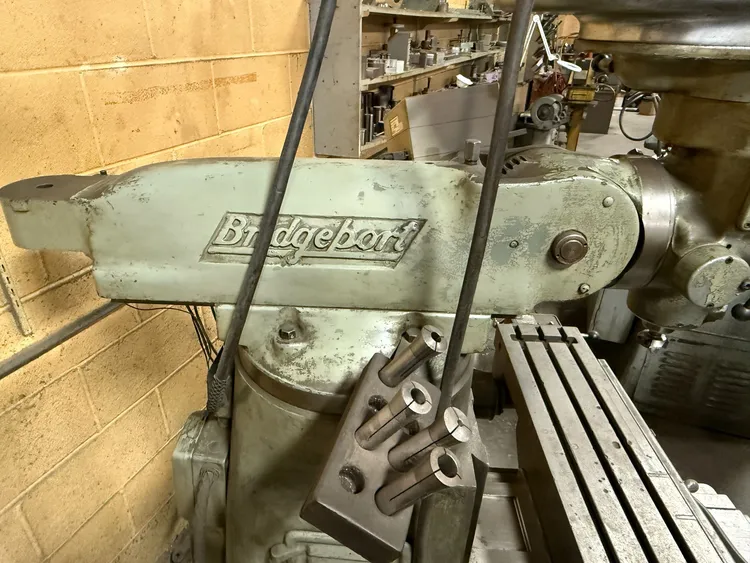

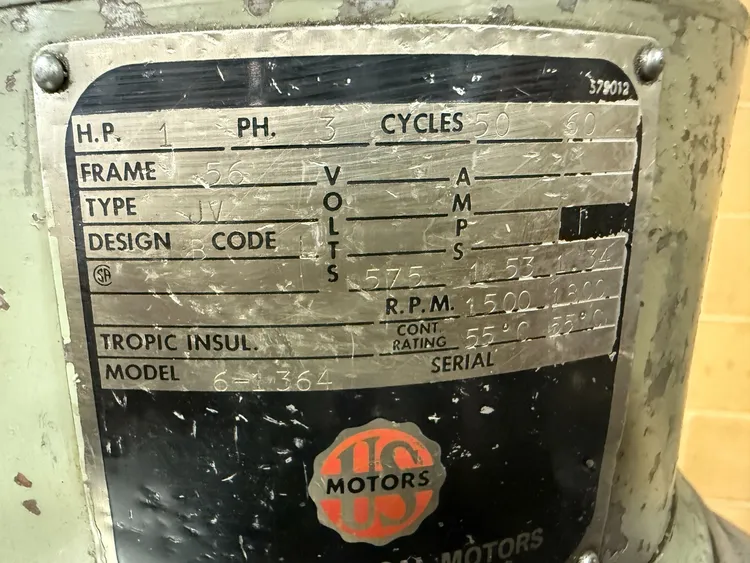

THE BRIDGEPORT SERIES 1 STANDARD KNEE MILL IS EQUIPPED WITH A 3HP SPINDLE MOTOR AND FEATURES A 9 INCH X 49 INCH WORKING SURFACE TABLE WITH THREE T-SLOTS MEASURING 0.625 INCHES (16MM). THE MACHINE OFFERS A LONGITUDINAL TRAVEL OF 36 INCHES, CROSS TRAVEL OF 12 INCHES (306MM), KNEE TRAVEL OF 16 INCHES (406MM), AND RAM TRAVEL OF 12 INCHES (306MM). SPINDLE SPEED RANGES FROM 60 TO 4200 RPM. QUILL TRAVEL IS 5 INCHES (127MM), AND THE QUILL DIAMETER IS 3.375 INCHES (86MM). IT INCLUDES A POWER FEED WITH QUILL FEED RANGES OF 0.0015, 0.003, AND 0.006 INCHES/REV. THE MAXIMUM WORKPIECE WEIGHT SUPPORTED IS 750 LBS (340KGS). THE MACHINE HAS A NET WEIGHT OF 1930 LBS (875KGS). ELECTRICAL INPUT POWER IS RATED AT 208/230/460.
