Bridgeport Series 1 Mill With Rebuilt 2HP, Chrome Ways, 48X9 Table, DRO

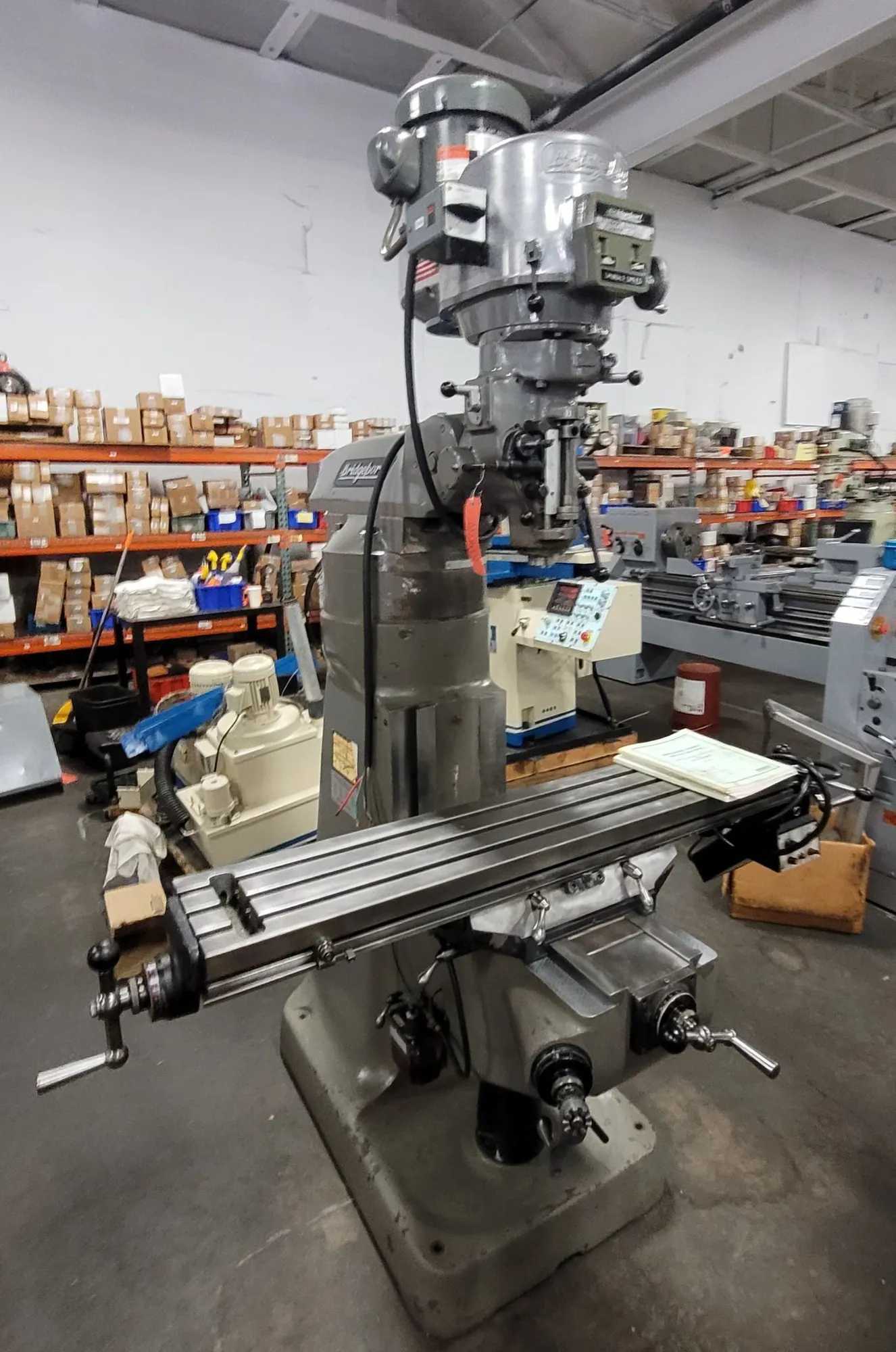

The Bridgeport Series 1 Milling Machine (Serial No. 269530) is a versatile vertical knee mill equipped with a 9-inch by 48-inch T-slot worktable and a rebuilt 2 HP motor wired for 230V, 3-phase power. Featuring a variable spindle speed range from 60 to 4200 RPM and an R-8 spindle taper, this unit includes durable chrome ways, a one-shot lubrication system, a Jacobs chuck, a Bridgeport power feed, and an Acu-Rite Millmate Digital Readout (DRO) system. Axis travel capabilities include an X-axis table travel of 31 inches (extending up to 36 inches with power feed), a Y-axis saddle travel of 12 inches, a Z-axis knee travel of 16 inches, a ram travel of 12 inches, and a quill travel of 5 inches with a quill diameter of 3.375 inches. The throat distance ranges from 6.75 inches minimum to 18.75 inches maximum, with a maximum table-to-floor height of 47.25 inches. Designed to support a maximum workpiece weight of 750 lbs, the machine has shipping dimensions of 6 feet by 5 feet by 7 feet and an overall weight of 2,200 lbs.
