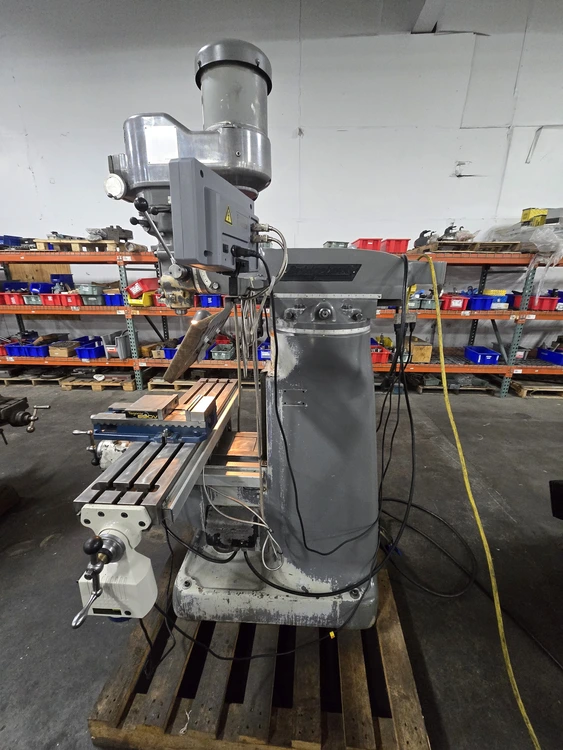

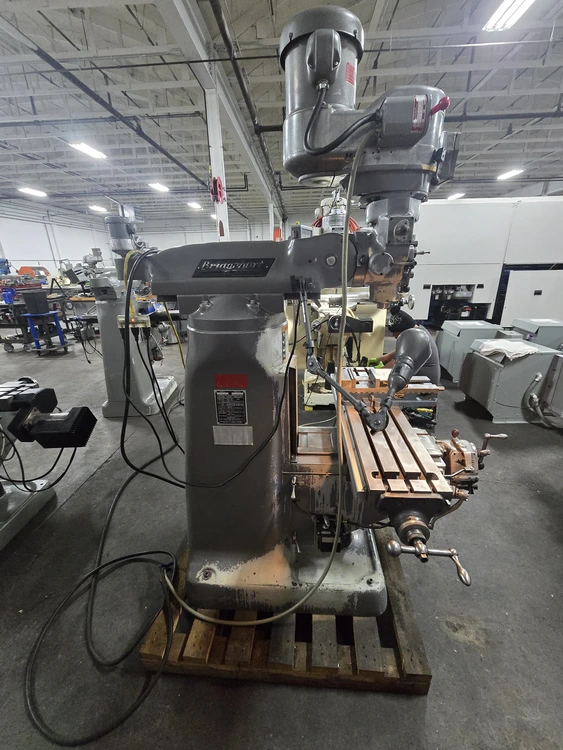

BRIDGEPORT SERIES 1 VERTICAL KNEE MILL 2HP R-8 60-4200RPM 42X9IN TABLE 750LB MAX LOAD

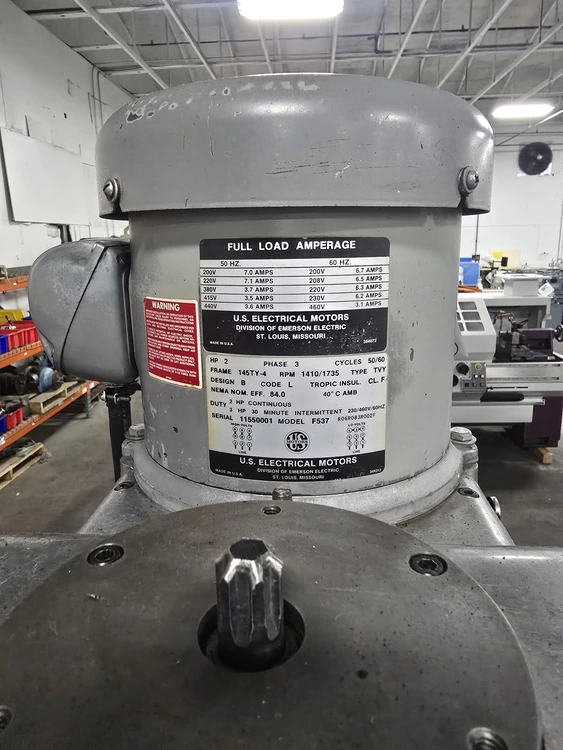

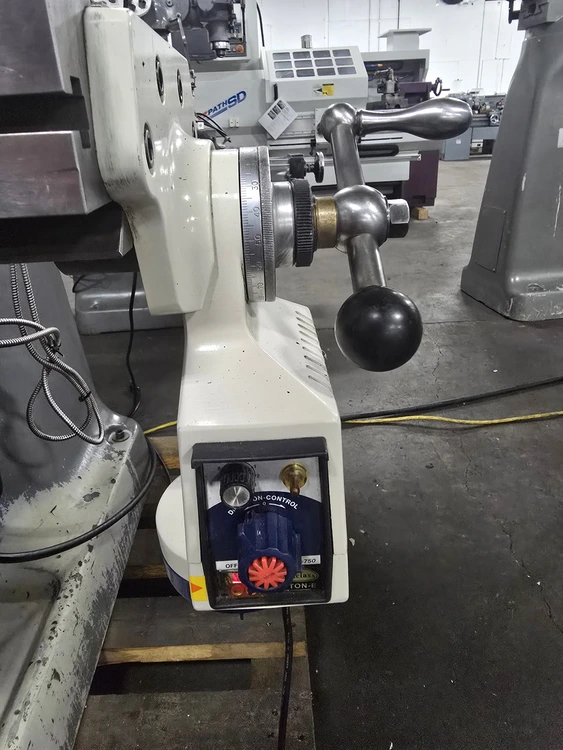

THE BRIDGEPORT SERIES 1 IS A VERTICAL KNEE MILL EQUIPPED WITH A 2HP VARIABLE SPEED HEAD, PROVIDING A CONTINUOUS AC POWER RATING OF 2 HP (1.5 KW). THE MACHINE UTILIZES AN R-8 SPINDLE TAPER AND OFFERS AN INFINITELY VARIABLE SPEED RANGE OF 60 TO 4200 RPM AT 60 HZ. THE WORKING TABLE SURFACE MEASURES 42 X 9 INCHES (1067 X 229MM) AND HAS A MAXIMUM WORKPIECE CAPACITY OF 750 LBS. (340 KG). KEY TRAVEL SPECIFICATIONS INCLUDE 31 INCHES (787MM) FOR THE X-AXIS (TABLE TRAVEL), 12 INCHES (305MM) FOR THE Y-AXIS (SADDLE TRAVEL), 16 INCHES (406MM) FOR THE Z-AXIS (KNEE TRAVEL), AND A QUILL TRAVEL OF 5 INCHES (127MM). THE POWER QUILL FEED HAS THREE SELECTABLE RATES: 0.0015, 0.003, AND 0.006 IN./REV. THE MILL REQUIRES AN INPUT POWER OF 208/230/460 VOLTS, 3 PHASE, 50/60 CYCLE WITH A 4KVA CAPACITY. THE NET WEIGHT IS 1930 LB. (875 KG), WITH A FLOOR AREA REQUIREMENT OF 8.3 X 7.8 FT. (2.53 X 2.4M).
