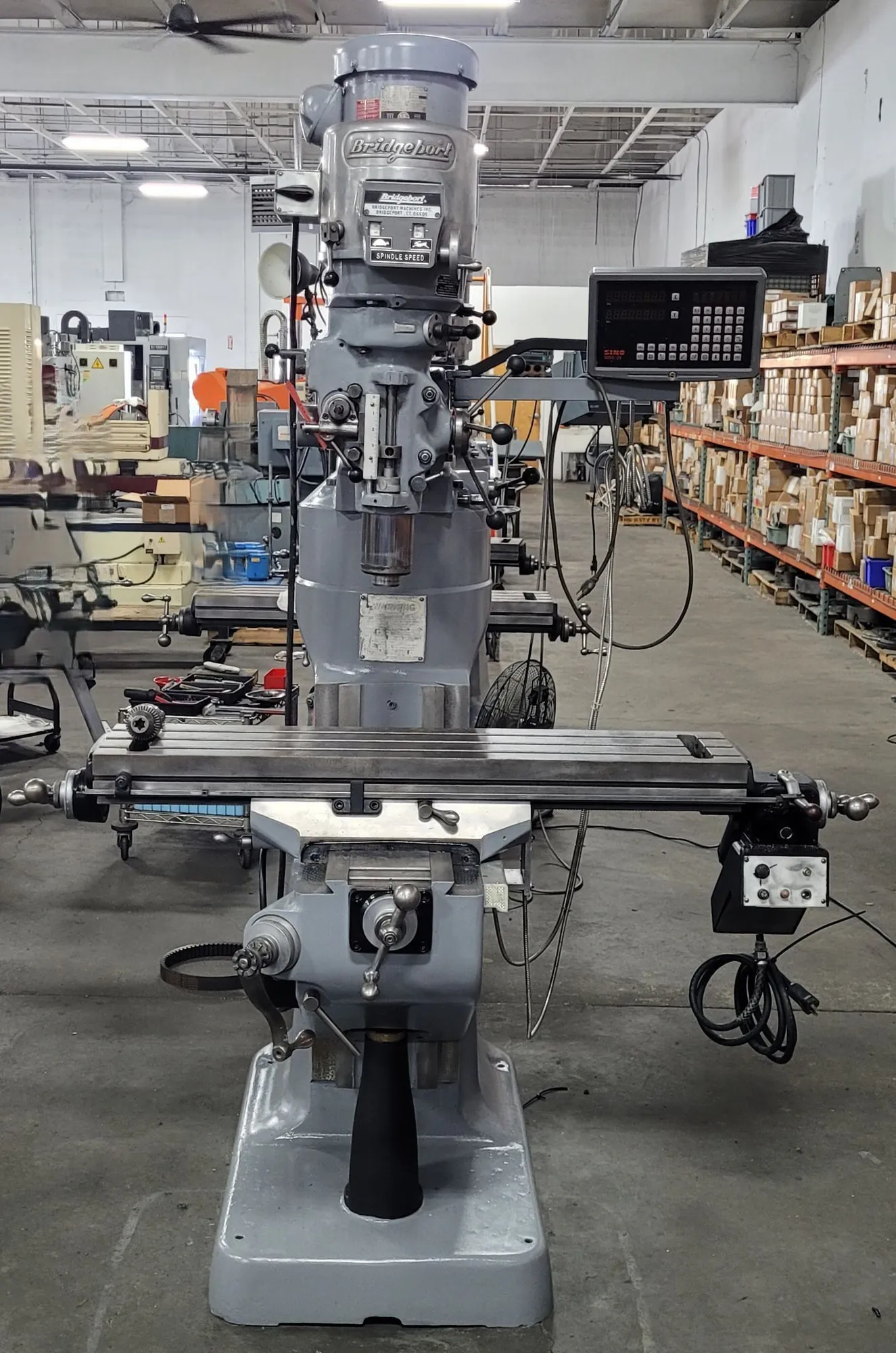

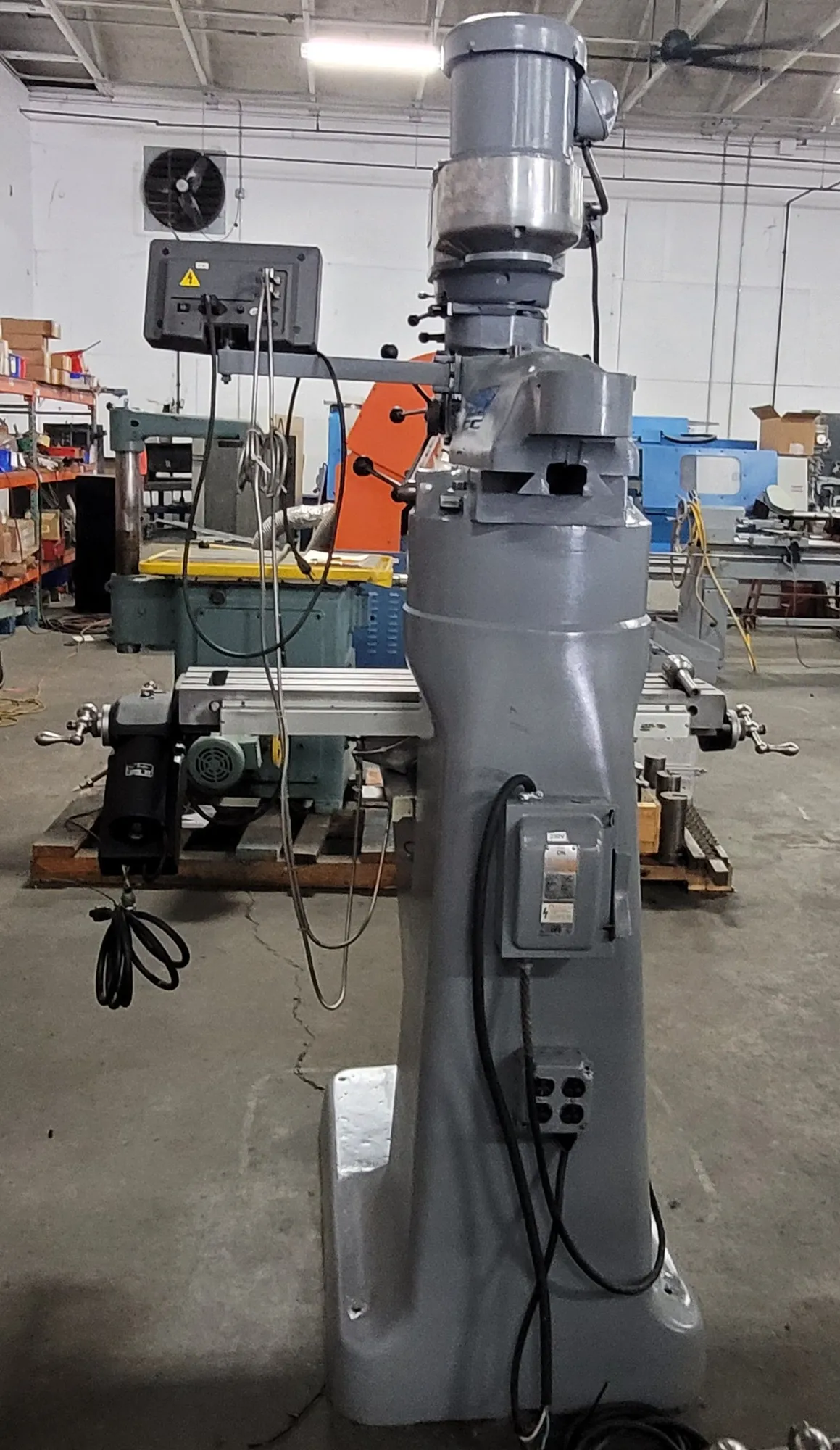

BRIDGEPORT SERIES 1 VERTICAL MILL, 2 HP, 9" X 42" TABLE, R8, DRO, POWER FEED

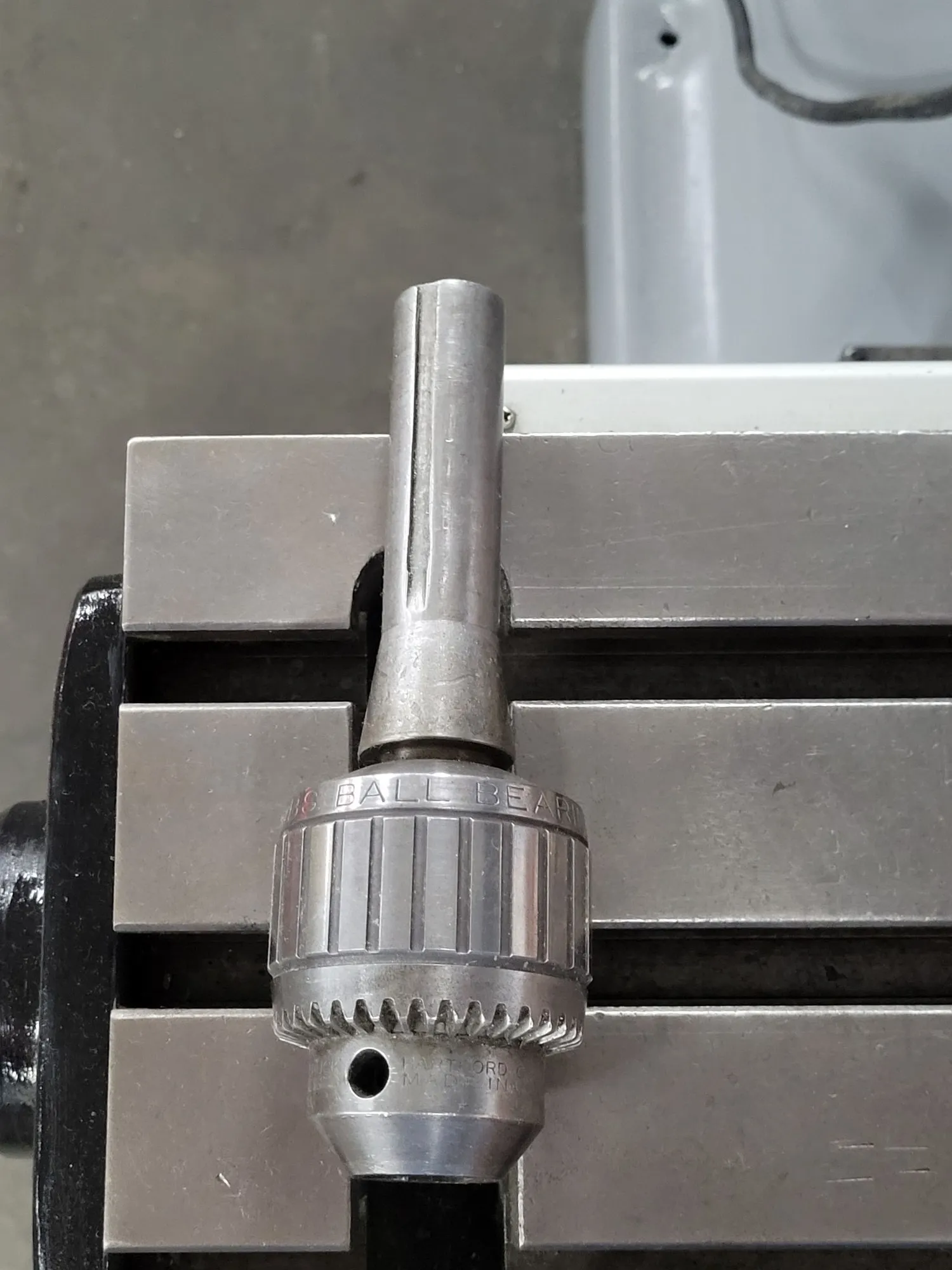

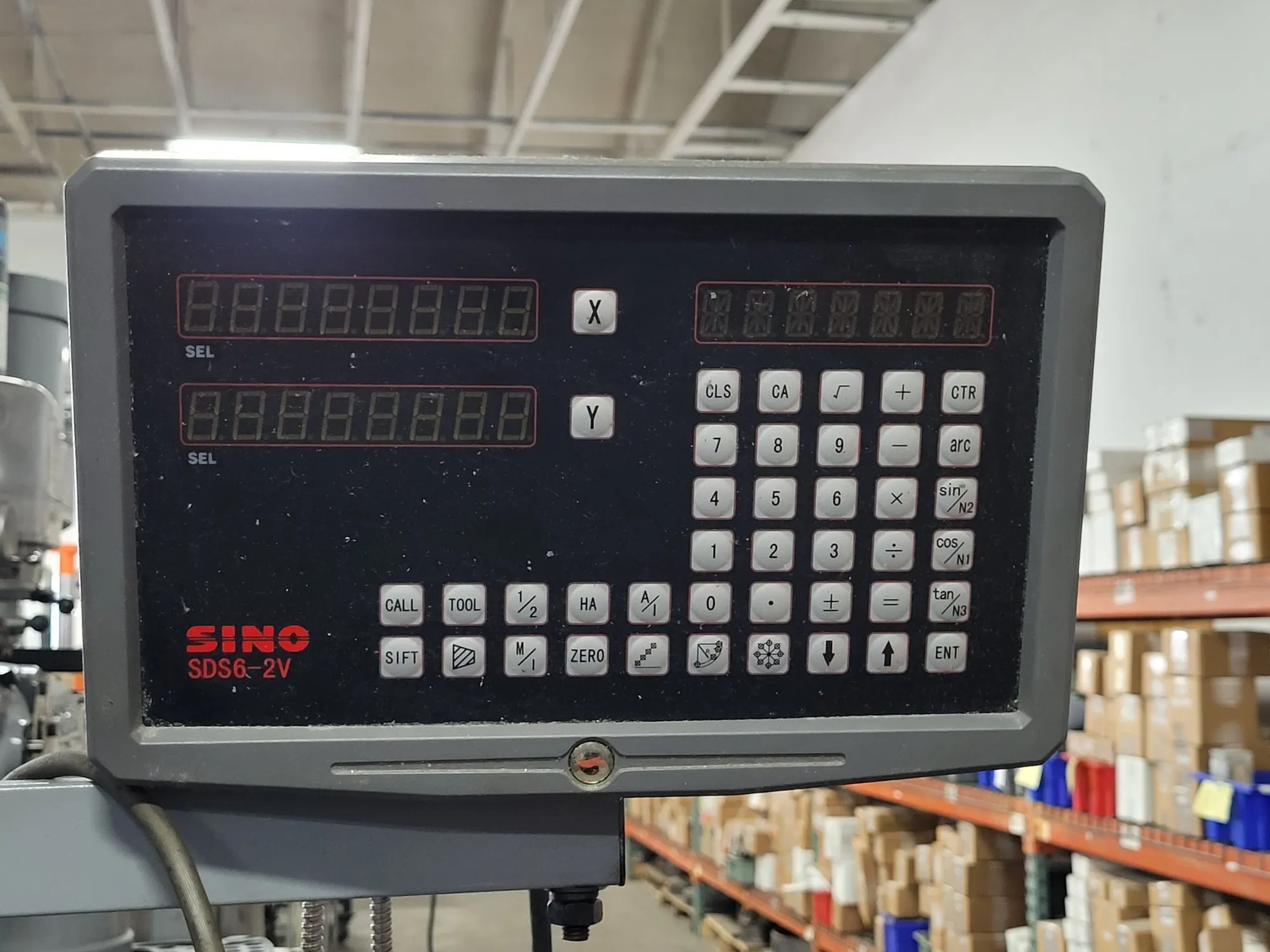

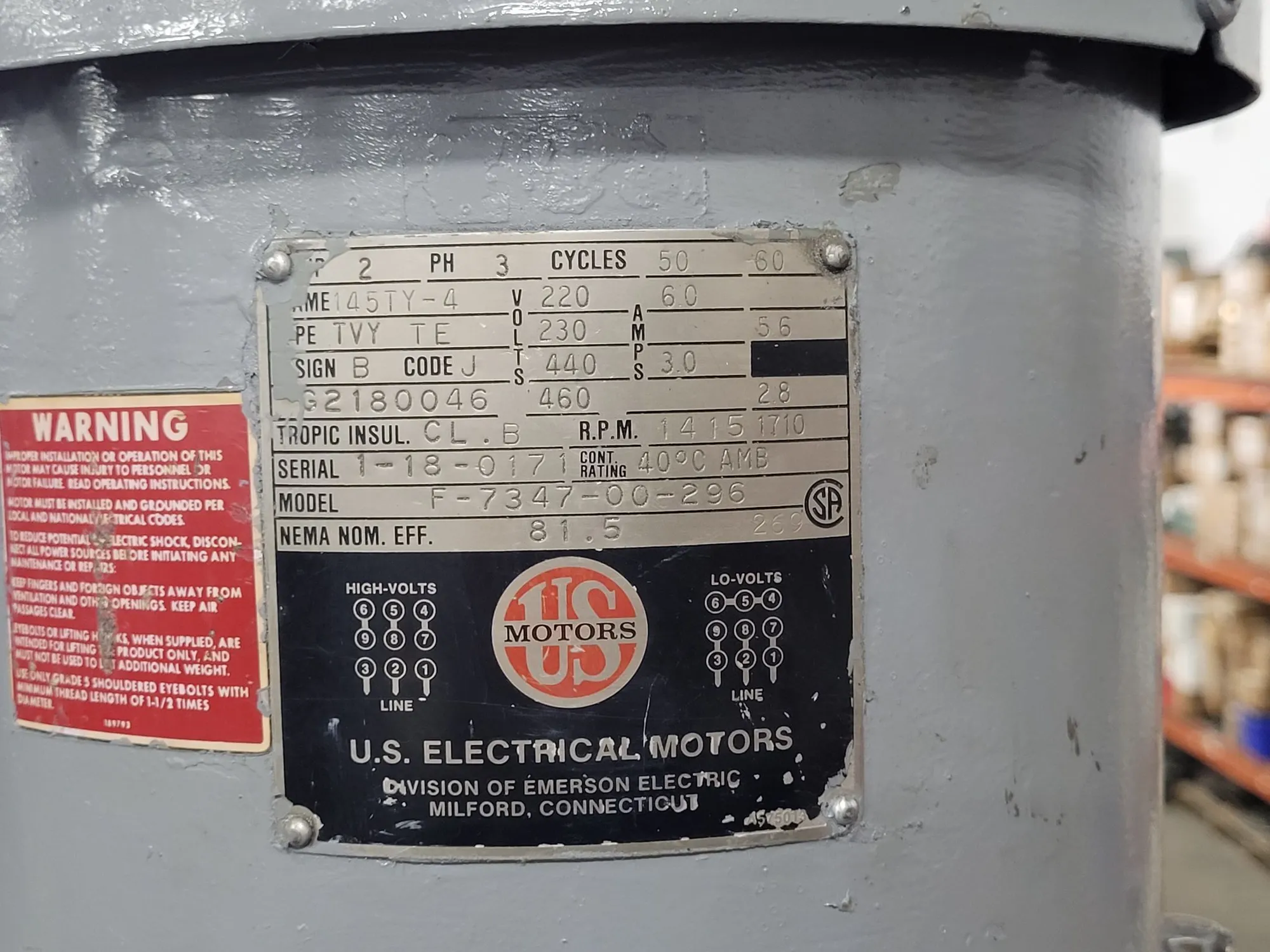

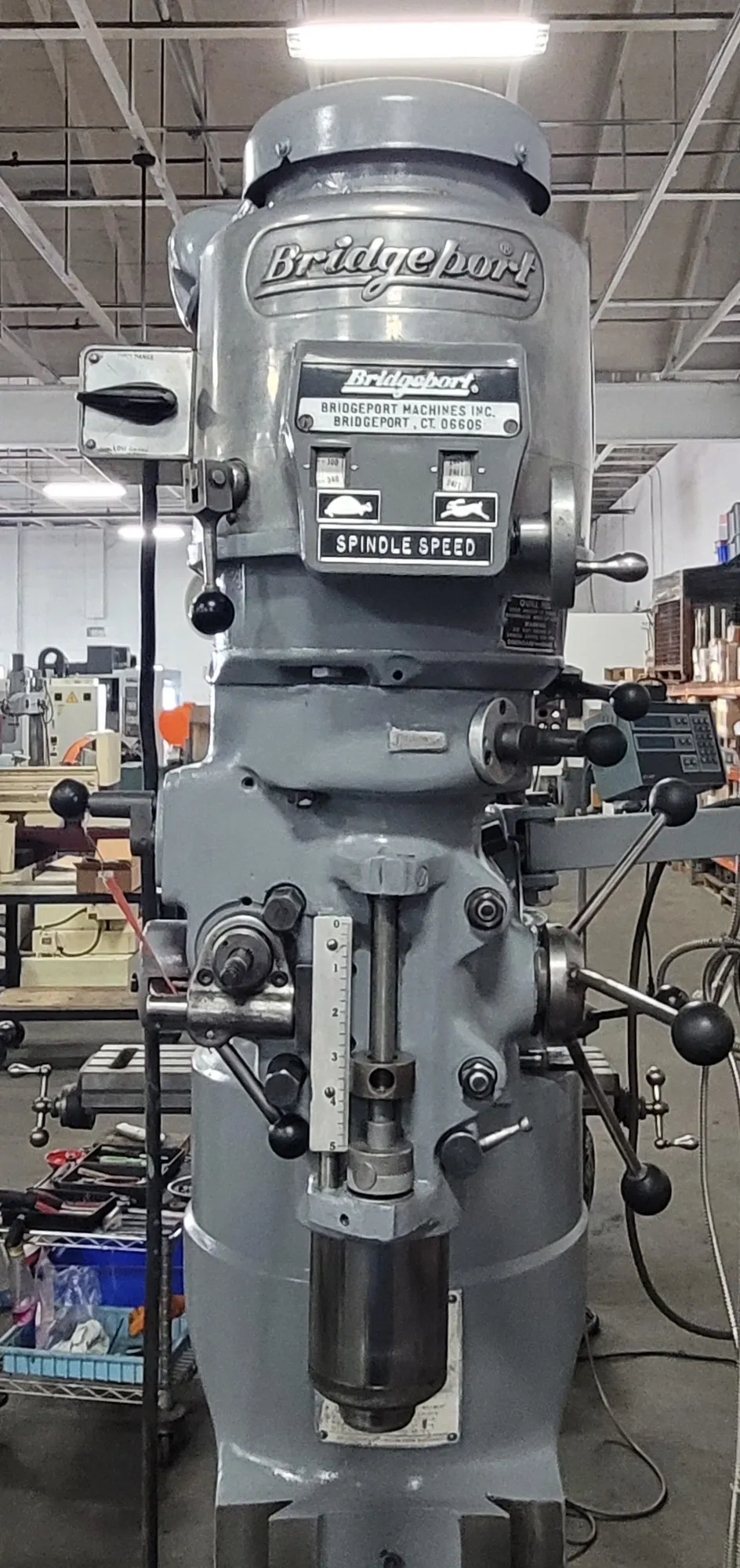

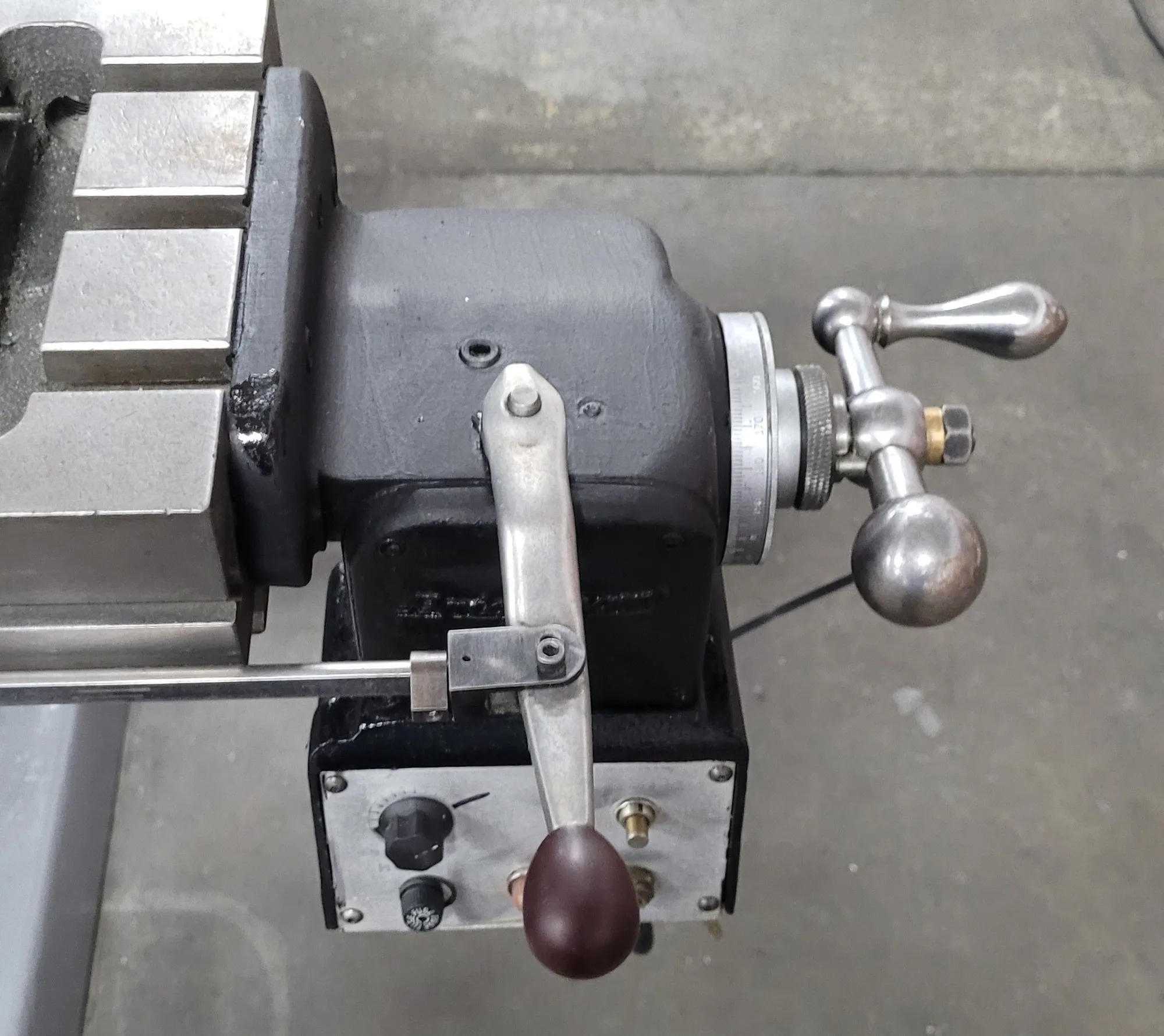

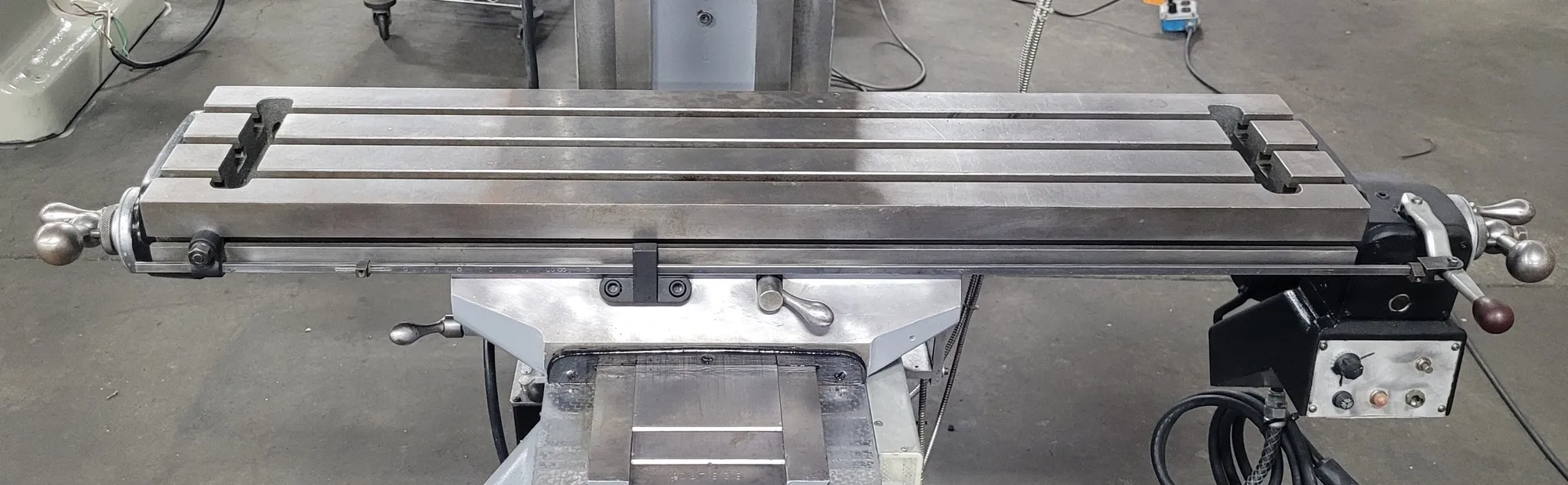

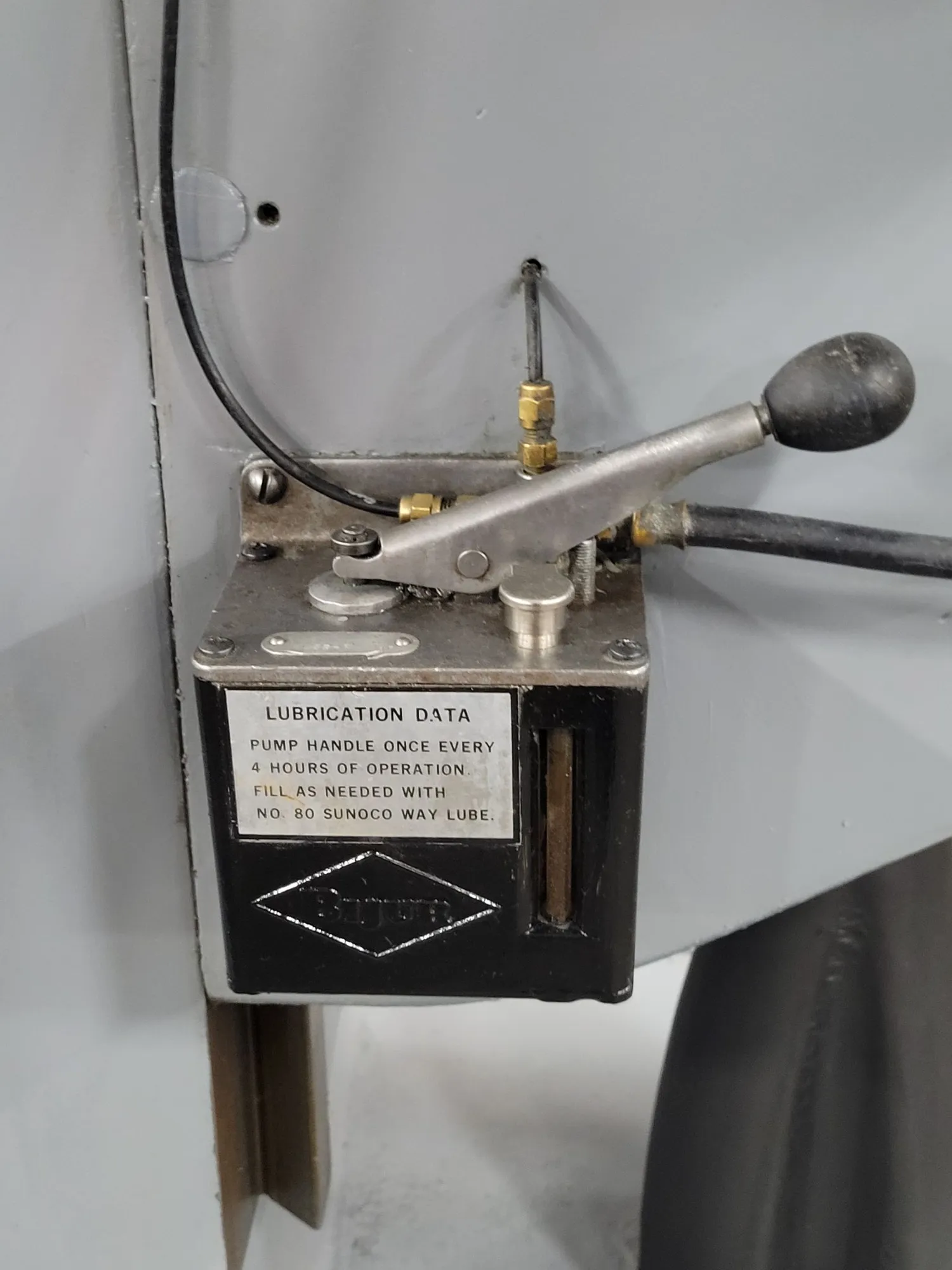

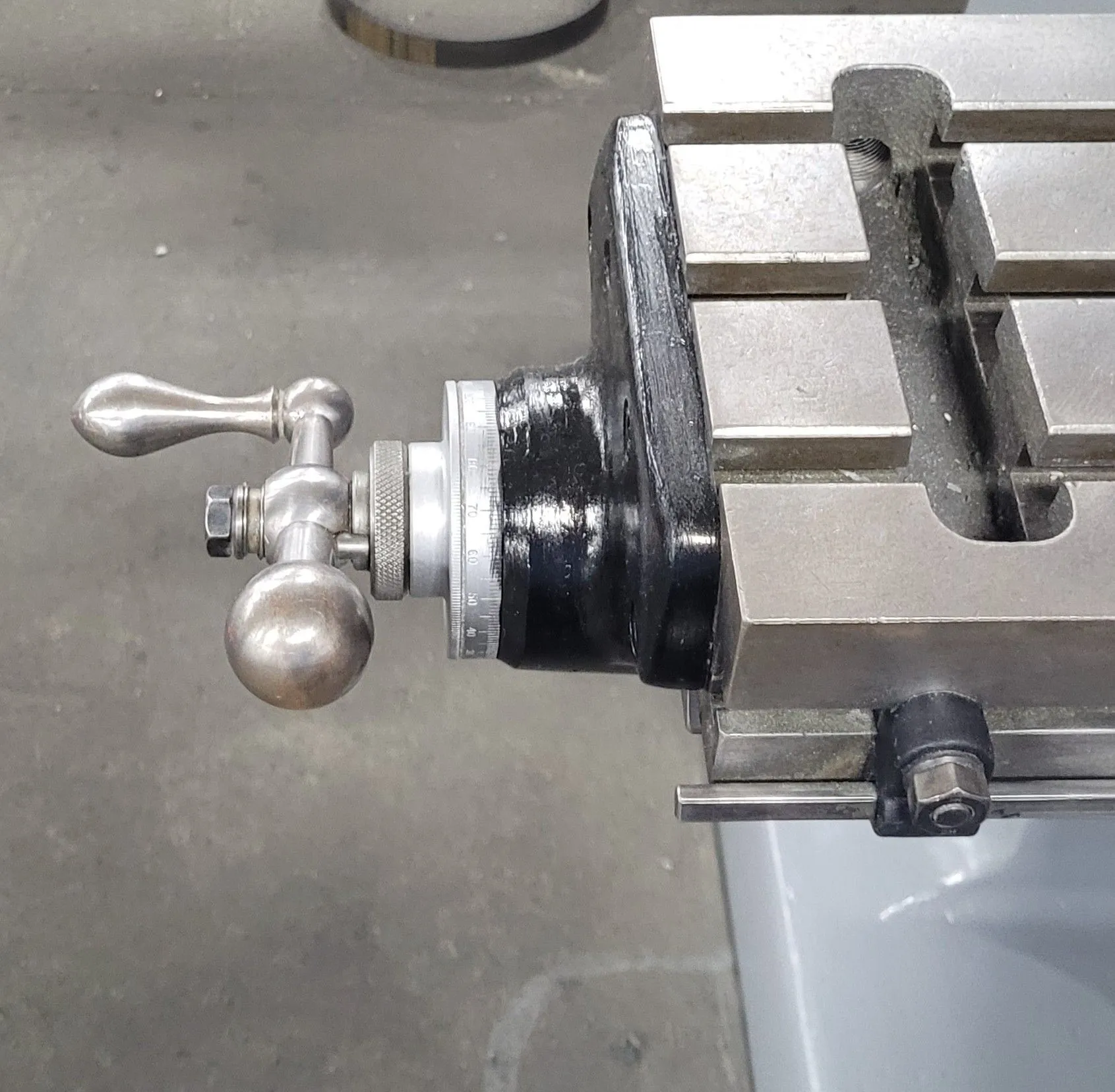

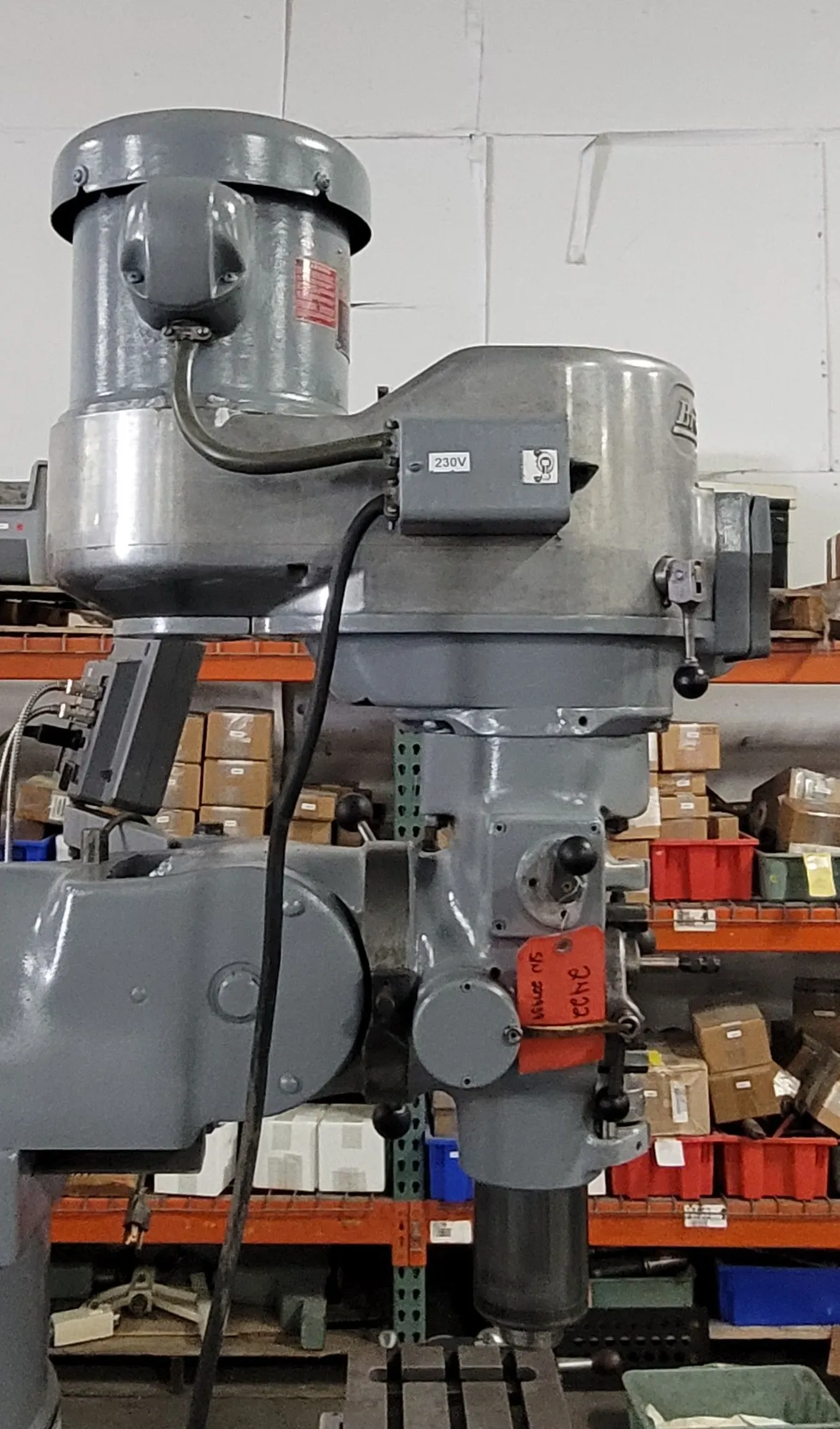

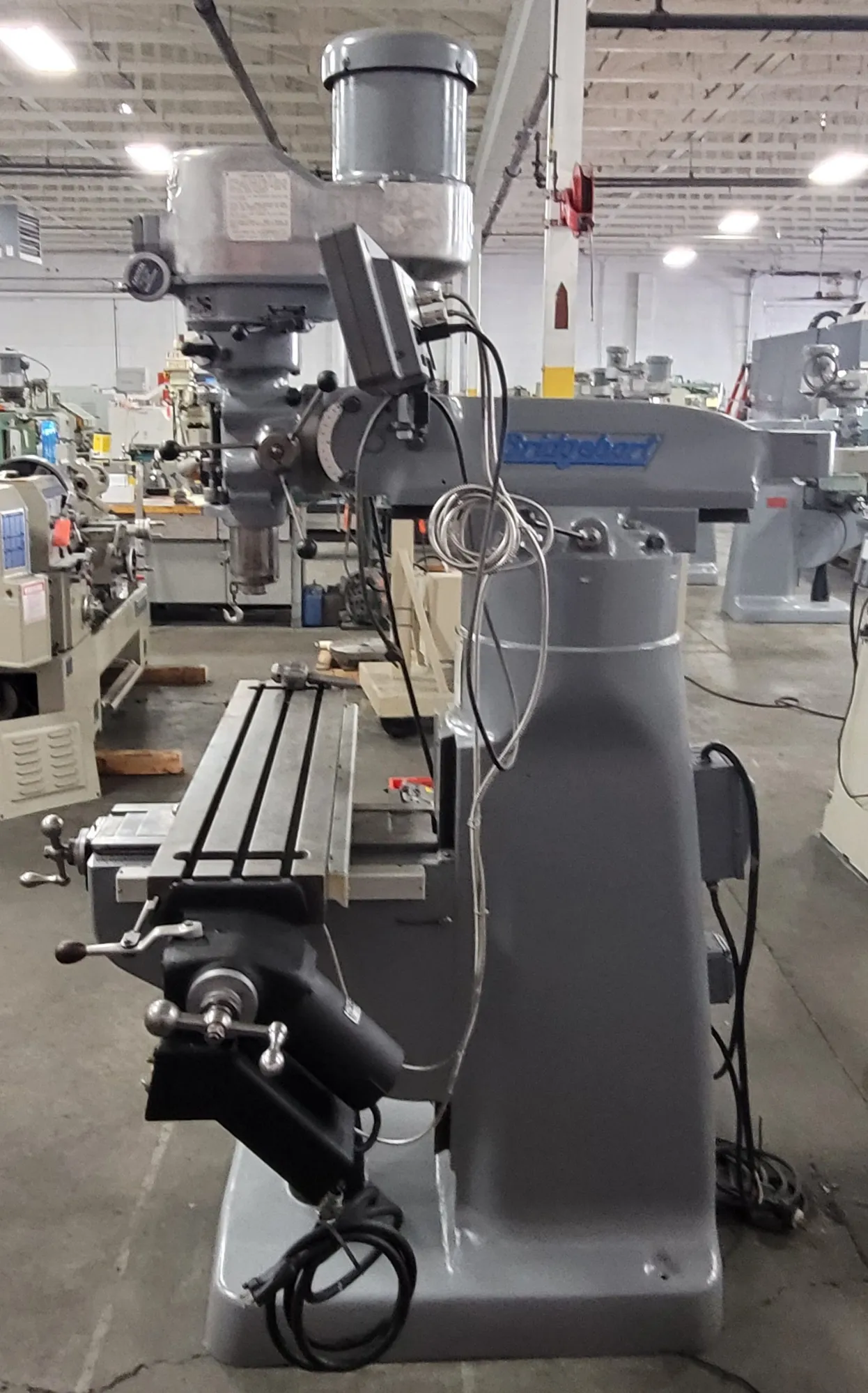

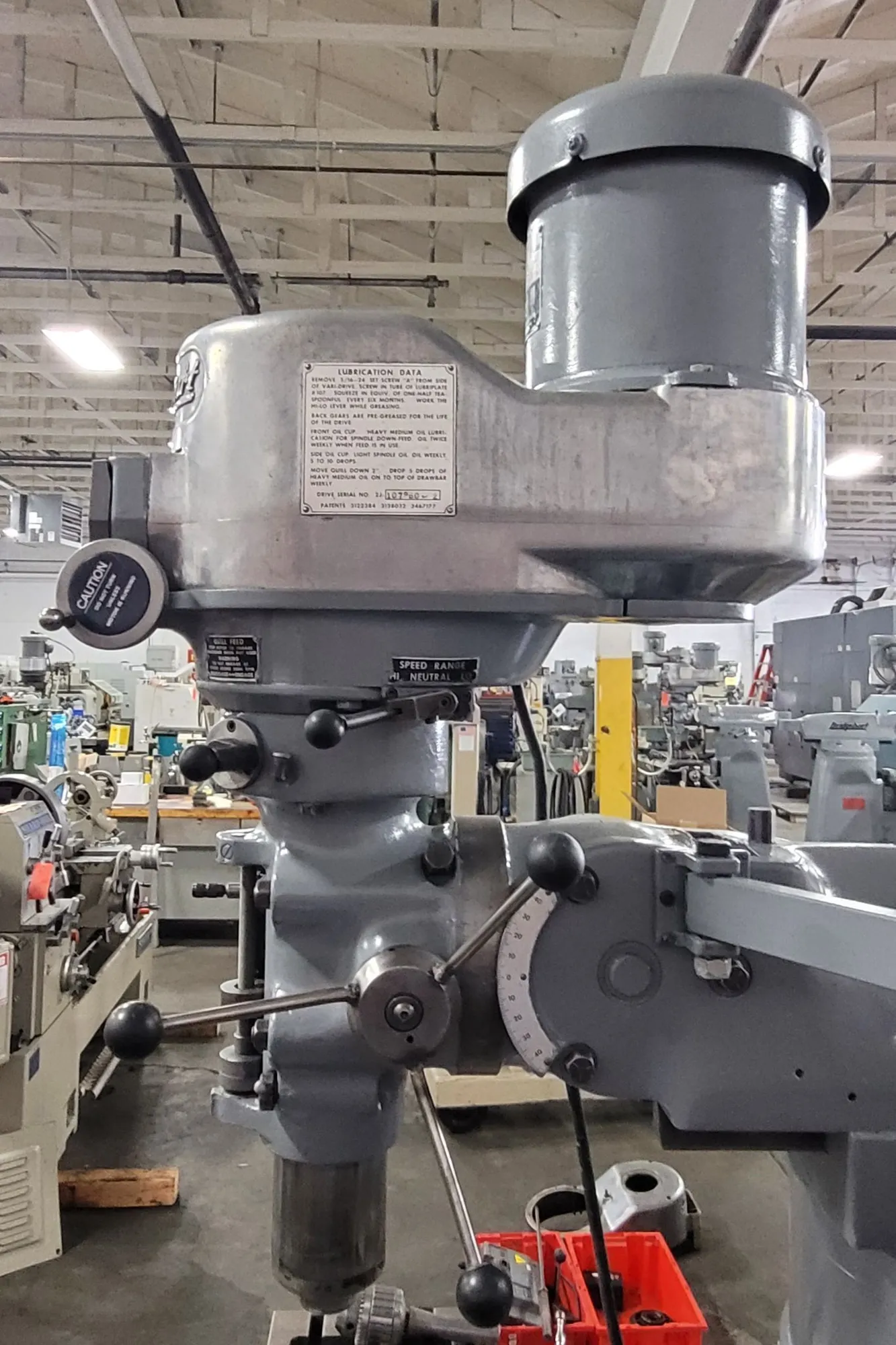

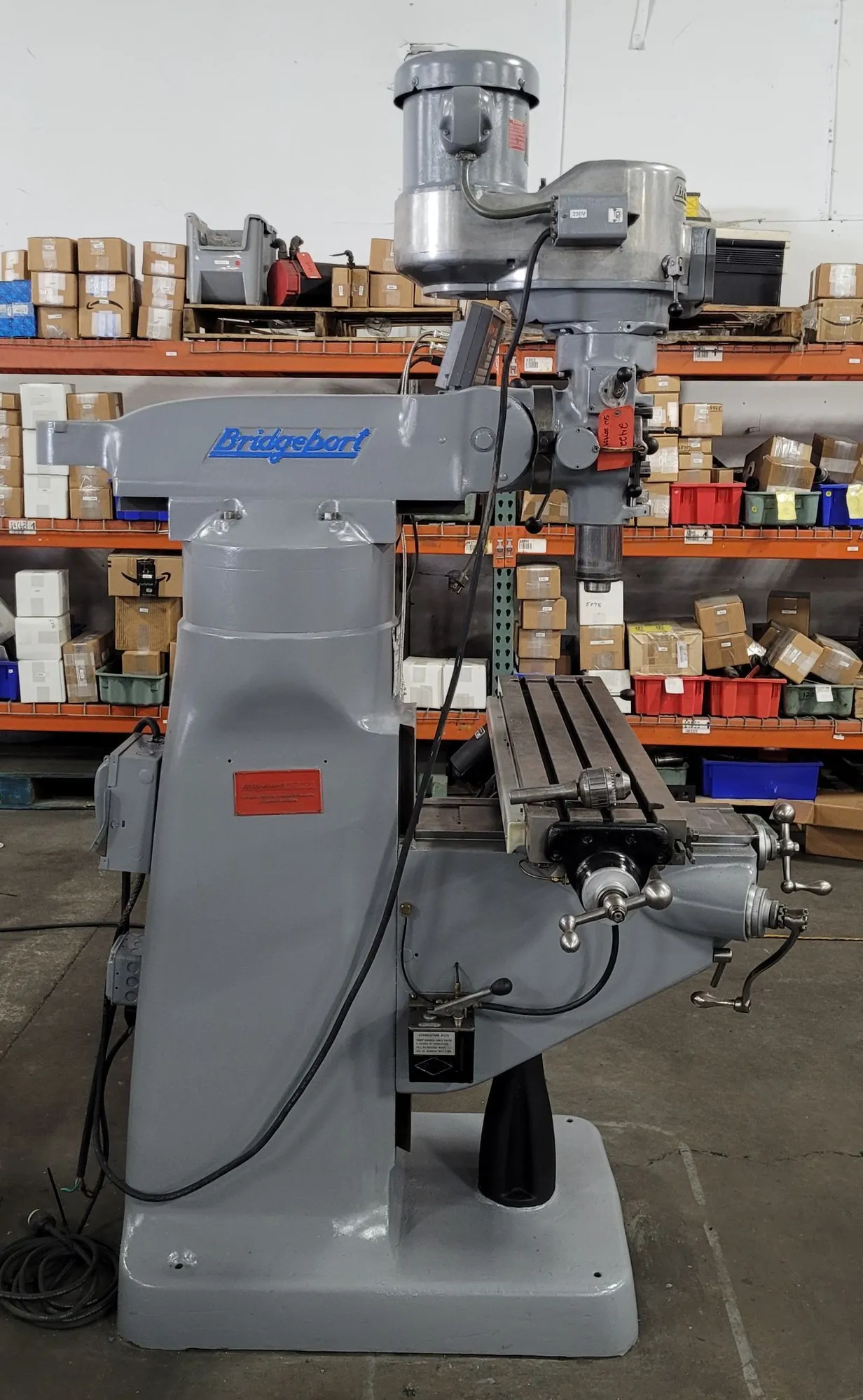

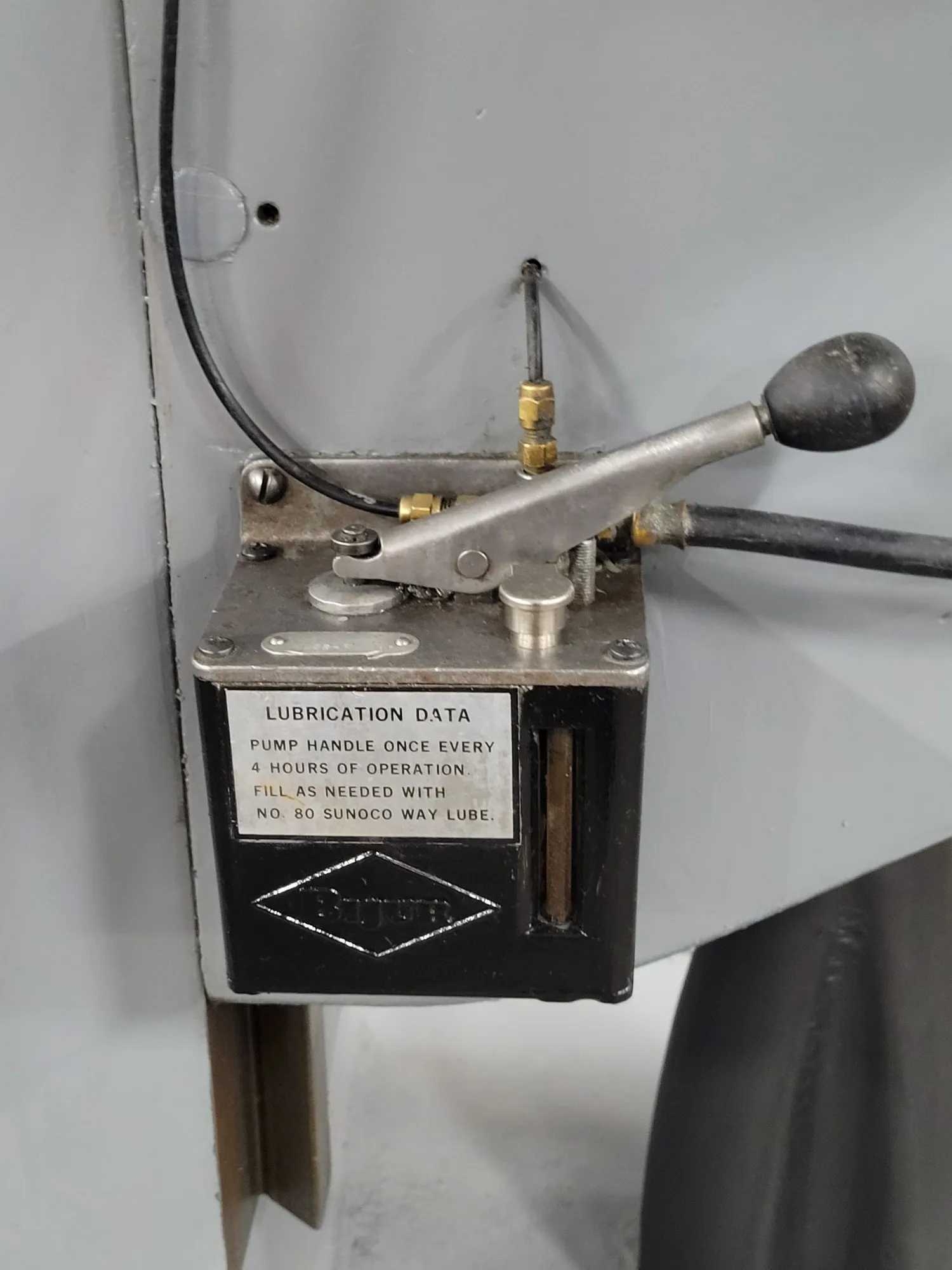

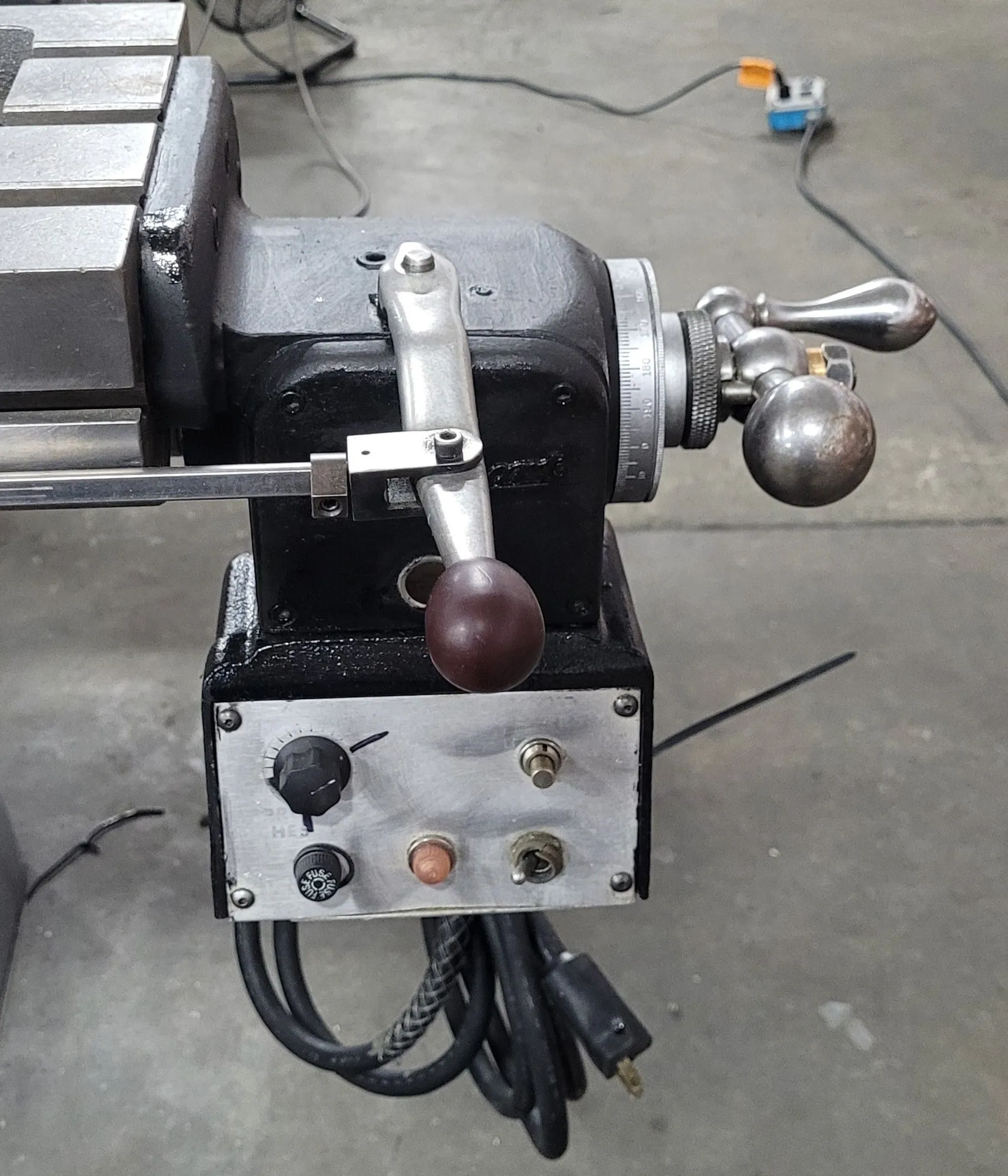

THE BRIDGEPORT SERIES I VERTICAL MILLING MACHINE IS A VERSATILE KNEE MILL FEATURING A 2 HP CONTINUOUS-DUTY MOTOR AND A 9 INCH X 42 INCH T-SLOTTED WORK TABLE. IT UTILIZES A 2J HEAD WITH A PATENTED AIRFLOW COOLING SYSTEM THAT DRAWS AIR PAST SPINDLE BEARINGS TO MINIMIZE HEAT BUILDUP AND PROLONG BEARING LIFE. THE MACHINE IS EQUIPPED WITH AN R8 SPINDLE TAPER AND OFFERS INFINITELY VARIABLE SPINDLE SPEEDS RANGING FROM 60 TO 4,200 RPM. TECHNICAL SPECIFICATIONS INCLUDE LONGITUDINAL TRAVEL OF 32 INCHES, CROSS TRAVEL OF 12 INCHES, AND A 5-INCH QUILL TRAVEL. FOR PRECISION AND EASE OF OPERATION, THIS UNIT INCLUDES A SINO SDS6-2V TWO-AXIS DIGITAL READOUT AND A POWER TABLE FEED ON THE X-AXIS. STANDARD CONSTRUCTION FEATURES INCLUDE HAND-SCRAPED CHROME WAYS AND GIBS FOR OPTIMUM GEOMETRY AND A ONE-SHOT LUBRICATION SYSTEM THAT SERVICES ALL WAYS AND SCREW ASSEMBLIES VIA A CENTRALIZED LEVER. THE MACHINE OPERATES ON 230V THREE-PHASE POWER AND OCCUPIES A PHYSICAL FOOTPRINT OF APPROXIMATELY 6 FEET X 5 FEET X 7 FEET WITH AN APPROXIMATE WEIGHT OF 2,200 LBS.
