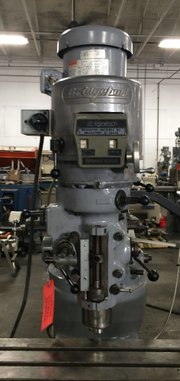

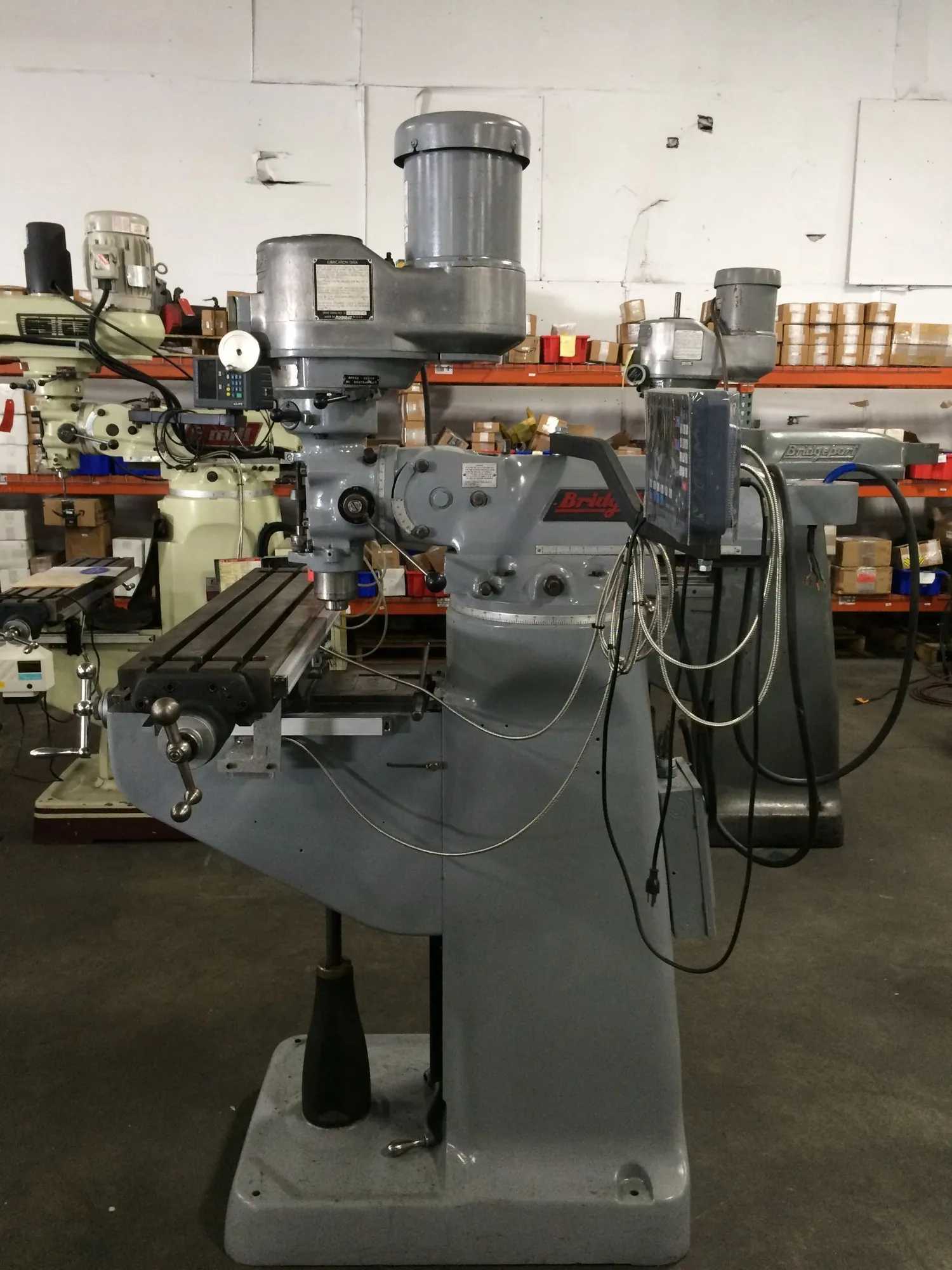

BRIDGEPORT SERIES 1 VERTICAL MILLING MACHINE, 2 HP, 9X42 TABLE, R8, 4200 RPM, ACCURITE DRO

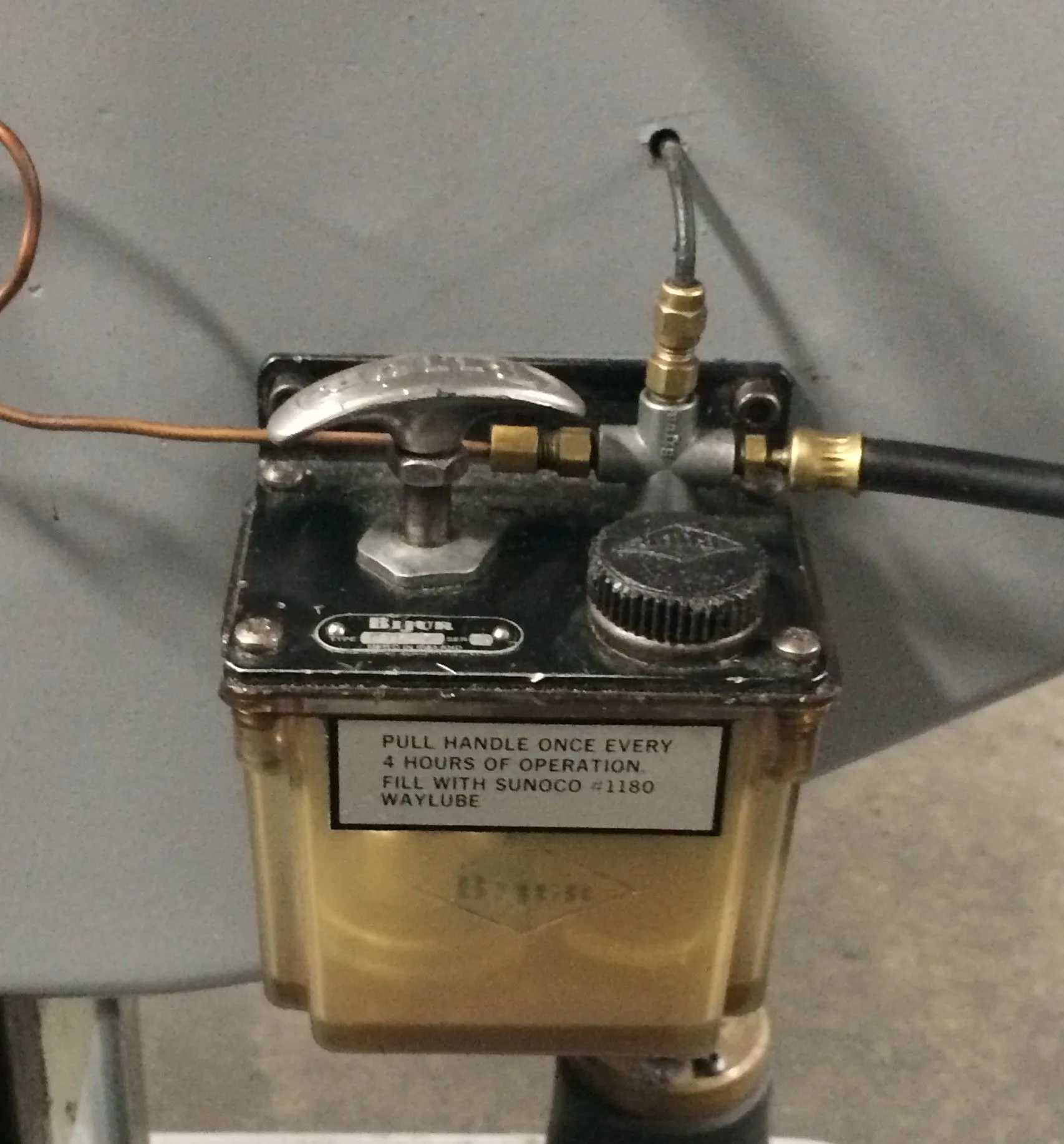

THE BRIDGEPORT SERIES 1 IS A VERTICAL MILLING MACHINE DESIGNED FOR PRECISION MILLING, DRILLING, AND BORING OPERATIONS. THIS UNIT FEATURES A 2 HP MOTOR AND IS EQUIPPED WITH A 9 INCH BY 42 INCH T-SLOTTED WORK TABLE. THE MACHINE PROVIDES A LONGITUDINAL TRAVEL OF 32 INCHES AND A CROSS TRAVEL OF 12 INCHES. THE SPINDLE UTILIZES AN R8 TAPER AND OFFERS INFINITELY VARIABLE SPEEDS RANGING FROM 60 TO 4,200 RPM, CATEGORIZED INTO LOW (60 TO 500 RPM) AND HIGH (500 TO 4,200 RPM) RANGES. TECHNICAL ENHANCEMENTS INCLUDE AN ACCURITE DIGITAL READOUT FOR PRECISE POSITIONING AND CHROME-PLATED WAYS AND GIBS FOR DURABILITY AND REDUCED FRICTION. THE QUILL FEATURES A 5-INCH TRAVEL WITH THREE POWER FEED RATES OF 0.0015, 0.003, AND 0.006 INCHES PER REVOLUTION. LUBRICATION IS MANAGED VIA A BIJUR ONE-SHOT LUBE SYSTEM, ENSURING CONSISTENT OIL DELIVERY TO THE WAYS AND LEAD SCREWS. THE MACHINE OPERATES ON 230V, 3-PHASE POWER AND HAS APPROXIMATE PHYSICAL DIMENSIONS OF 6 FEET IN LENGTH, 5 FEET IN WIDTH, AND 7 FEET IN HEIGHT, WITH A WEIGHT OF APPROXIMATELY 2,200 LBS. STANDARD CONSTRUCTION INCLUDES GRAY CAST IRON FOR STRUCTURAL RIGIDITY AND DAMPING, COMPLEMENTED BY HAND-SCRAPED ALIGNMENT WAYS TO ENSURE GEOMETRIC ACCURACY.
