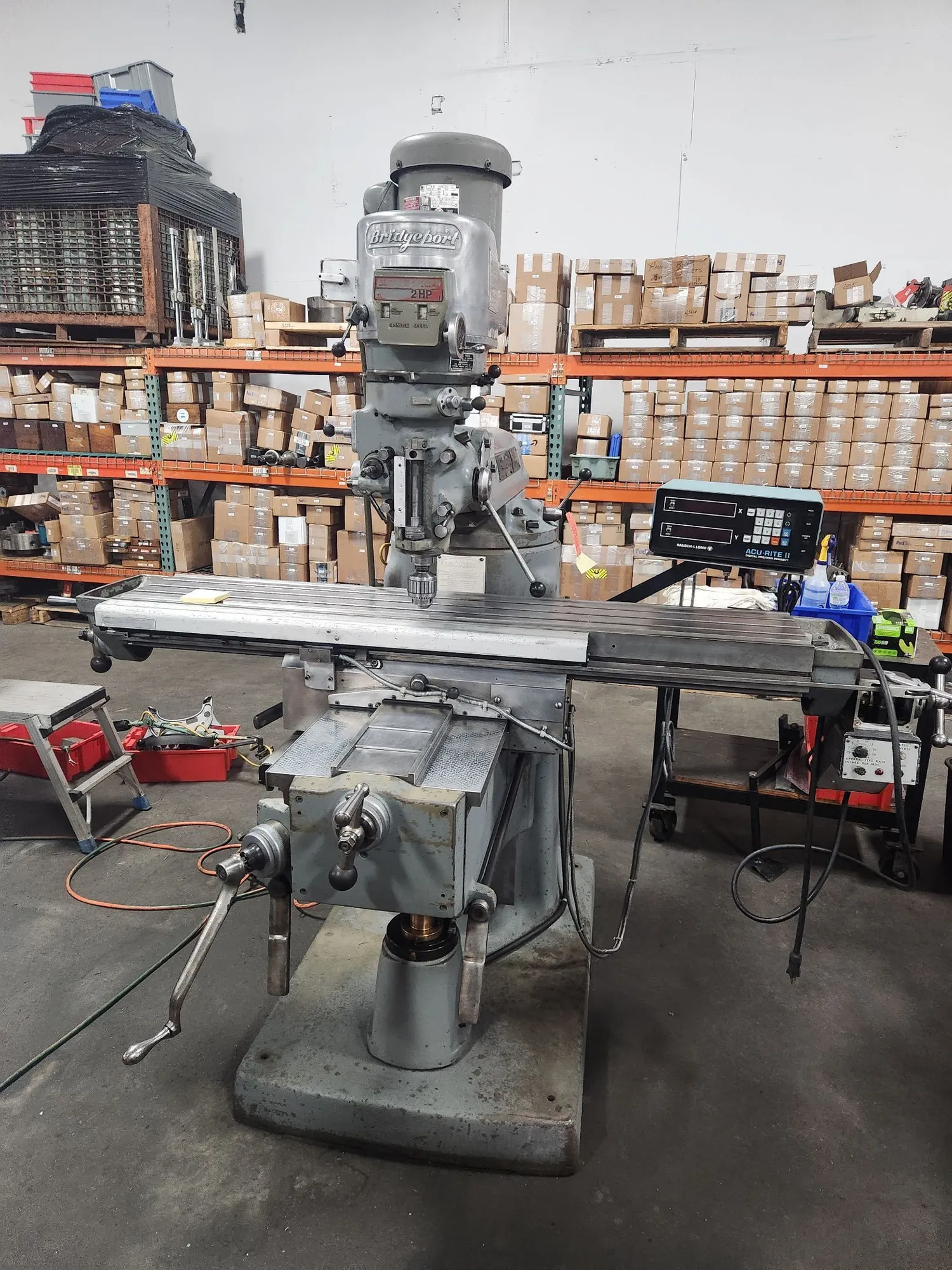

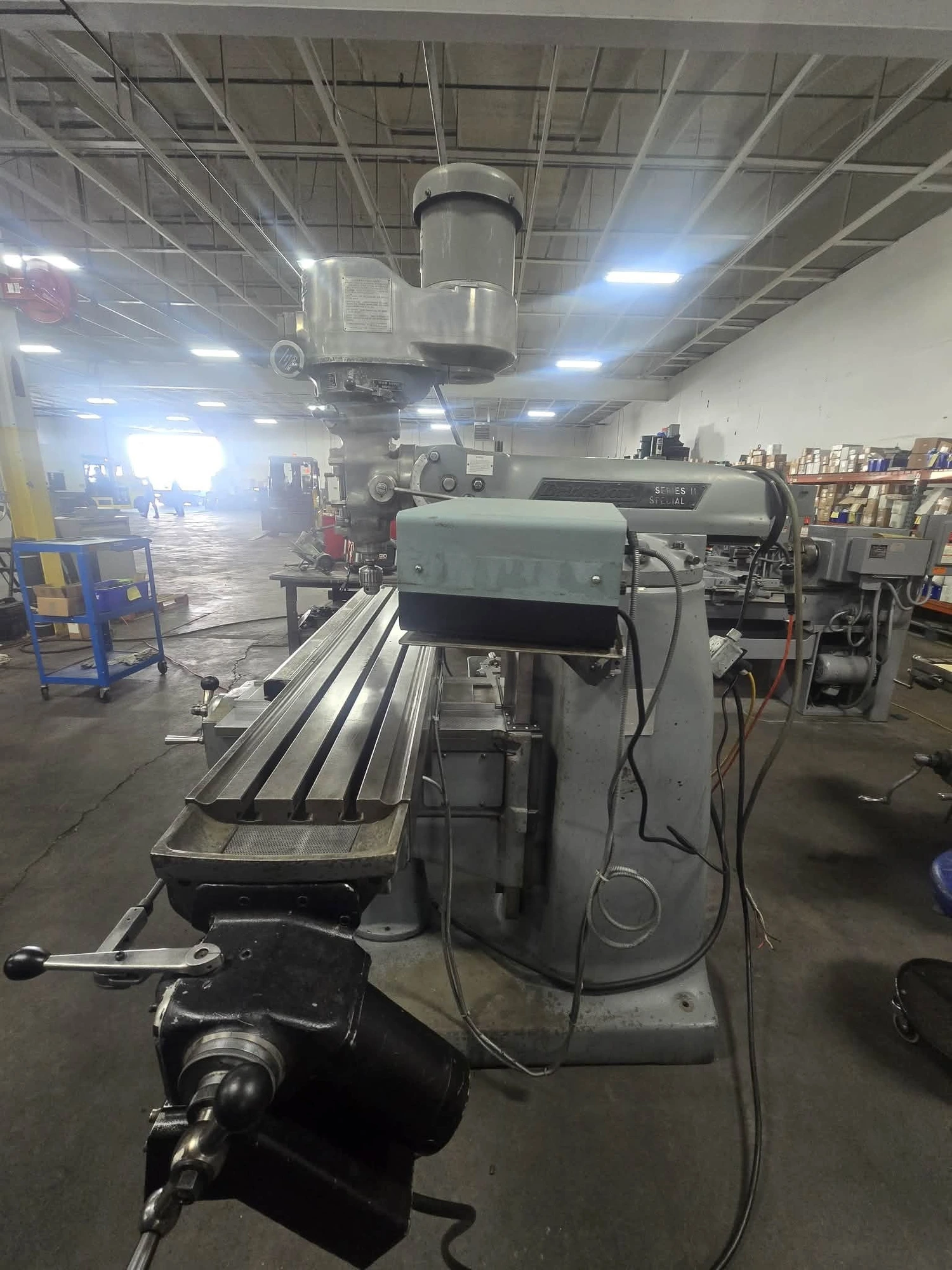

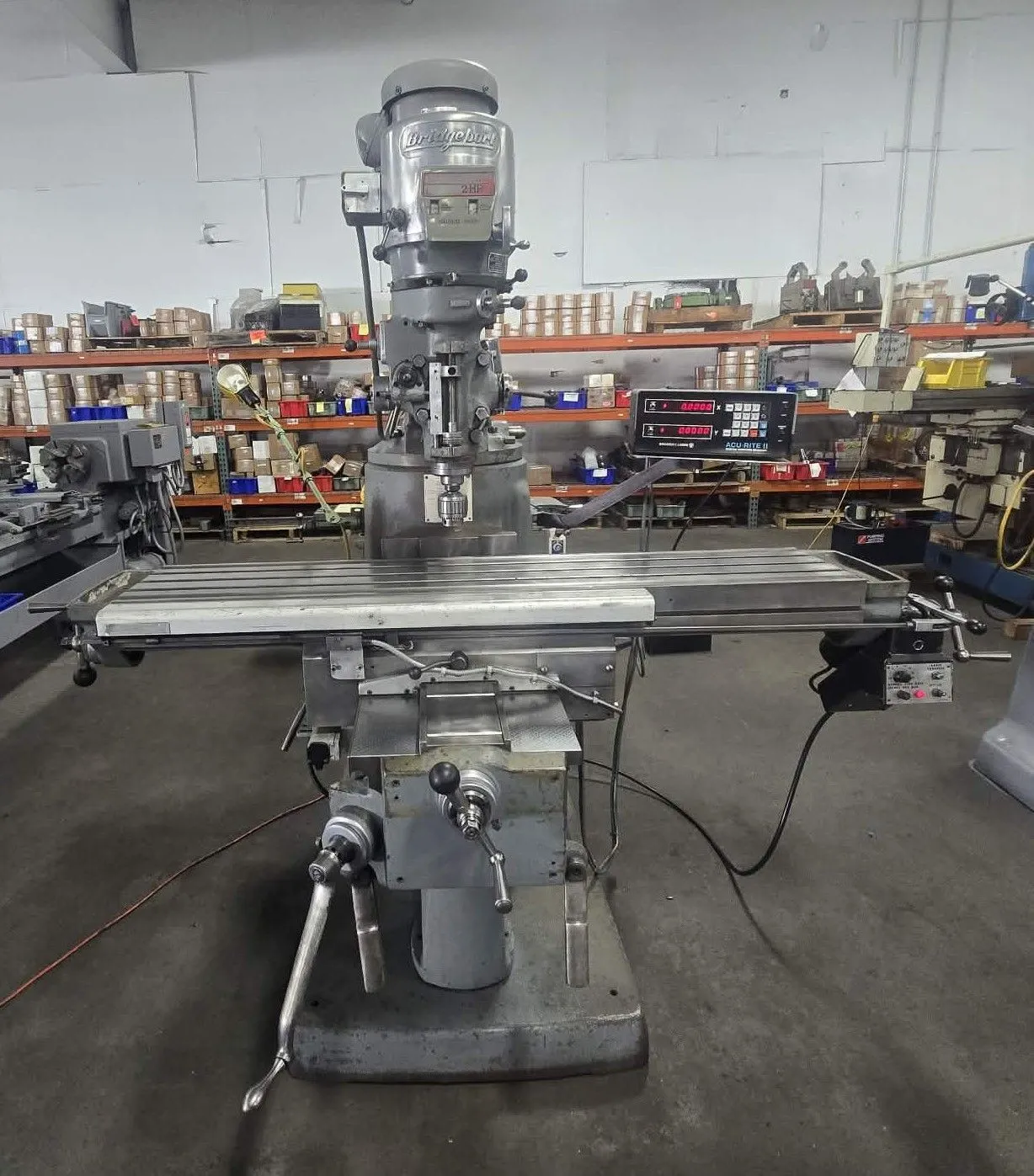

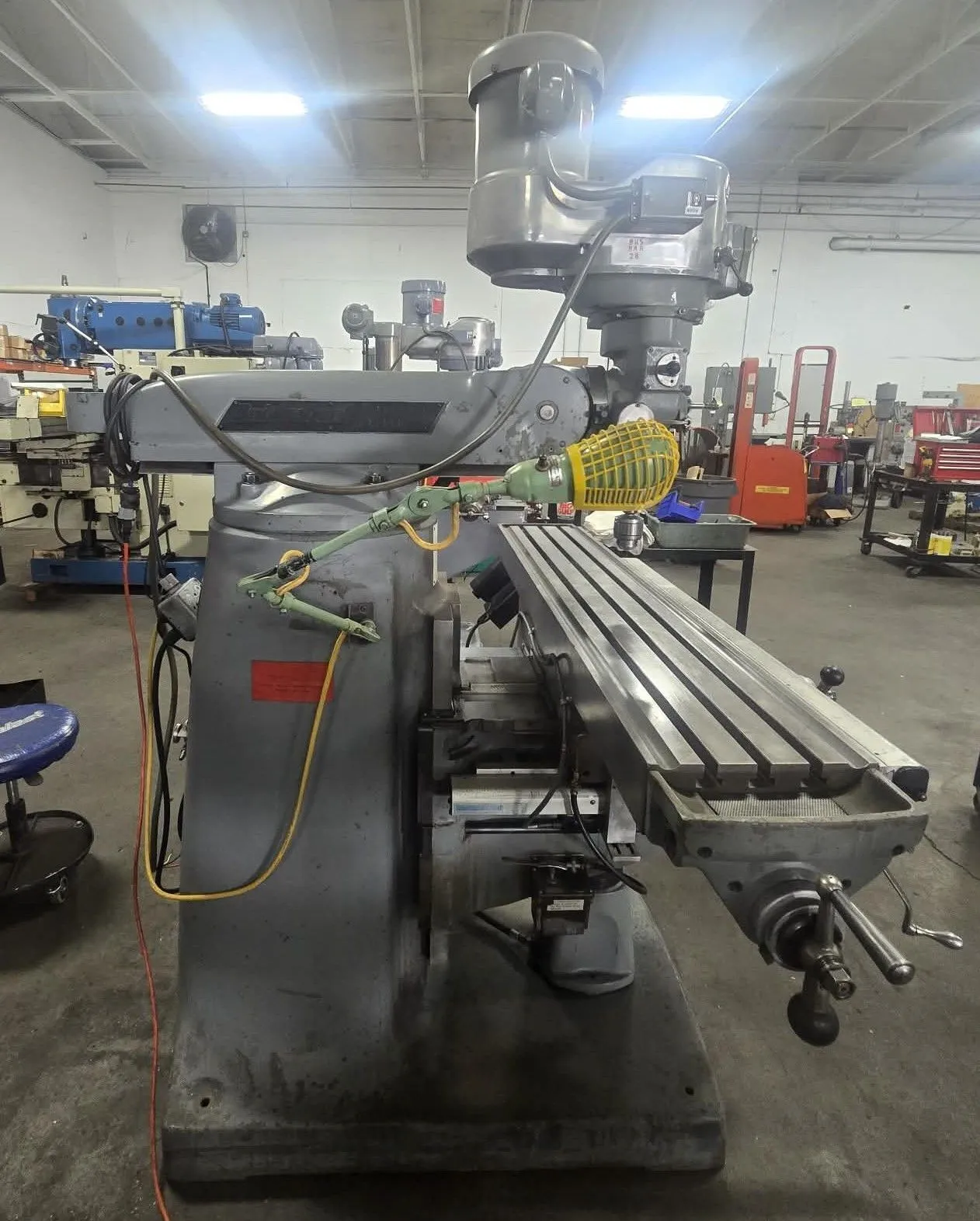

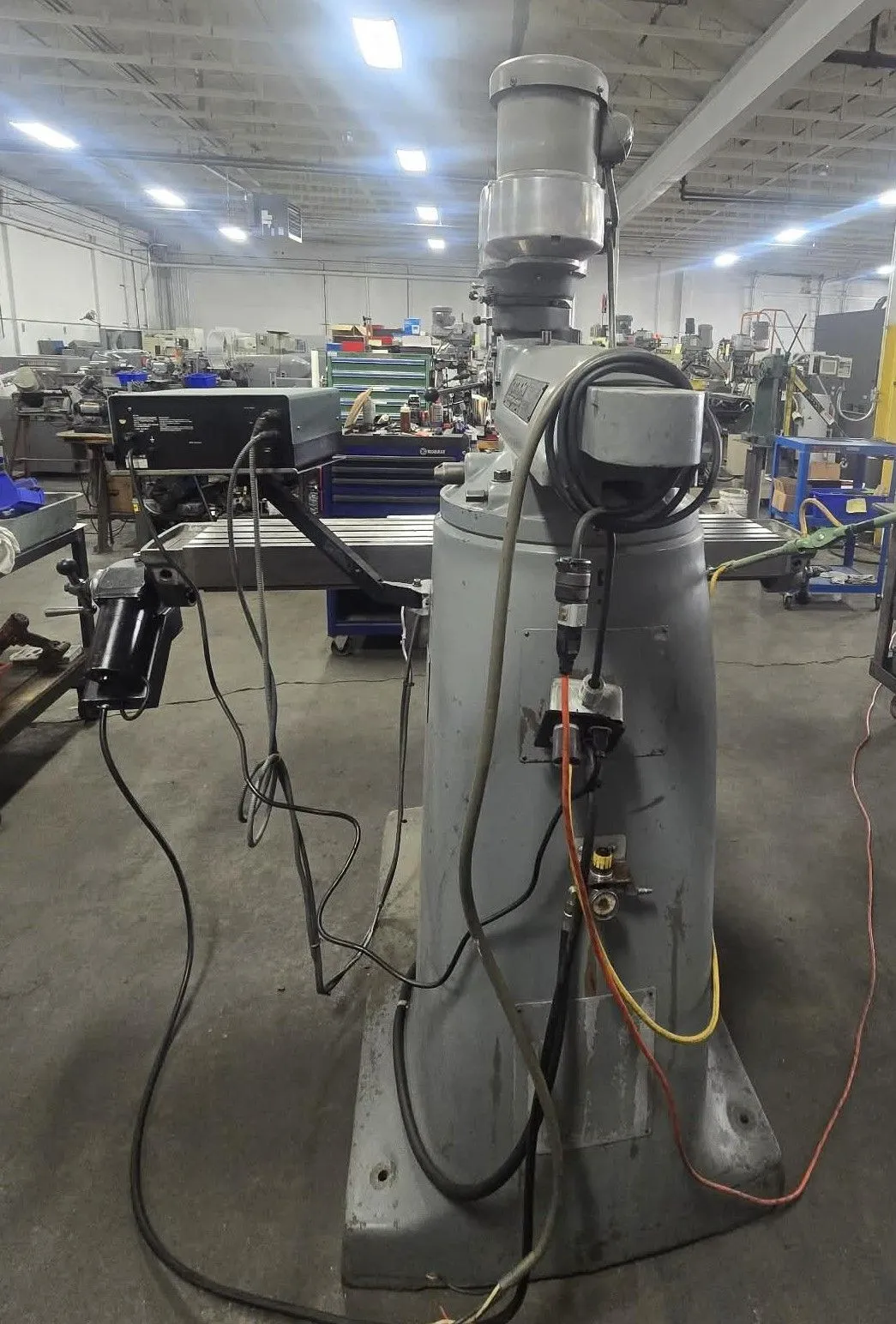

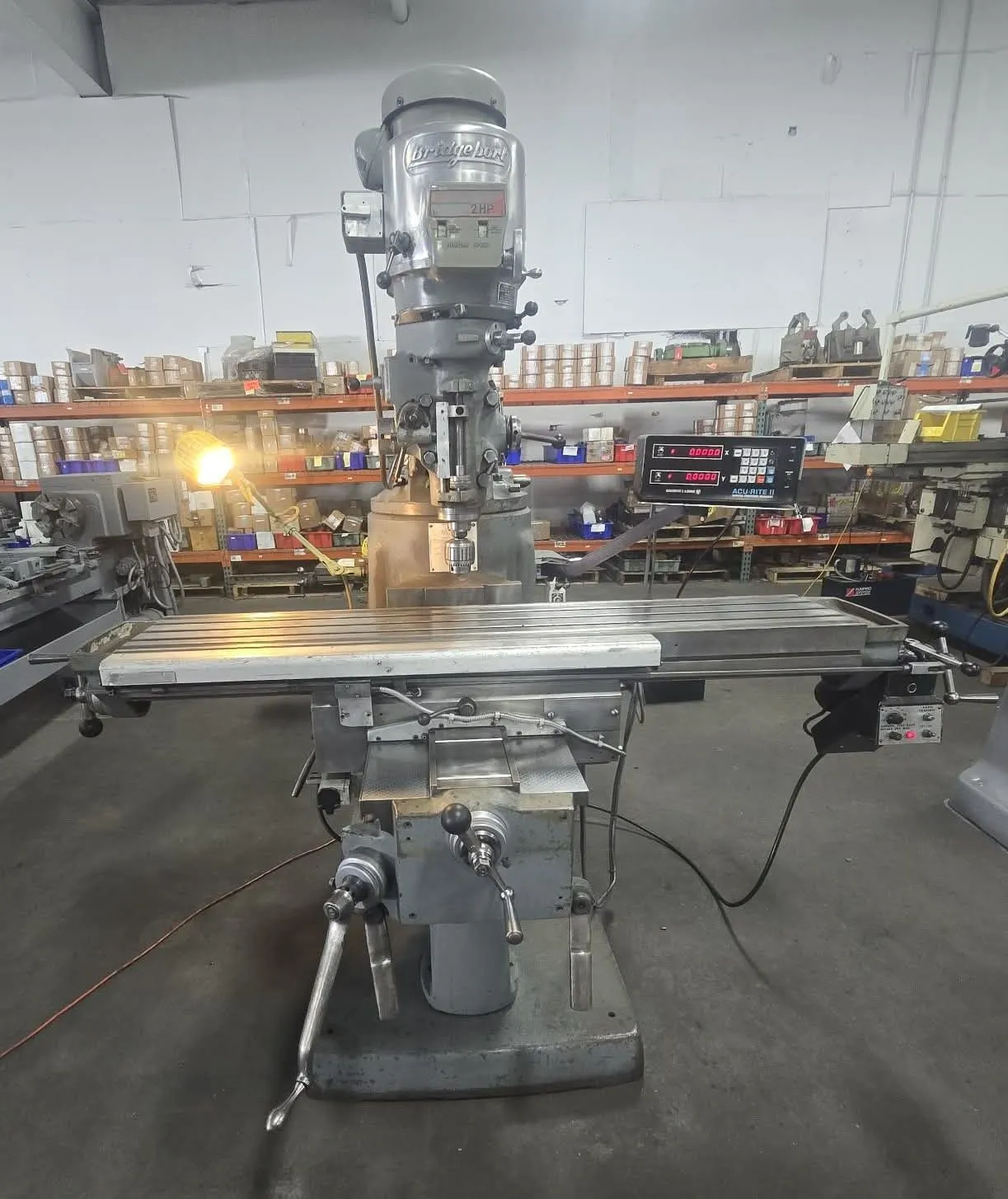

BRIDGEPORT SERIES II SPECIAL VERTICAL MILL, 11X58 TABLE, 2HP, R8, 60-4200 RPM, ACCURITE DRO

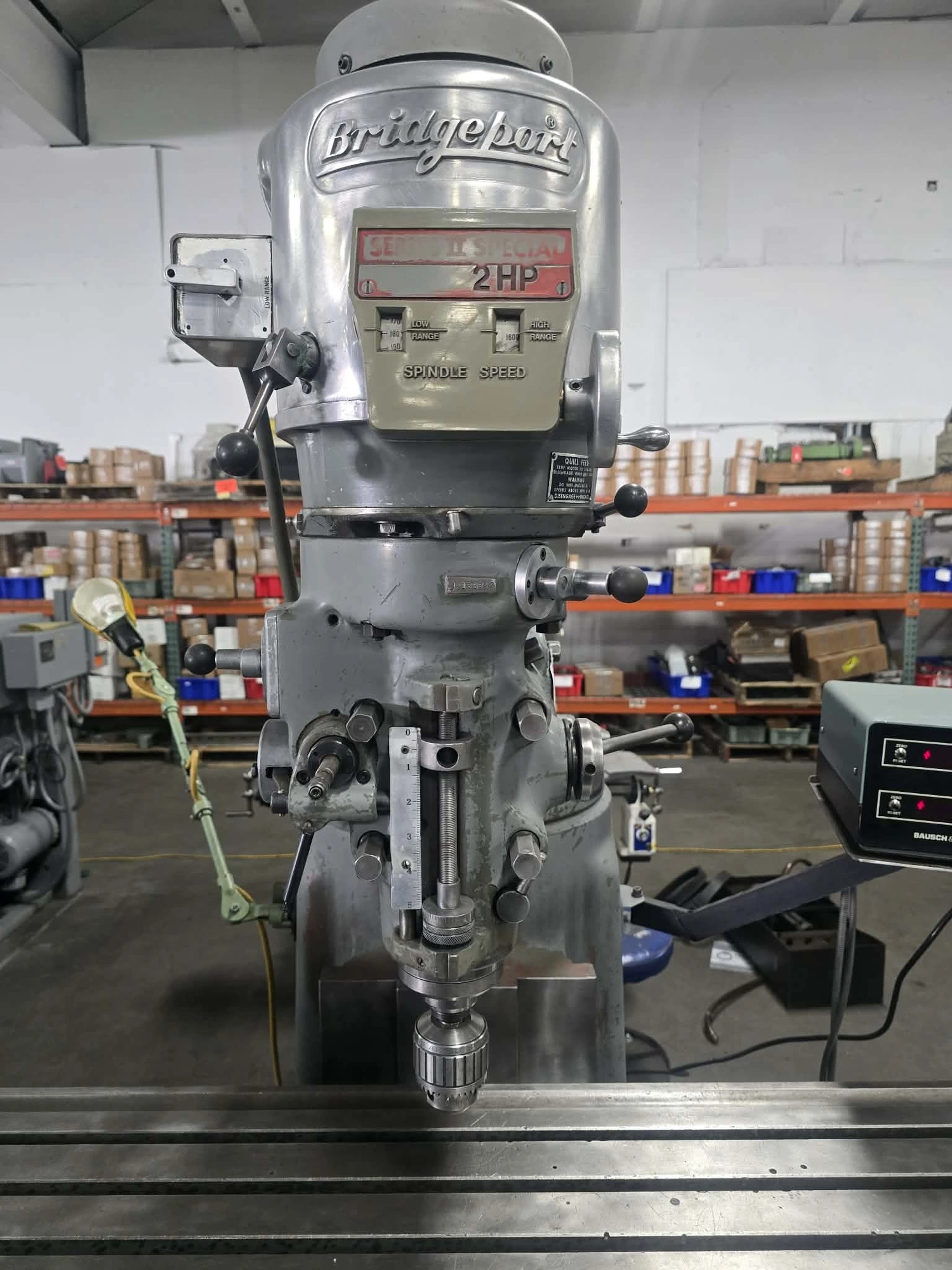

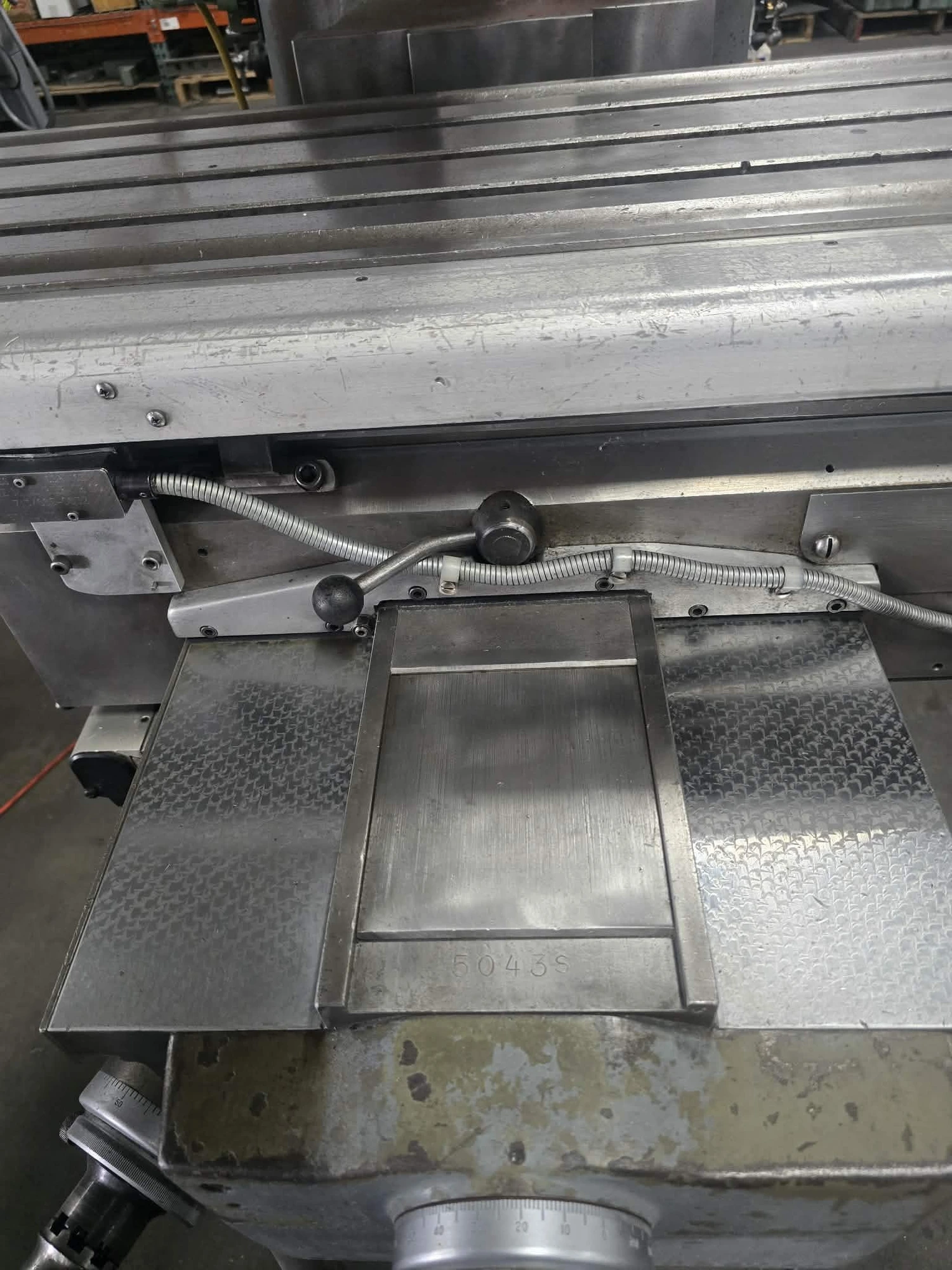

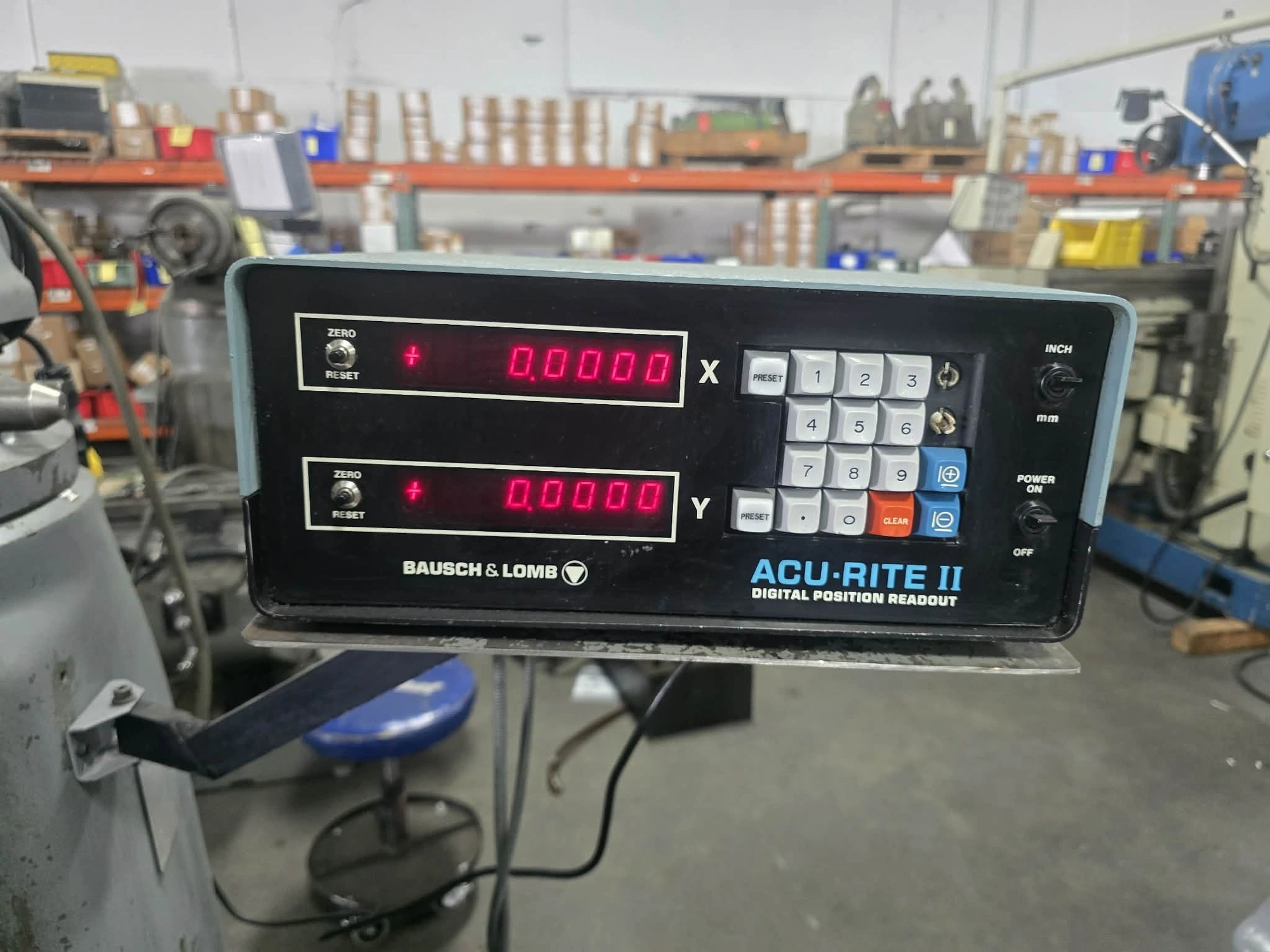

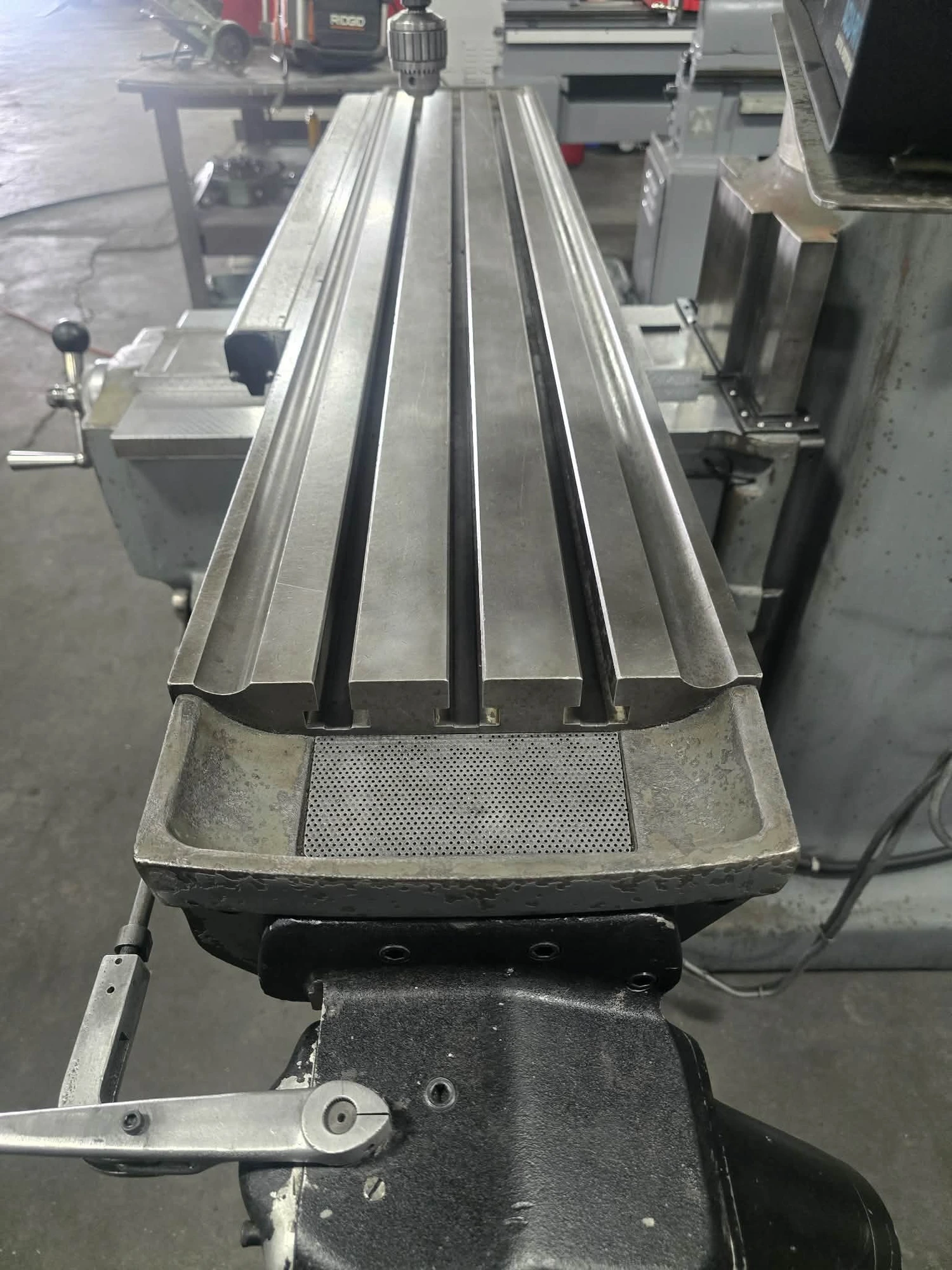

THE BRIDGEPORT SERIES II SPECIAL VERTICAL MILL FEATURES AN 11 INCH BY 58 INCH T-SLOTTED TABLE AND IS POWERED BY A 2 HP MOTOR. THIS MACHINE OFFERS A LONGITUDINAL TABLE TRAVEL OF 33.5 INCHES, CROSS SADDLE TRAVEL OF 15 INCHES, AND A VERTICAL KNEE TRAVEL OF 16 INCHES WITH AIR ASSISTANCE. THE SPINDLE UTILIZES AN R8 TAPER AND PROVIDES VARIABLE SPEEDS RANGING FROM 60 TO 4200 RPM, WITH POWER FEEDS OF .0015, .003, AND .006 IPR. ADDITIONAL SPECIFICATIONS INCLUDE A 3-3/8 INCH QUILL DIAMETER, 5 INCH QUILL TRAVEL, AND A 16 INCH RAM TRAVEL. THE THROAT DISTANCE RANGES FROM A MINIMUM OF 6 INCHES TO A MAXIMUM OF 23 INCHES. THE MILL IS EQUIPPED WITH CHROME BOX WAYS, A BIJUR ONE-SHOT LUBRICATION SYSTEM, AN ACCURITE 2-AXIS DIGITAL READOUT, AND A BRIDGEPORT X-AXIS POWER FEED. THE UNIT HANDLES A MAXIMUM WORKPIECE WEIGHT BETWEEN 1000 AND 1500 LBS AND IS WIRED FOR 230V, 3-PHASE POWER. PHYSICAL DIMENSIONS ARE APPROXIMATELY 6 FEET BY 5 FEET BY 7 FEET WITH A WEIGHT OF 3500 LBS.
