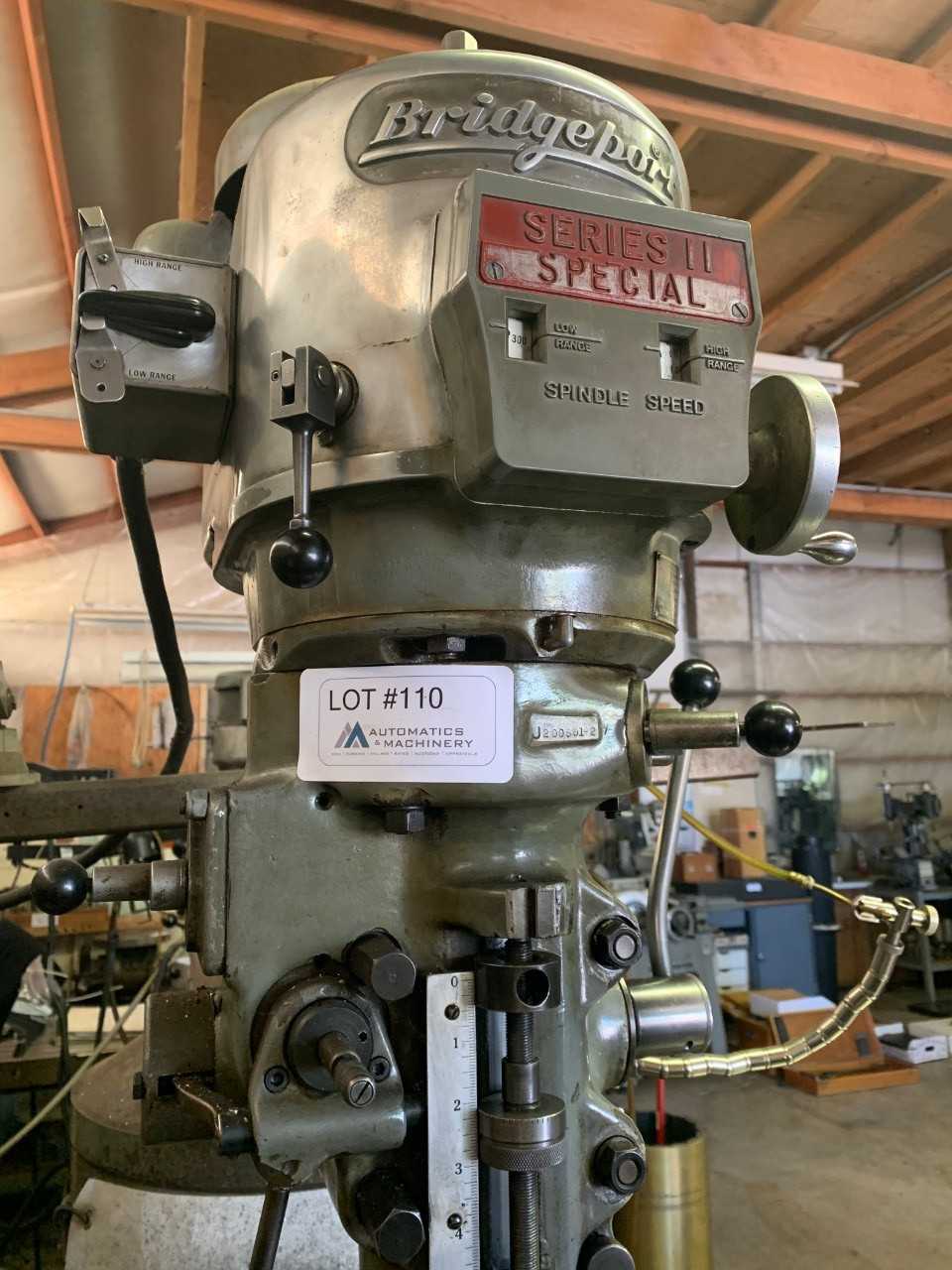

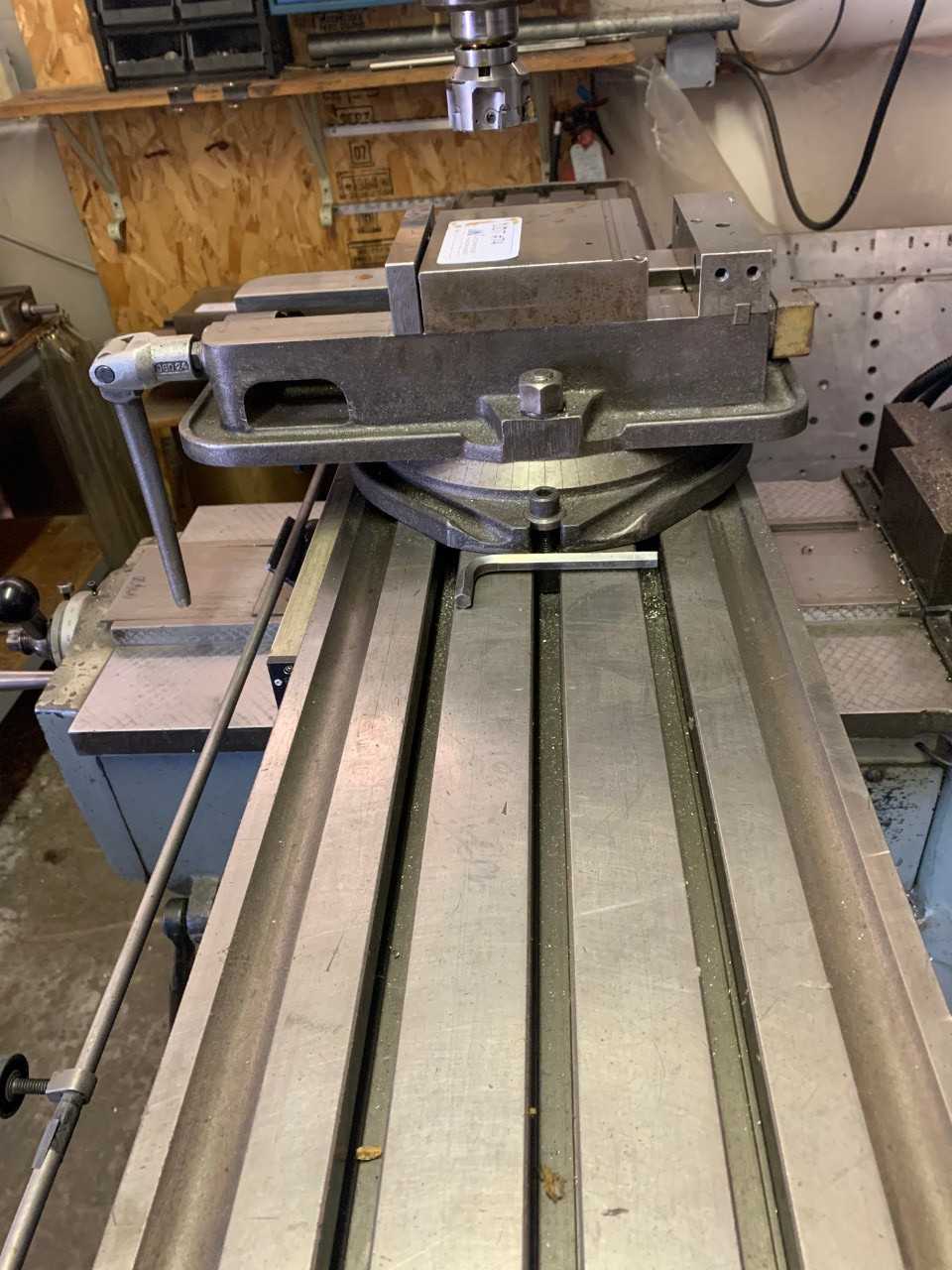

Bridgeport Series II Vertical Knee Mill

TABLE TRAVEL (X-AXIS): 30" SADDLE TRAVEL (Y-AXIS): 15" QUILL TRAVEL: 5" KNEE TRAVEL (Z-AXIS MANUAL): 16" RAM TRAVEL (RACK & PINION): 16" THROAT DISTANCE (MIN) (V-RAM): 10-5/8" THROAT DISTANCE (MAX) (V-RAM): 26-5/8" TABLE TO SPINDLE NOSE GAGE LINE: 1" MAX. WEIGHT OF WORKPIECE: 1,500 LBS. OVERALL SIZE OF TABLE W/3 T-SLOTS: 11" X 58" POWER RATING: 4HP TAPER: NO. 40 MILLING MACHINE SPEED RANGE: LOW - INFINITELY VARIABLE: 50-450 RPM HIGH - INFINITELY VARIABLE: 450-3500 RPM CONTROLLED DOWN FEED RANGE, MANUAL ADJUST: 0.6-2.5 IPM SPINDLE DIAMETER: 2-1/8" QUILL DIAMETER: 4-1/4" MILLING FEED RATE: X & Y AXIS: 3/8-24 IPM Z-AXIS: 3/16-12 IPM MILLING RAPID FEED RATE: X & Y AXIS: 24 IPM Z-AXIS: 12 IPM ELECTRICAL - 60 HERTZ: 208/230/460/575V 3-PHASE: 10.5 kVA POWER FEED: TABLE, SADDLE, KNEE & QUILL CHROME WAYS 2-AXIS BRIDGEPORT DIGITAL READOUTS (4) VARIABLE SPEED HEAD 3-WAY POWER FEEDS COOLANT SYSTEM SPRAY MIST (5) UNIVERSAL QUICK CHANGE TOOLHOLDERS APPROX. DIMENSIONS: 5' X5' X8'(H) APPROX. NET WEIGHT: 5,300 LBS.
