Brooks Instrument 5851IA1BS2H2DEA, MFC, 100 SLPM Air Flow, 1000 PSIG Press

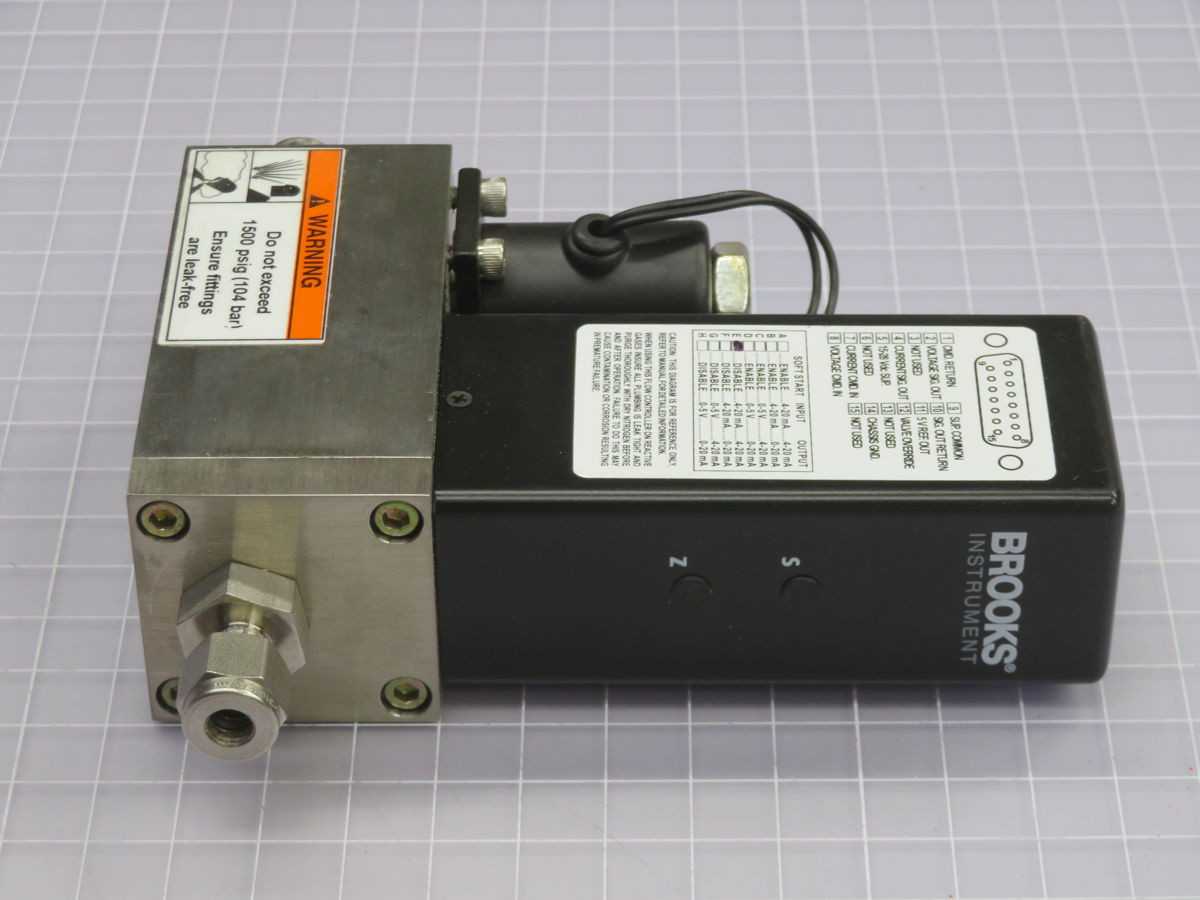

THE BROOKS INSTRUMENT MODEL 5851IA1BS2H2DEA IS A MASS FLOW CONTROLLER DESIGNED FOR PRECISE GAS FLOW REGULATION. IT IS COMPATIBLE WITH AIR, OFFERING A FULL SCALE FLOW RATE OF 100 SLPM. THE UNIT OPERATES WITHIN A PROCESS AND AMBIENT TEMPERATURE RANGE OF 5°C TO 65°C. CONSTRUCTED WITH 316L STAINLESS STEEL WETTED PARTS AND VITON SEALS, IT ENSURES MATERIAL COMPATIBILITY AND DURABILITY. THE DEVICE FEATURES A 9-PIN D-SUB ELECTRICAL CONNECTOR. ITS INTEGRAL CONTROL VALVE IS A DIRECT-ACTING, NORMALLY CLOSED TYPE. THIS MASS FLOW CONTROLLER IS RATED FOR A MAXIMUM OPERATING PRESSURE OF 1000 PSIG. IT TYPICALLY OFFERS AN ACCURACY OF ±1% OF FULL SCALE AND A REPEATABILITY OF ±0.25% OF FULL SCALE. POWER INPUT REQUIREMENTS ARE TYPICALLY +15 TO +24 VDC, AND IT PROVIDES BOTH ANALOG (0-5 VDC, 4-20 MA) AND DIGITAL (RS-485) OUTPUT SIGNALS.
