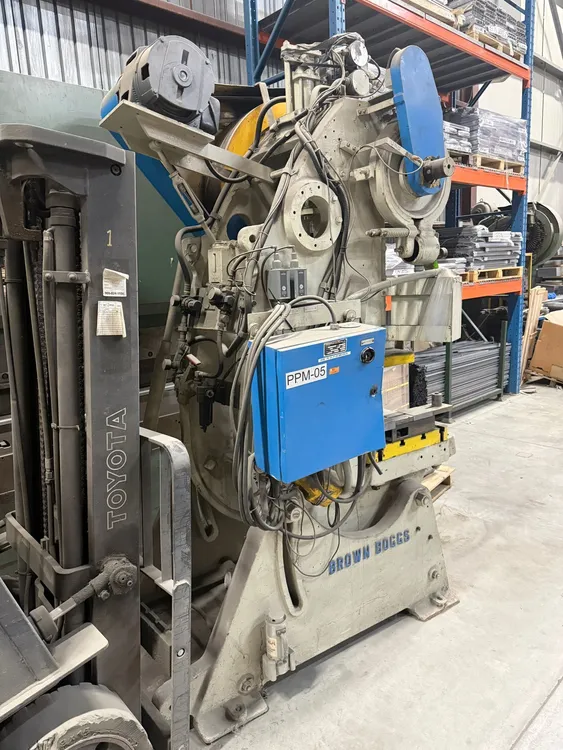

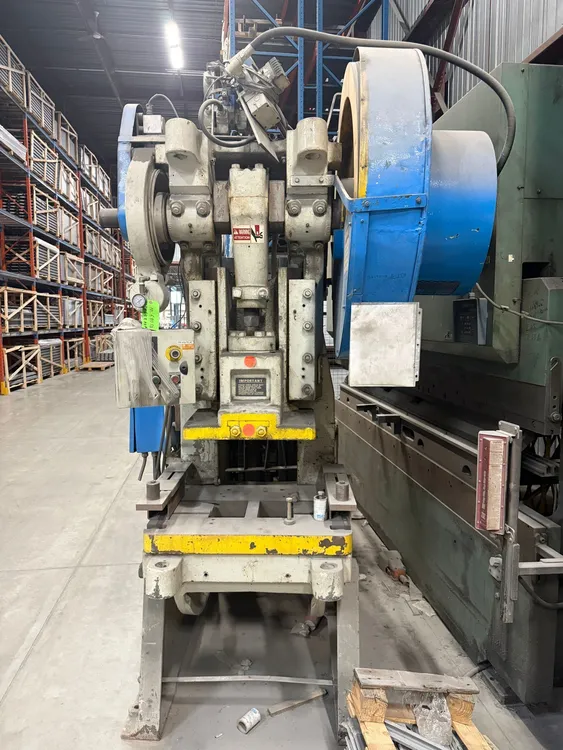

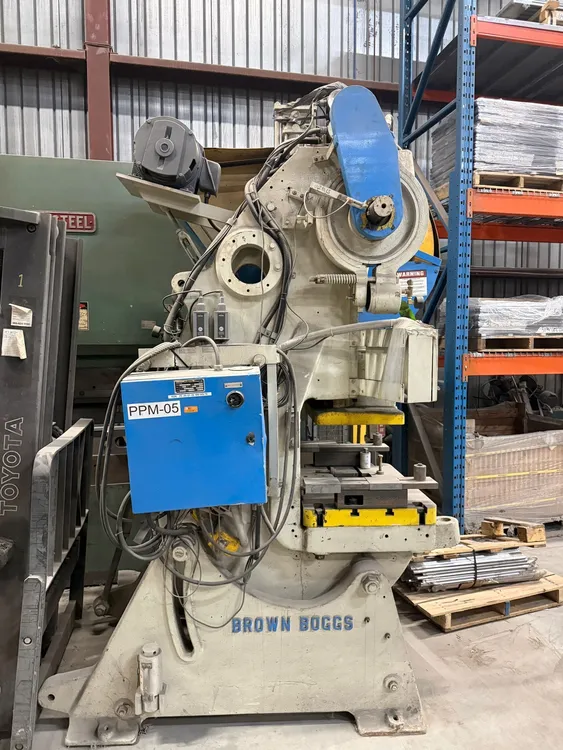

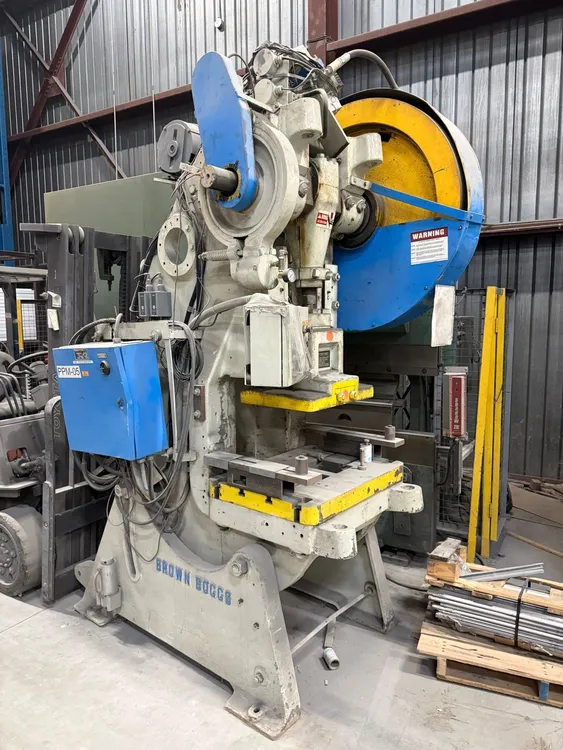

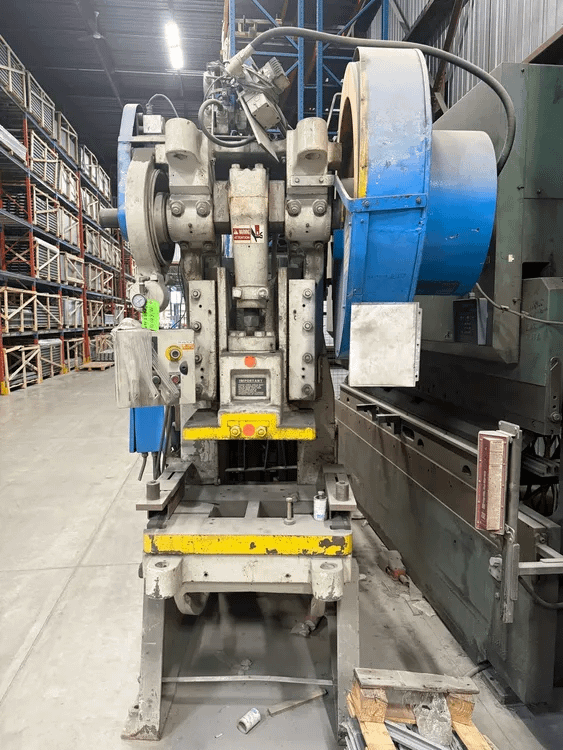

BROWN & BOGGS 17½ LJA STAMPING PRESS, 60 TON

THIS BROWN & BOGGS 60 TON MECHANICAL PUNCH PRESS, MODEL 17 ½ LJA, IS A HIGH-PERFORMANCE STAMPING MACHINE. KEY SPECIFICATIONS INCLUDE A 5-INCH STROKE, A SHUT HEIGHT OF 12 3/8 INCHES OVER THE BED, AND A 3-INCH RAM ADJUSTMENT. THE PRESS FEATURES A BED AREA OF 32 INCHES BY 22 ½ INCHES (L-R X F-B) AND A RAM AREA OF 21 INCHES BY 16 INCHES (L-R X F-B) FLANGED. IT OPERATES AT AN APPROXIMATE SPEED OF 86 SPM, WITH A THROAT DEPTH OF APPROXIMATELY 11 ¼ INCHES AND A WIDTH OF OPENING THROUGH THE FRAME OF APPROXIMATELY 15 INCHES. THE MACHINE UTILIZES A 5 HP MAIN MOTOR (575/3/60) AND HAS A SHANK HOLE DIAMETER OF 2 INCHES ROUND. THE APPROXIMATE WEIGHT OF THE MACHINE IS 10,600 LBS, WITH OVERALL DIMENSIONS OF 79 INCHES BY 63 INCHES BY 112 INCHES (LXWXH) AND THE DISTANCE FROM THE BED TO THE FLOOR BEING 33-1/2 INCHES.
