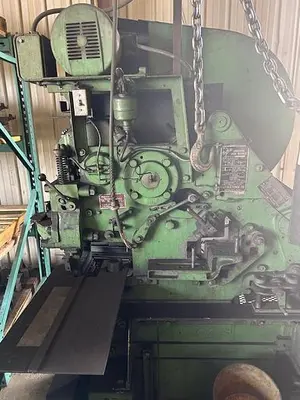

BUFFALO 1/2 UNIVERSAL MECHANICAL IRONWORKER - 50 TON CAPACITY, COPER AND NOTCHER

THE BUFFALO 1/2 UNIVERSAL MECHANICAL IRONWORKER FEATURES A 50 TON CAPACITY AT THE PUNCH END WITH A 1-1/8 INCH STROKE AND A 20 INCH THROAT DEPTH. IT OPERATES AT 44 STROKES PER MINUTE (SPM). SHEARING CAPABILITIES FOR FLATS ARE 6 INCHES BY 5/8 INCH. IT CAN HANDLE ROUND BARS UP TO 1-5/8 INCHES AND SQUARE BARS UP TO 1-1/2 INCHES. ANGLE SHEARING CAPACITIES ARE 4 INCHES BY 4 INCHES BY 1/2 INCH AT 90 DEGREES AND 3 INCHES BY 3 INCHES BY 5/16 INCH AT 45 DEGREES. THE MACHINE ALSO ACCOMMODATES TEES UP TO 4 INCHES BY 4 INCHES BY 7/16 INCH. COPING CAPACITY FOR PLATES IS 3/8 INCH, AND FOR ANGLES AND TEES, IT IS 3 INCHES BY 3/8 INCH. NOTCHING CAPACITY FOR ANGLES AND TEES IS ALSO 3 INCHES BY 3/8 INCH. IT IS EQUIPPED WITH A 3 HP MOTOR OPERATING AT 1455 RPM ON A 220-440 ELECTRICAL SYSTEM. THE IRONWORKER HAS OVERALL DIMENSIONS OF 5 FEET LONG BY 2 FEET 10 INCHES WIDE, WITH AN OVERALL HEIGHT OF 7 FEET, AND WEIGHS APPROXIMATELY 3500 LBS.
