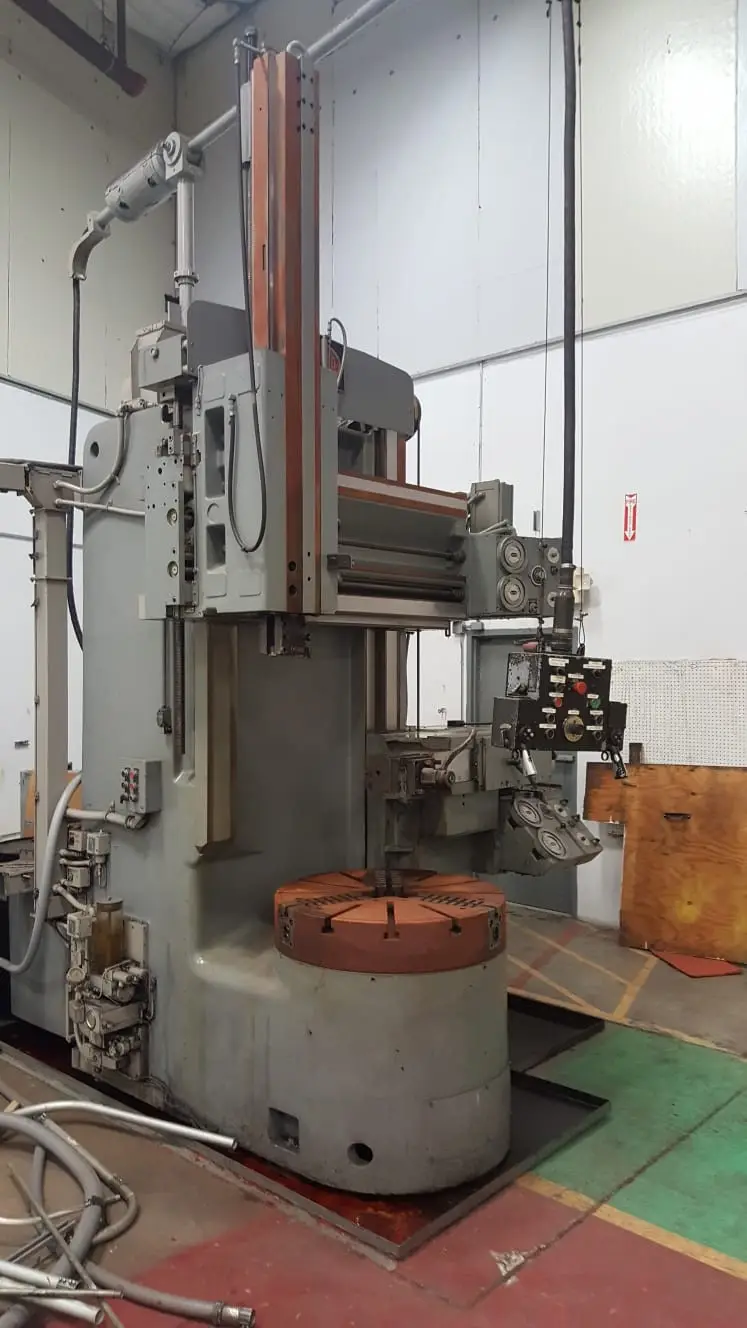

Bullard High Column VTL VERTICAL TURRET LATHE

ONE USED BULLARD DYNATROL VERTICAL TURRET LATHE Chuck diameter: 36” Under table diameter: 16” Max. swing with side head below table: 48” Max. swing with side head in working position: 39” Max. height under rail: 30” is standard, this one is 54” Max. travel of rail in Z axis: 51” (33” is std.) Max. distance of ram head from centerline of chuck: 21.5” Max. travel of ram head left to tight: 43 ¾” HP: 50/1800 rpm Speed range: 16 to 585 rpm with electronic speed control Rail head: 9” with 4-position turret Rail head stroke: 42” Weight: 36,360 lbs. EQUIPPED WITH: 36” 3-jaw power operated chuck 24” extra height 20 speed head stock Chrome Hardened replaceable ways on rail head and side head Rail head and side head equipped with Size-au-Trol attachments Side head with 4-position manual indexing Coolant Rail binders are manually operated Pendant controls with pistol grip for ram and side heads SN: 32069, new 1967 Note: The transmission in this machine is the same one Bullard uses in their VTL;s up to 108" diameter, so it has a lot of power.
