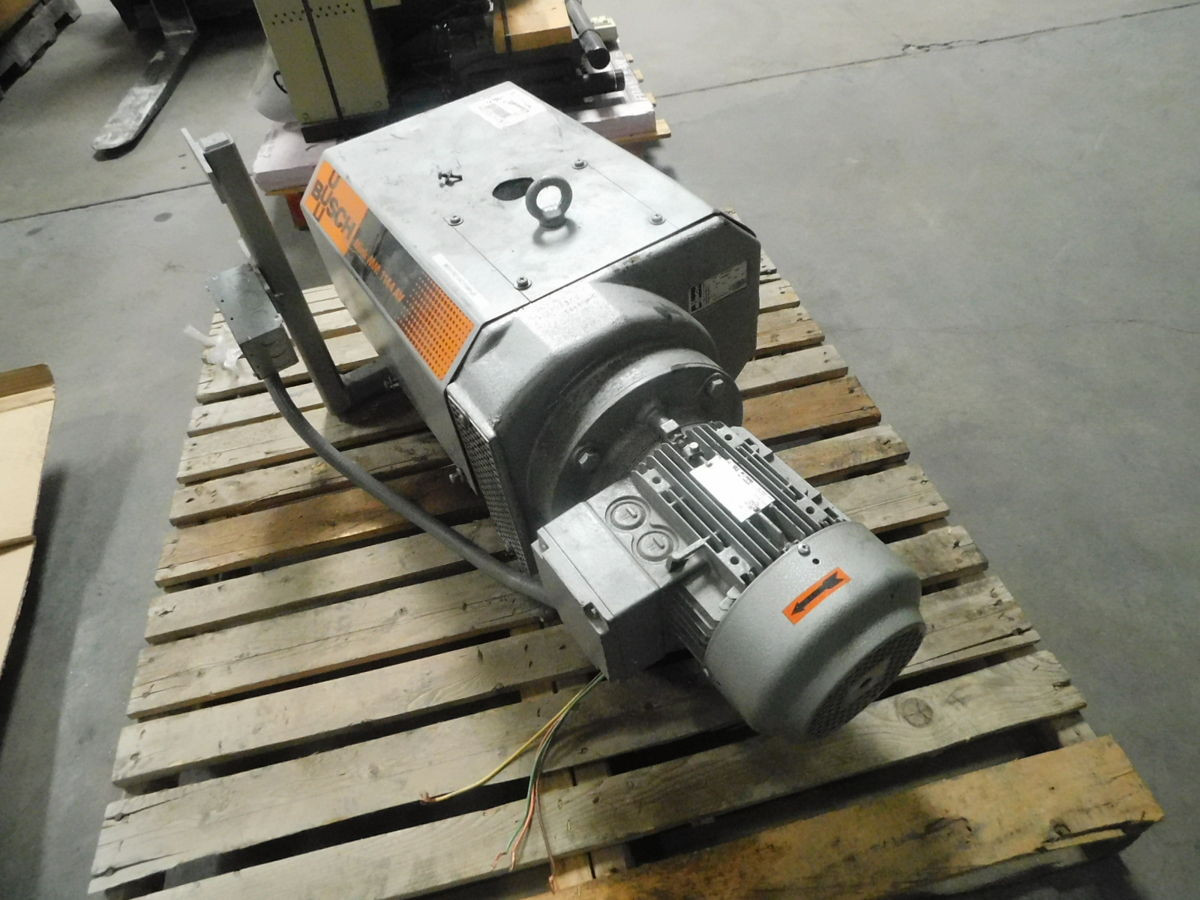

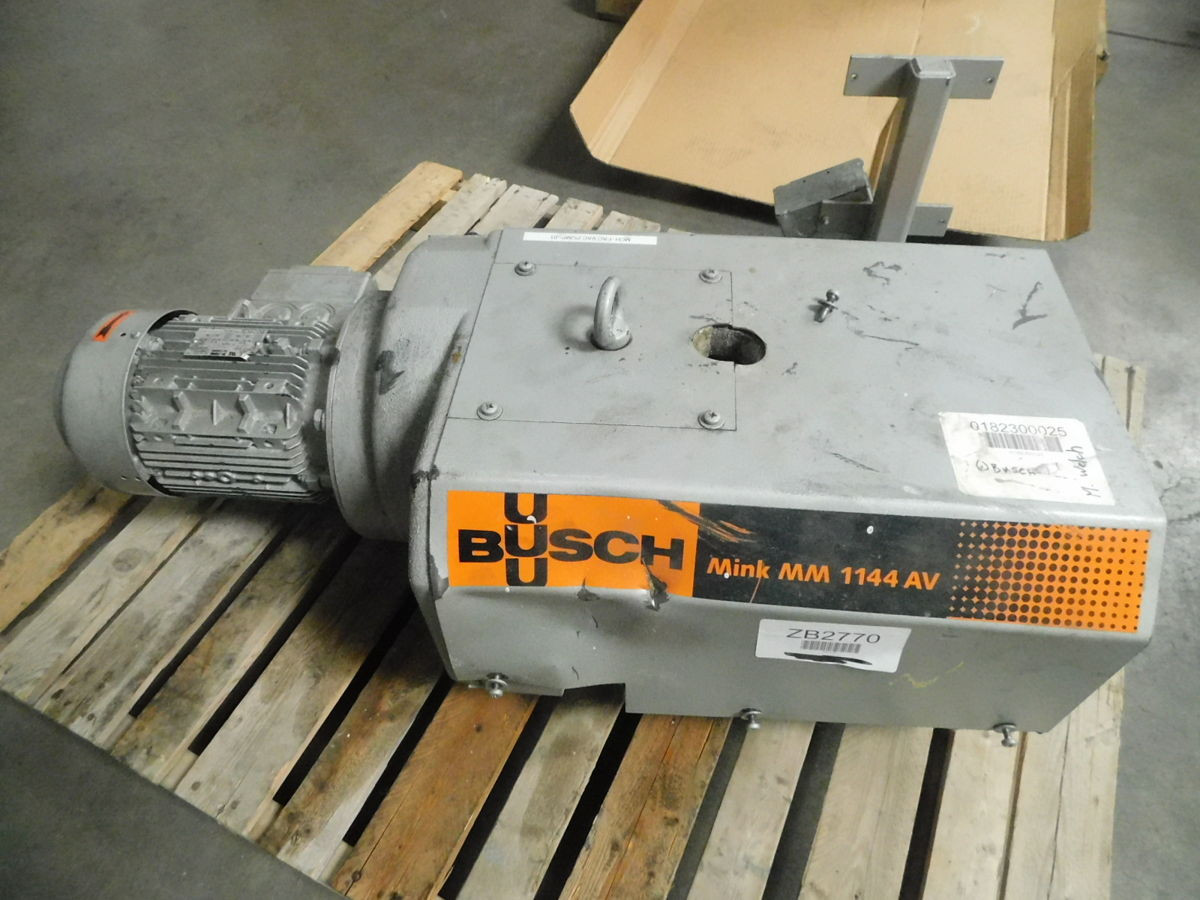

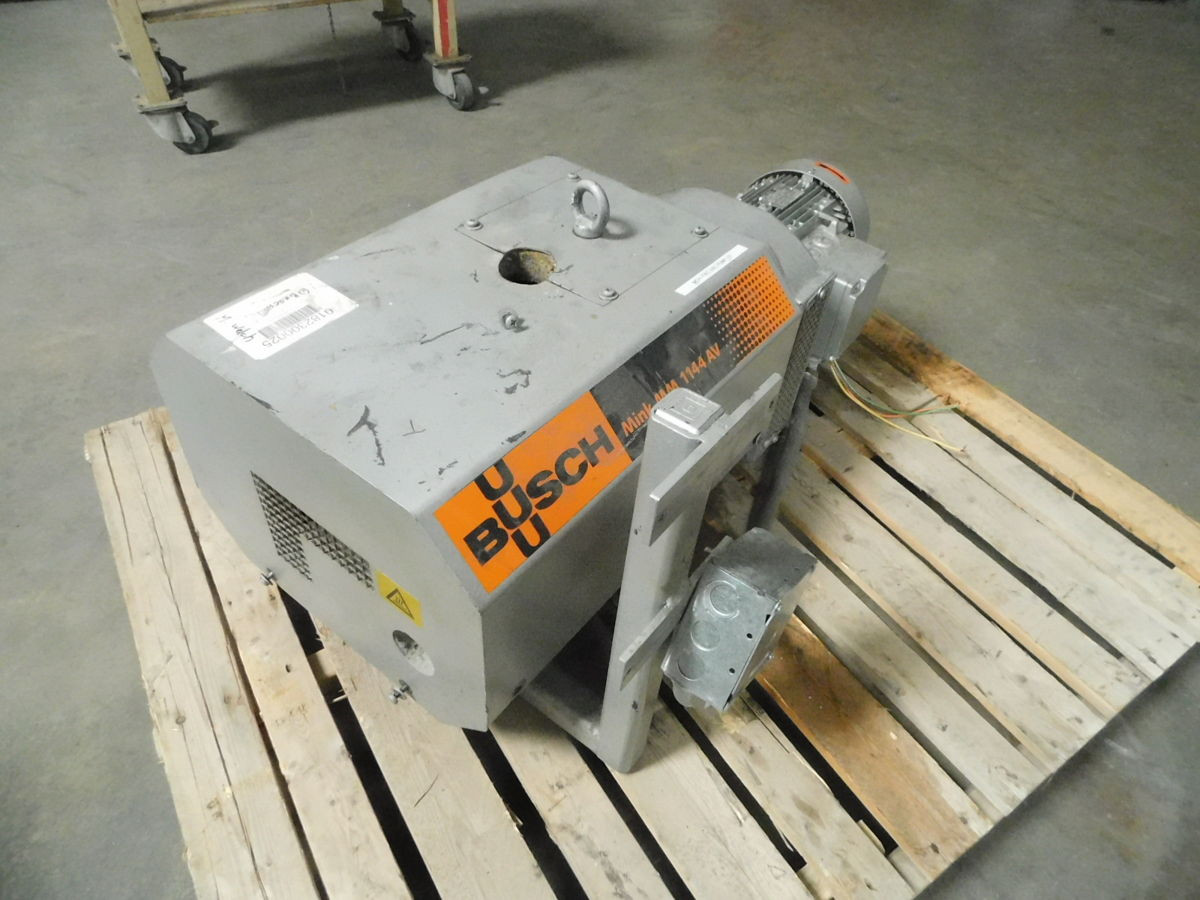

BUSCH MINK MM 1144 AV VACUUM PUMP

THE BUSCH MINK MM 1144 AV IS A DRY CLAW VACUUM PUMP WITH A RATED MOTOR POWER OF 2.2 KW. IT OPERATES ON A 240/480 VAC POWER SUPPLY, SUPPORTING BOTH 50 HZ AND 60 HZ FREQUENCIES. THE PUMP DELIVERS A NOMINAL PUMPING SPEED OF APPROXIMATELY 140 M³/H AT 50 HZ AND 170 M³/H AT 60 HZ, ACHIEVING AN ULTIMATE VACUUM OF 150 MBAR ABSOLUTE. MOTOR SPEEDS ARE TYPICALLY 1450 RPM FOR 50 HZ AND 1740 RPM FOR 60 HZ OPERATION. THIS MODEL FEATURES G 2 INLET AND DISCHARGE CONNECTIONS.
