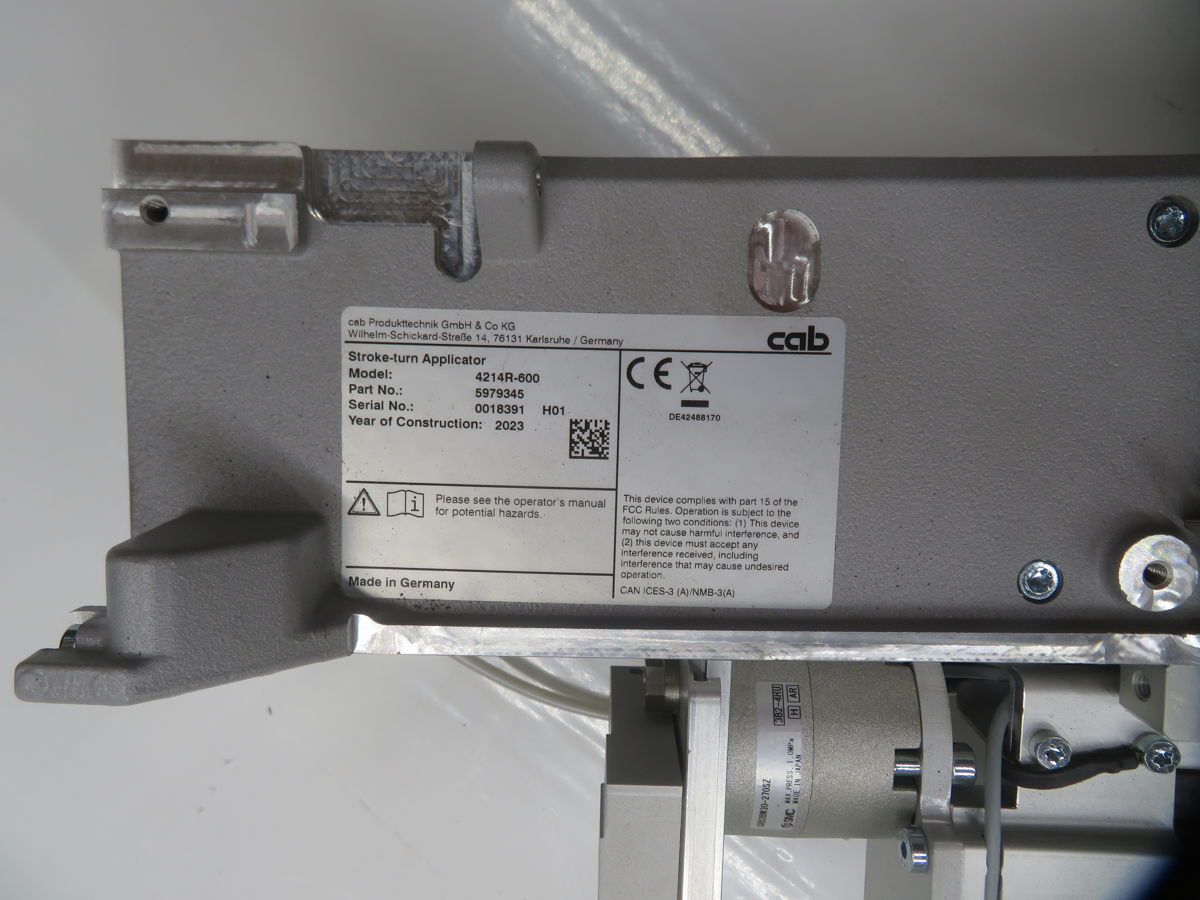

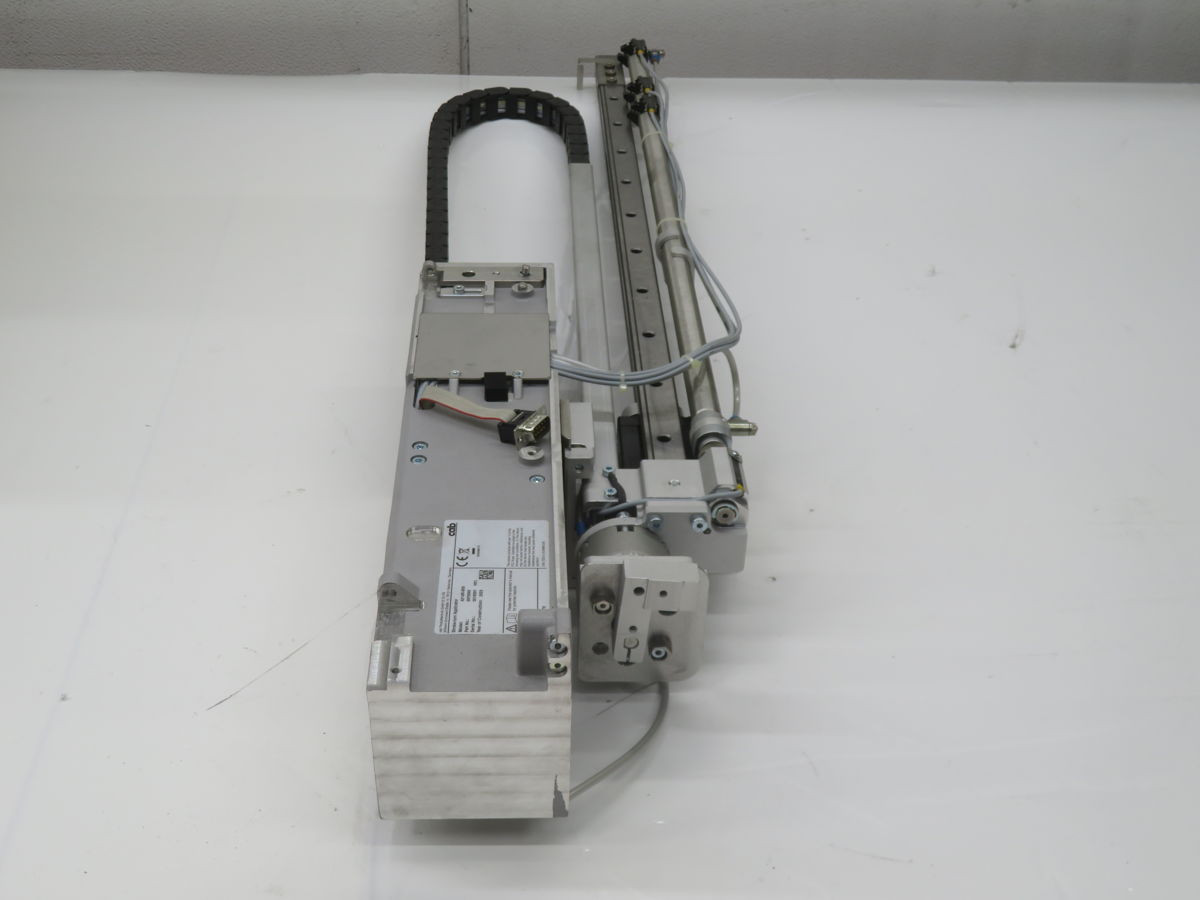

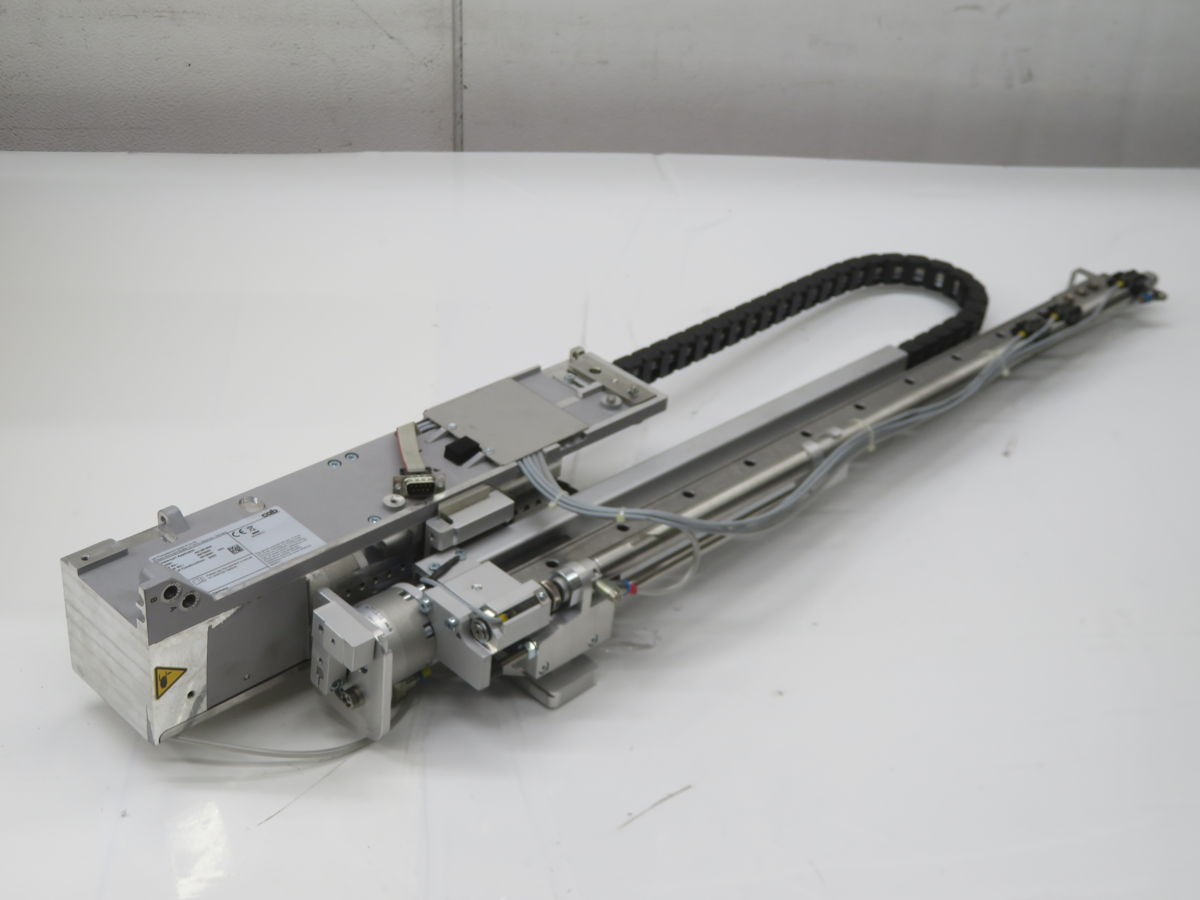

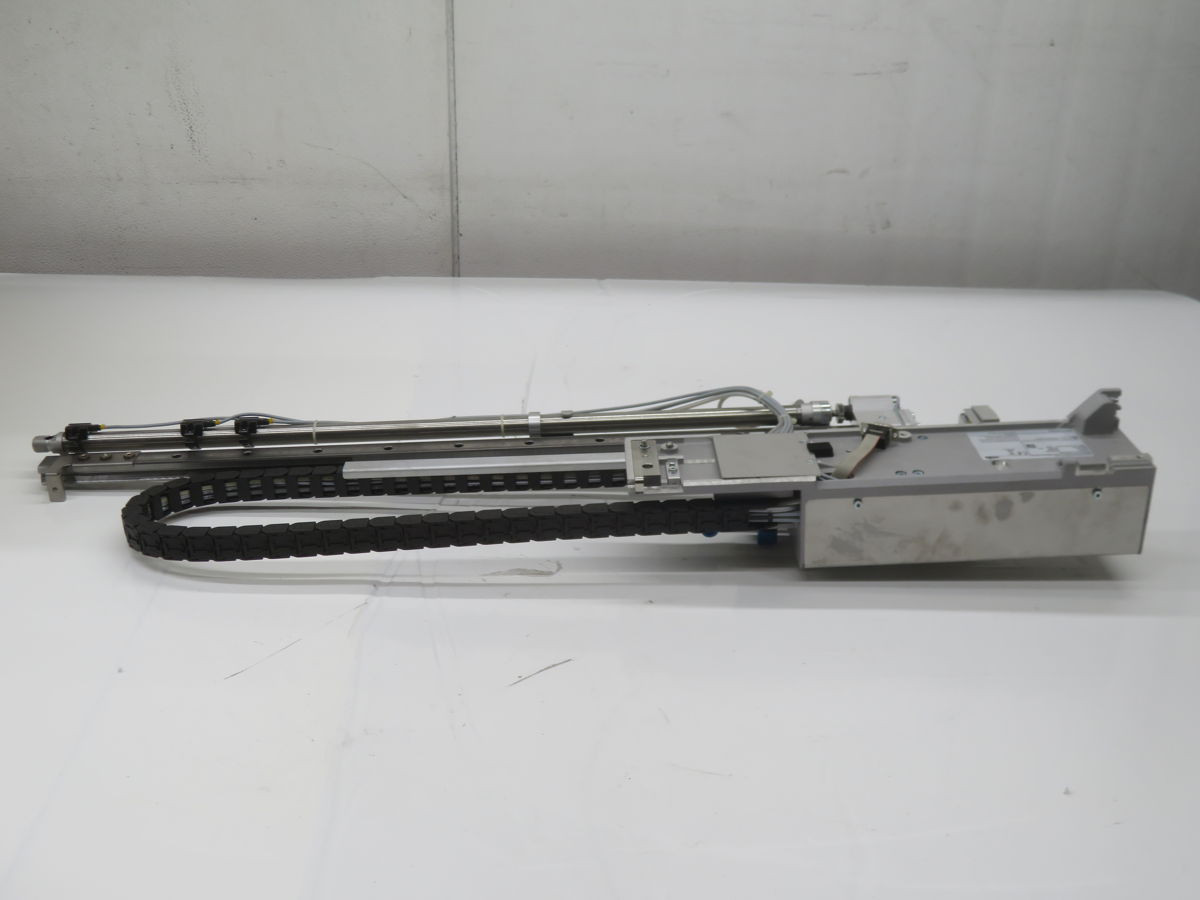

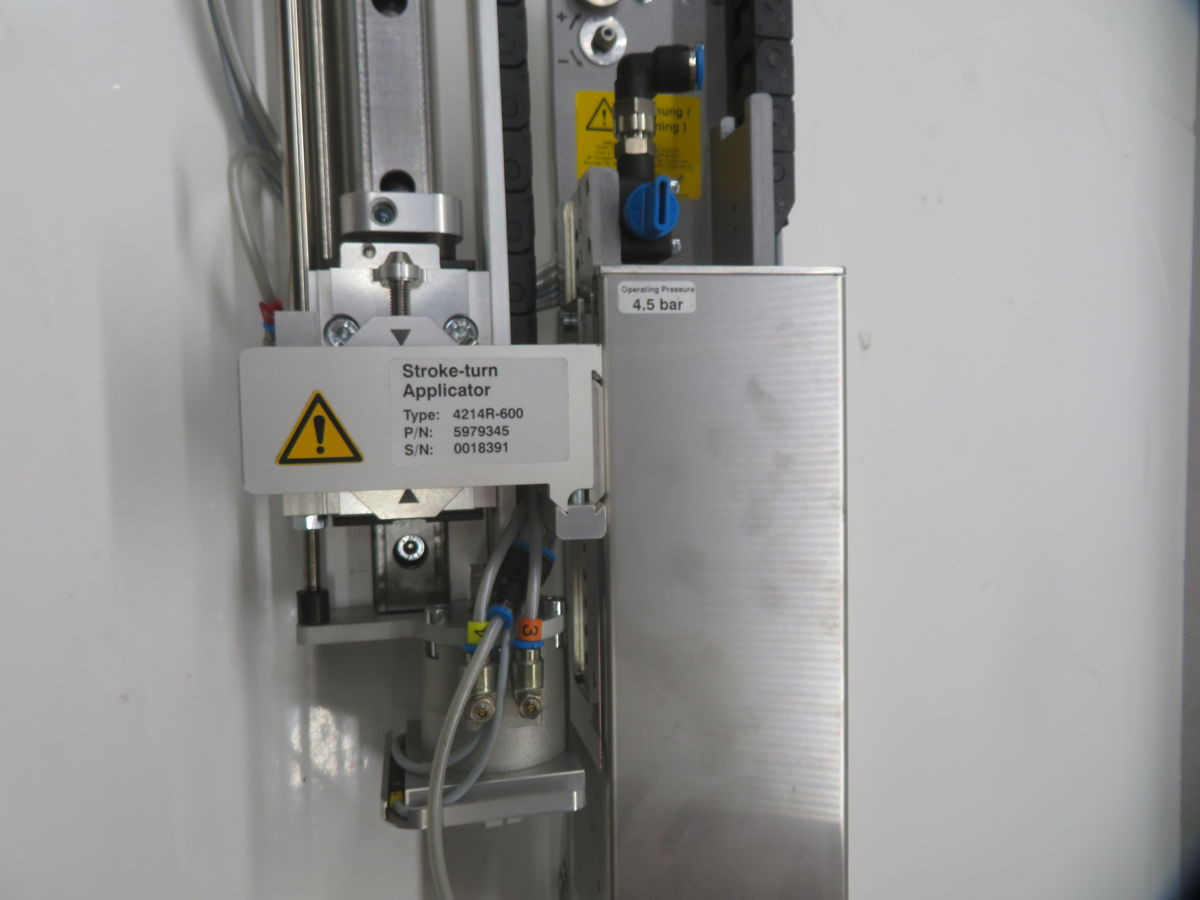

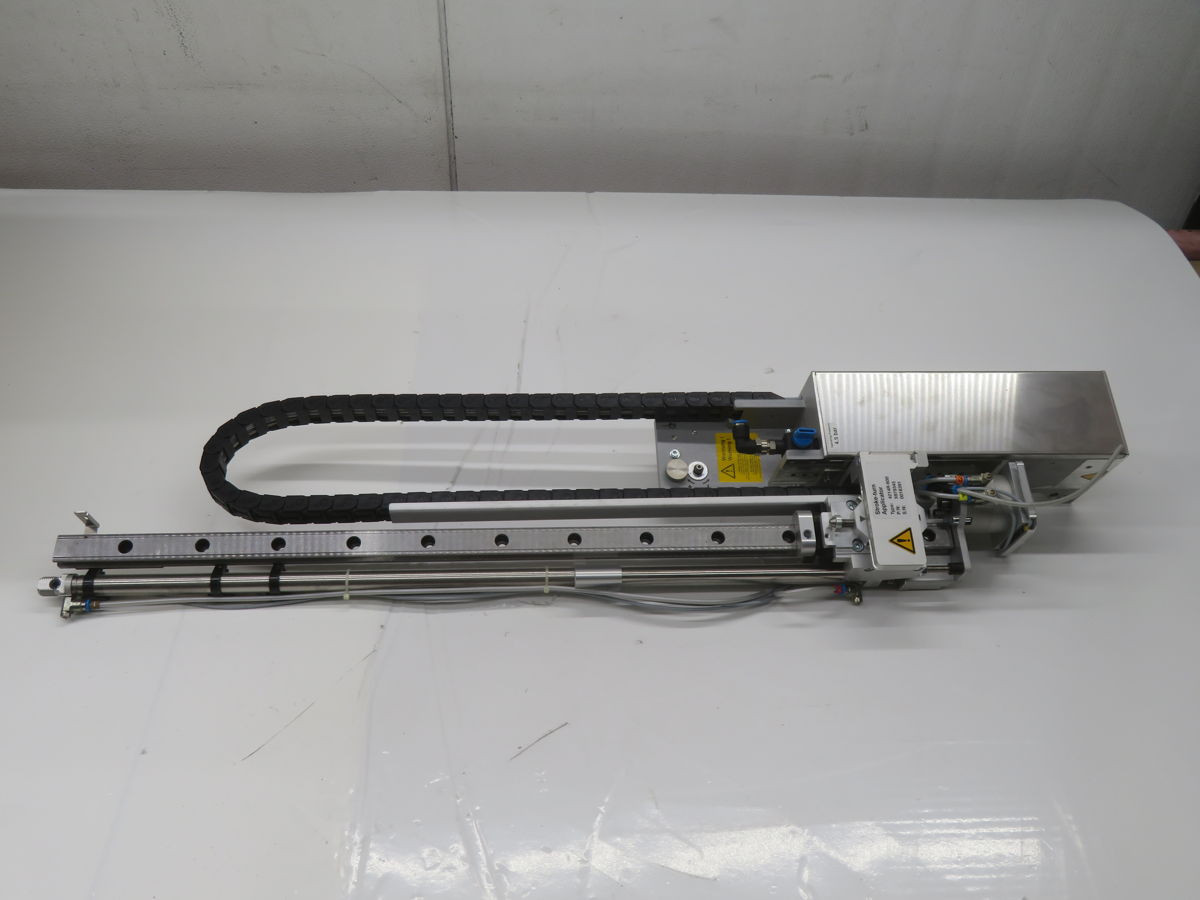

CAB 4214R-600 5979345 LINEAR PNEUMATIC ACTUATOR, 270 DEG ANGLE, 50.8 MM BORE, 5.1 NM TOR

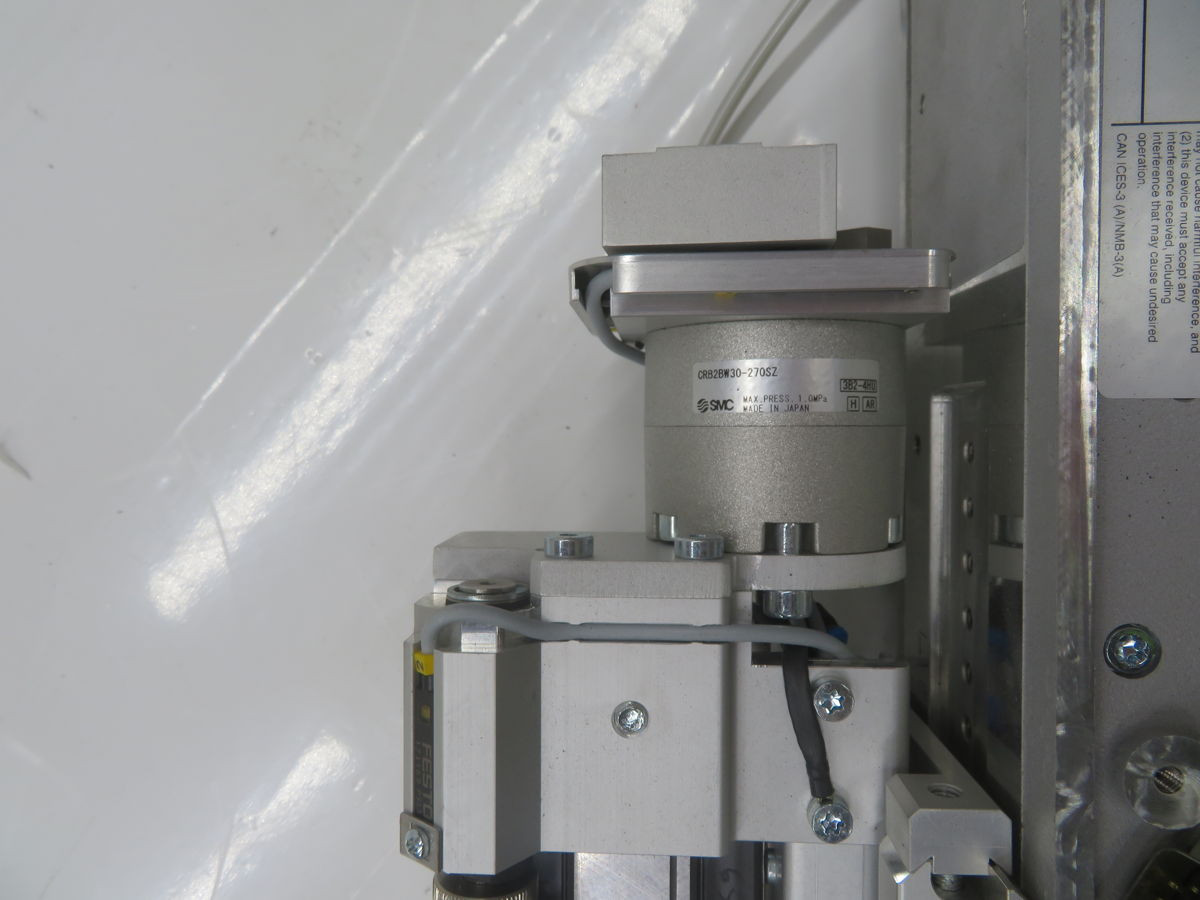

THIS CAB 4214R-600 5979345 IS A PNEUMATIC ROTARY VANE ACTUATOR, DESIGNED WITH A BASIC STYLE AND A SINGLE VANE CONFIGURATION. IT FEATURES A DOUBLE SHAFT AND SIDE-PORTED AIR CONNECTIONS, PROVIDING A 270-DEGREE ROTATIONAL ANGLE. DESIGNATED AS SIZE 30, THE ACTUATOR INCORPORATES A 2.00-INCH (50.8 MM) BORE DIAMETER. OPERATIONAL WITHIN A PNEUMATIC PRESSURE RANGE OF 20 TO 150 PSI (1.4 TO 10.3 BAR), IT GENERATES AN OUTPUT TORQUE OF 45 IN-LBS (5.1 NM) AT 100 PSI. AIR CONSUMPTION FOR A FULL 270-DEGREE CYCLE IS 3.55 CUBIC INCHES (58.2 CUBIC CENTIMETERS).
