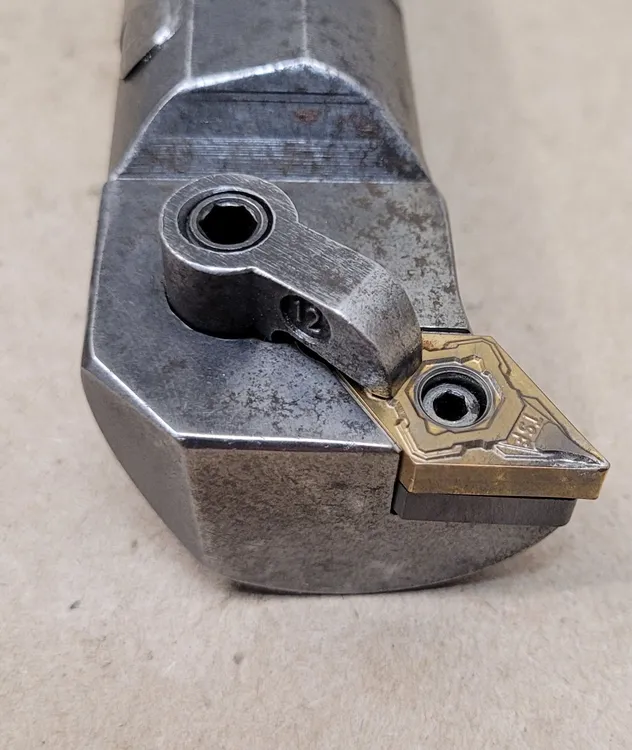

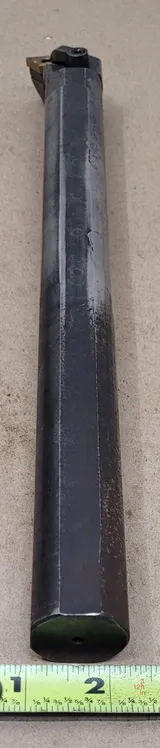

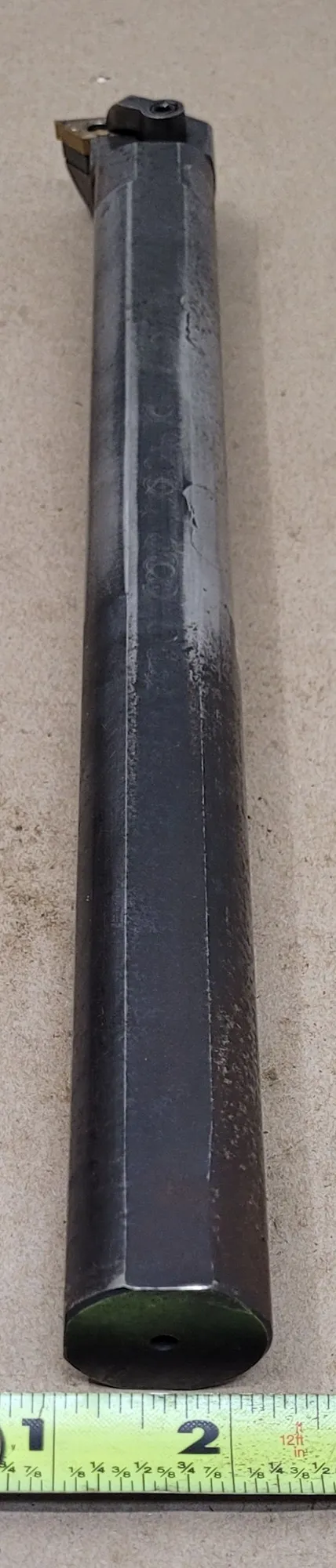

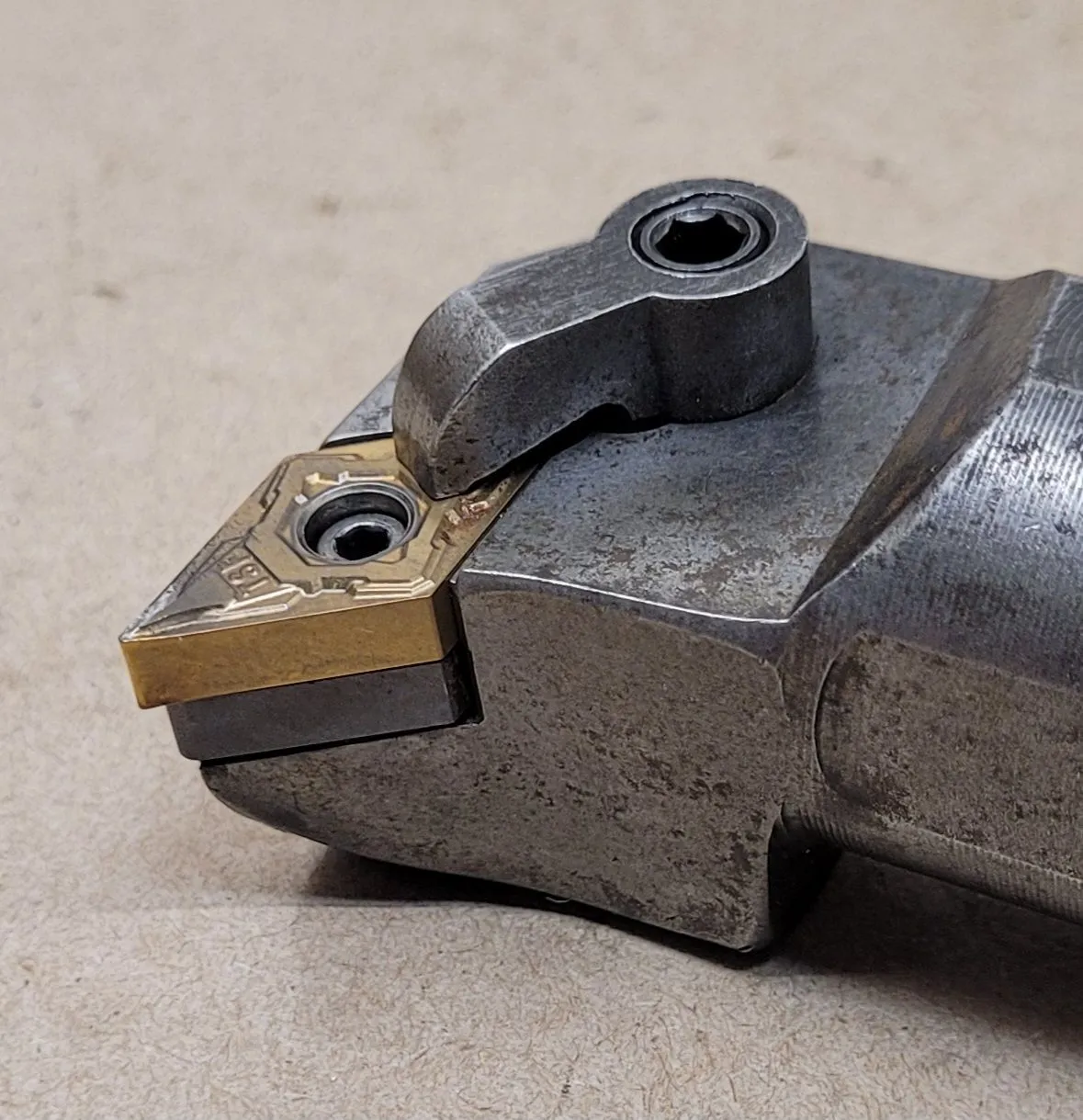

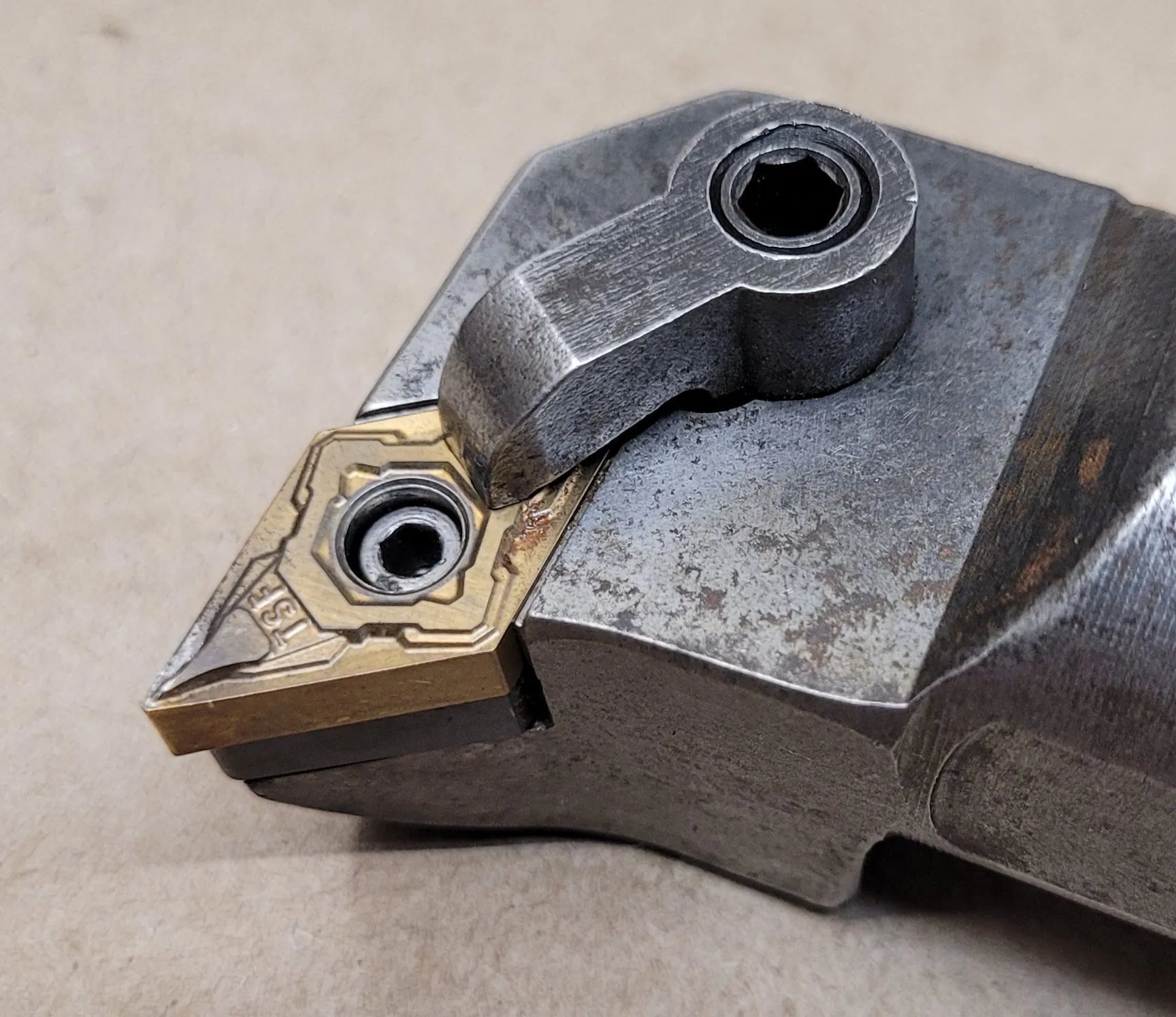

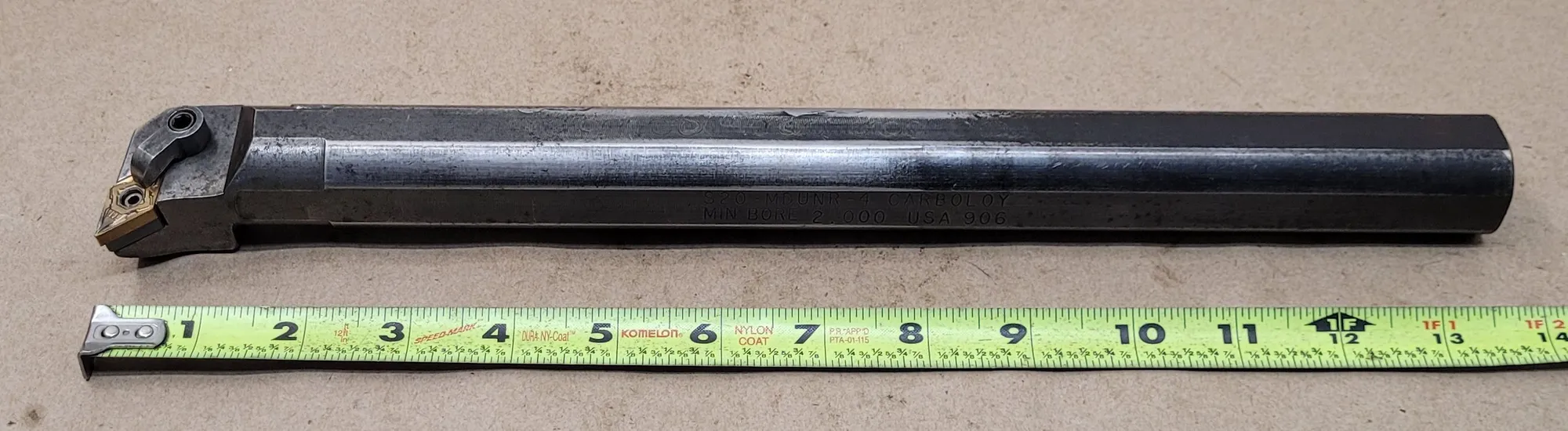

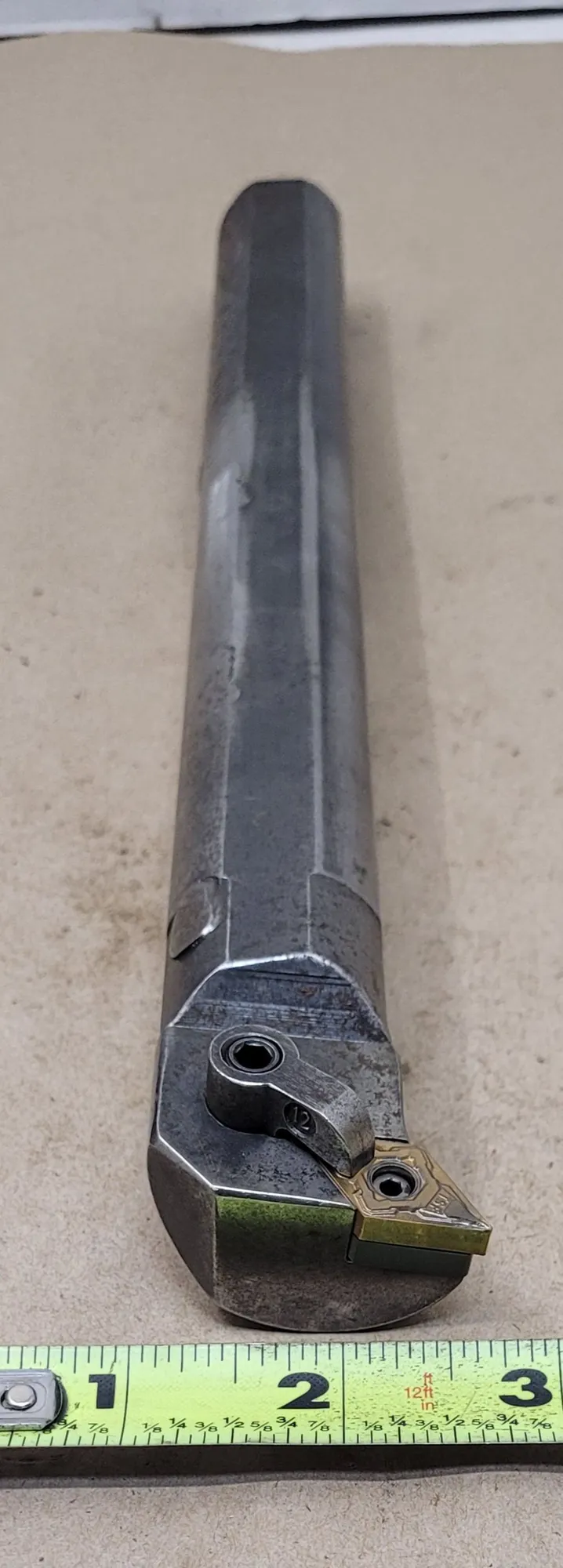

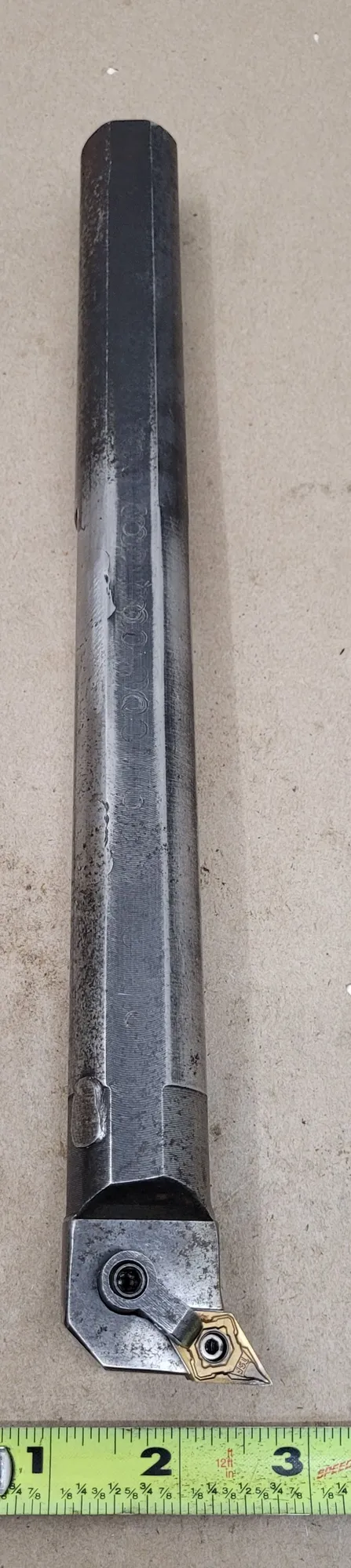

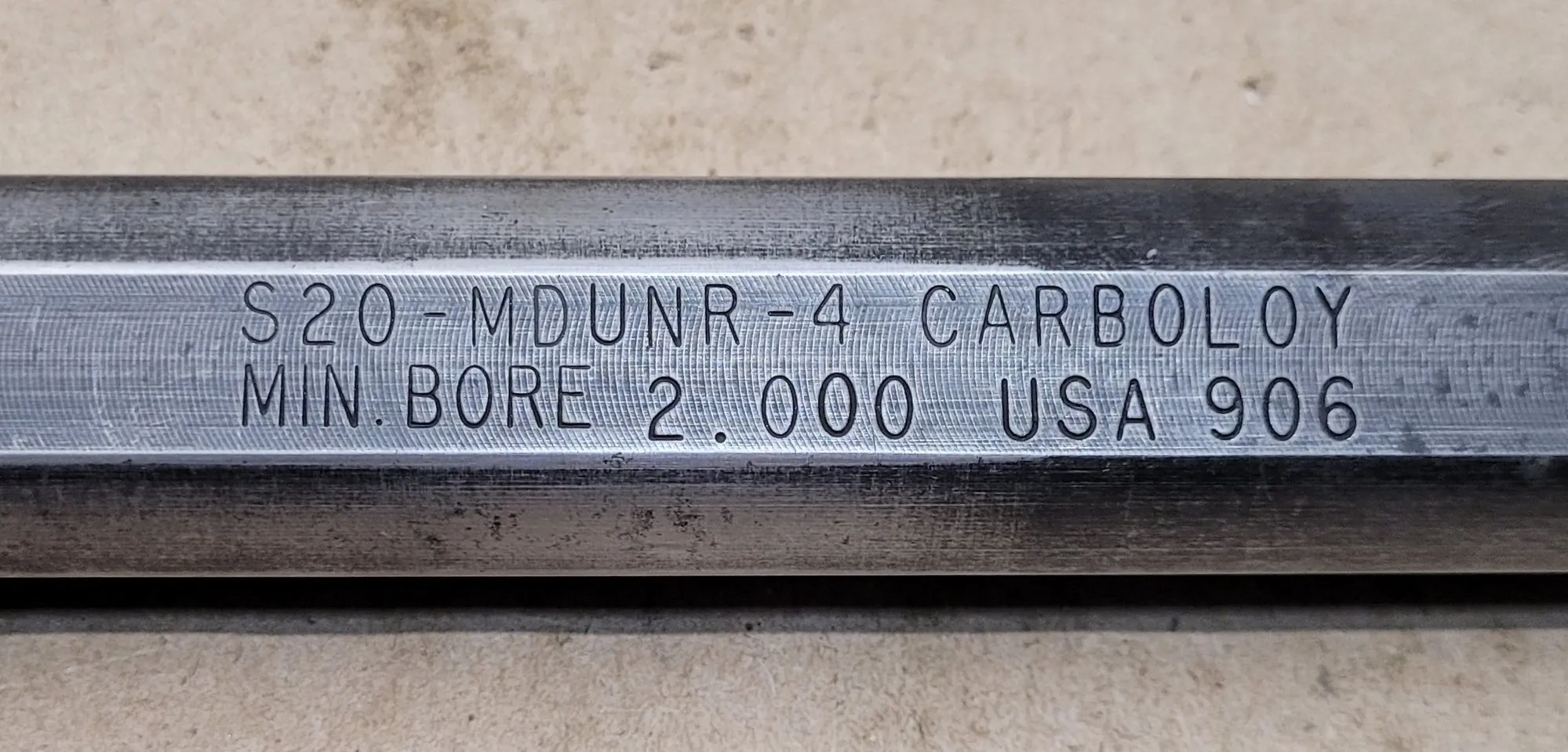

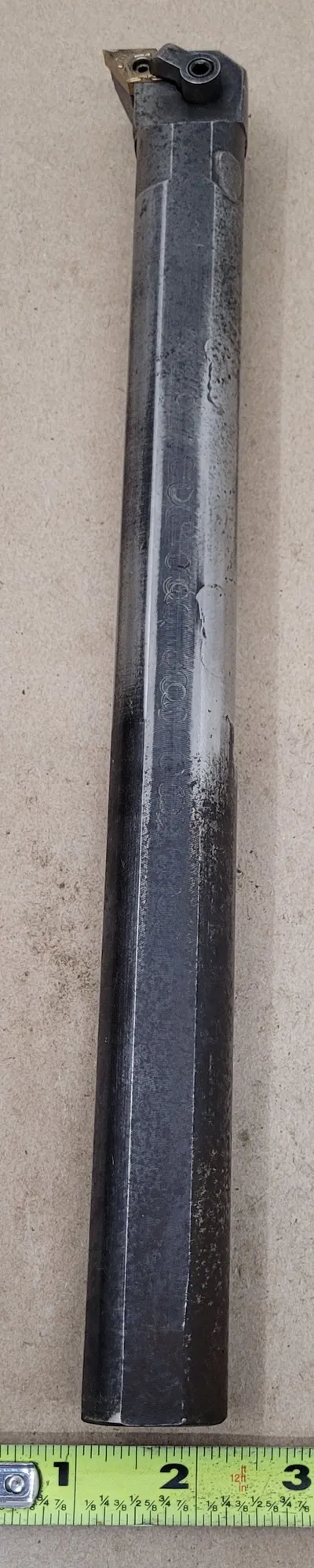

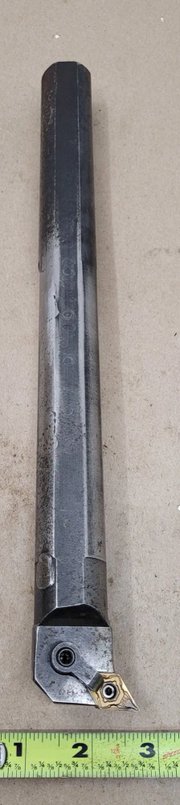

CARBOLOY S20-MDUNR-4 INDEXABLE BORING BAR, STEEL, 1.25IN SD, 14IN L, 2.0IN MIN BORE, -7 RAKE

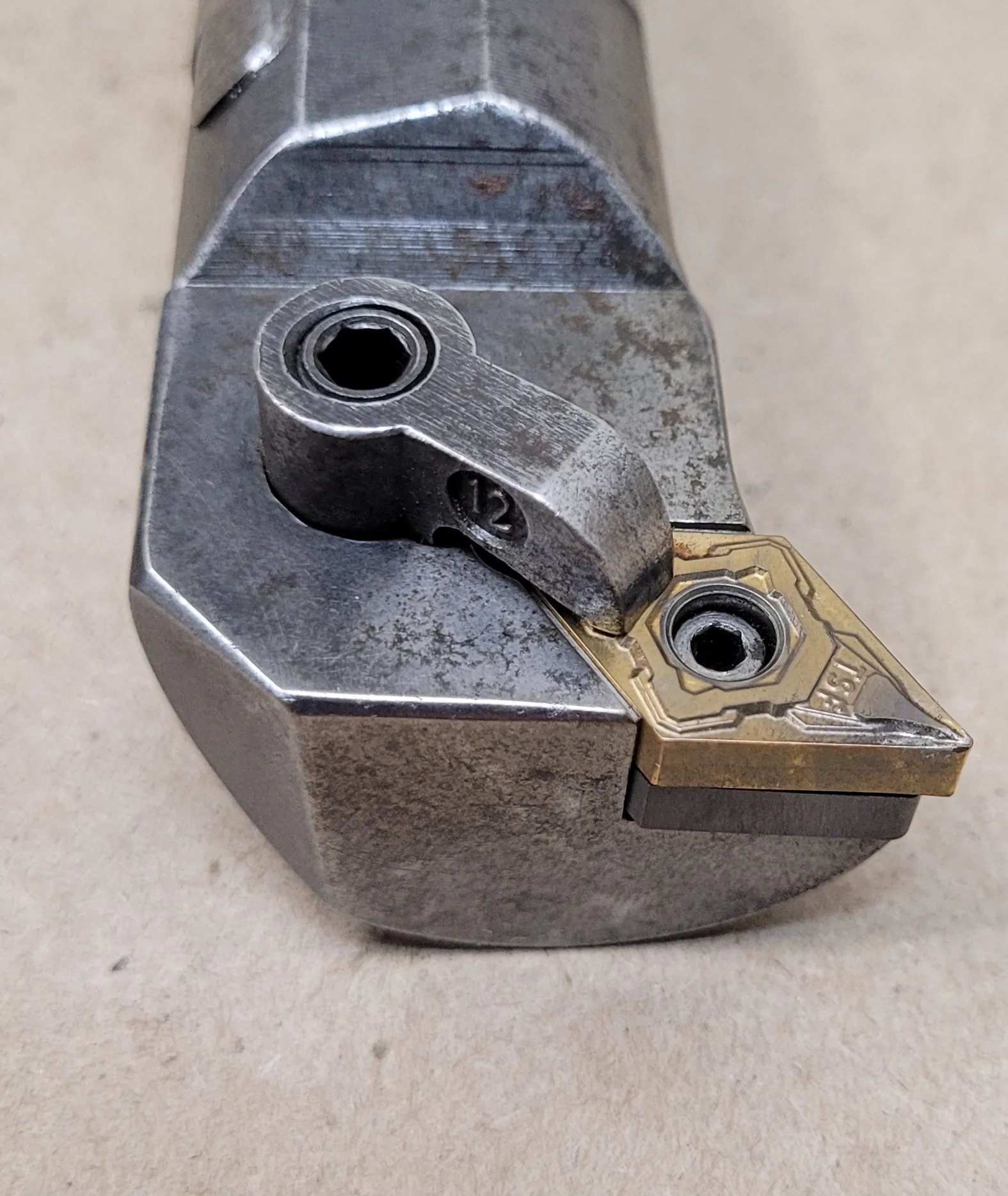

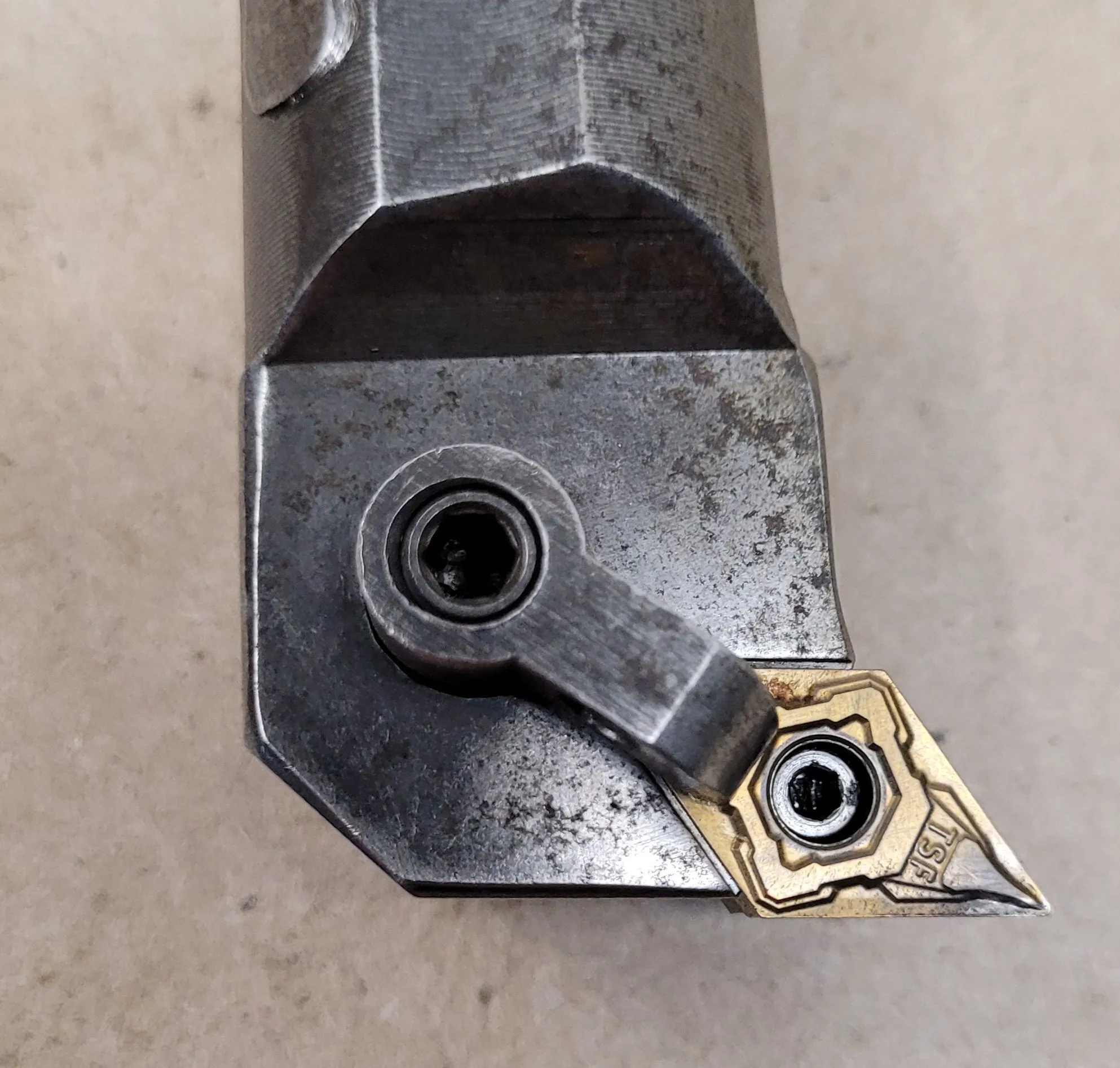

THIS CARBOLOY S20-MDUNR-4 IS AN INDEXABLE BORING BAR CRAFTED FROM STEEL AND DESIGNATED FOR BORING APPLICATIONS. THIS SPECIALIZED, NON-MULTI-USE TOOL FEATURES A RIGHT-HAND HOLDER WITH A 1-1/4 INCH SHANK DIAMETER AND AN OVERALL LENGTH OF 14 INCHES. IT IS DESIGNED TO HANDLE A MINIMUM BORE DIAMETER OF 2.0000 DECIMAL INCHES, MAINTAINING A CENTER-TO-CUTTING-EDGE DISTANCE OF 1.0000 DECIMAL INCHES. THE BAR UTILIZES A PIN & CLAMP SYSTEM TO SECURE COMPATIBLE DIAMOND-SHAPED INSERTS, IDENTIFIED BY THE SIZE CODE 432, WHICH POSSESS A 1/2 INCH (12.70 MM) INSCRIBED CIRCLE. THE GEOMETRY INCLUDES A NEGATIVE RAKE WITH A SPECIFIC RAKE ANGLE OF -7.00 AND A LEAD ANGLE OF 3. THE TOOL DOES NOT SUPPORT COOLANT-THROUGH CAPABILITY.
