Carver 3853 Bench Top Laboratory Hydraulic Press

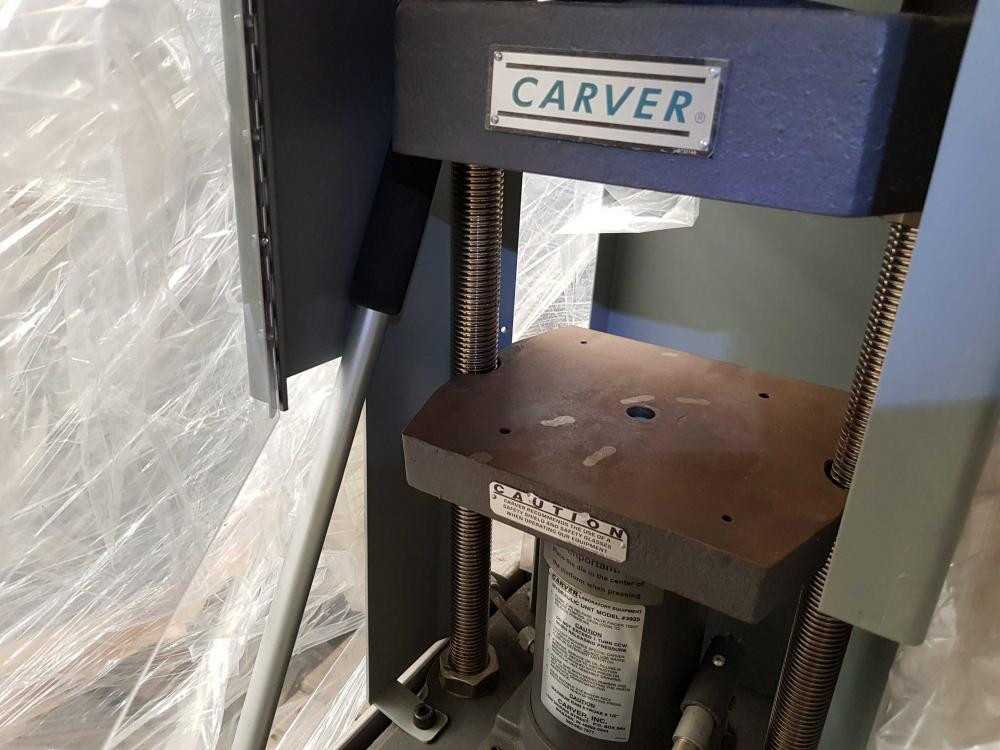

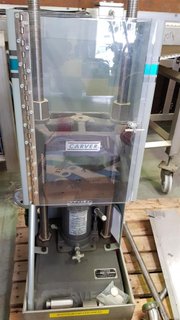

CARVER 3853 BENCH TOP LABORATORY HYDRAULIC PRESS (MODEL M) TWENTY-FIVE TON, MANUAL, TWO-COLUMN HYDRAULIC PRESS. DAYLIGHT OPENING IS ADJUSTABLE TO 16". RIGID CAST IRON AND STEEL CONSTRUCTION FOR PRECISION AND DURABILITY. EASY-TO-READ DUAL SCALE ANALOG GAUGE, READING IN POUNDS FORCE AND METRIC TONS. (PICTURE SHOWN WITH ANALOG GAUGE) SPECIFICATIONS OF THE BENCH TOP MANUALLY UNHEATED MODEL M 3853 PRESS: MANUALLY OPERATED CLAMPING FORCE 25 TONS DAYLIGHT OPENING 0.75" – 16" (FACTORY SET AT 6-1/2”) STROKE 6-1/2” TWO (2) FULLY THREADED COLUMNS 9” X 9” WORK AREA 0-50,000 LB ANALOG PRESSURE GAUGE, READING IN 500 LB INCREMENTS (DIGITAL GAUGE ALSO AVAILABLE) LIGHT GRAY SAFETY SHIELD DARK GRAY FRAME DIMENSIONS: 19”L-R X 24”F-B X 42”H (UNCRATED) WEIGHT: 350 POUNDS (UNCRATED)
