CCS 604TU3 TEMP SWITCH, SET POINT -17.8-65.6C, 93C MAX PROCESS, 34.5 BAR PROOF, SPDT 11A, NEMA 4/13

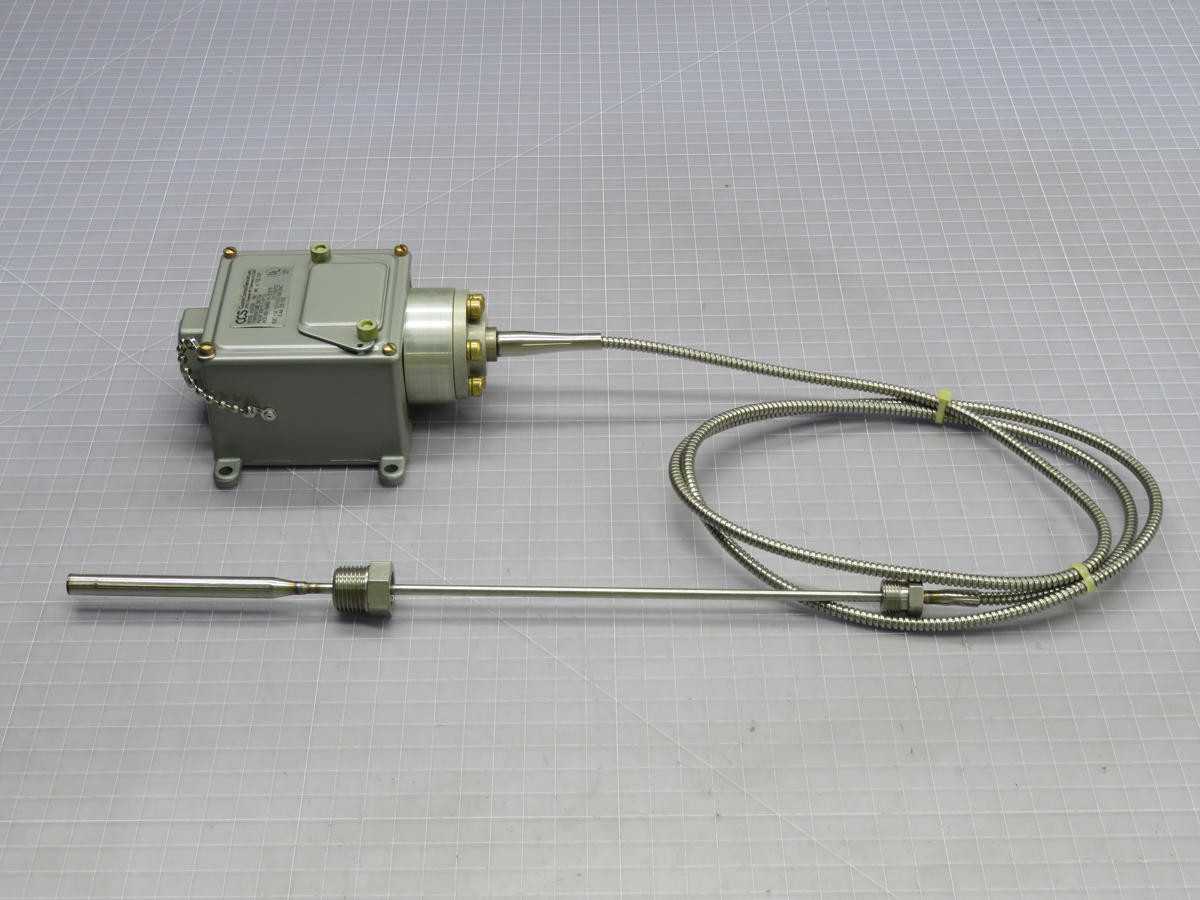

THE CCS 604TU3 IS AN INDUSTRIAL TEMPERATURE SWITCH DESIGNED FOR REMOTE SENSING APPLICATIONS. IT UTILIZES A 316 STAINLESS STEEL BULB AND CAPILLARY SYSTEM TO MEASURE TEMPERATURE. THIS MODEL FEATURES AN ADJUSTABLE SET POINT RANGE FROM -17.8 TO 65.6 °C (0 TO 150 °F) AND IS RATED FOR A MAXIMUM PROCESS TEMPERATURE OF 93 °C (200 °F) WITH A PROOF PRESSURE OF 34.5 BAR (500 PSI) FOR THE SENSING ELEMENT. THE ELECTRICAL OUTPUT IS A SINGLE POLE DOUBLE THROW (SPDT) SNAP-ACTION SWITCH, RATED FOR 11 AMPS AT 125/250 VAC AND 5 AMPS AT 30 VDC. ITS ROBUST ENCLOSURE, CONSTRUCTED FROM AN EPOXY POWDER-COATED ALUMINUM ALLOY, PROVIDES NEMA 4 AND 13 PROTECTION, ENSURING WEATHERPROOF AND OIL-TIGHT OPERATION. ELECTRICAL CONNECTIONS ARE MADE VIA A 1/2 INCH NPT FEMALE CONDUIT ENTRY.
