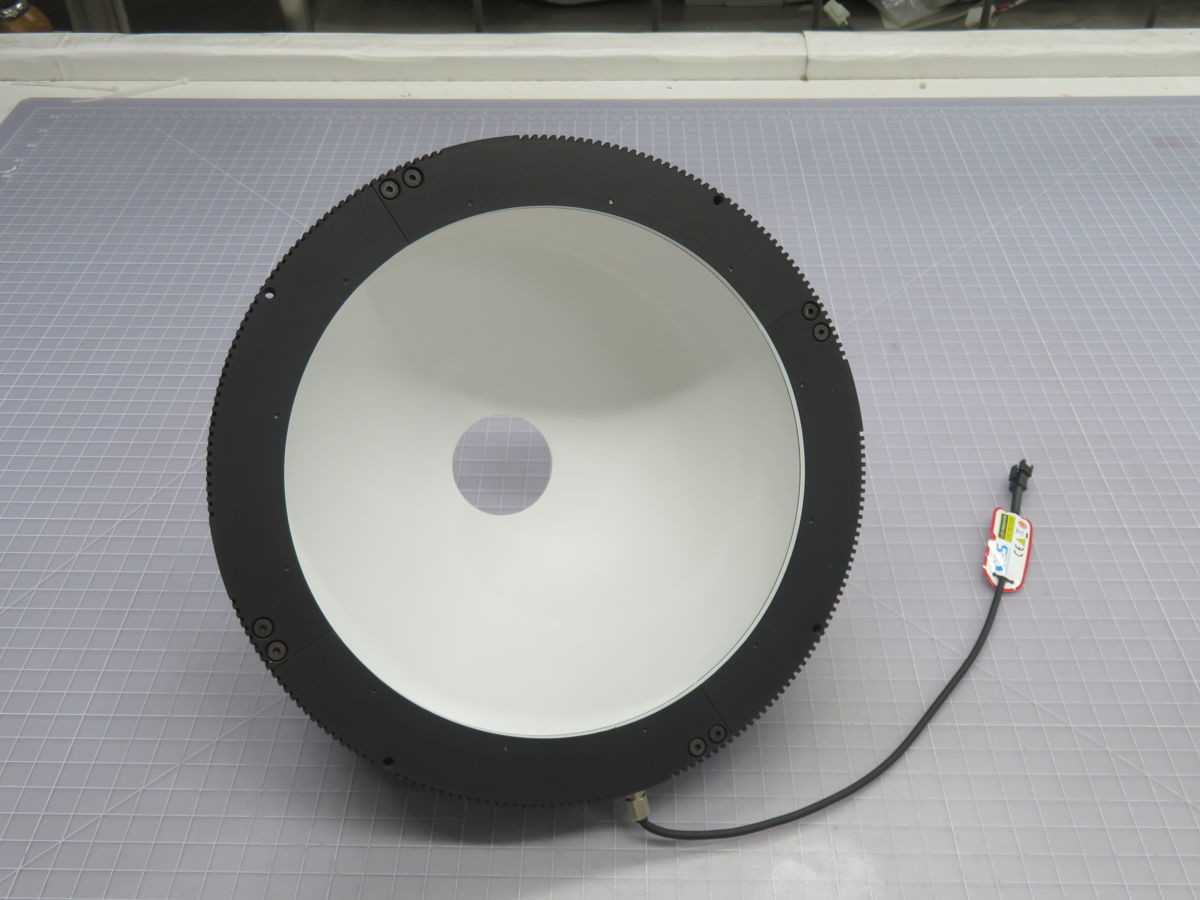

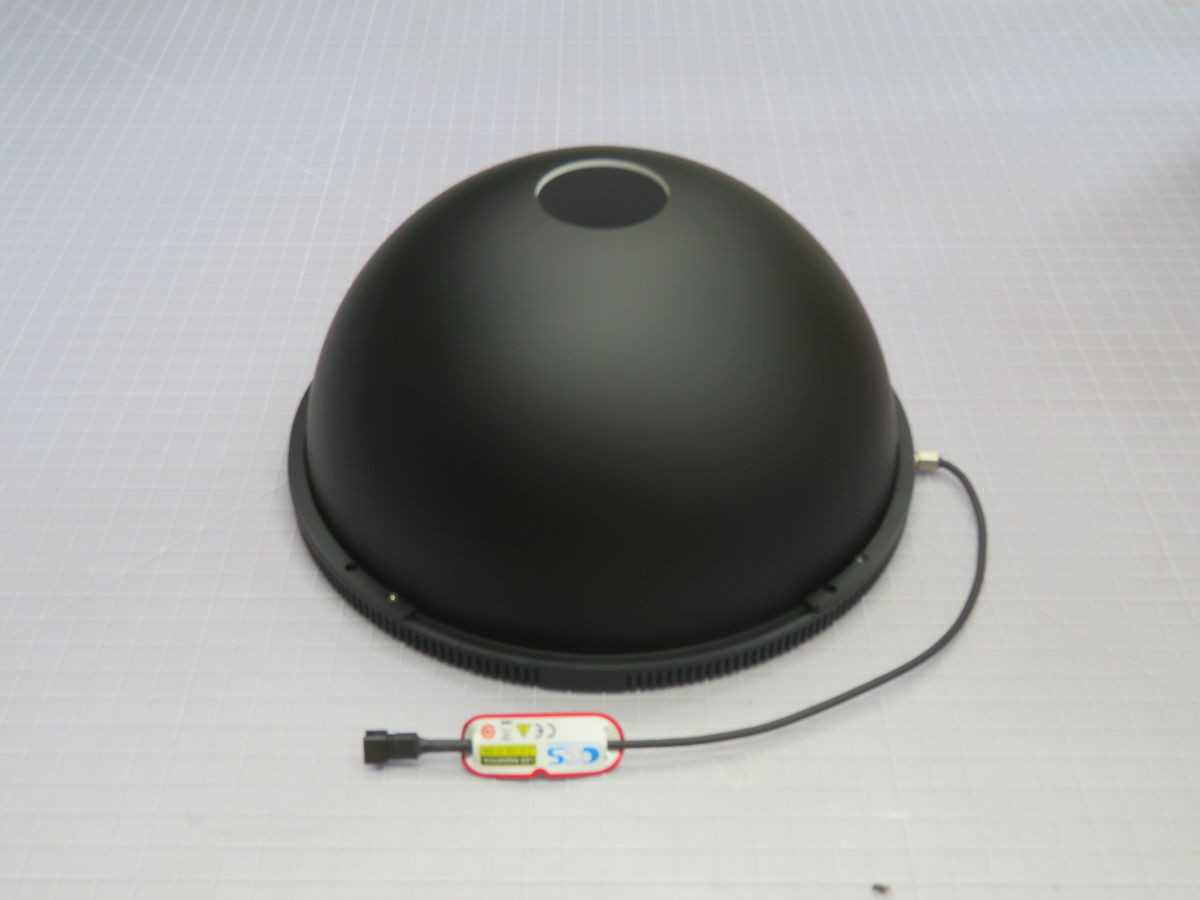

Ccs HPD2-250RD Red LED Dome Light, Wavelength 635 NM, OD 266 mm, Power 21.0 W

The Ccs HPD2-250RD is a high-power, red LED dome light operating at a peak wavelength of 635 NM. Engineered for machine vision applications, it delivers consistent, diffused illumination optimized for glossy, curved, or uneven surfaces. This model features a 266 mm outer diameter, a 210 mm inner diameter, and a height of 131.5 mm. Electrically, it operates at 24 VDC with a rated current of 0.88 A, resulting in a maximum power consumption of 21.0 W. The unit weighs approximately 2.8 kg and functions within an operating temperature range of 0 to 40 °C. It provides three times the brightness of previous models and connects via an M12 4-pin male connector.
