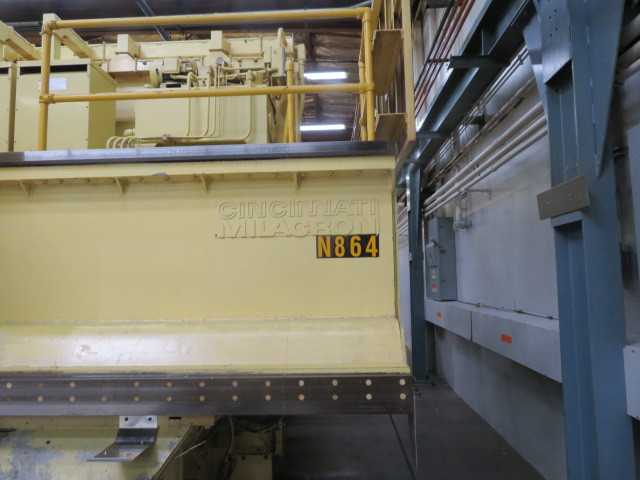

Cincinnati Milacron 5 Axis, 3-Spindle Gantry Mill

Cincinnati Milacron 5 Axis, 3-Spindle Gantry Mill, Specifications: X Axis Overall Bed Length. 720” Y Axis Travel.............164” Z Axis Travel.............28” A & B Axis................+/- 20 degrees Bed Mounting Width........160” Spindle Nose to Table.....5” min – 33” max Spindle Centers...........40” Feed Rates X Axis.........0.1 – 200 IPM Feed Rates Y Axis.........0.1 – 200 IPM Feed Rates Z Axis.........0.1 – 60 IPM Feed Rates A & B Axis.....0 – 240 DPM Spindle Taper.............#50 Spindle RPM: 3600 Equipped With: Fanuc Model 30i Model 5B CNC Control We suggest that you make an inspection as we do not guarantee any specifications, etc.… Please call 310-487-3800 or 310-864-7485 for inspection. Being that these are still secured facilities, please send your name and Driver’s License number to info@raargroupusa.com and we will obtain a visitors badge for you. Inspections are available by appointment Monday-Friday 8:00 to 3:00 PM.
