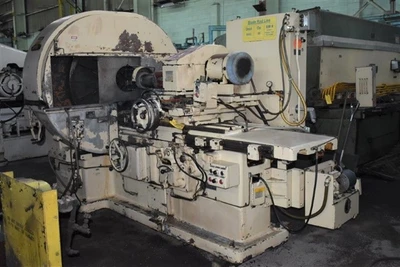

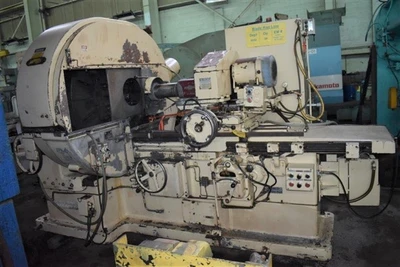

CINCINNATI-MILACRON/HEALD 174 ADJUSTABLE GAP INTERNAL GRINDER 42" SWING 7.5HP SPINDLE

THE #174 CINCINNATI-MILACRON/HEALD ADJUSTABLE GAP-TYPE "PLAIN" INTERNAL GRINDER, MODEL 174, FEATURES A 4500 RPM HEALD "RED HEAD" GRINDING WHEEL SPINDLE, HYDRAULICALLY OPERATED WHEEL GUARD, 42″ FACE PLATE, AND A TABLE-MOUNTED GRINDING WHEEL DRESSER. THE MACHINE IS FURTHER EQUIPPED WITH A BARNES COOLANT FILTRATION SYSTEM AND AN AUTOMATIC LUBRICATION SYSTEM. KEY SPECIFICATIONS INCLUDE A MAXIMUM SWING INSIDE THE COOLANT SPLASH GUARD OF 42″ AND A MAXIMUM HOLE GROUND DIAMETER OF 20″. IT HAS A MAXIMUM TABLE STROKE OF 22″ AND A GRINDING STROKE RANGE FROM A MINIMUM OF 5/8″ TO A MAXIMUM OF 13″. THE STANDARD GAP ADJUSTMENT RANGES FROM 11.5″ TO 20″. THE WORKHEAD SPINDLE HAS A 1.68″ DIAMETER HOLE-THRU AND A 12″ FLANGE, WITH SPEEDS RANGING FROM 41 TO 123 RPM. GRINDING TABLE SPEEDS ARE INFINITELY VARIABLE FROM 0 TO 18 FPM. POWER IS SUPPLIED BY A 7.5 HP/7500 RPM WHEELHEAD SPINDLE MOTOR AND A 5 HP/1150 RPM WORKHEAD CHUCK MOTOR, OPERATING ON A 220-440/3/60 ELECTRICAL SYSTEM. APPROXIMATE WEIGHT IS 17,000 LBS.
