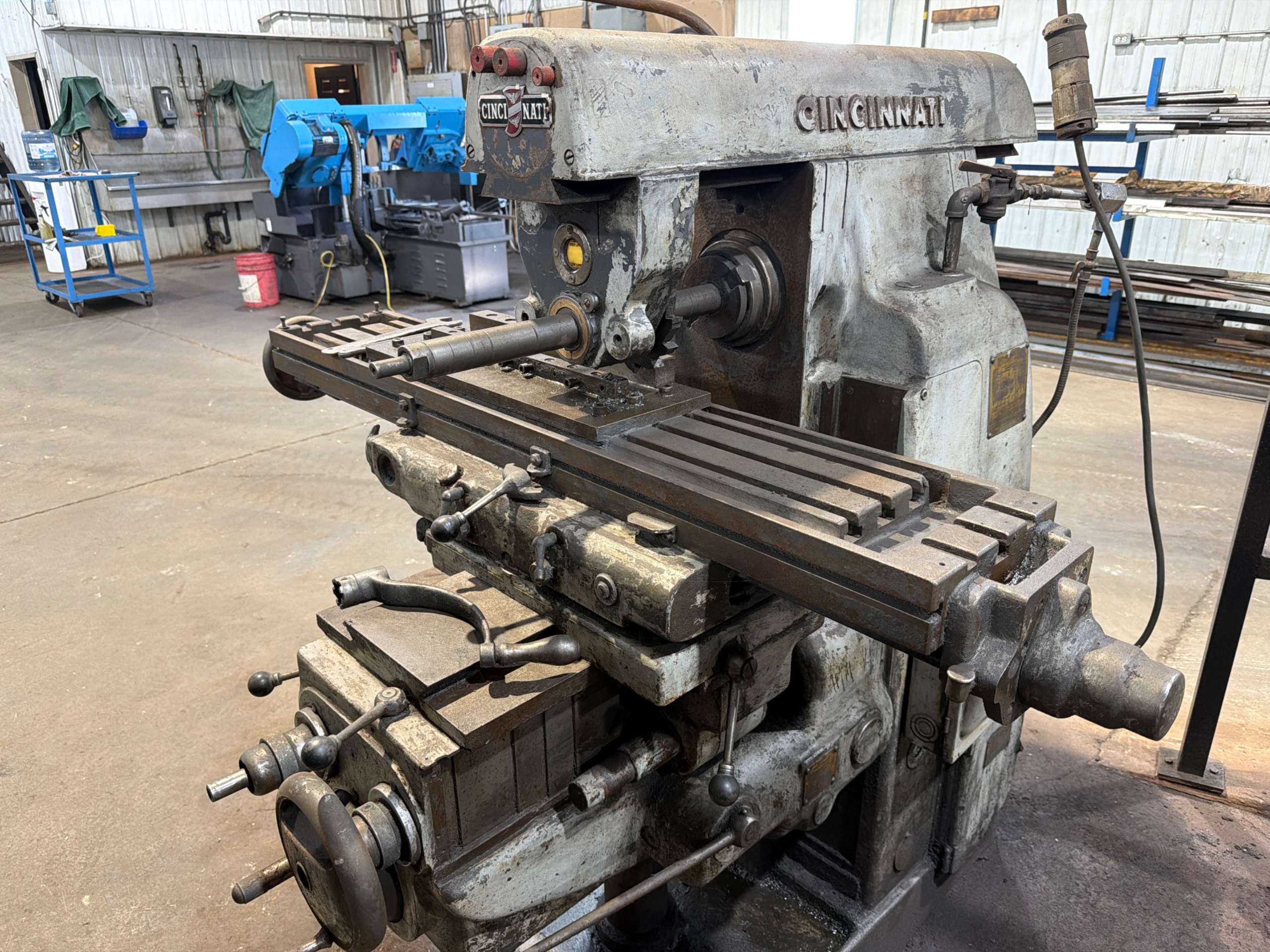

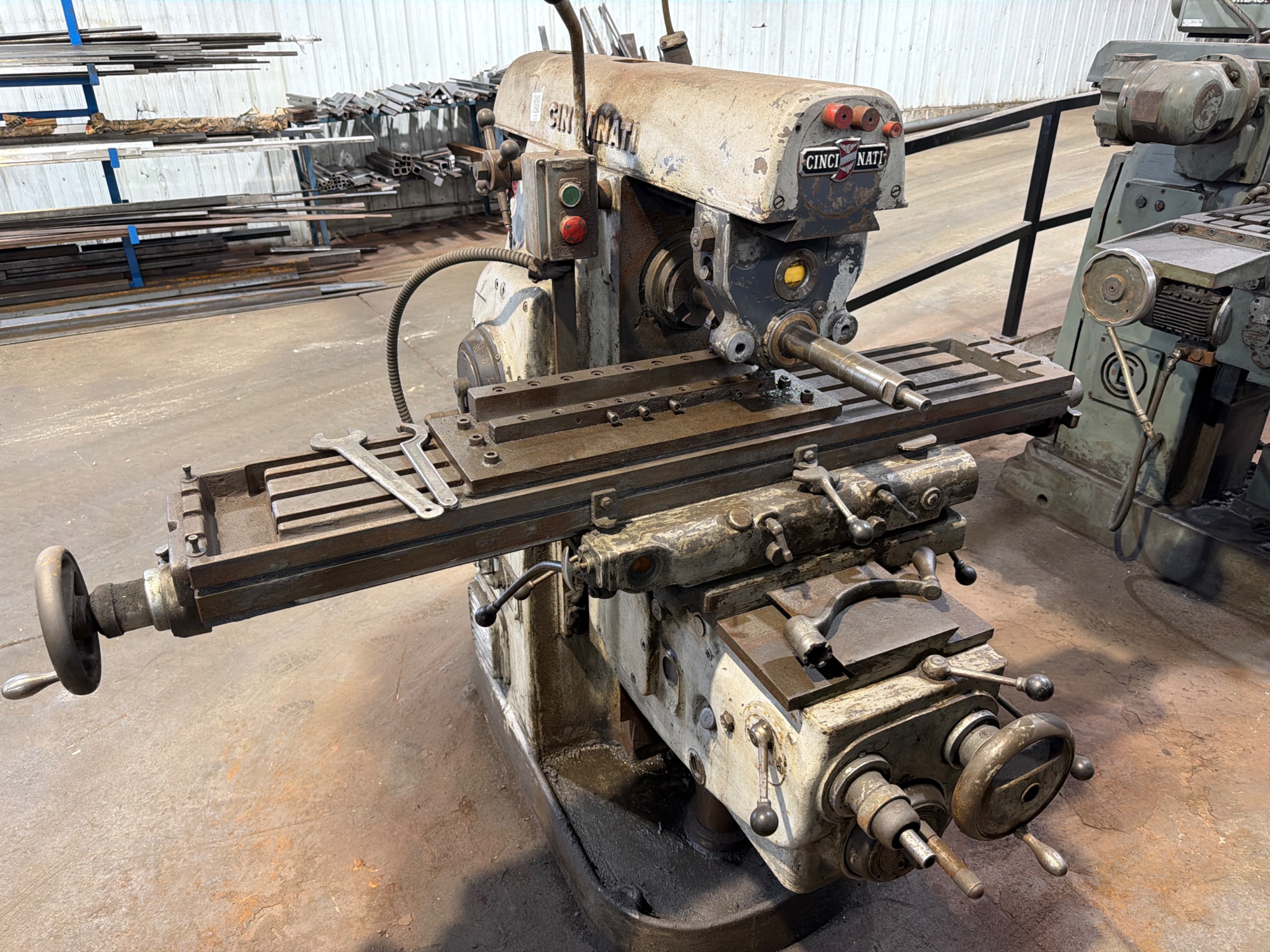

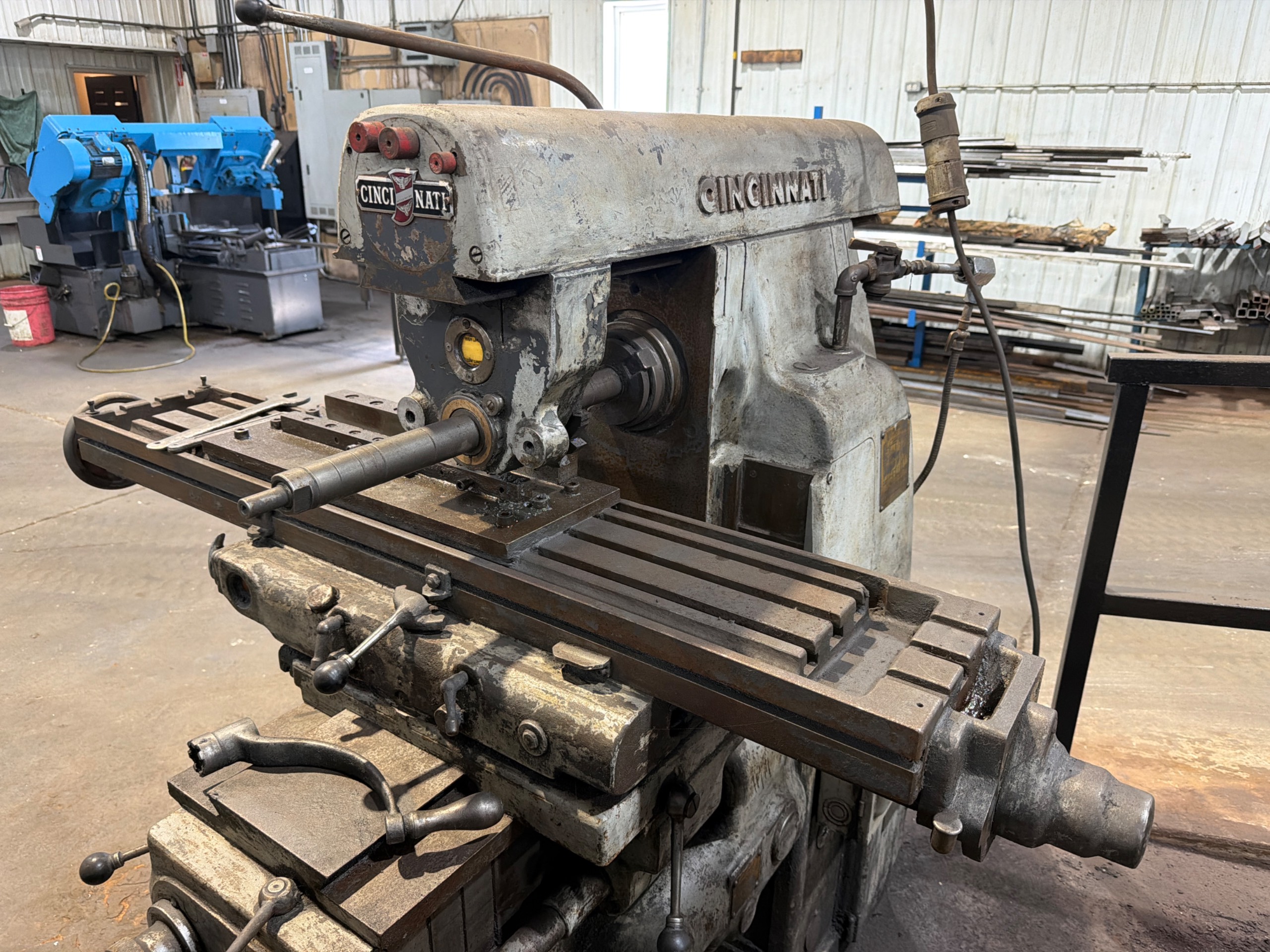

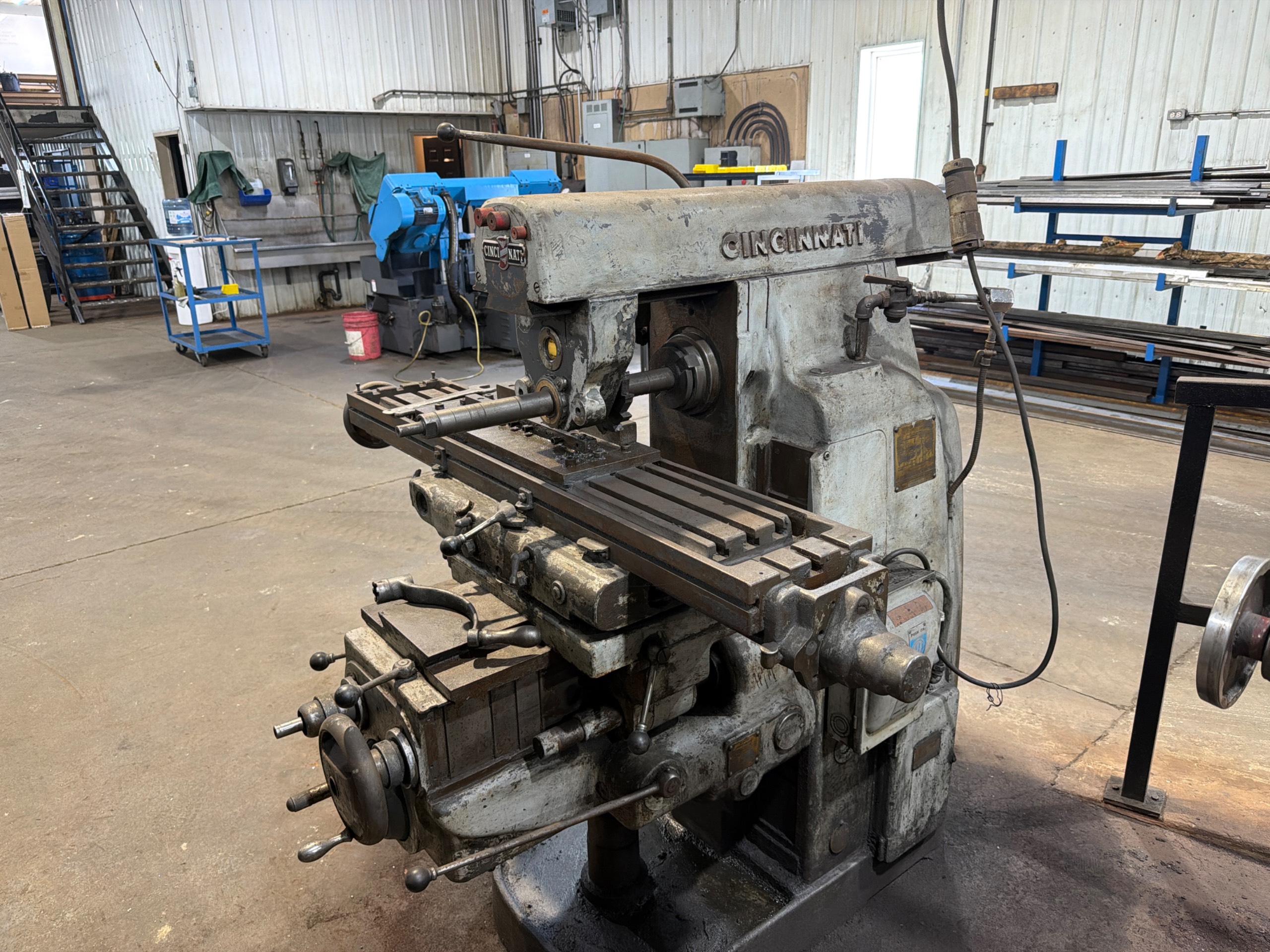

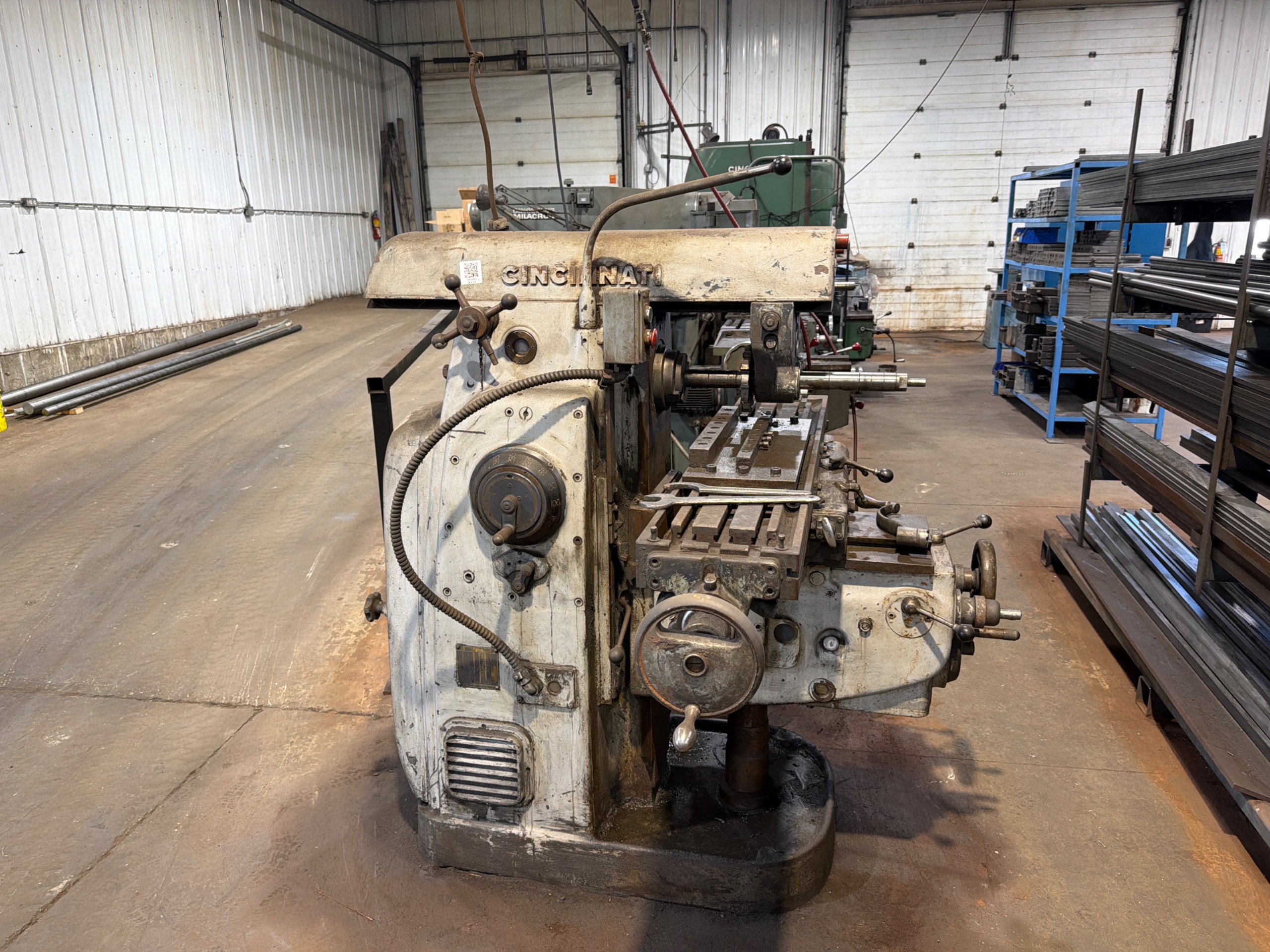

CINCINNATI NO. 2ML HORIZONTAL MILLING MACHINE, 54" X 9" TABLE, POWER FEED

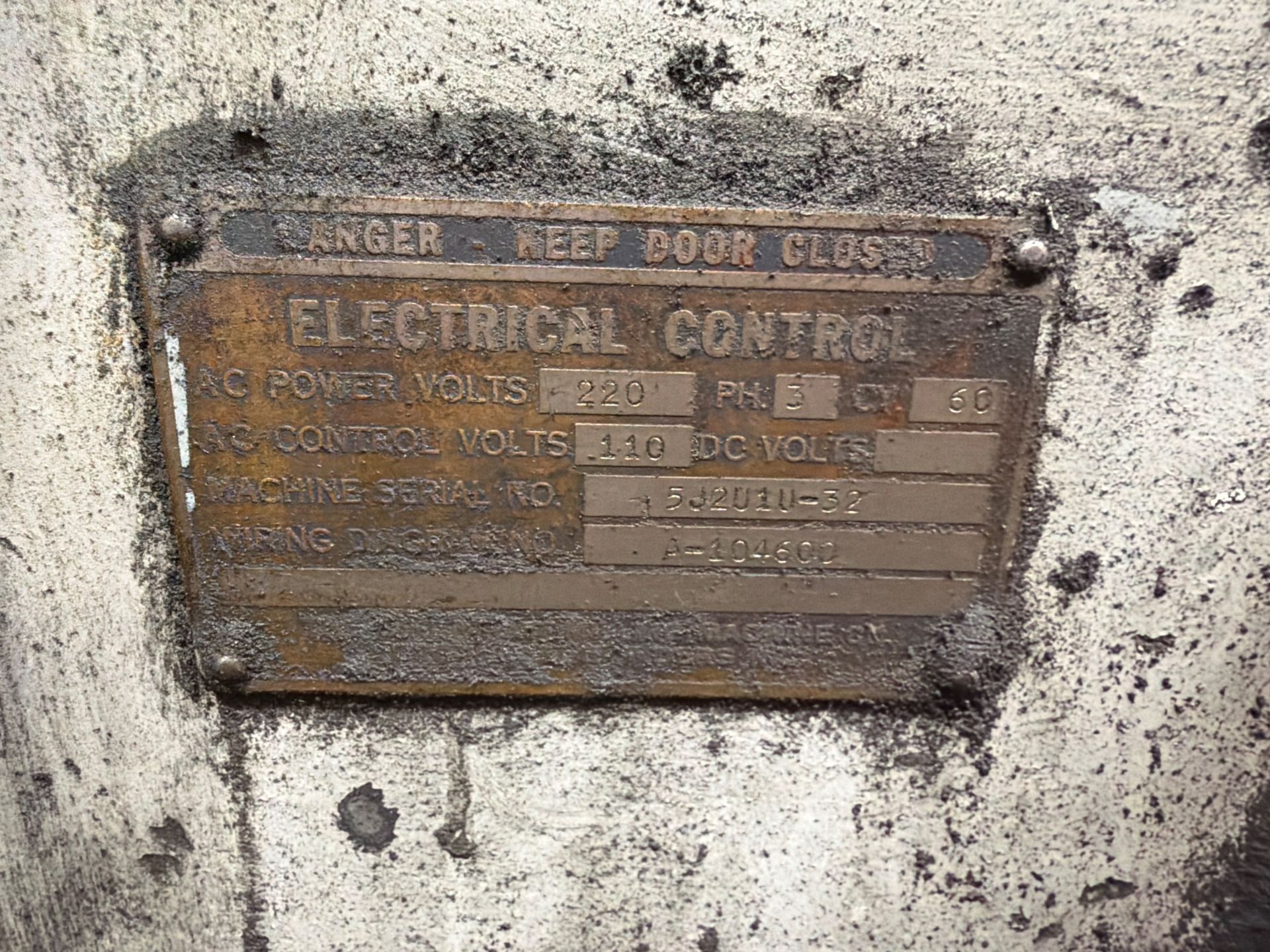

THE CINCINNATI NO. 2ML IS A KNEE-TYPE HORIZONTAL MILLING MACHINE. THE UNIT IS EQUIPPED WITH A 54" X 9" WORK TABLE WITH T-SLOTS FOR WORKHOLDING. THE MACHINE PROVIDES LONGITUDINAL, CROSS, AND VERTICAL AXIS TRAVEL FOR MILLING OPERATIONS. THE SPINDLE IS CONFIGURED WITH A #50 TAPER AND OPERATES ACROSS A MULTI-SPEED RANGE UP TO APPROXIMATELY 1500 RPM THROUGH A GEARED TRANSMISSION. THE UNIT IS EQUIPPED WITH POWER FEED FUNCTIONALITY AND RAPID TRAVERSE CAPABILITY. ELECTRICAL CONFIGURATION IS RATED AT 220 V, 3-PHASE, 60 HZ, WITH A CONTROL VOLTAGE OF 110 VDC, AS INDICATED ON THE ELECTRICAL NAMEPLATE.
