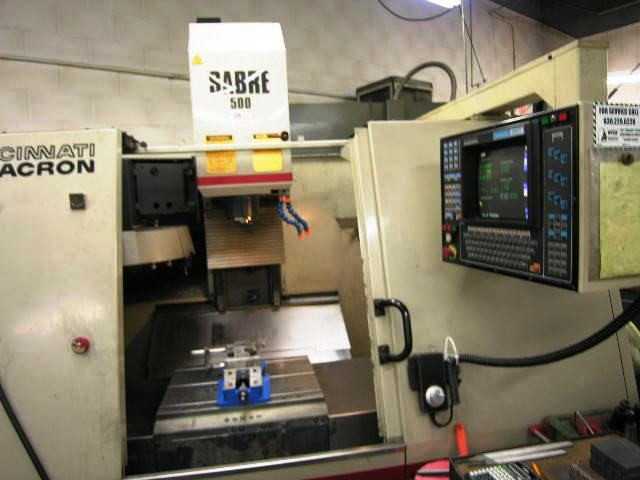

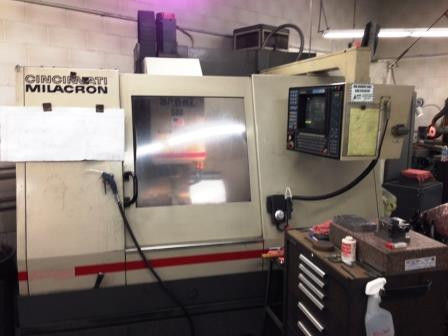

Name | Cincinnati Sabre 500 VMC |
---|---|
Aucto ID | 13 |
Manufacturer | Cincinnati Milacron |
Model | Sabre 500 |

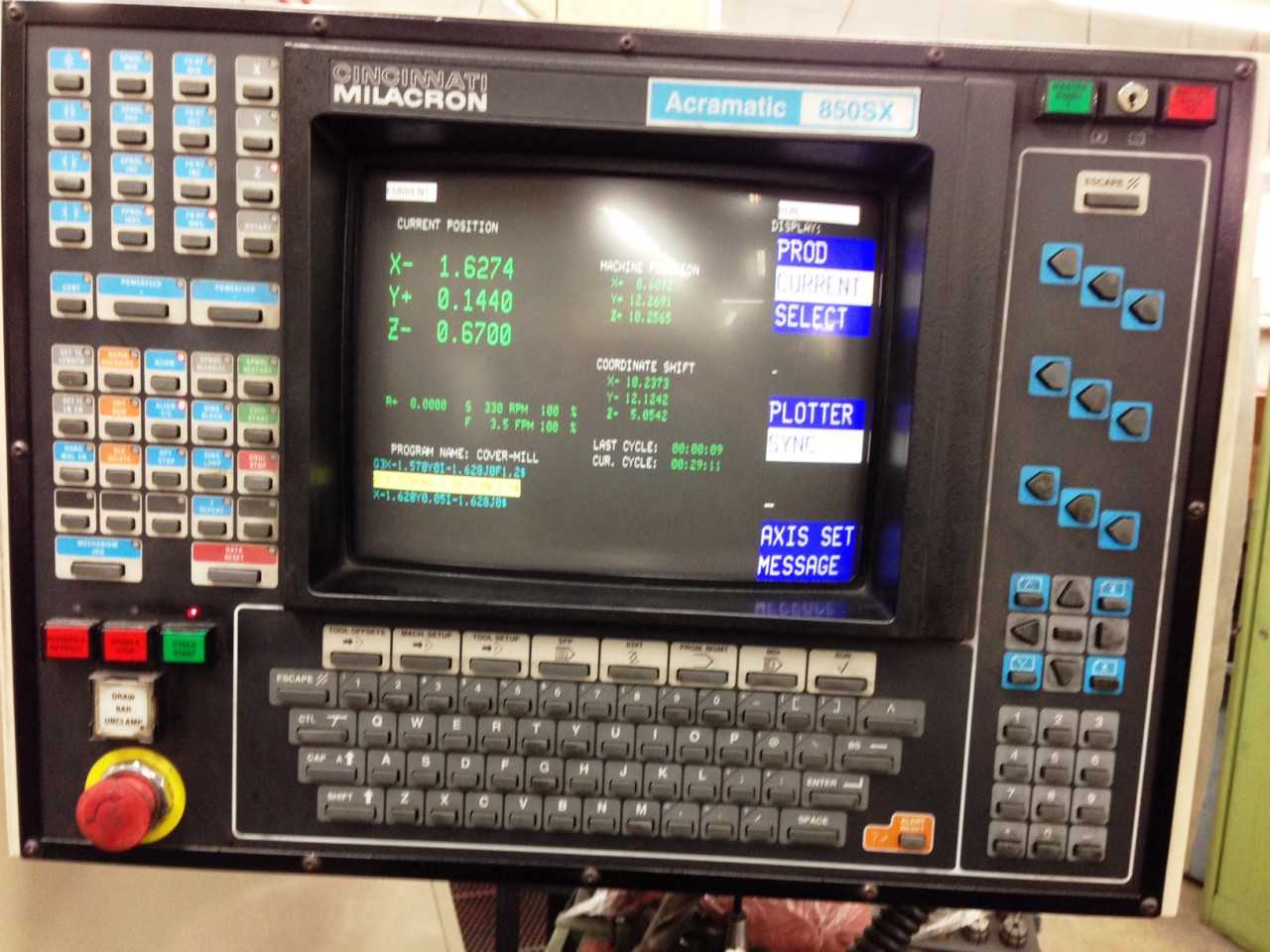

Additional Info | ONE USED CINCINNATI MILACRON VMC Model: Sabre 500 Table Working Surface................................. 25.6" x 20" Table Load Capacity................................... 770 LBS Longitudinal Travel (X-Axis).......................... 20" Cross Travel (Y-Axis)................................. 20" Vertical Travel (Z-Axis).............................. 22" Feed Rates (X & Y-Axis)............................... .1 - 787 IPM Feed Rates (Z-Axis)................................... .1 - 708 IPM Rapid Traverse Rate (X & Y-Axis)...................... 787 Rapid Traverse Rate (Z-Axis).......................... 708 Tool Storage Capacity................................. 24 + 1 Spindle Horsepower.................................... 15 HP Spindle Speed Range................................... 60-8000 RPM Spindle Taper......................................... Cat 40 Approximate Machine Dimensions........................ 103" x 98" Approximate Machine Height............................ 103” for shipping Approximate Machine Weight............................ 8,900 LBS EQUIPPED WITH: Cincinnati Acramatic 850SX CNC Conversational control, w/Color CRT. Canned cycles, Rigid/Solid Tapping, AC, Tool Life management, RS232 Data Line, Fanuc Compatibility, 24 Station Automatic Tool Changer, Full Coolant Enclosure, Coolant System Retention studs included SN:7040-A00-93-0248 Condition: very good, Video link - https://youtu.be/fT4z8PC7gL8 |
