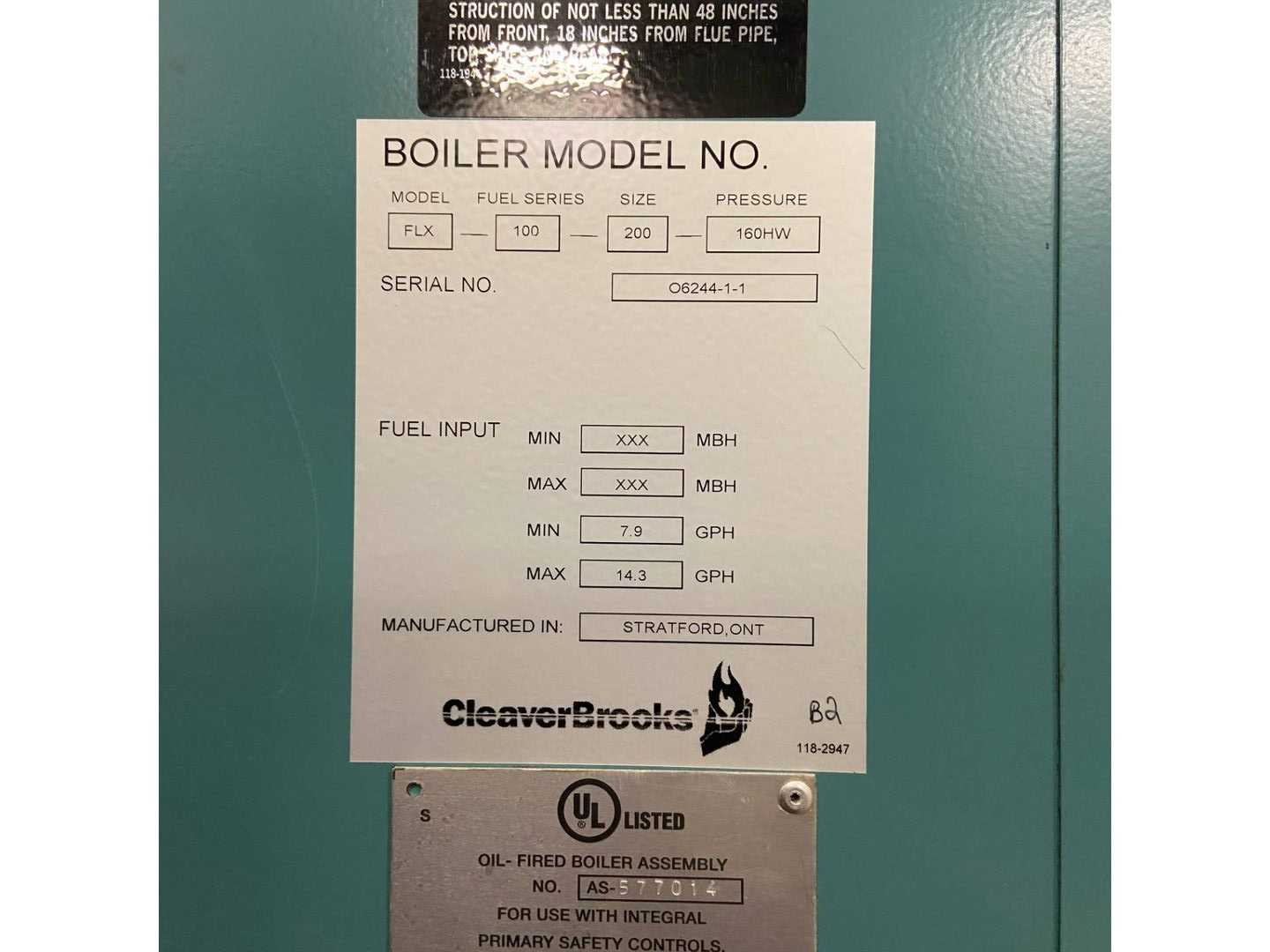

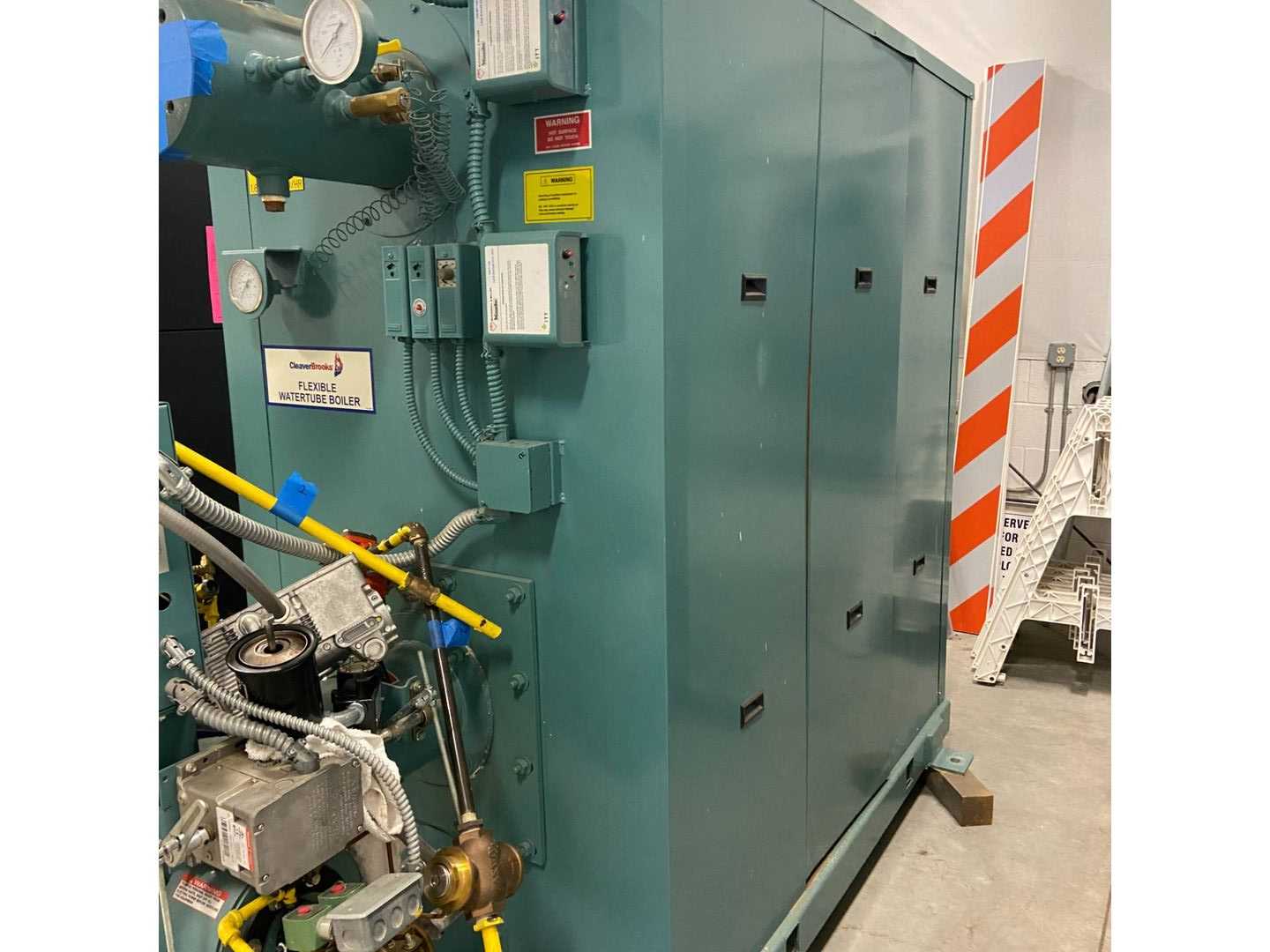

CLEAVER BROOKS FLX-100-200-160HZ BOILER

FUEL & PRESSURE INFORMATION FUEL TYPE: ASTM D396 NO. 2 HEATING VALUE: 140,000 BTU/GAL. MAX OVERFIRE DRAFT: 0.9 IN. WC LIQUID (GPH): MAX: 14.3 GPH MIN: 7.9 GPH PRESSURE (PSI): MAX: 300 PSI MIN: 80 PSI MAIN ELECTRICAL LOAD VOLTAGE: 460 V PHASE: 3 FREQUENCY: 60 HZ AMPS: 3.7 A FUSE: 2.5 A CONTROL CIRCUIT KVA: ½ KVA PRIMARY VOLTAGE: 460 V SECONDARY VOLTAGE: 115 V FREQUENCY: 60 HZ AMPS: 1.0 A (PRIMARY), 4.2 A (SECONDARY) FUSES: 2.5 A (PRIMARY), 6.0 A (SECONDARY) FAN MOTOR HORSEPOWER: 1 HP VOLTAGE: 460 V PHASE: 3 FREQUENCY: 60 HZ AMPS: 1.8 A FUSE: 5.0 A SHORT CIRCUIT RATING SHORT CIRCUIT AMPERES: 5000 A RMS (SYMMETRICAL @ 600V MAX)
