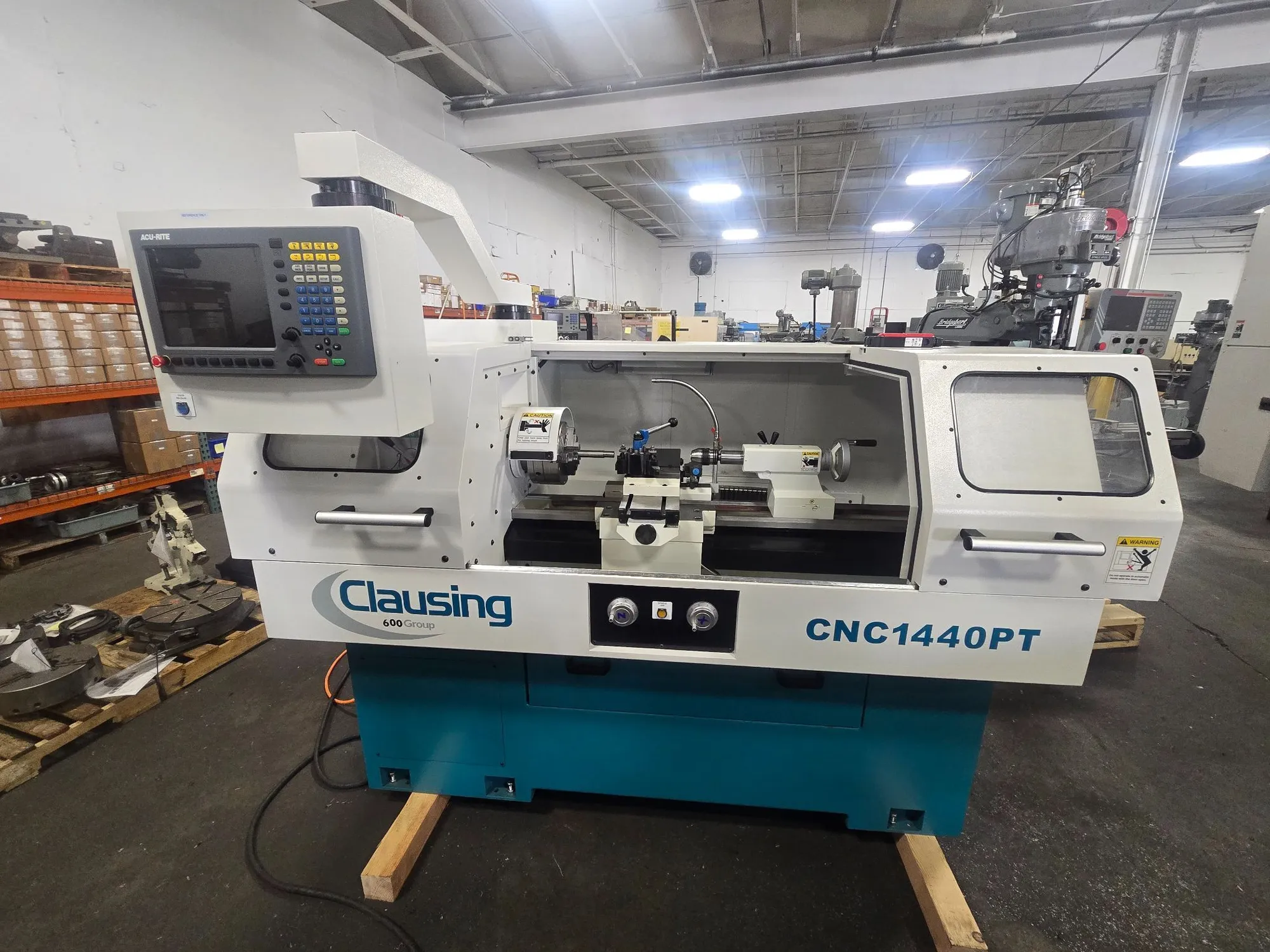

CNC TURNING CENTER, 14" SWING, 40" DBC, 5HP SPINDLE, ACU-RITE

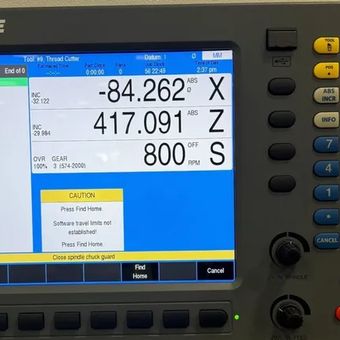

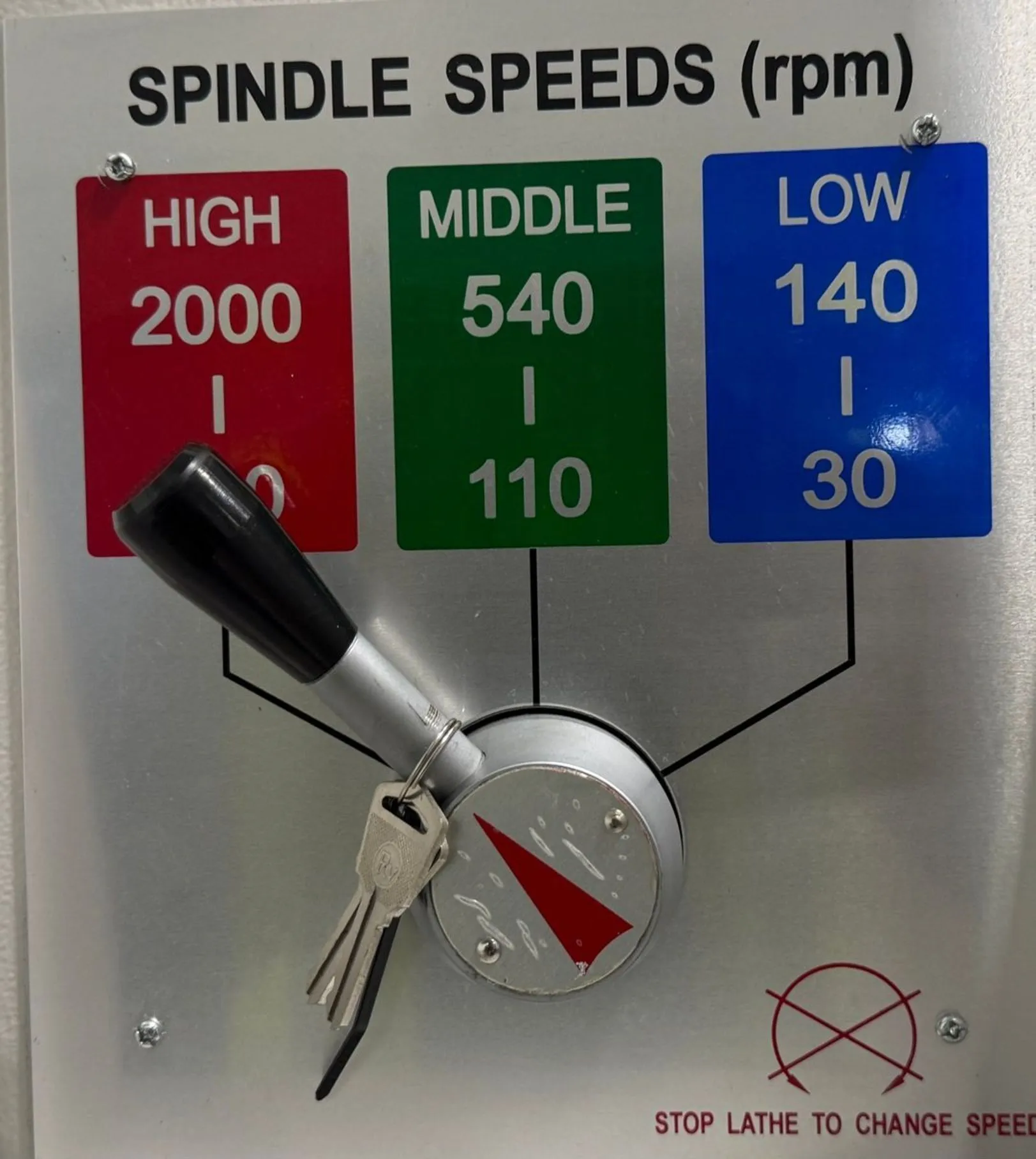

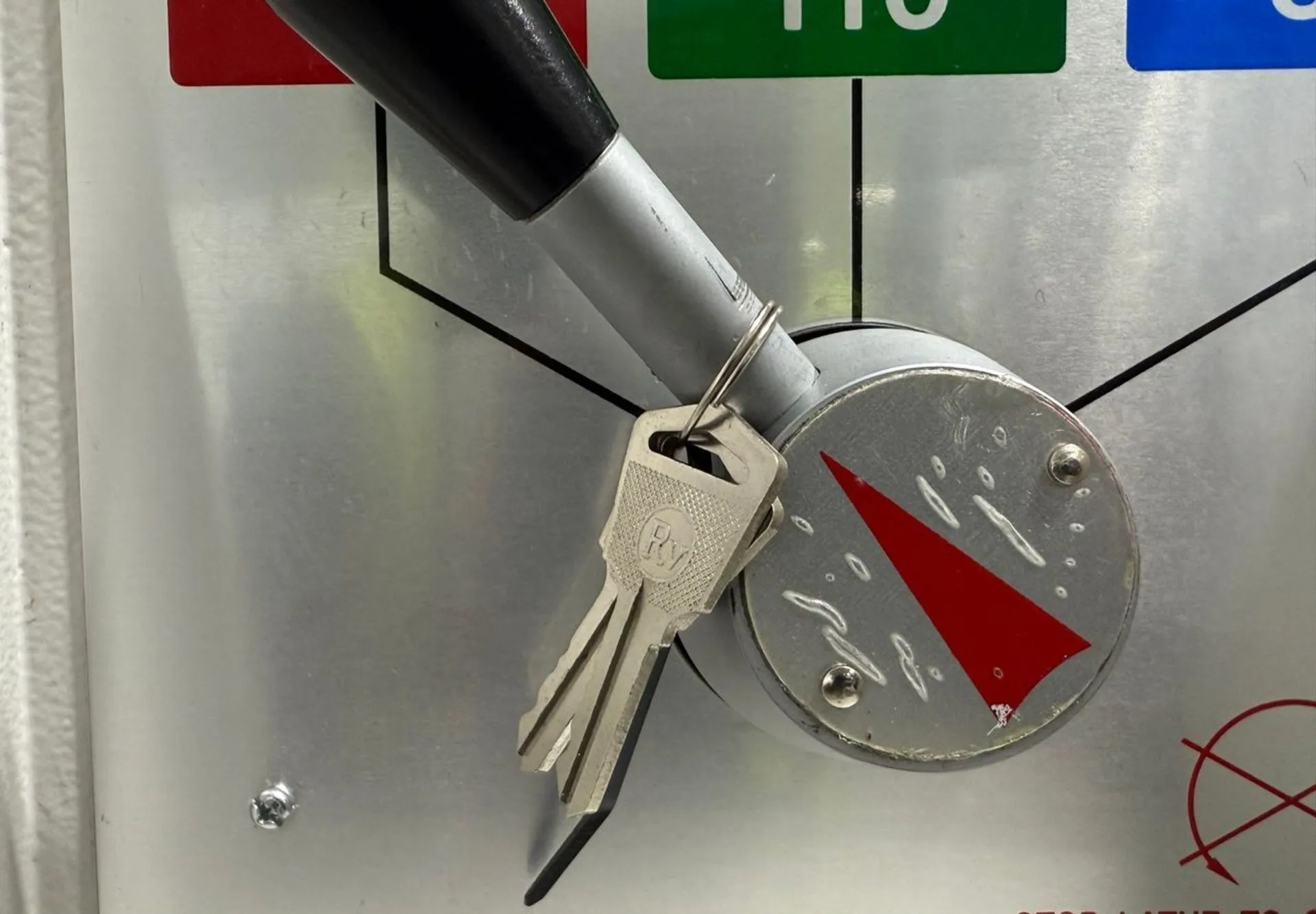

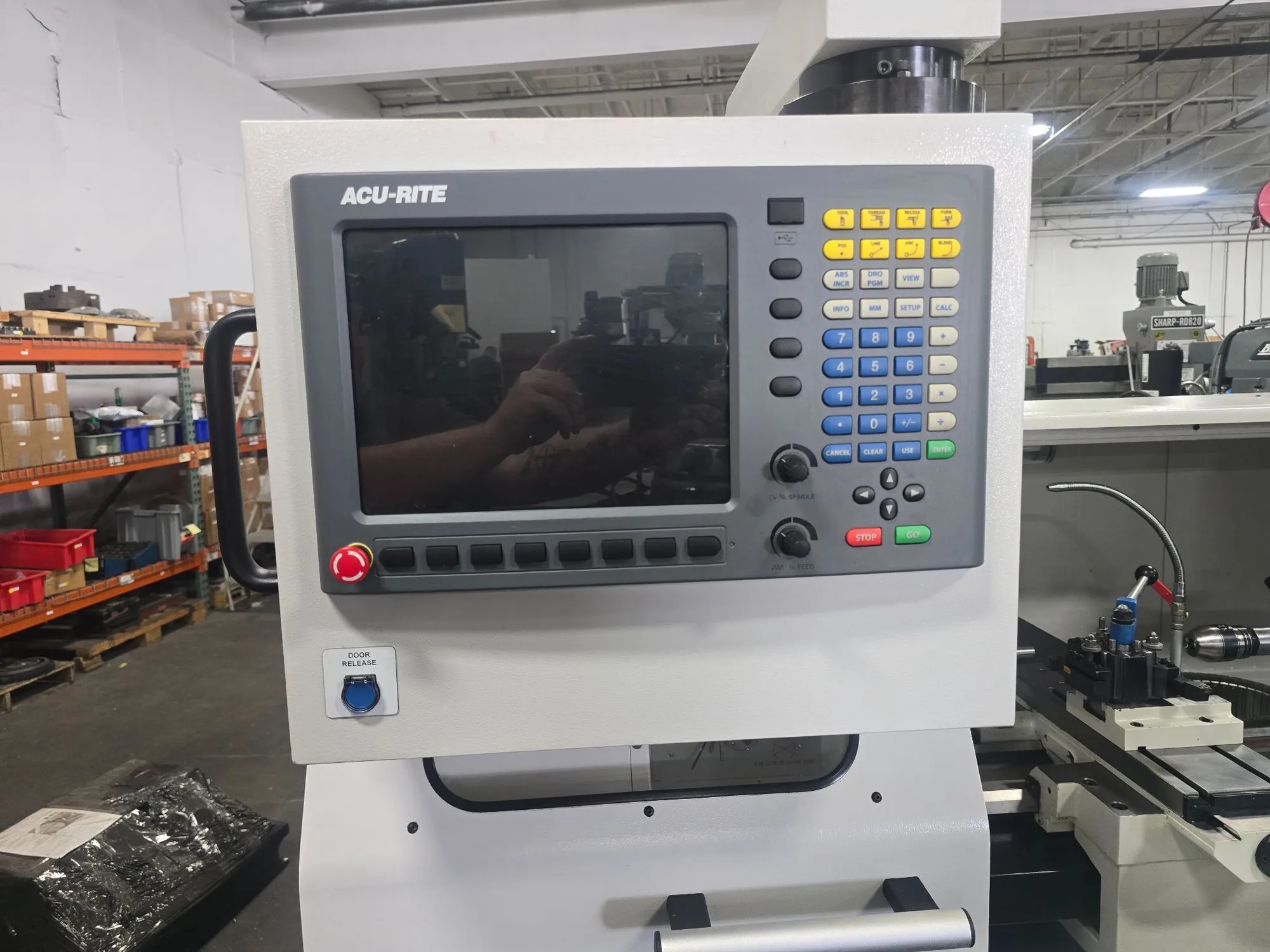

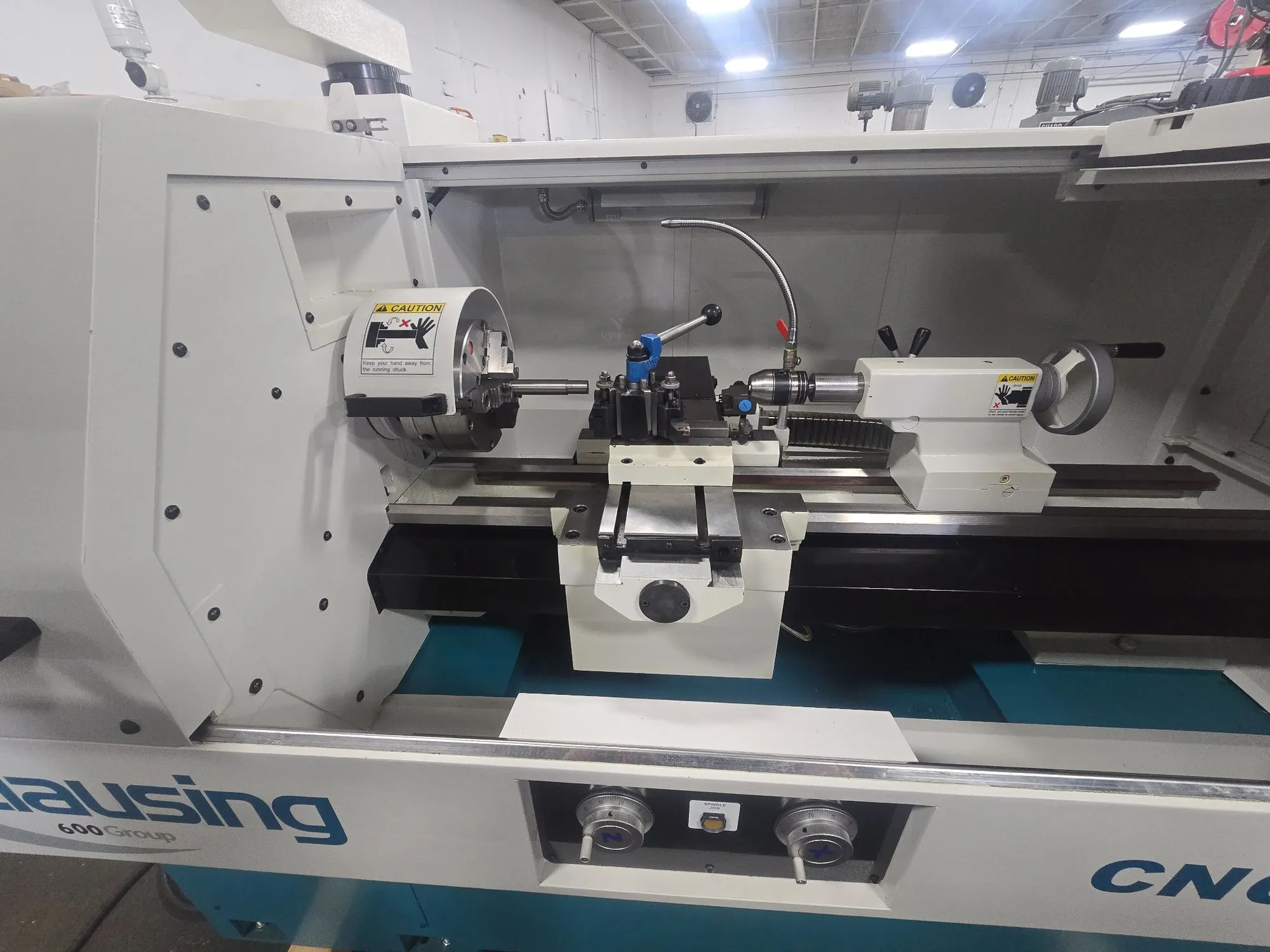

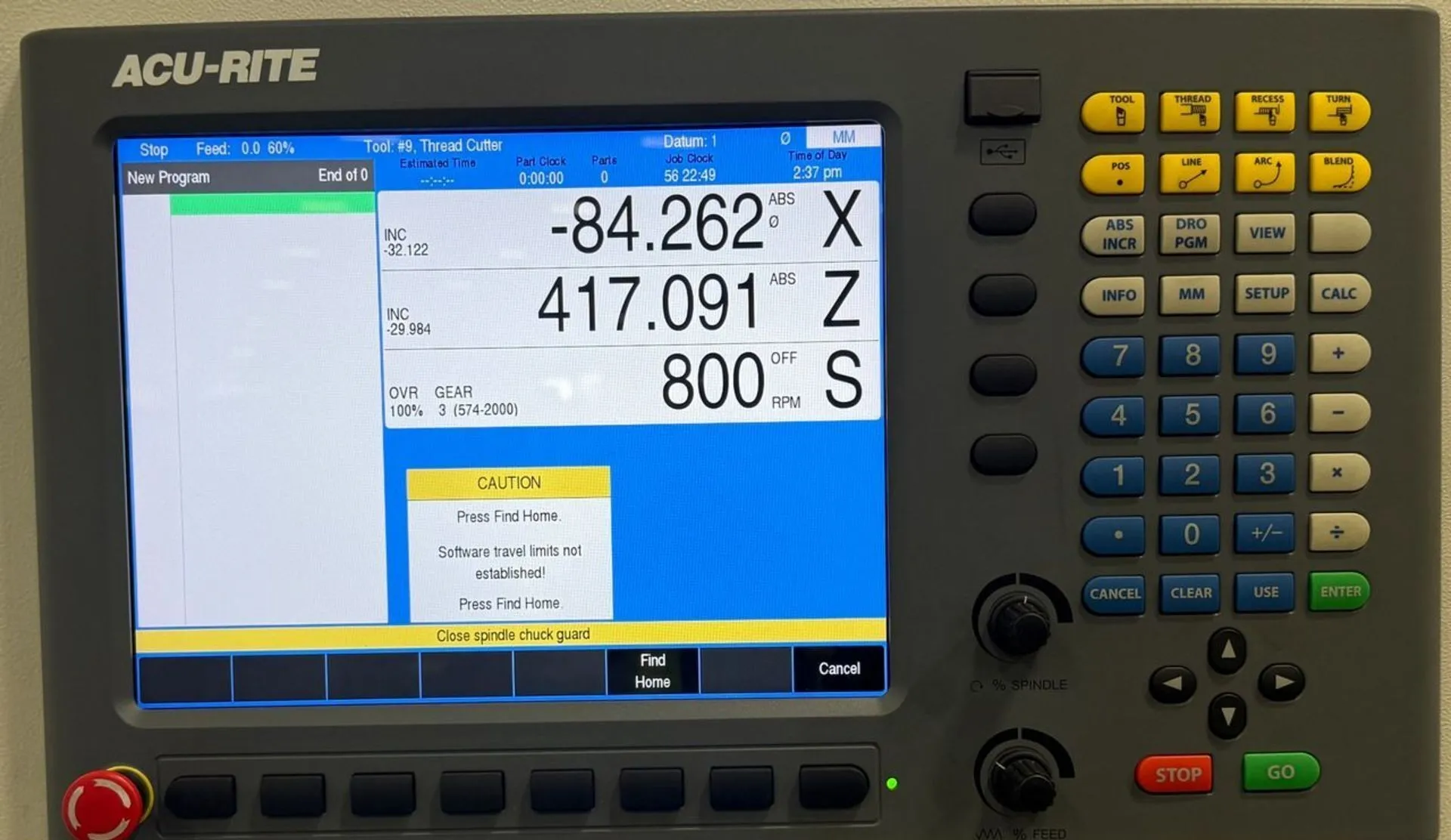

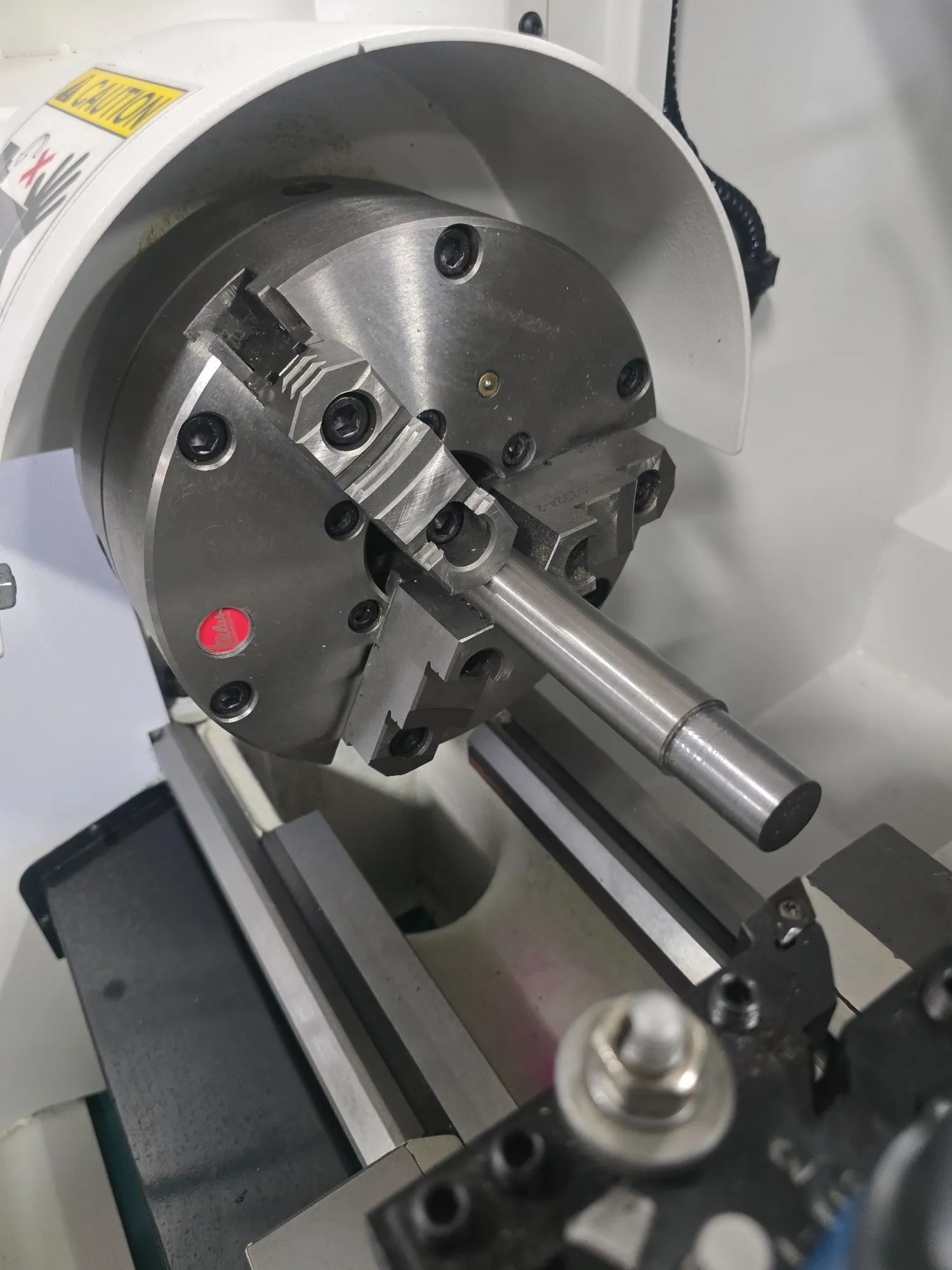

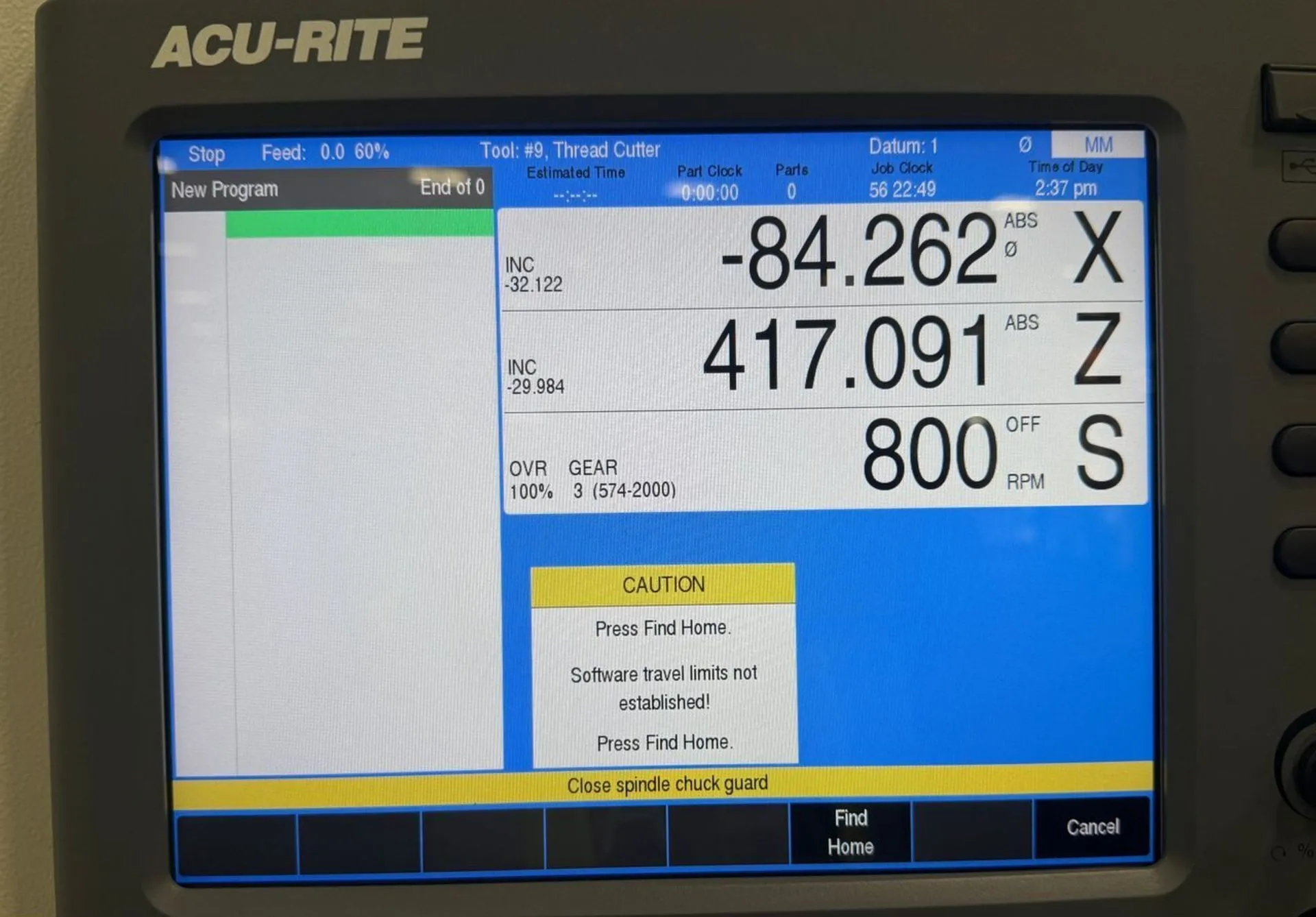

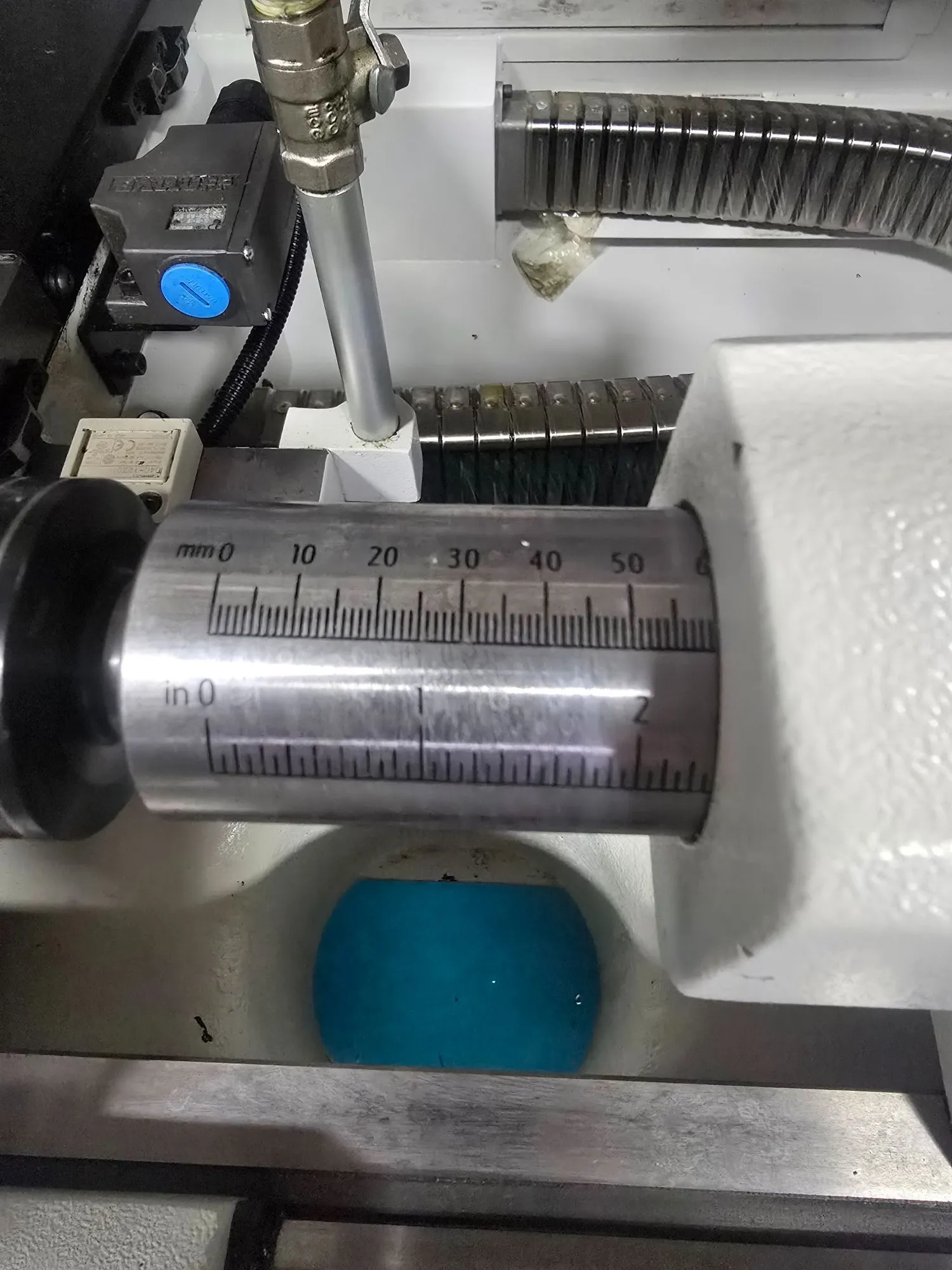

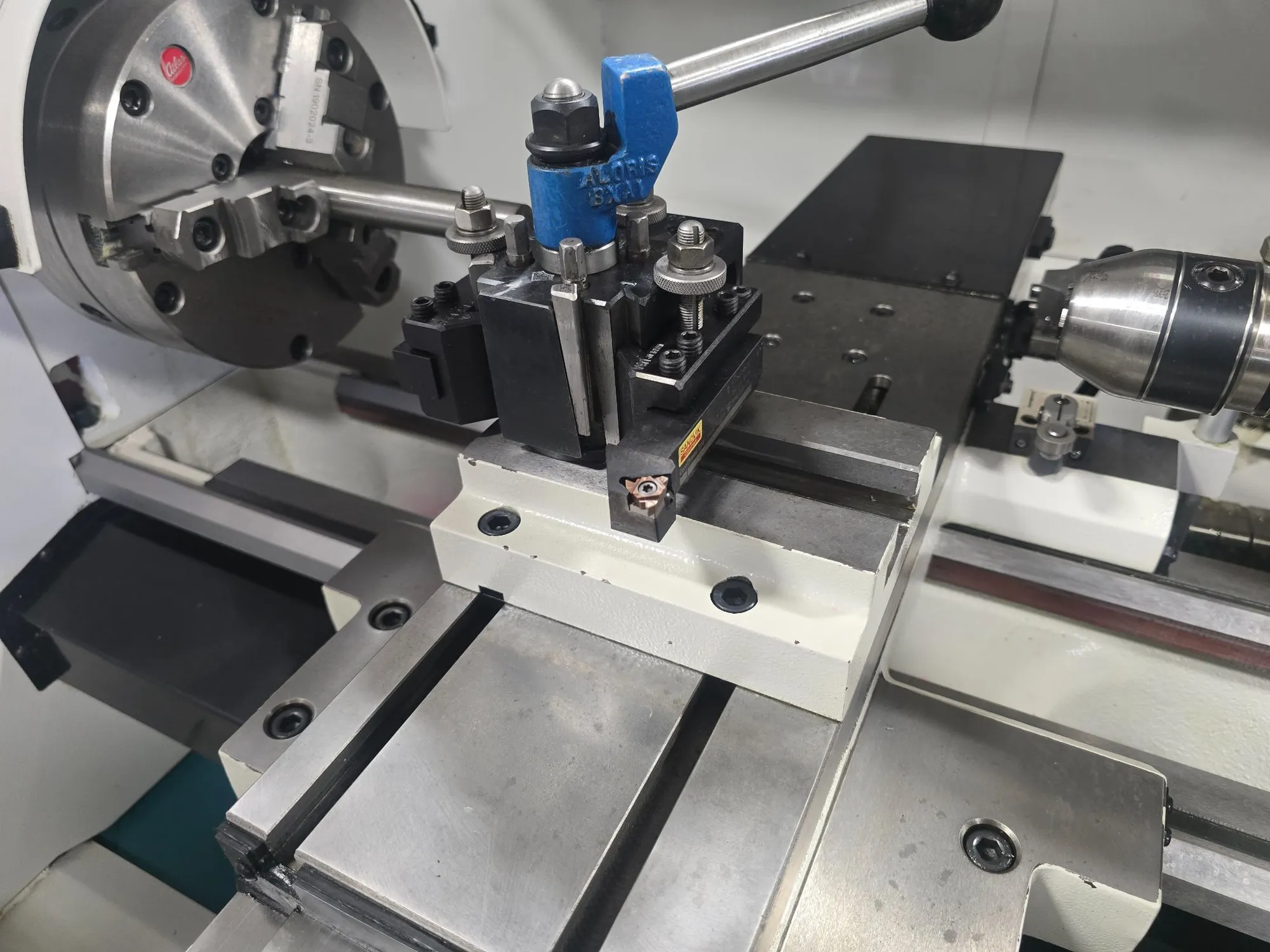

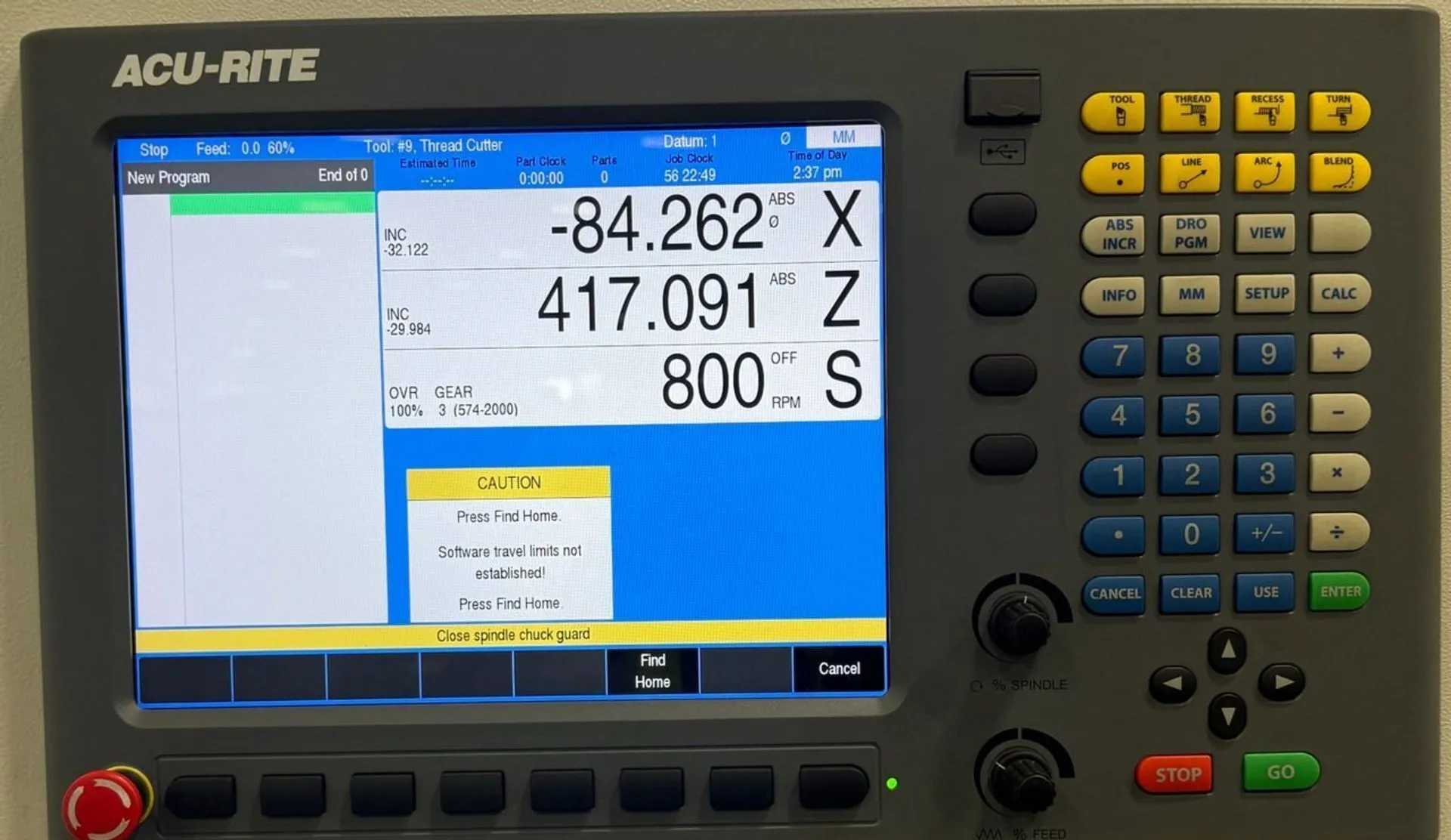

THIS CNC TURNING CENTER FEATURES A 14" SWING OVER THE BED AND 6.7" SWING OVER THE CROSS SLIDE, WITH A DISTANCE BETWEEN CENTERS OF 40" AND AN APPROXIMATE MACHINE WEIGHT OF 2,750 LBS. THE SPINDLE IS DRIVEN BY A 5 HP MOTOR, FEATURES A D1-4 NOSE AND A 1.5" BORE, AND UTILIZES A #5MT TAPER. SPINDLE SPEEDS ARE INFINITELY VARIABLE ACROSS THREE RANGES: LOW (30-140 RPM), MEDIUM (110-540 RPM), AND HIGH (410-2000 RPM). RAPID TRAVERSE RATES FOR BOTH THE X AND Z AXES ARE 100 IPM, POWERED BY A 1.6 HP X, Z SERVO MOTOR. THE TAILSTOCK HAS A 1.75" QUILL DIAMETER, A 3MT TAPER, AND A 4.75" QUILL STROKE. IT IS EQUIPPED WITH THE ACU-RITE TURN POWER CONTOURING CONTROL, WHICH FEATURES A 12.1" COLOR LED DISPLAY AND ENABLES CONVERSATIONAL PROGRAMMING. THE CONTROL SUPPORTS PGM MODE OPERATIONS INCLUDING THREAD, RECESS, AND TURNING CYCLES, ALONG WITH POSITION/DRILL, LINE, ARC, AND BLEND FUNCTIONS. IT ALSO SUPPORTS DXF FILE IMPORT AND G-CODE PROGRAMS. INCLUDED ACCESSORIES ARE A COOLANT SYSTEM, A 3-JAW CHUCK, AND AN ALORIS QUICK CHANGE TOOLPOST WITH HOLDERS.
