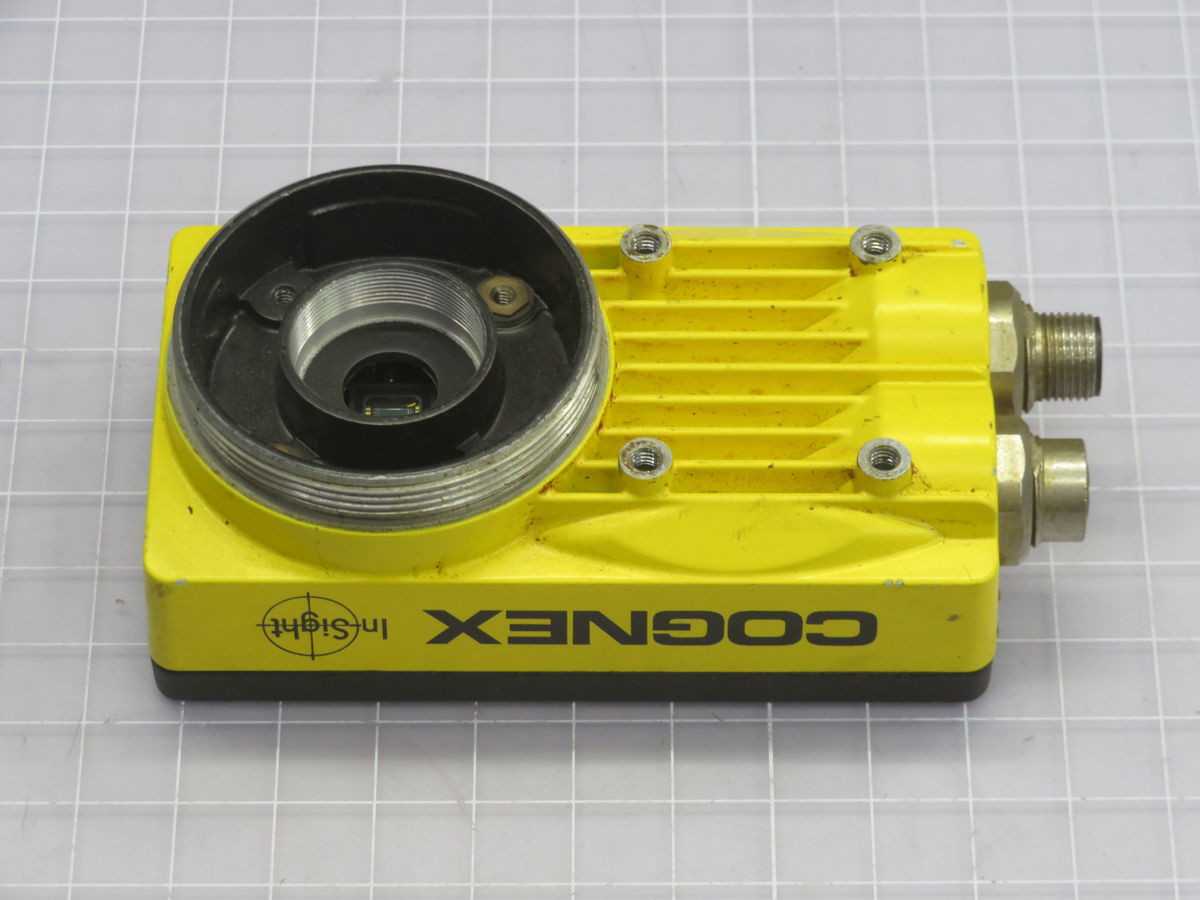

Cognex In-Sight 5100 Vision Sensor, VGA Resolution, 60 FPS, Ethernet, RS-232, 4 In, 4 Out, 24 VDC Power

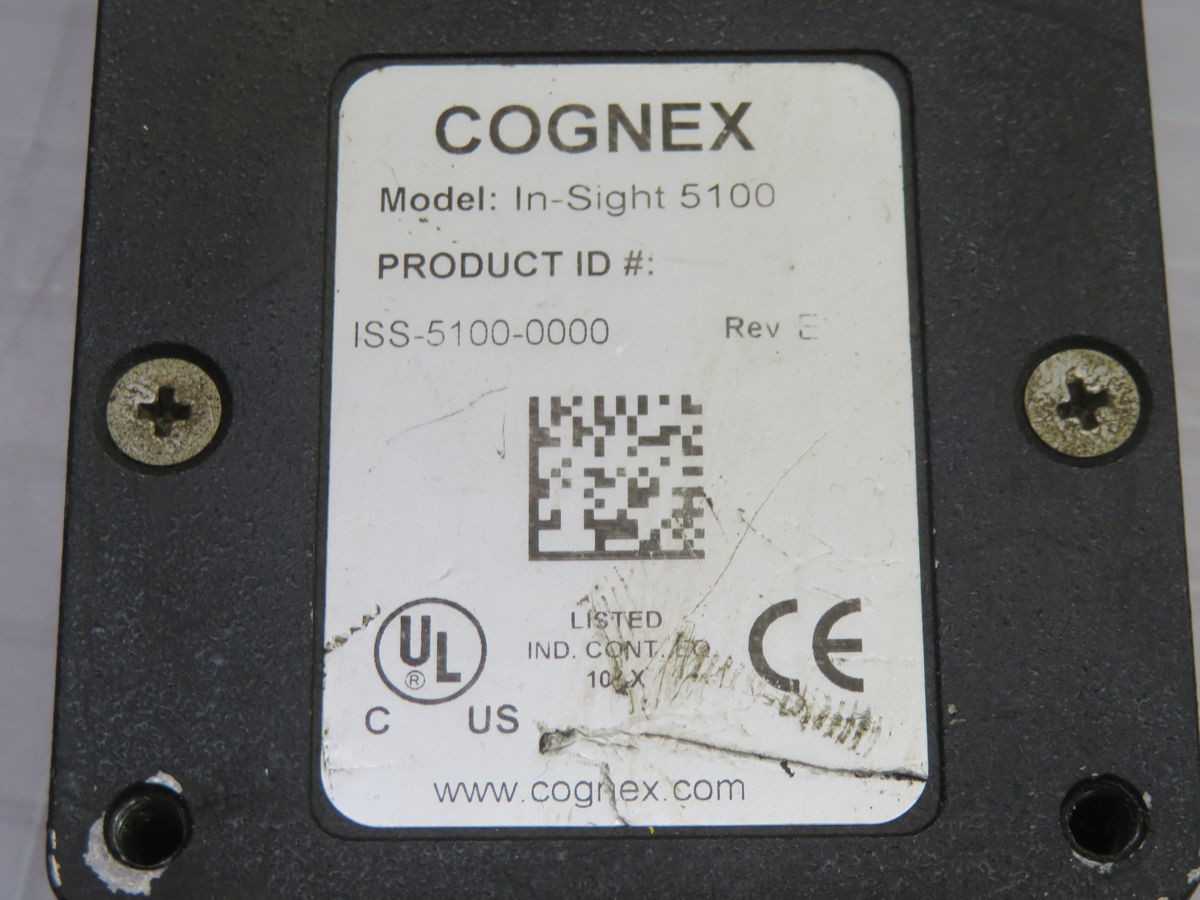

THE COGNEX IN-SIGHT 5100 (MODEL ISS-5100-0000) IS AN INDUSTRIAL VISION SENSOR WITH A 640X480 PIXEL (VGA) RESOLUTION. IT FEATURES A HIGH-SPEED IMAGE PROCESSOR CAPABLE OF CAPTURING UP TO 60 FRAMES PER SECOND. THE SYSTEM INCLUDES 32 MB OF SDRAM AND 16 MB OF FLASH MEMORY. CONNECTIVITY OPTIONS CONSIST OF 10/100 BASET ETHERNET AND AN RS-232 SERIAL PORT. IT OFFERS FOUR OPTO-ISOLATED INPUTS AND FOUR OPTO-ISOLATED OUTPUTS FOR DISCRETE CONTROL. THE SENSOR SUPPORTS A C-MOUNT LENS AND INCORPORATES AN INTEGRATED STROBE CONTROLLER FOR EXTERNAL ILLUMINATION. KEY INTEGRATED SOFTWARE CAPABILITIES INCLUDE PATMAX PATTERN MATCHING TECHNOLOGY, ALONGSIDE TOOLS FOR BLOB ANALYSIS, EDGE DETECTION, MEASUREMENT, ID READING (1D/2D), AND OCR. THE UNIT OPERATES ON A 24 VDC POWER INPUT.
