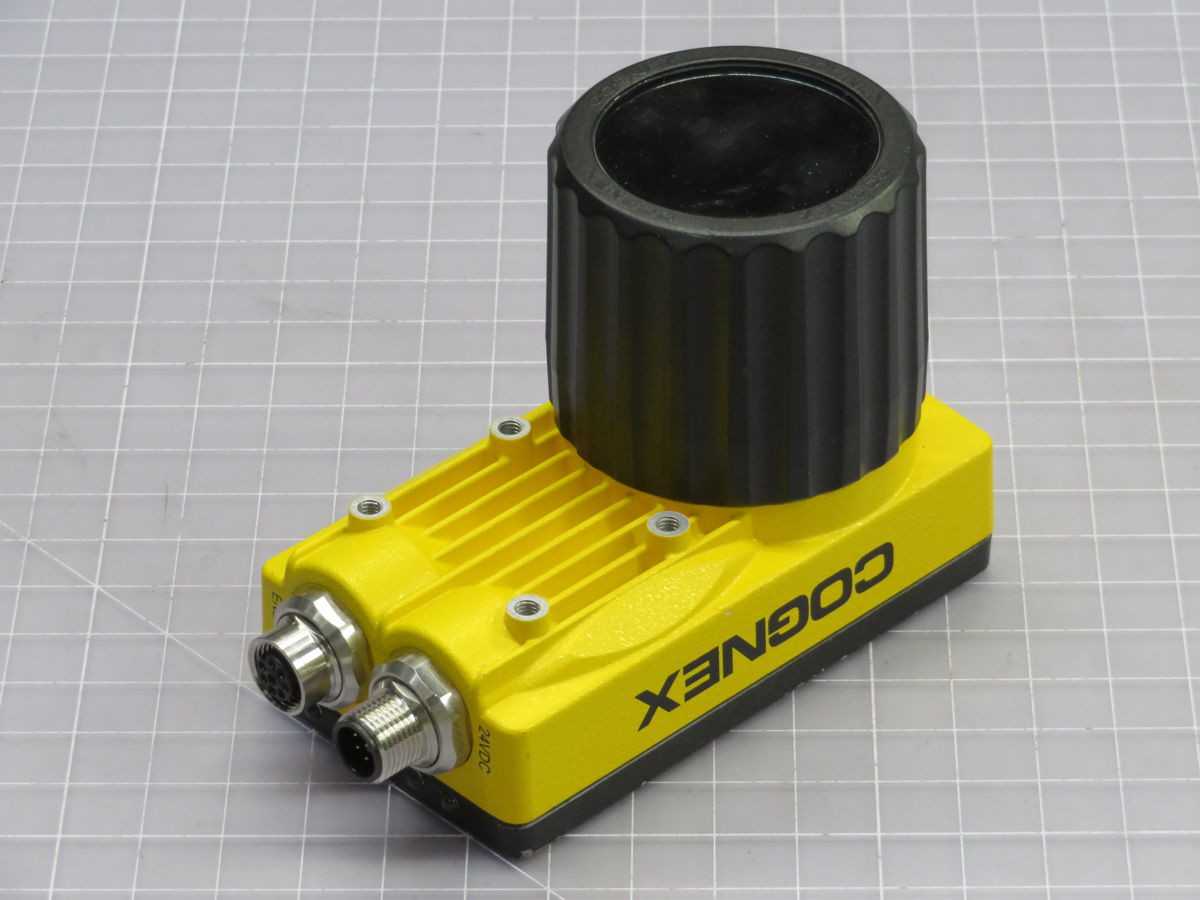

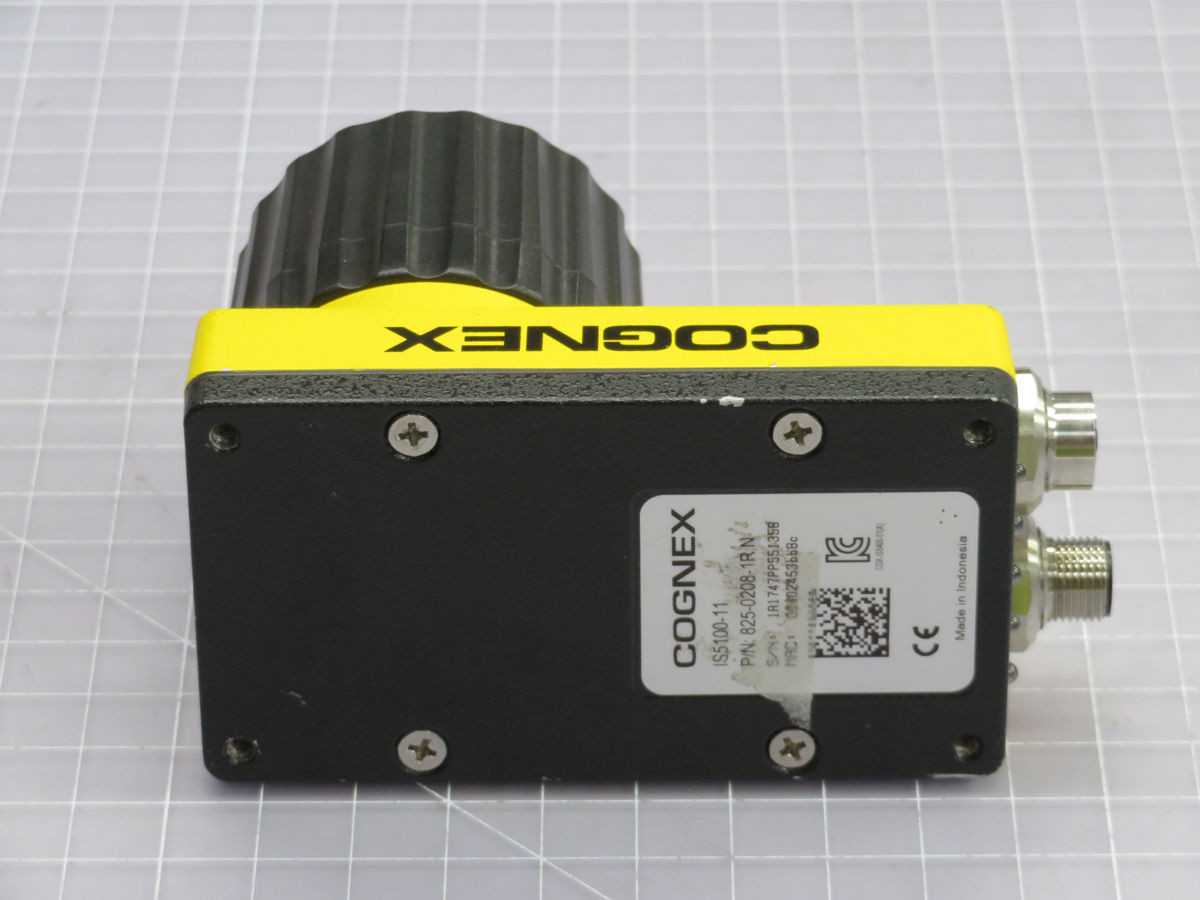

COGNEX IS5100-11 INDUSTRIAL CAMERA SENSOR, 1/3" MONOCHROME CCD, 640X480PX, 60 FPS MAX, 24VDC, IP67

THE COGNEX IS5100-11 IS AN INDUSTRIAL CAMERA SENSOR AND VISION SYSTEM. IT INCORPORATES A 1/3-INCH MONOCHROME CCD SENSOR, PROVIDING A RESOLUTION OF 640 X 480 PIXELS WITH A MAXIMUM FRAME RATE OF 60 FRAMES PER SECOND. THE SYSTEM OPERATES ON A 24VDC POWER INPUT. CONNECTIVITY IS FACILITATED BY A 10/100 MBPS ETHERNET PORT AND AN RS-232 SERIAL PORT, COMPLEMENTED BY THREE OPTO-ISOLATED INPUTS AND THREE OPTO-ISOLATED OUTPUTS FOR DISCRETE I/O. IT FEATURES 128 MB OF SDRAM AND 64 MB OF NON-VOLATILE FLASH MEMORY FOR OPERATION. THE CAMERA UNIT IS EQUIPPED WITH A C-MOUNT LENS INTERFACE AND IS HOUSED WITHIN AN IP67-RATED ENCLOSURE, DESIGNED FOR ROBUST INDUSTRIAL ENVIRONMENTS.
