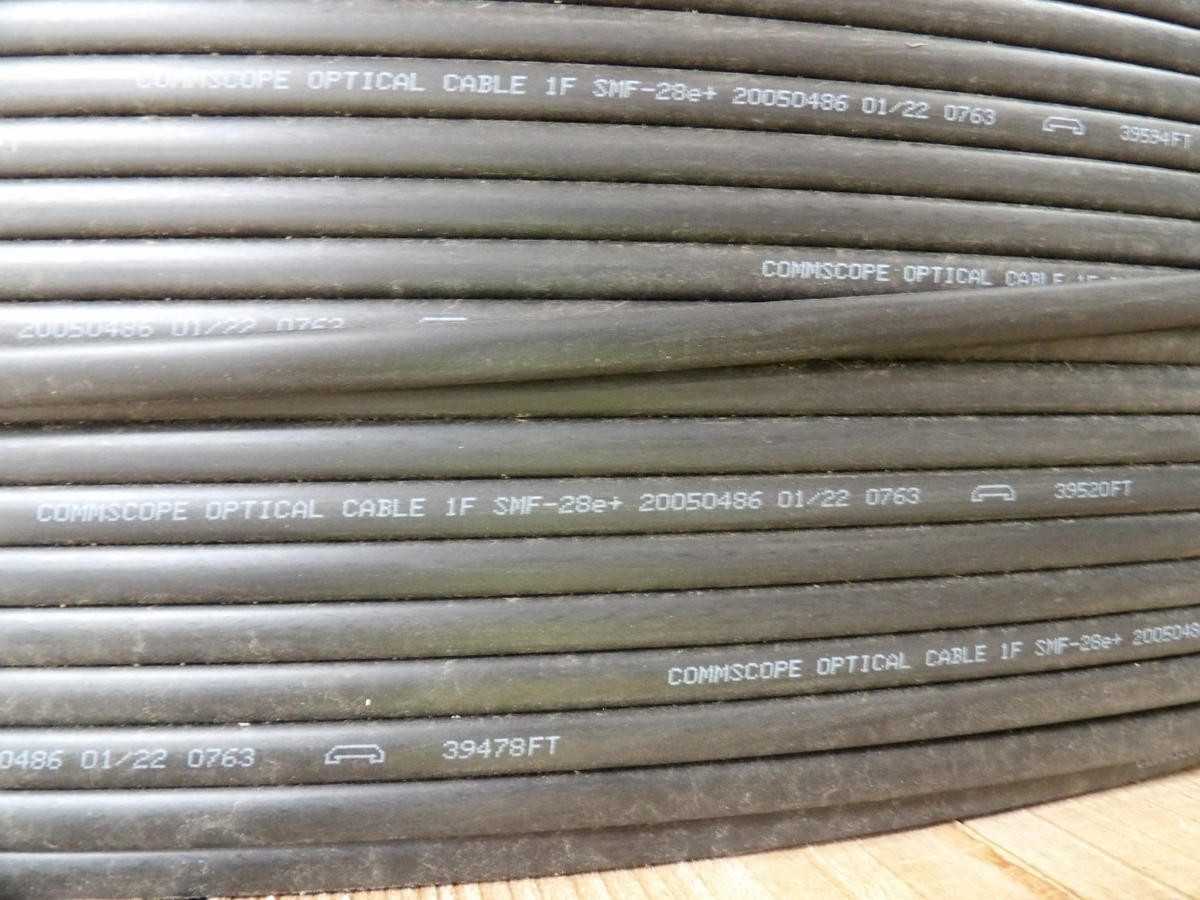

COMMSCOPE 20050486 SM OF DROP CABLE, G.652.D/G.657.A1 FIBER, 2.9X5.2 MM DIMENSIONS

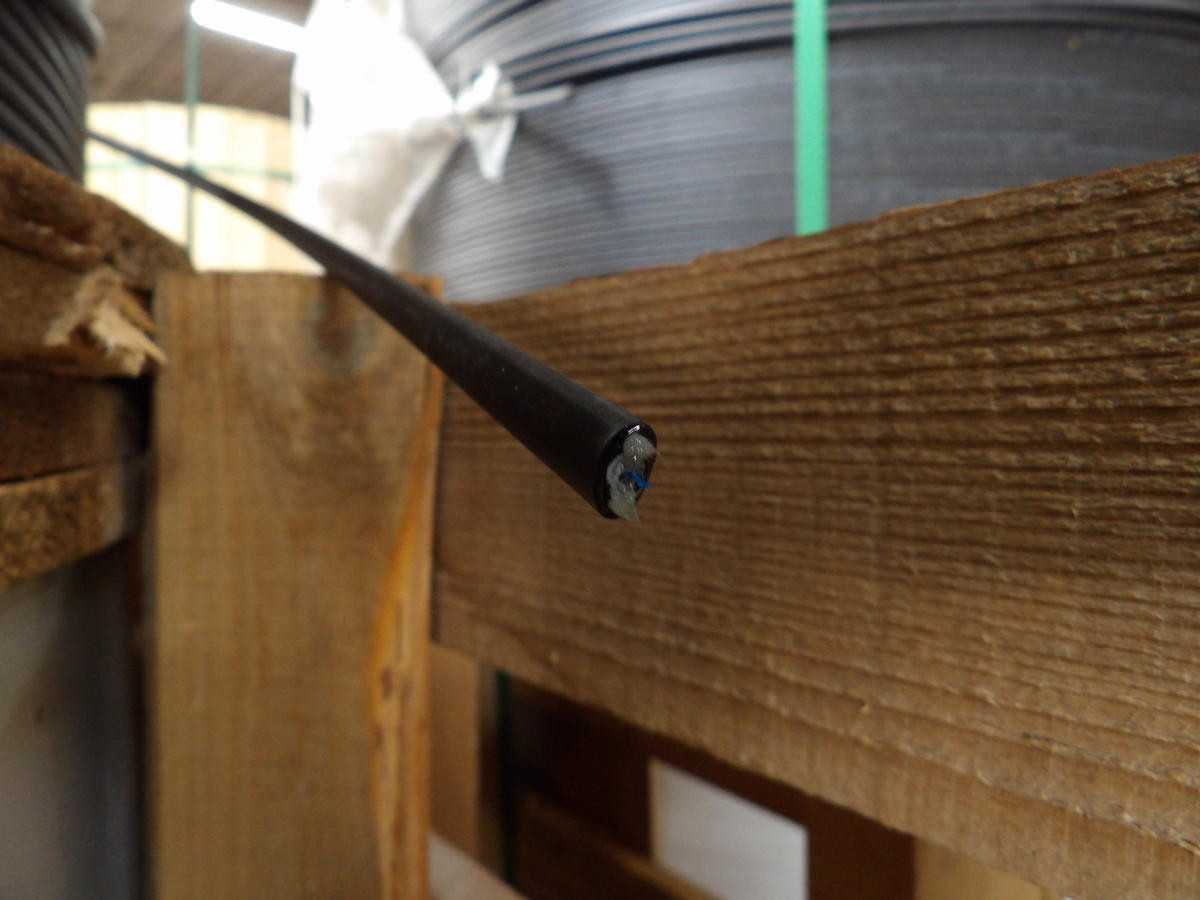

THE COMMSCOPE 20050486 IS A SINGLE-MODE OPTICAL FIBER DROP CABLE DESIGNED FOR FIBER-TO-THE-HOME (FTTH) APPLICATIONS, SUITABLE FOR BOTH INDOOR AND OUTDOOR DEPLOYMENT. IT INCORPORATES ONE CORNING SMF-28E+ FIBER, COMPLIANT WITH G.652.D AND G.657.A1 STANDARDS. THIS CABLE FEATURES A FLAT DESIGN WITH NOMINAL DIMENSIONS OF APPROXIMATELY 2.9 MM BY 5.2 MM AND A BLACK, UV-RESISTANT JACKET. IT IS OFNR (OPTICAL FIBER NON-CONDUCTIVE RISER) RATED, ENSURING COMPLIANCE FOR RISER APPLICATIONS. PERFORMANCE SPECIFICATIONS INCLUDE A SHORT-TERM TENSILE STRENGTH OF 222 N (50 LBF) AND A LONG-TERM TENSILE STRENGTH OF 89 N (20 LBF). CRUSH RESISTANCE IS RATED AT 1000 N/10CM FOR SHORT-TERM EXPOSURE AND 600 N/10CM FOR LONG-TERM EXPOSURE. THE CABLE OPERATES ACROSS A TEMPERATURE RANGE OF -40°C TO +70°C.
