Commscope 760237876, Other Machine Controls, 36 Panel, 1 Ethernet, 12 VDC, 1U, 0-50C

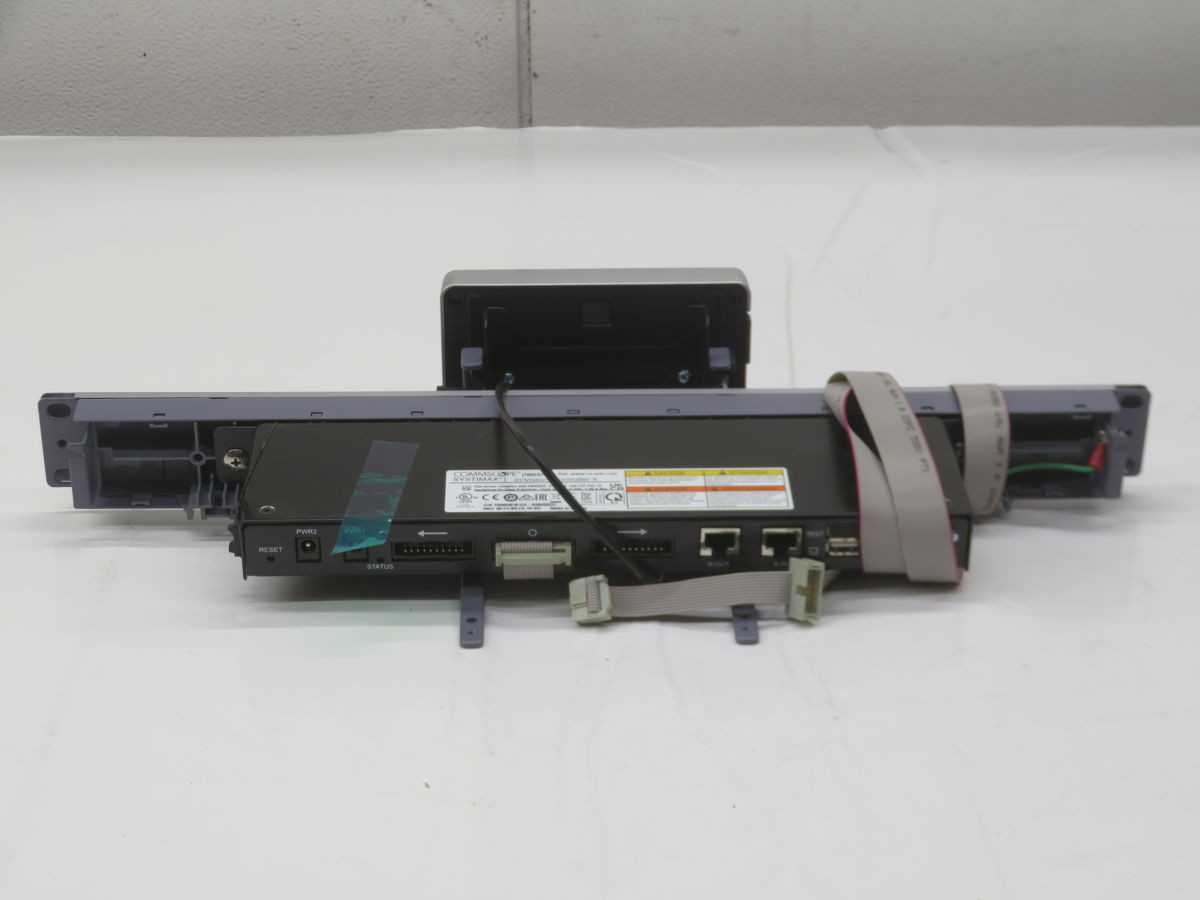

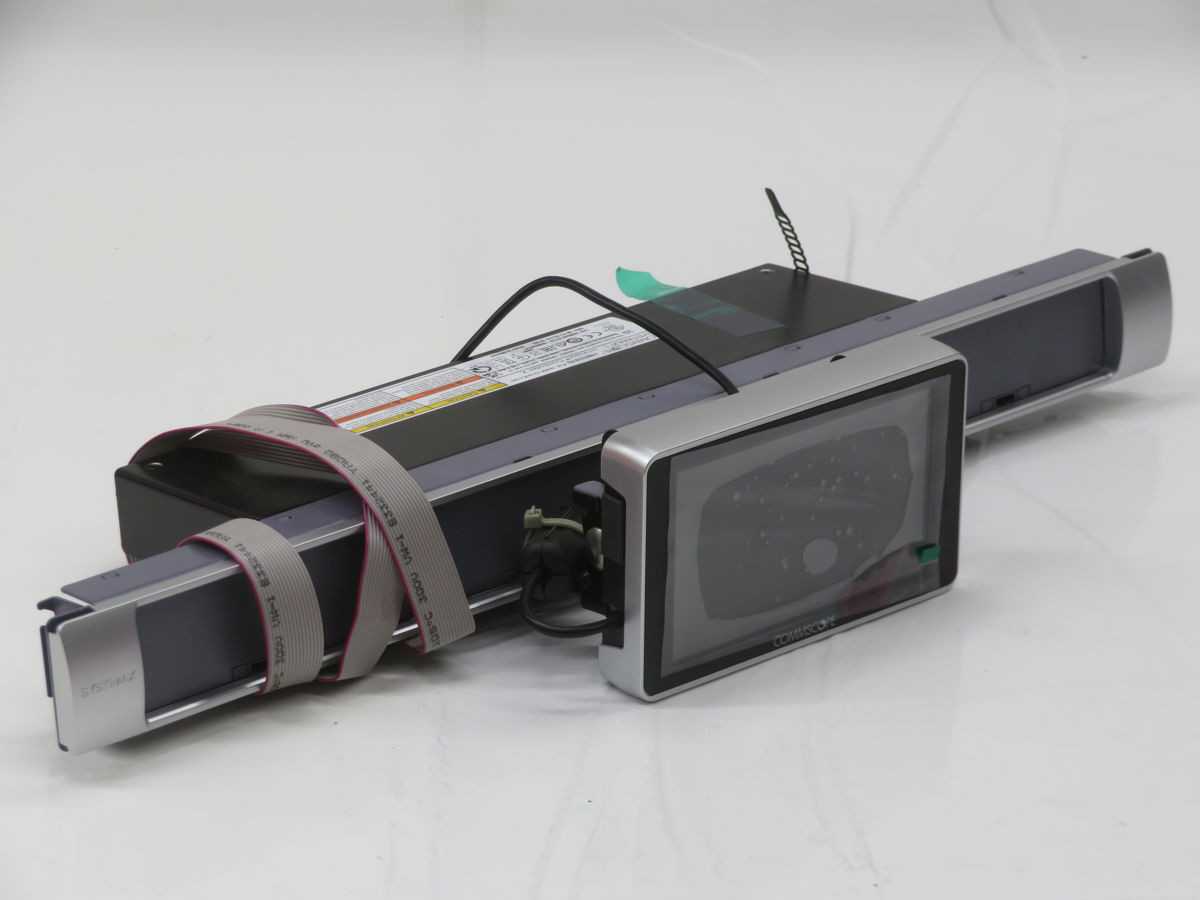

The Commscope IMV-CNTRL-X 760237876 is a panel bus jumper controller engineered for intelligent physical layer management within the IMVISION system. This controller functions as the central intelligence unit for real-time monitoring of network connectivity and facilitates guided work order execution. The device connects to up to 36 IPATCH intelligent panels through six dedicated bus ports, with each port supporting up to six panels. Network integration is provided via one 10/100BASE-T RJ45 Ethernet port, enabling communication with IMVISION manager software. Power is supplied by an external universal AC/DC adapter, typically converting 100-240 VAC, 50-60 HZ input to 12 VDC output. Housed in a 1U rack-mountable chassis, the unit incorporates LED indicators for operational status and is designed to operate within a temperature range of 0°C to 50°C.
