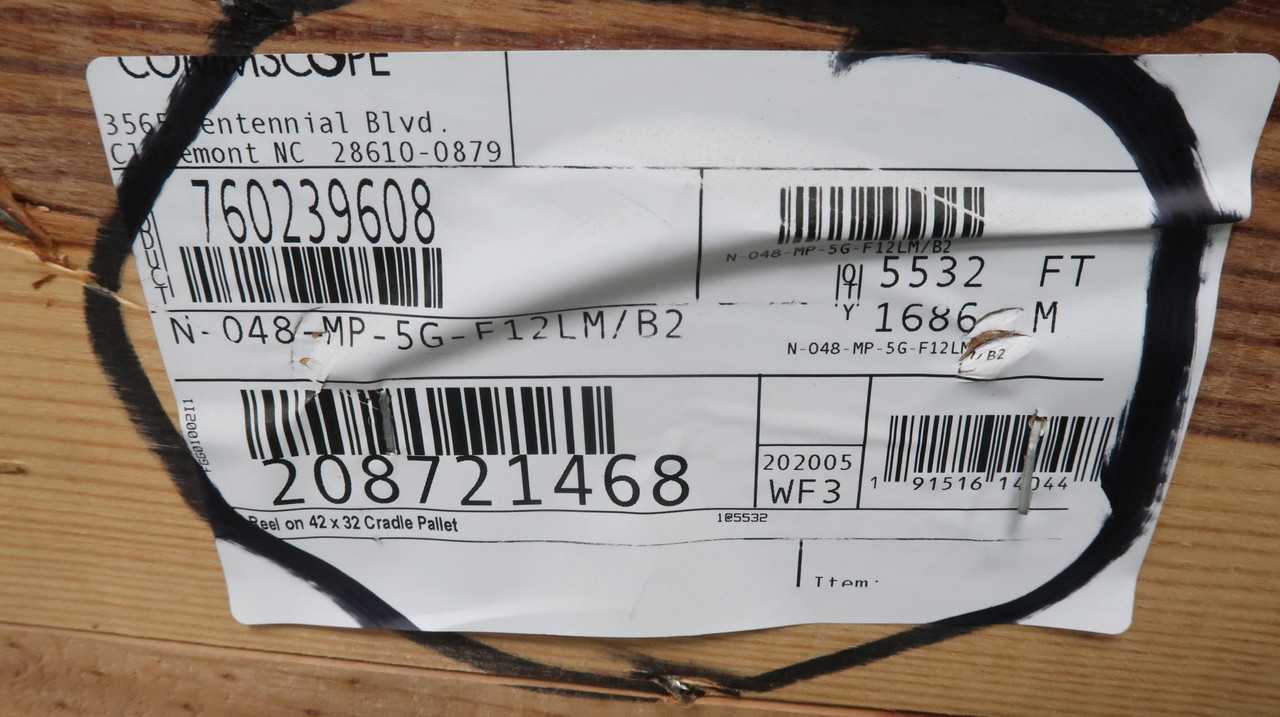

COMMSCOPE N-048-MP-5G-F12LM/B2 48, OM5 FIBER, 48 FIBERS, 1686 METERS LENGTH

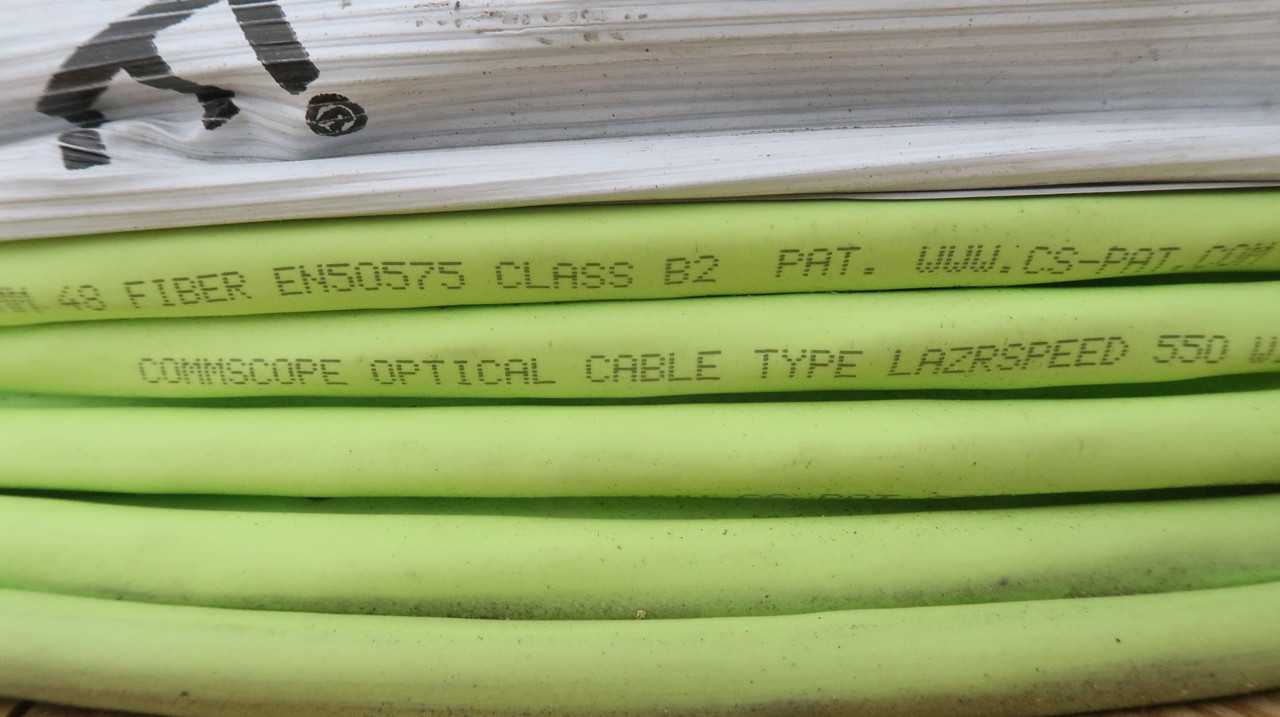

THE COMMSCOPE N-048-MP-5G-F12LM/B2 IS A 48-FIBER, OM5 WIDEBAND MULTIMODE FIBER (WBMMF) OPTIC CABLE, FEATURING A CENTRAL LOOSE TUBE CONSTRUCTION AND A PLENUM-RATED, LIME GREEN JACKET. THE CABLE HAS A TOTAL LENGTH OF 1686 METERS (5532 FEET). OPTICAL ATTENUATION SPECIFICATIONS INCLUDE A MAXIMUM OF 3.00 DB/KM AT 850 NM, 2.30 DB/KM AT 953 NM, AND 1.00 DB/KM AT 1300 NM. LASER BANDWIDTH IS RATED AT A MINIMUM OF 1100 MHZ-KM AT 850 NM AND 500 MHZ-KM AT 953 NM. THIS CABLE IS DESIGNED FOR OPERATION WITHIN A TEMPERATURE RANGE OF -20 °C TO +70 °C AND ADHERES TO FIBER STANDARDS TIA/EIA-492AAAE AND IEC 60793-2-10, TYPE A1A.4. IT EXHIBITS AN UNLOADED MINIMUM BEND RADIUS OF 124 MM AND A LOADED MINIMUM BEND RADIUS OF 186 MM.
