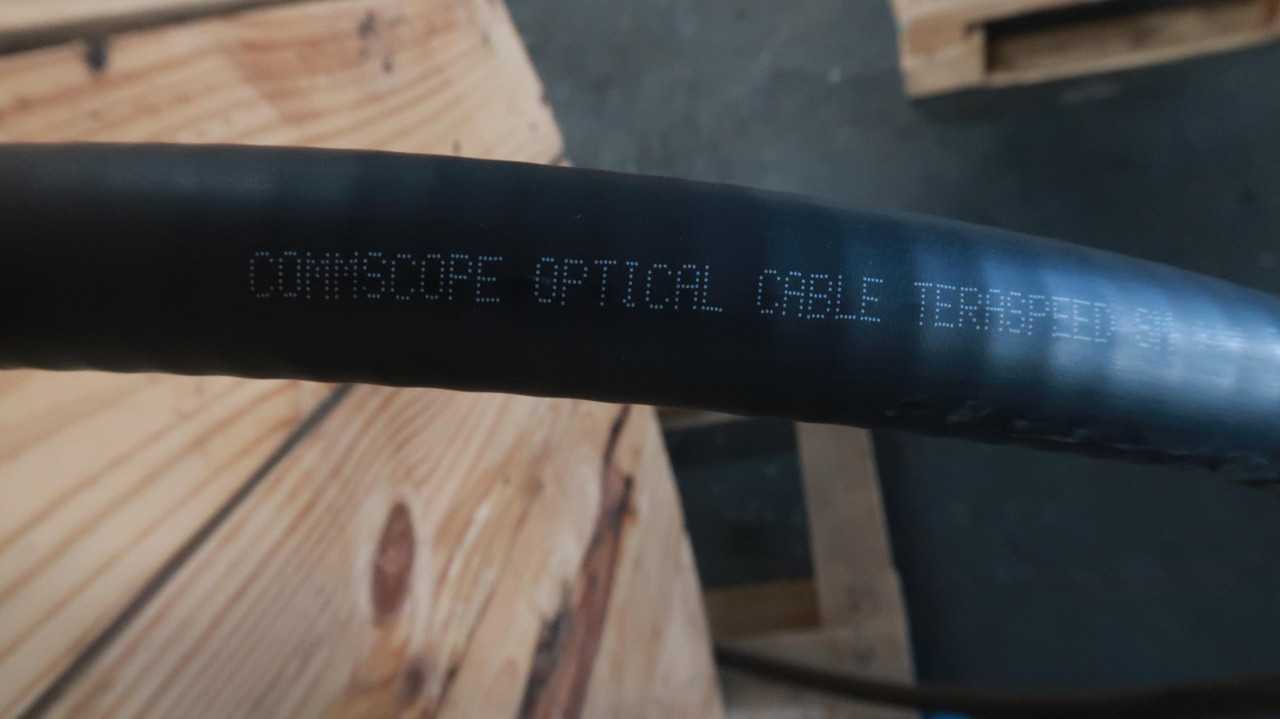

COMMSCOPE P-096-MZ-8W-F12BK, SM FIBER CABLE, 96 FIBER COUNT, OS2, OFCP, 20.3 MM OD

THE COMMSCOPE P-096-MZ-8W-F12BK IS AN OFCP (OPTICAL FIBER CENTRALIZED PLENUM) RATED TERASPEED SINGLE MODE FIBER OPTIC CABLE. IT FEATURES A 96-FIBER COUNT WITH OS2 (G.652.D/G.657.A1) COMPLIANT FIBERS. THE CABLE CONSTRUCTION INCLUDES INTERLOCKING ALUMINUM ARMOR FOR PHYSICAL PROTECTION AND A LOOSE TUBE DESIGN. ITS JACKET IS COMPOSED OF A LOW-SMOKE, FLAME-RETARDANT PVC MATERIAL, SUITABLE FOR PLENUM APPLICATIONS. THE NOMINAL OUTER DIAMETER IS APPROXIMATELY 20.3 MM. ATTENUATION SPECIFICATIONS FOR THE SINGLE MODE FIBERS INCLUDE A MAXIMUM OF 0.40 DB/KM AT 1310 NM AND 0.25 DB/KM AT 1550 NM. THE OPERATIONAL TEMPERATURE RANGE SPANS FROM -20°C TO +70°C.
