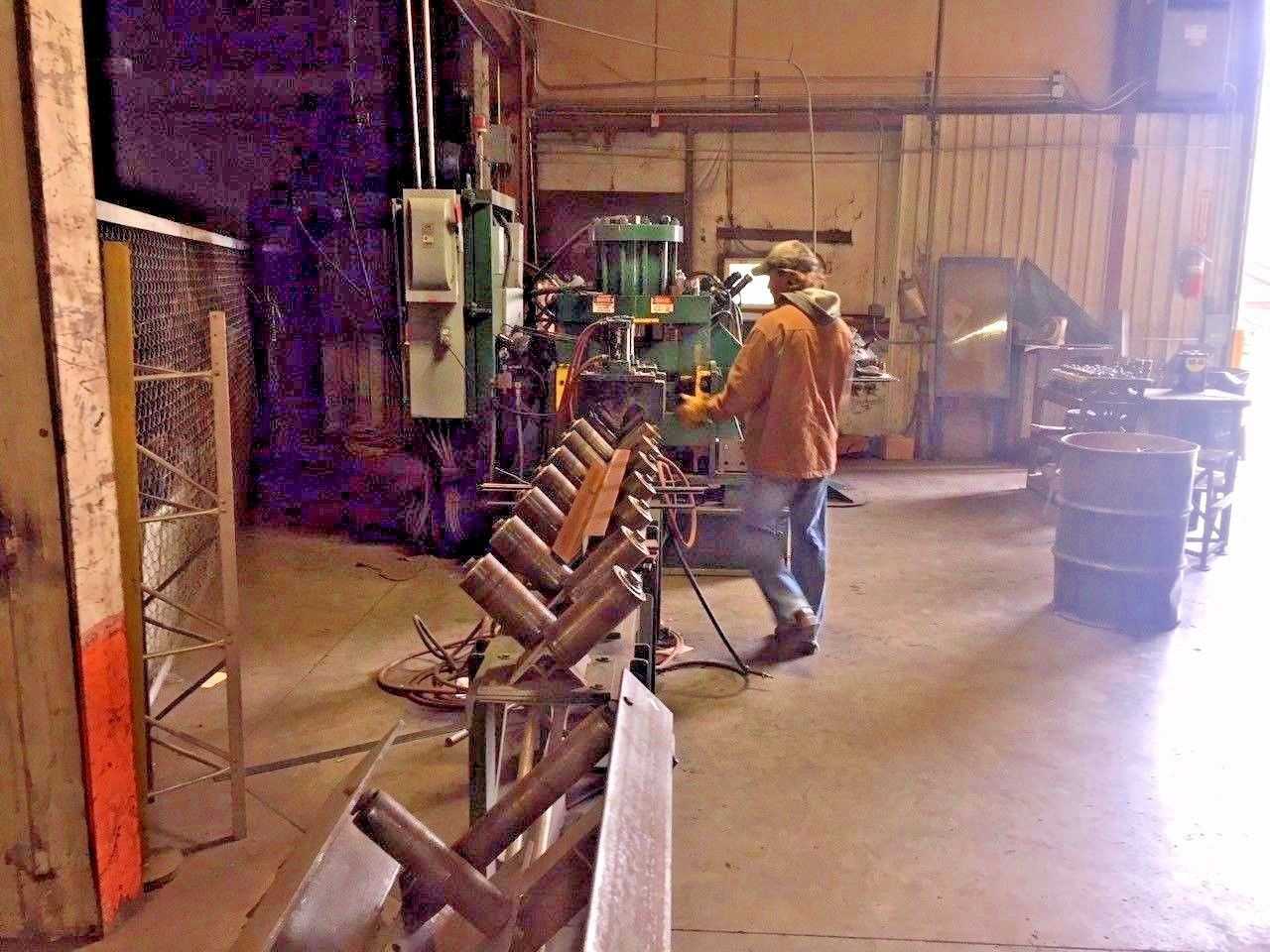

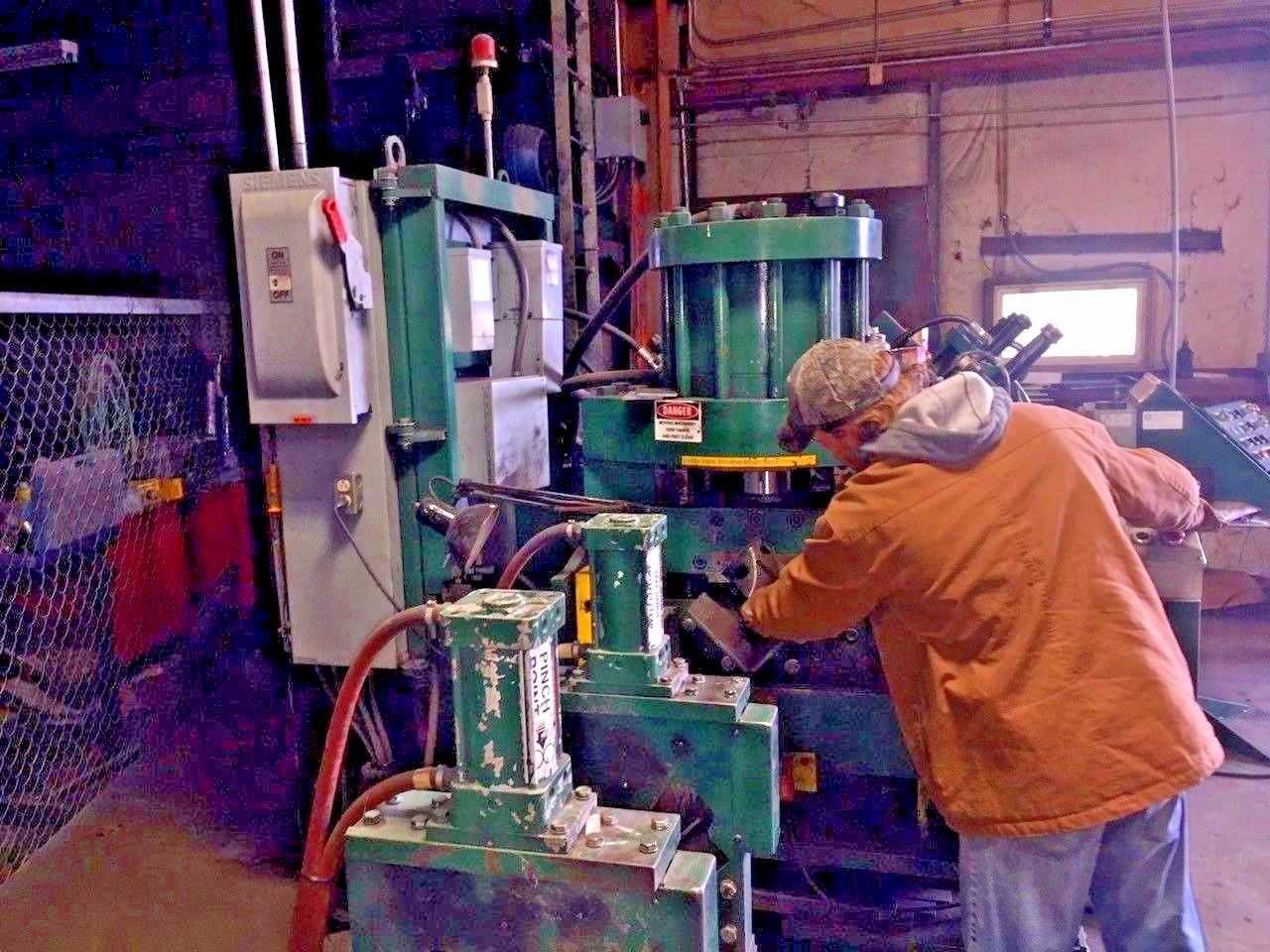

Controlled Automation ABL-86T, Angle Punching and Shearing Machine

Includes shuttle tables Punch capacity: 86 ton • Maximum hole size: 1-1/2” in 1/2” material 1-1/4” in 5/8” material • Shearing capacity: 250 ton (single cut) • Positioning accuracy: ± 1/32” • Positioning speed: 0 TO 375 ft/min • Punching two hole sizes per leg (optional) • Single wheel measuring system (optional) • Dual pinch wheel measuring system (optional) • Pulled X-Probe measuring system (optional) • Weld/tack station (optional) • Air conditioned Windows XP controller • Easily networked Machine • Maximum processing length: 40’ standard(60’optional) • Minimum processing length: 6’ Angle • Maximum angle size: 6” X 6” X 5/8” • Minimum angle size: 1-1/2” X 1-1/2” X 3/16” Flat Bar • Maximum bar size: 5/8” X 6” • Minimum bar size: 1/4” X 1-1/2” (maximum 20’ length) Channels (web punching only) • Maximum channel size: 6” • Minimum channel size: 3” Video available upon request.
