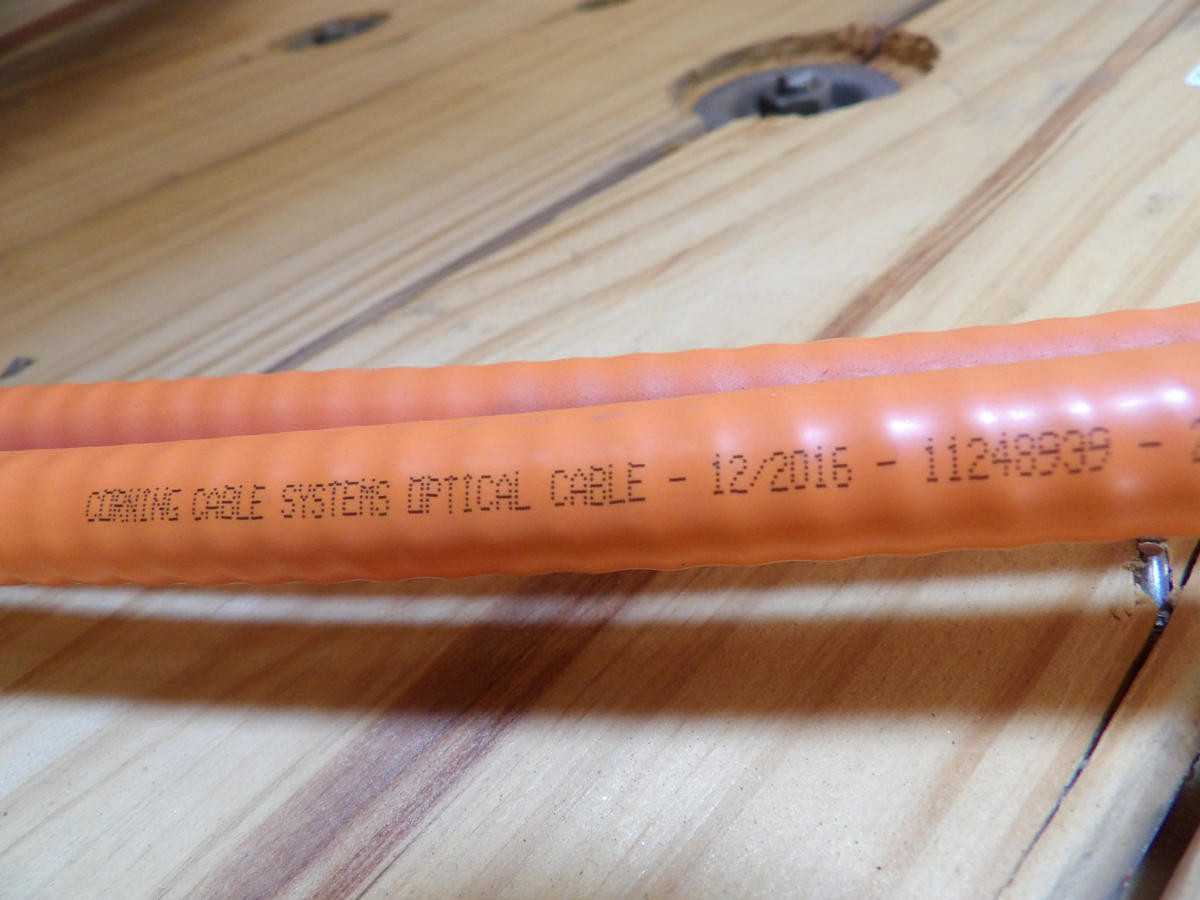

Corning 024K81-33130-A1 Multi Mode Fiber Optic Cable, 12 Fiber, 62.5μm Core OM1, Armored

THE CORNING MODEL 024K81-33130-A1 IS AN ORANGE, 12-FIBER, 62.5 ΜM MULTIMODE (OM1) MIC TIGHT-BUFFERED, INTERLOCKING ARMORED FIBER OPTIC CABLE. THIS RISER-RATED CABLE FEATURES A CORE/CLADDING DIAMETER OF 62.5/125 ΜM AND EXHIBITS TYPICAL ATTENUATION VALUES OF 3.0 DB/KM AT 850 NM AND 1.0 DB/KM AT 1300 NM. OPTICAL FIBER BANDWIDTH IS RATED AT 200 MHZ·KM (OFL) AT 850 NM AND 500 MHZ·KM (OFL) AT 1300 NM. THE CABLE'S APPROXIMATE OUTER DIAMETER IS 12.0 MM, CONSTRUCTED WITH A FLAME-RETARDANT PVC OUTER JACKET. IT IS DESIGNED FOR AN OPERATING TEMPERATURE RANGE OF -20°C TO 70°C AND A STORAGE TEMPERATURE RANGE OF -40°C TO 70°C. MINIMUM BEND RADIUS FOR INSTALLATION IS 20 TIMES THE CABLE DIAMETER, AND 10 TIMES THE CABLE DIAMETER FOR LONG-TERM DEPLOYMENT.
