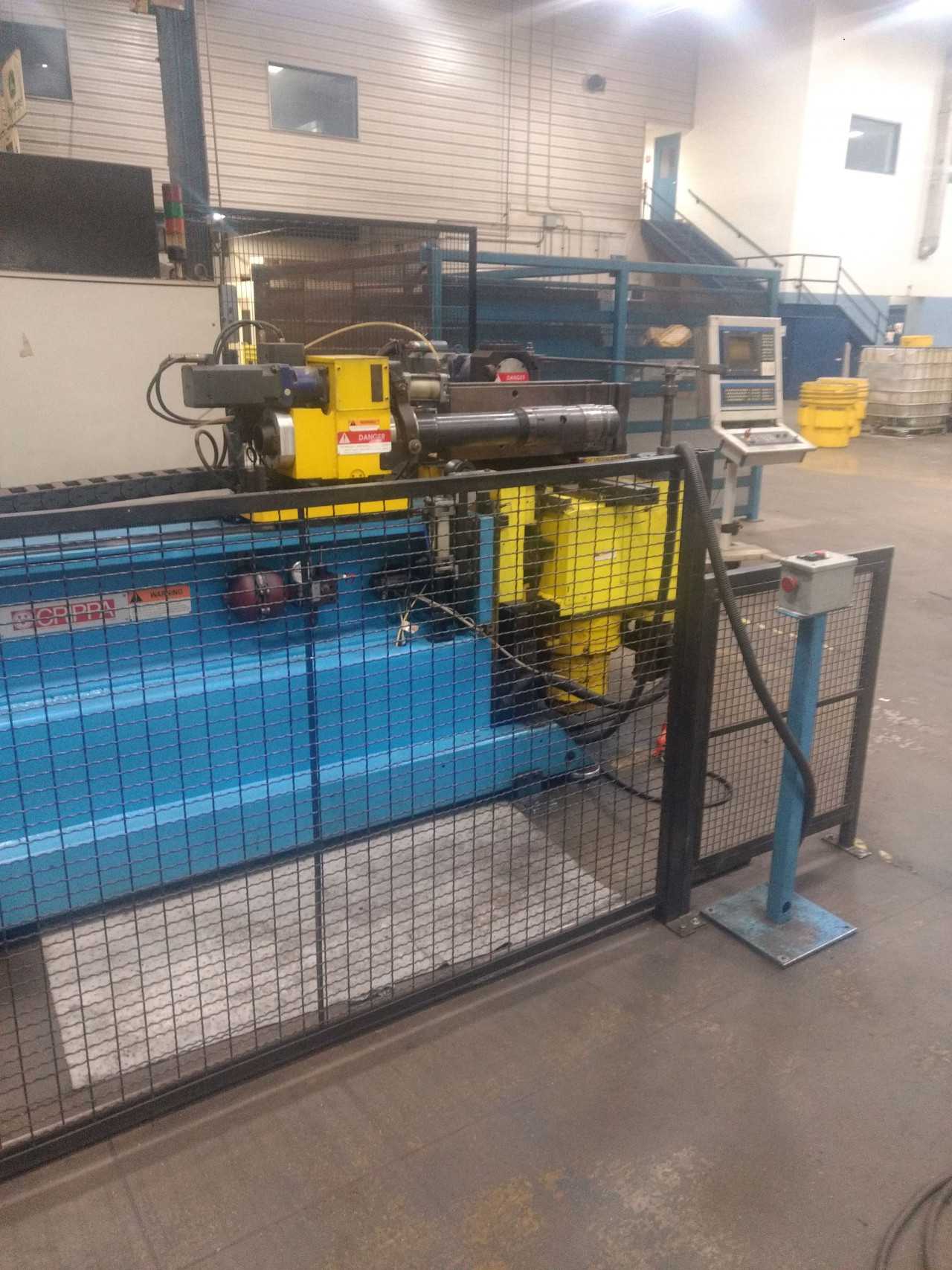

Crippa CA976EC Tube Bender

CRIPPA 9-Axis multi-radius all electric type CNC horizontal tube bender Model: CA976EC Serial: 99.325477 . 1.9903 Specifications: Maximum tube diameter: 3" OD x .120 WT Maximum bend radius: 180° + springback Maximum bend centerline radius: 10" Maximum tube length over mandrel: 154" Bending rotation: right hand (counter clockwise) Includes: Siemens Sinumerik CNC operator control system Electric servo-driven Y axis carriage with boost action Electric servo-driven bending action Electric servo-driven head shift system (X and Z axis) for multi-radius bending Electric servo-driven mandrel extractor Electric servo-drive pressure die assist Electric servo-drive direct acting pressure die Electric servo-driven clamp die Pneumatic collect closer Pneumatic split die actuator / quick release tooling - under nose mount Automatic lubrication 480 Volt, 60 Hz, 3 Phase Electrics
