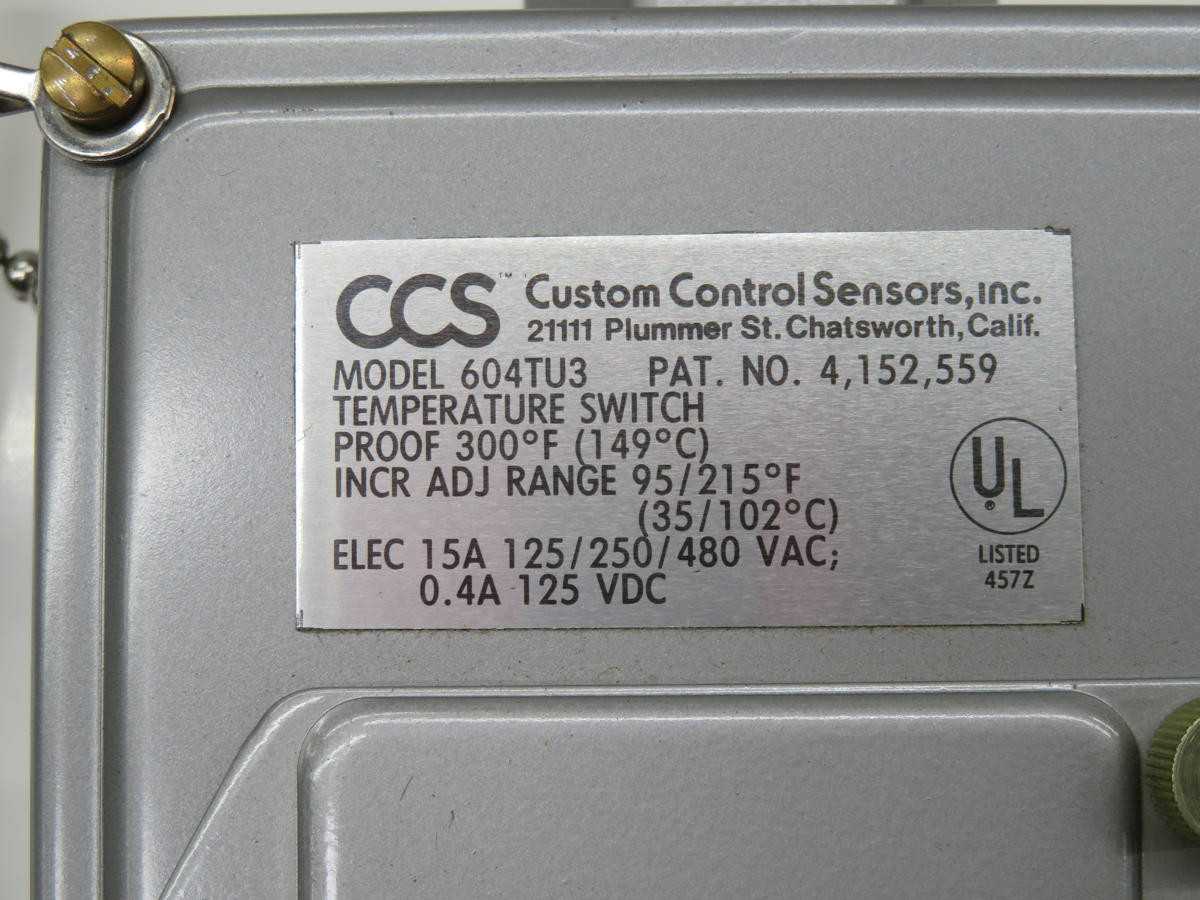

CUSTOM CONTROL SENSORS 604TU3 TEMPERATURE CONTROLS, -17.8C TO 121.1C RANGE, SPDT 10A OUTPUT

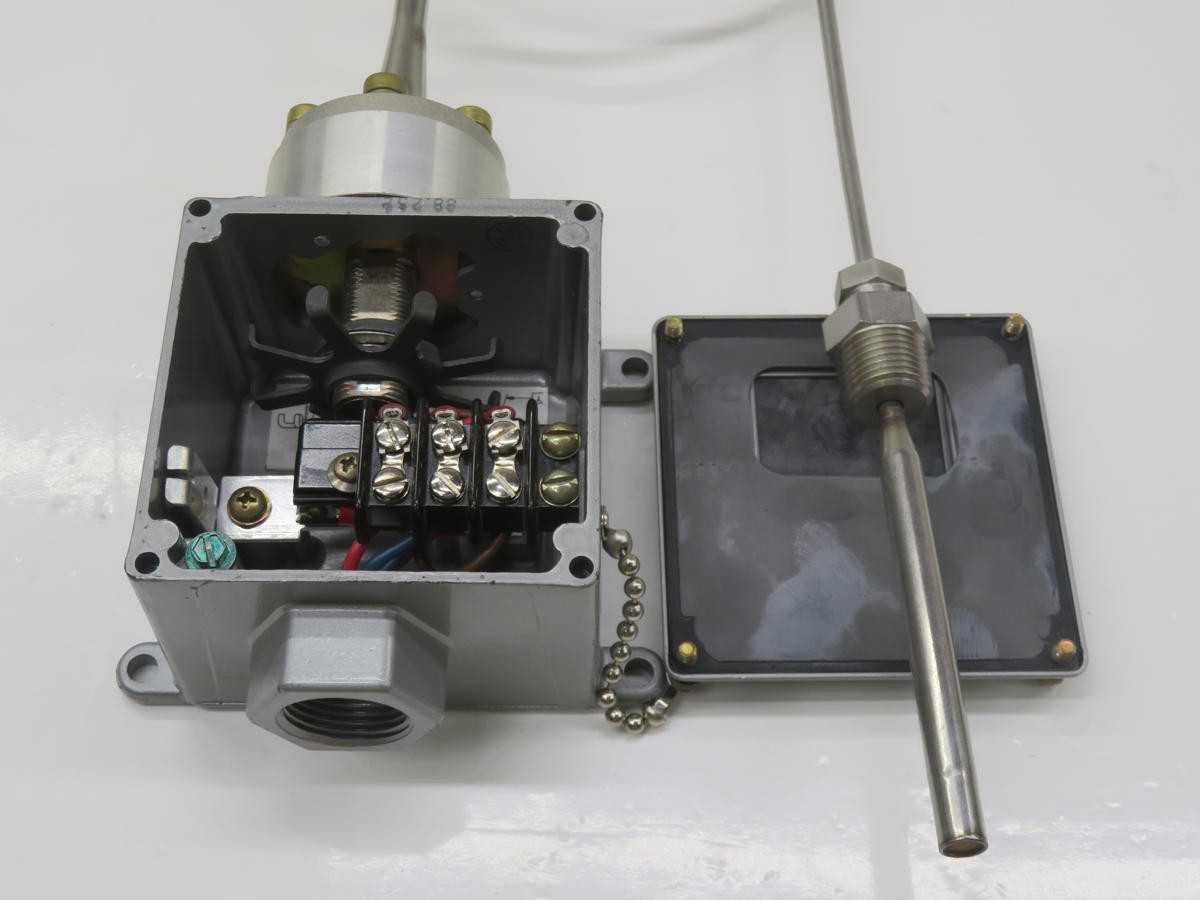

THE CUSTOM CONTROL SENSORS MODEL 604TU3 IS AN INDUSTRIAL TEMPERATURE SWITCH DESIGNED FOR BOTH HAZARDOUS AND GENERAL-PURPOSE APPLICATIONS. IT OPERATES WITH AN ELECTRICAL CONTACT RATING FOR CIRCUITS UP TO 125V OR 480V. THE UNIT INCORPORATES A REMOTE-MOUNT, LIQUID-FILLED THERMAL SYSTEM, TYPICALLY FEATURING A 304 STAINLESS STEEL BULB AND A 6-FOOT (1.8-METER) CAPILLARY FOR ACCURATE TEMPERATURE SENSING. ITS ADJUSTABLE SET POINT RANGE COMMONLY SPANS 0°F TO 250°F (-17.8°C TO 121.1°C), EXHIBITING A TYPICAL REPEATABILITY OF ±1% OF FULL SCALE. THE ELECTRICAL SWITCH OUTPUT IS COMMONLY A SINGLE POLE DOUBLE THROW (SPDT) CONFIGURATION, RATED FOR 10 AMPS RESISTIVE AT 125/250 VAC AND 5 AMPS RESISTIVE AT 480 VAC. THE ROBUST ENCLOSURE PROVIDES EXPLOSION-PROOF AND WEATHERPROOF PROTECTION, MEETING NEMA 4, 7, 9, 13 AND IP66 STANDARDS. PROCESS CONNECTION IS TYPICALLY A 1/2-INCH NPT MALE THREAD.
