Daikin Industries AKZ328-X Chillers, 2.8 kW Capacity, 220V 3-PH Power, 10-50C Temp Range

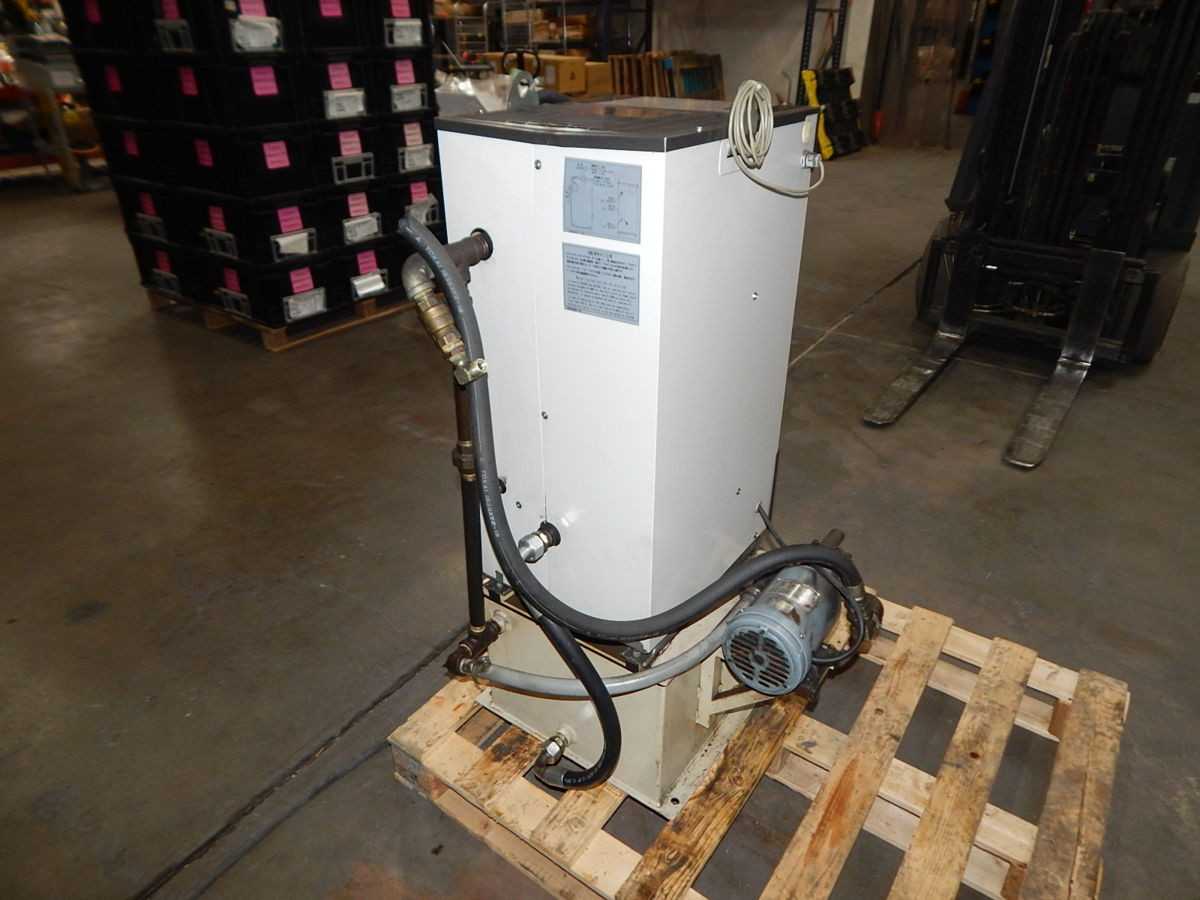

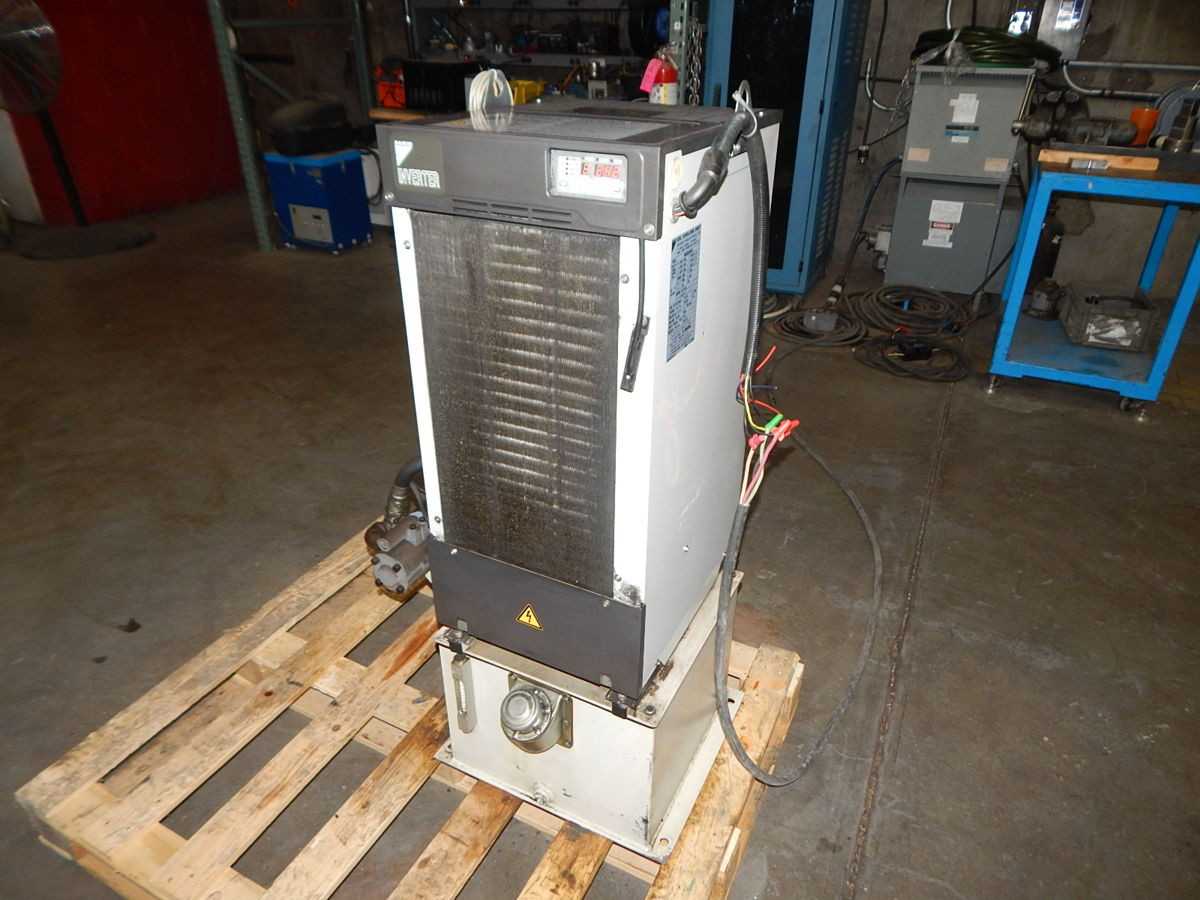

The Daikin Industries AKZ328-X is an oil cooling unit designed for industrial chiller applications. It operates on a 220 VAC, 3-phase power supply, providing a cooling capacity of 2.8 kW. The unit utilizes R407C refrigerant, with a charge of approximately 1.2 kg. It features an oil outlet temperature setting range of 10 to 50°C, managed by a PID control system incorporating an electronic expansion valve. The refrigeration circuit employs a hermetic scroll compressor. Physical specifications include approximate dimensions of 380 mm width, 600 mm depth, and 650 mm height, with an approximate weight of 65 kg.
