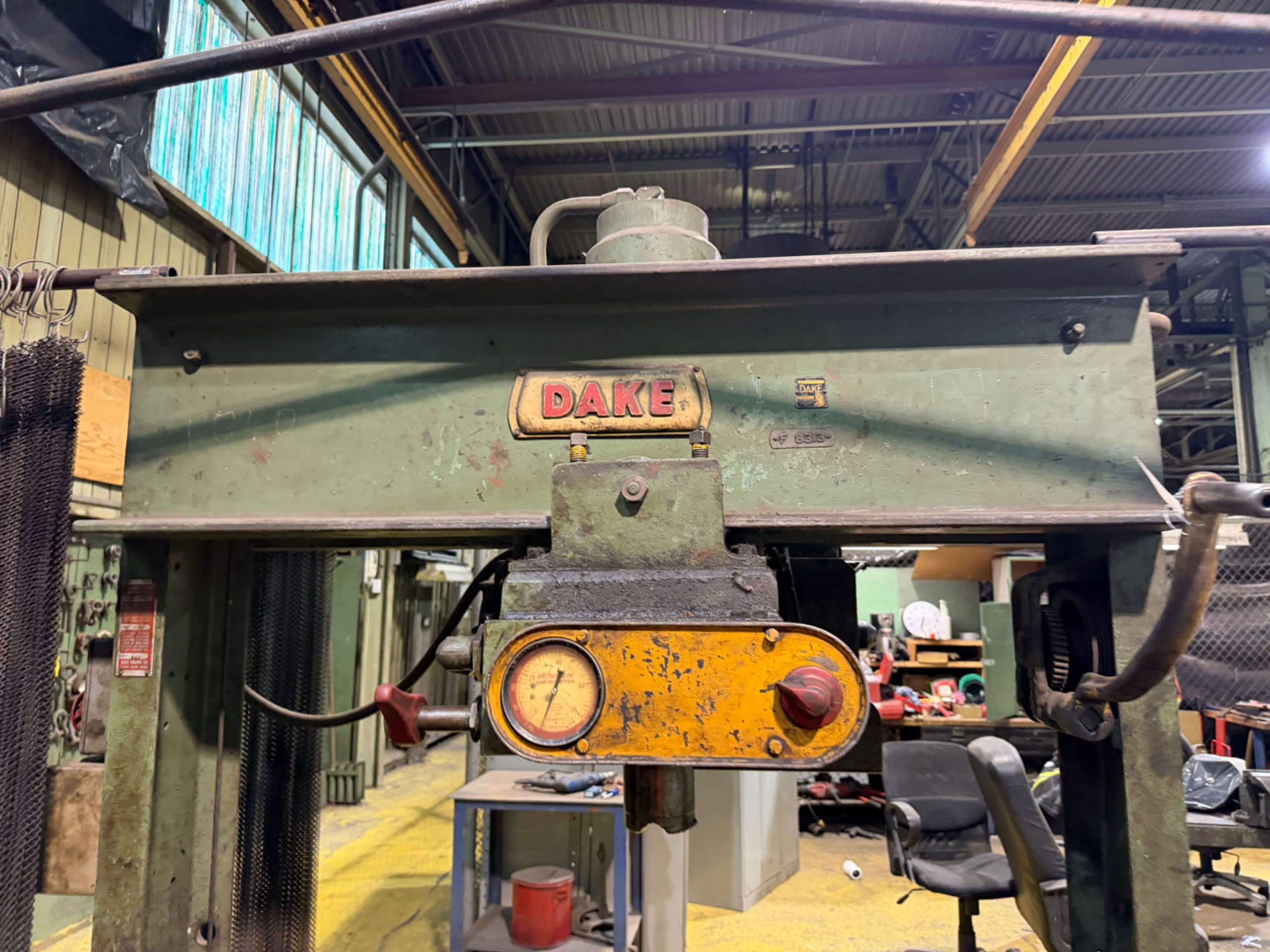

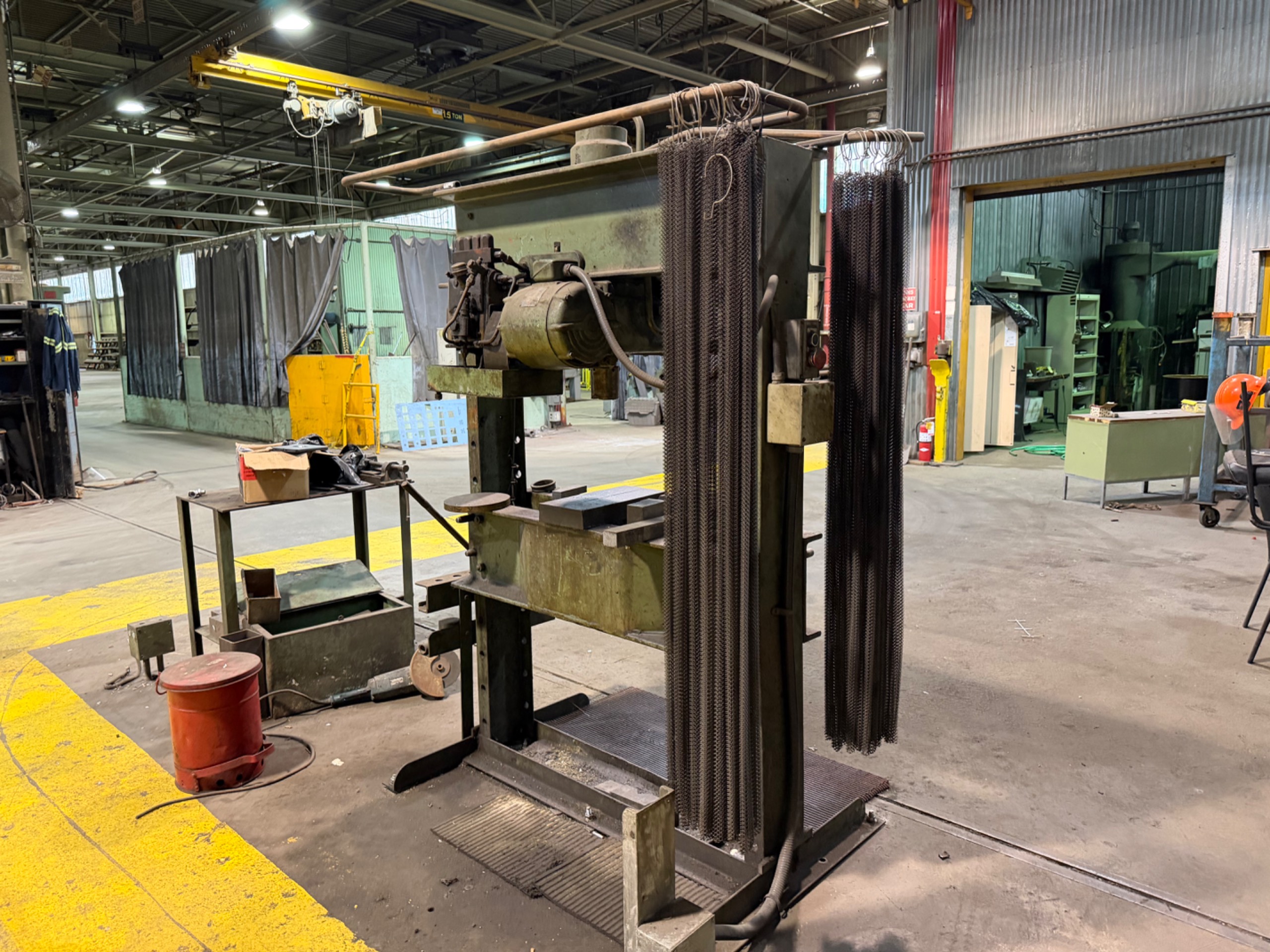

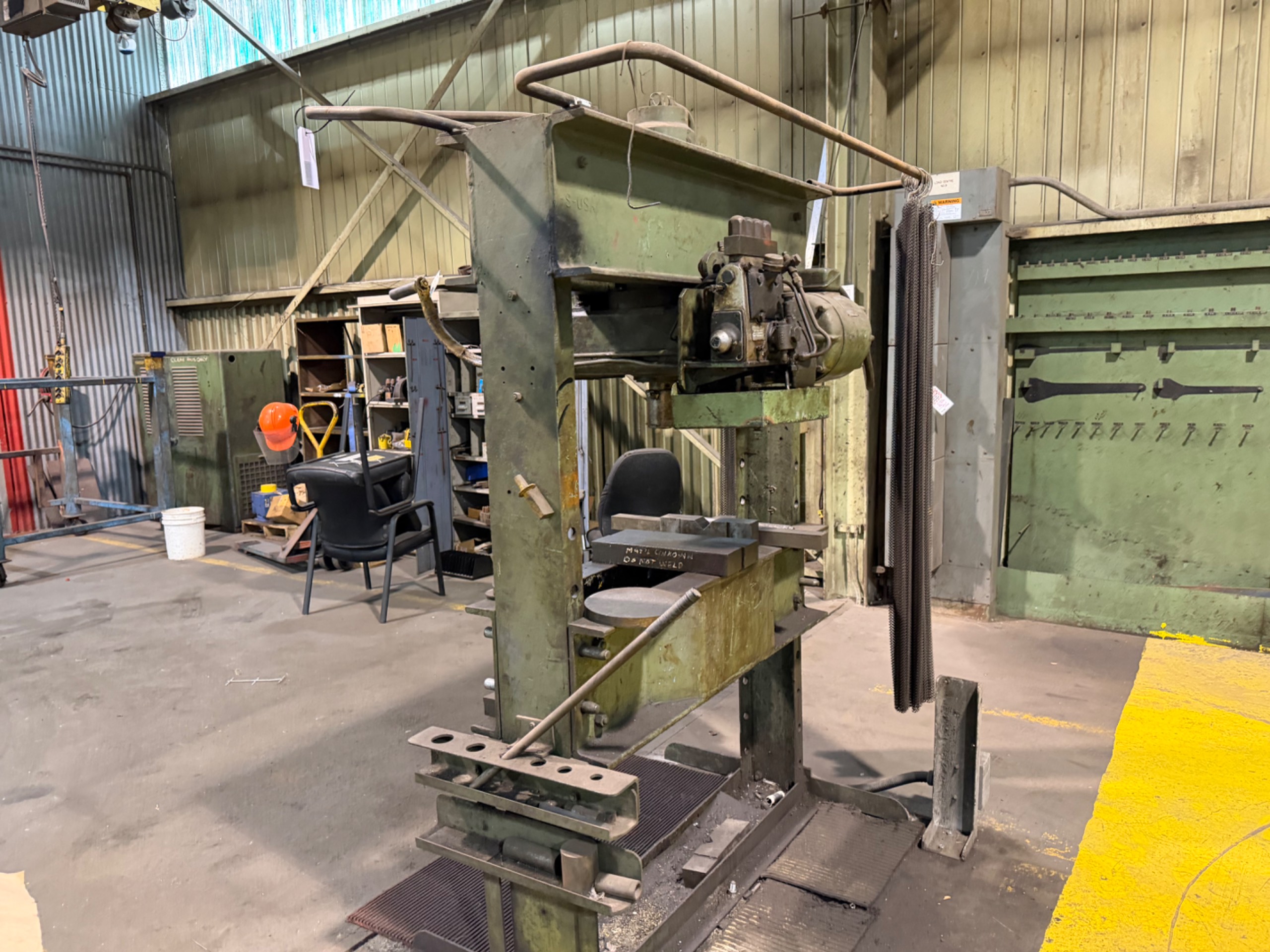

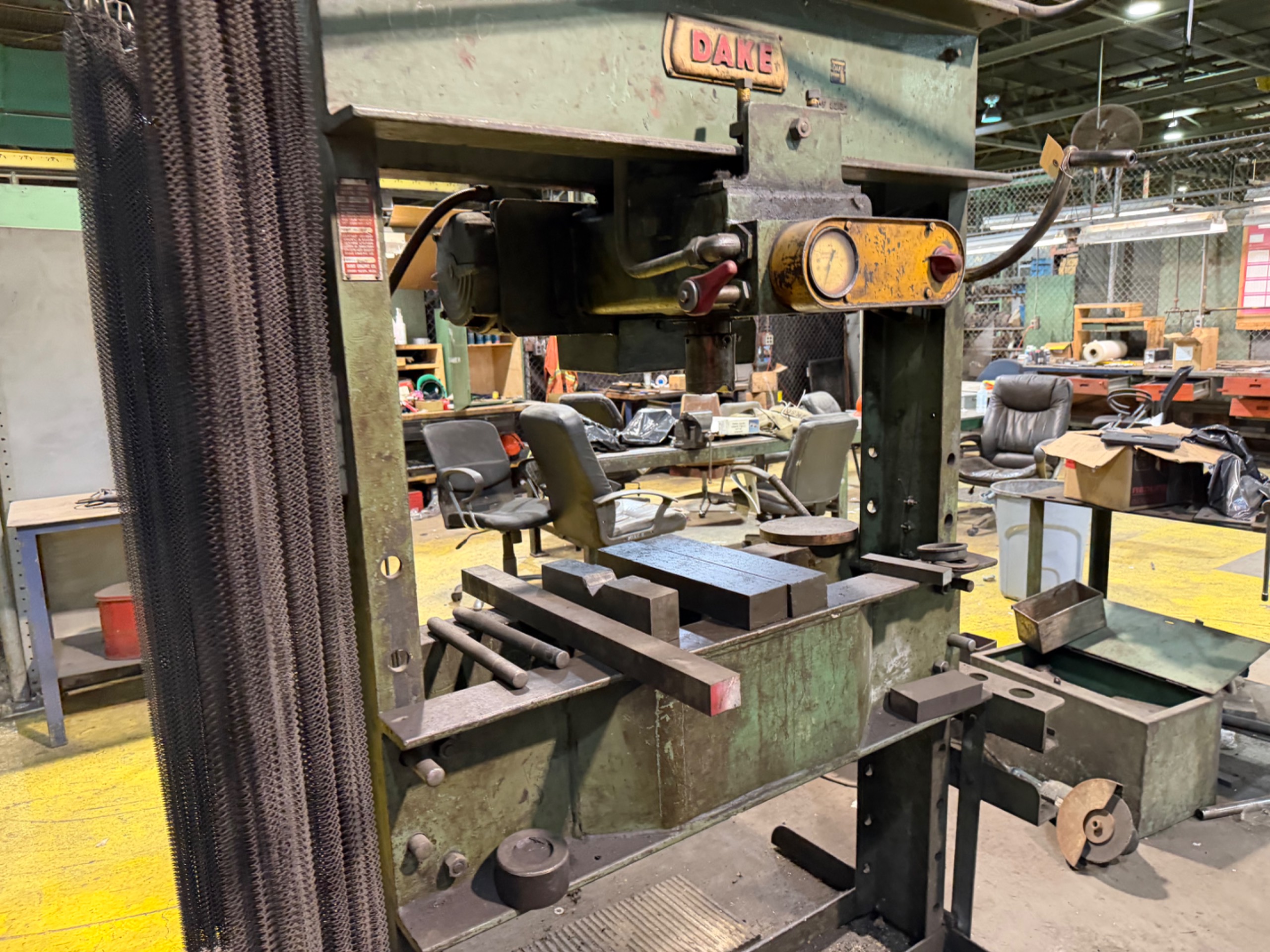

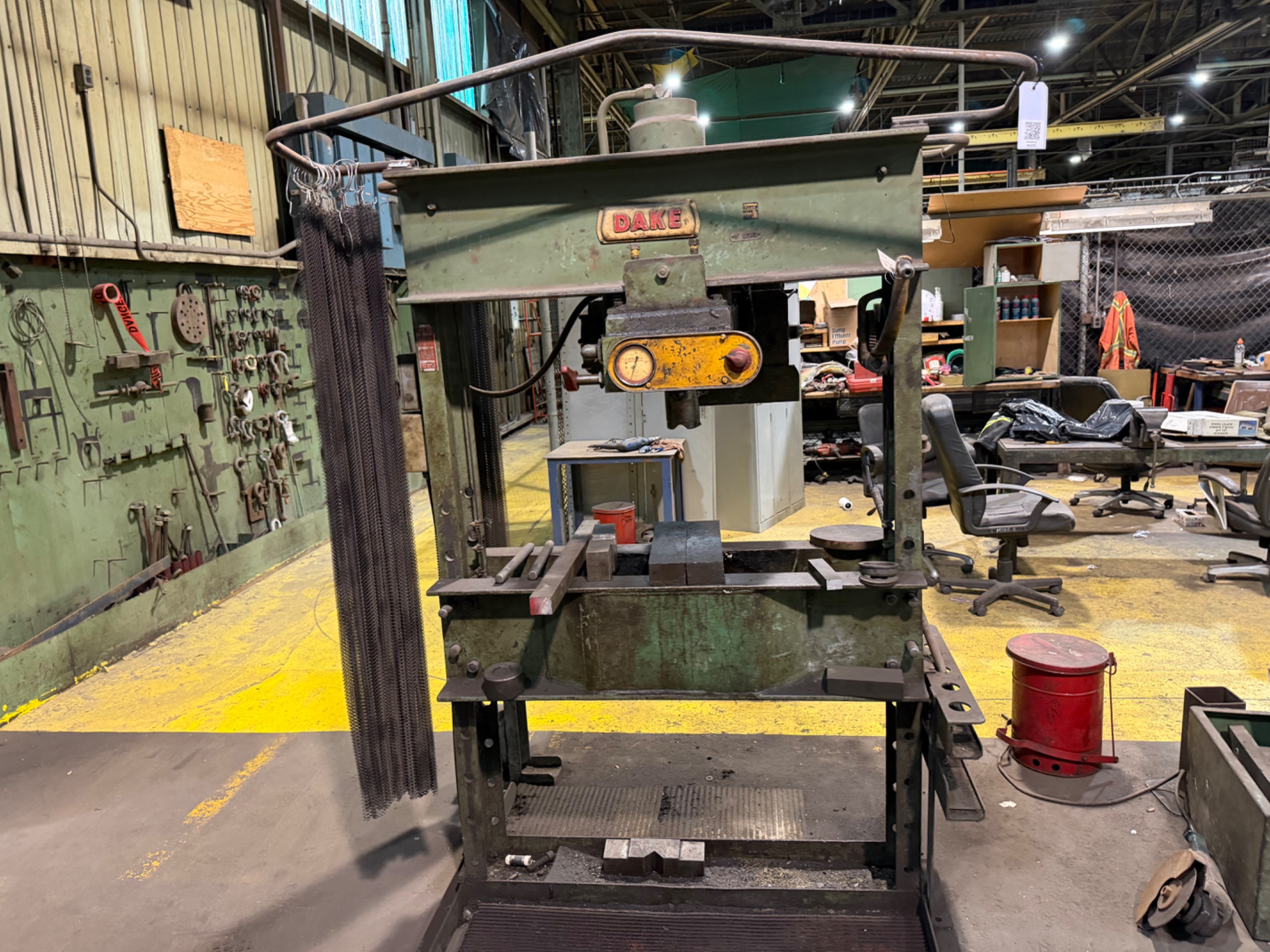

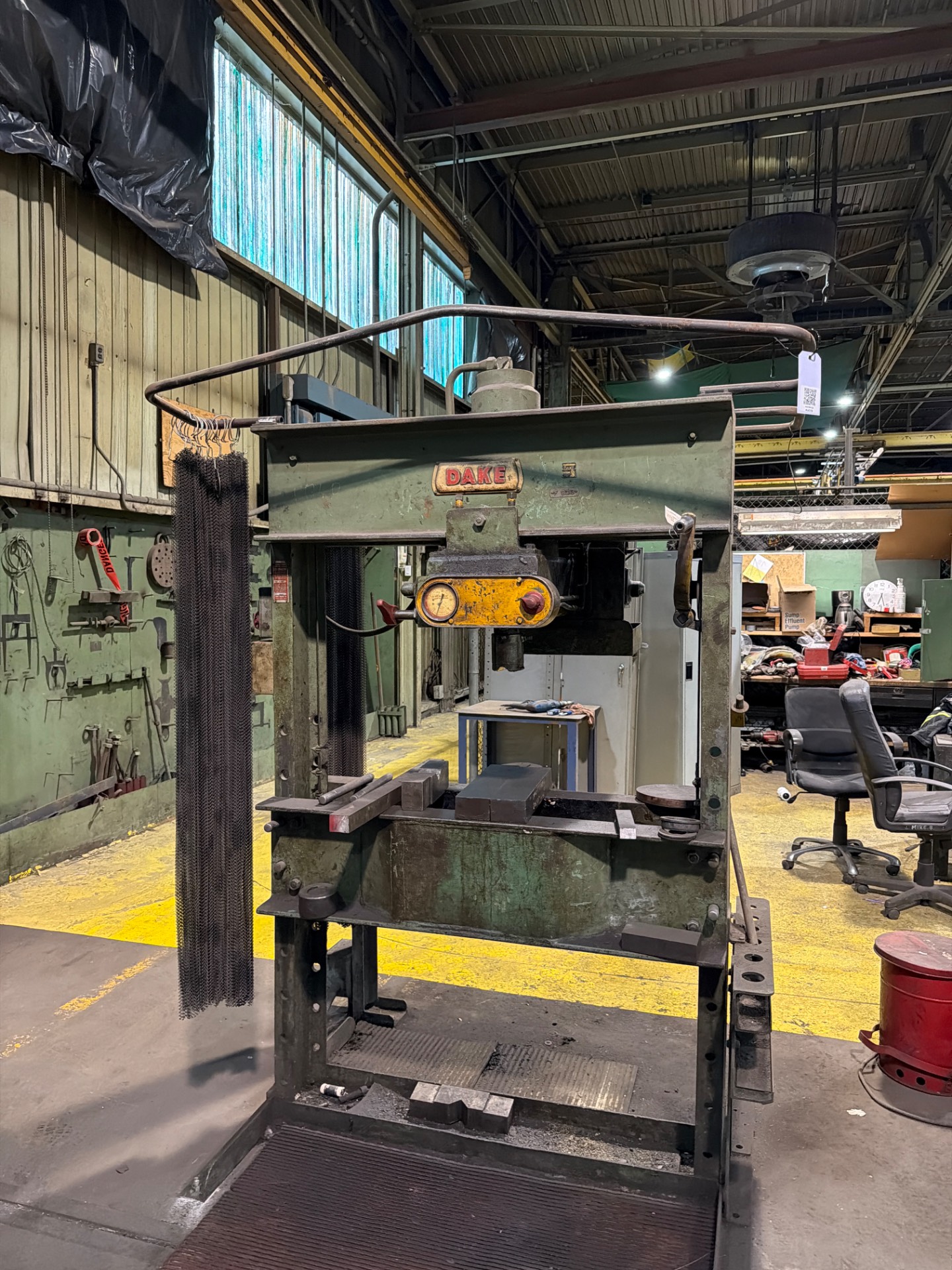

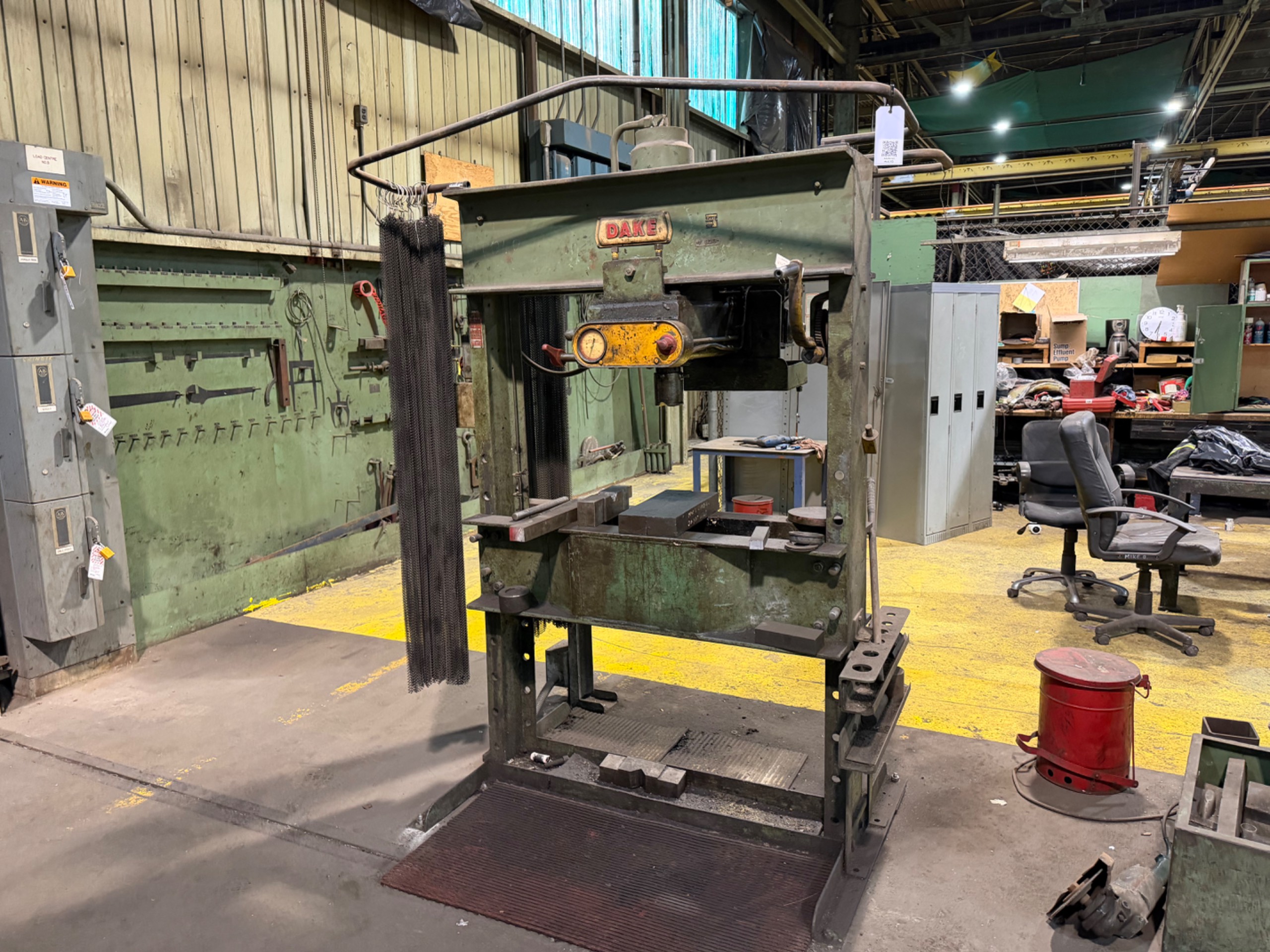

Dake 5-017 75-Ton Hydraulic H-Frame Press, 4.5in Stroke, 44in Between Uprights, Manual Pump

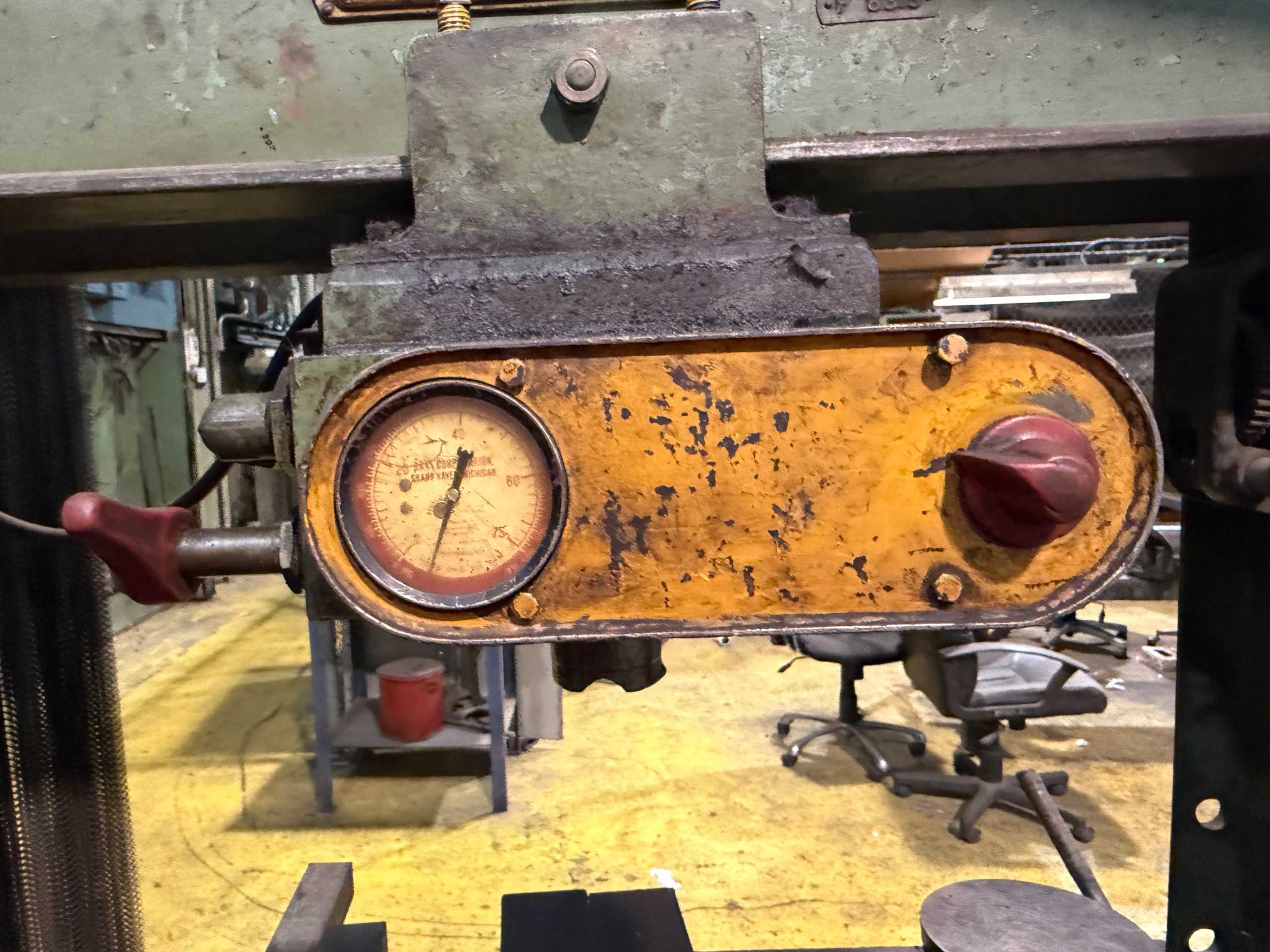

The Dake model 5-017 is a 75-ton capacity hand-operated hydraulic H-frame press designed for heavy-duty applications such as straightening, bending, and assembly. This manual press features a single-acting cylinder and a high-efficiency hand pump for precise pressure control. The frame is constructed from heavy-duty arc-welded steel to ensure rigidity and durability. Key technical specifications include a width of 44 inches between the uprights and 8.25 inches between the table channels. The machine offers a maximum ram-to-table distance of 36 inches and a minimum distance of 4 inches. The ram has a total travel stroke of 4.5 inches, supplemented by a 7-inch screw travel for quick adjustments to the work area. To facilitate the handling of large or heavy workpieces, the press is equipped with a self-locking hoist for easy vertical movement of the table. Standard equipment typically includes a pressure gauge for monitoring force, two forged steel V-blocks, and two forged steel table plates. The unit stands approximately 87 inches tall with a base footprint of 55 by 36 inches and a total weight of approximately 1,200 lbs.
